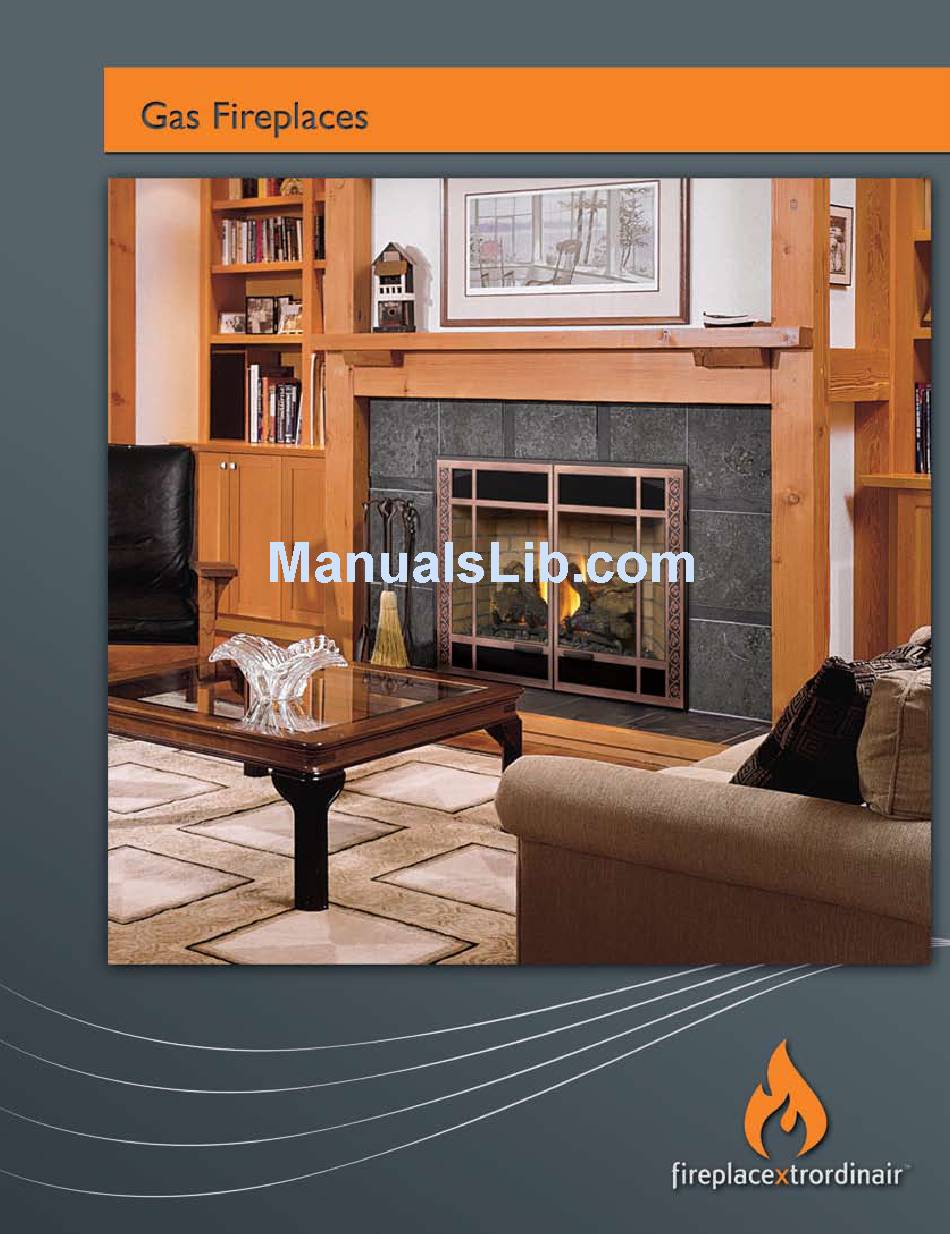

Page 2: Living Room
Imagine A Fireplace For Every Room A home is a combination of dreams and choices, each a reflection of you. From the most intimate engraved details on a fireplace face to the grandest of fires, our fireplaces bring a sense of peace and tranquility to your home. - Page 3 BATHROOM You will find that this brochure is divided into three sections. Section One Outlines all the beautiful faces designs available for your Fireplace Xtrordinair gas fireplace. Picture the irresistible appeal of fire, framed in unique and rich metalwork that includes finishes such as hand- hammered copper or nickel, in a variety of architectural styles.

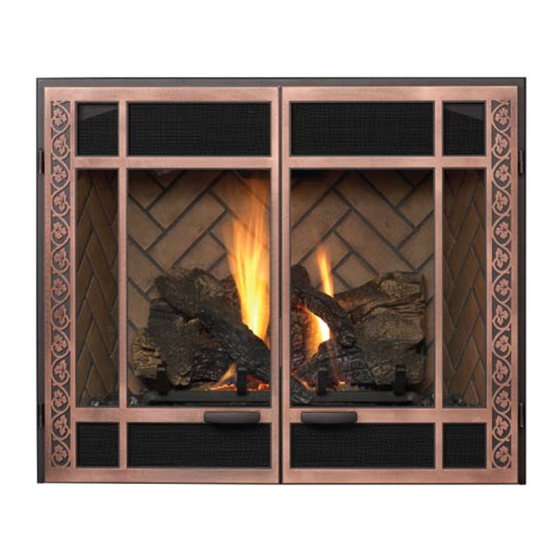

- Page 4 Architectural Double Doors ™ ARCHITECTURAL ™ doors offer an elegant collection of rectangular and arched black painted double doors for the 564 SS and 864 TRV, 864 HH and 864 See-Thru fireplaces. These beautiful doors, which can be opened, create the illusion of a much larger fireplace.
- Page 5 Rectangular Double Doors Architectural ™ Rectangular Double Doors Choose the basic Metallic Black Paint Finish or add one of the beautiful antique finished Onlays. The Classic ™ Onlay is available in an Antique Bronze finish and features the detailed lace-like appearance of the “Original” Fireplace Xtrordinair Classic design.
- Page 6 Classic Arch Faces ™ Section 1 - Faces...
- Page 7 Classic Arch Faces ™ This living area features the Model 36 DV-XL with Brushed Nickel Classic Arch™ face and includes the optional brick fireback. This study features the Model 36 DV-XL Classic Arch, shown in black paint finish with optional firebrick.
- Page 8 ™ French Country Arched Faces Section 1 - Faces...
- Page 9 French Country ™ Arch Faces This great room features the Model 44 DV-XL with the an- tique gold French Country™ face and includes the optional brick fireback. Model 564 shown with black painted French Country face and optional brick fireback. French Country, in black metallic painted finish with optional brick fireback.
- Page 10 ™ Metropolitan Faces Section 1 - Faces...
- Page 11 www.fireplacex.com Metropolitan™ Faces Metropolitan™ face may be installed on all Fireplace Xtrordinair fireplaces. This fireplace design features the same beautiful grillwork of the Clas- sic Collection, but in a more linear, retro style. The beveled edges of the Metro- politan face design also create an intriguing, three-dimensional appearance. Model 564 Space Saver shown with Brushed Nickel Metropoli- tan face and Herringbone brick fireback.
- Page 12 Matrix ™ Face Matrix ™ Face Section 1 - Faces...
- Page 13 Matrix™ Face Matrix ™ face offers a fresh, modern look to gas fireplaces. The Matrix™ by Fireplace Xtrordinair is a contemporary styled facing designed for “making a statement” without the need for a traditional mantel or surround. Most importantly, its three-dimensional geometric design features offset, layered crimson pin- stripe over black in a structured geometric grid.
- Page 14 Artisan Faces Artisan Faces ™ ™ Section 1 - Faces...
- Page 15 Artisan ™ Face Collection Artisan™ fireplace face design and craftsmanship are reminiscent of the ironwork in the Great Lodges of Europe and America. The Artisan face is hand-forged and hammered by master blacksmiths in Europe. Each face bears unique, subtle characteristics from the hands of its creator, making it an individual work of art in iron.
- Page 16 Bed & Breakfast ™ Section 2 - Fireplaces...
- Page 17 Bed & Breakfast ™ (21 TRV) As the name Bed & Breakfast™ suggests intimacy and coziness, this gas fireplace embod- ies these very ideals. The Bed & Breakfast is designed for corner or limited space instal- lations in small intimate settings such as bedrooms, baths and kitchens. The "Portrait" design of the fireplace offers a generous fire viewing area (303 sq.
- Page 18 564 Space Saver 564 Space Saver ™ ™ Shown with Antique Gold French Country Arched face and Common Brick Firebrick. Liner. 564 Space Saver Face Options Black Grill Set Black Painted Brushed Nickel Black Painted Brushed Nickel Plated Black Painted Metropolitan™...
- Page 19 564 SS - Space Saver The 564 SS (Space Saver) is designed to offer a large viewing area along with comfortable heating for the smaller rooms of your home - up to 950 sq. ft with the optional fan. With its consistent, radiant and convective heat and the re- duced dimensions, this fireplace is ideal for zone heating in bedrooms, dens and intimate spaces that do not require a great deal of heat.
- Page 20 864 TRV Shown with charcoal painted Artisan™ face. 864 TRV Face Options Black Grill Set Black Painted Brushed Nickel Black Painted Black Painted Brushed Nickel Classic Arch Classic Arch French Country™ (Arch Accent is removable) Metropolitan™ Metropolitan™ 41" W x 36 5/8" H 40 3/4"...
- Page 21 864 TRV - Top/Rear Vent The 864 TRV top or rear vent is perfect for warmer climates, smaller spaces, or a beautiful, decorative fire all year long. It features a wide BTU turn down range for more heat flexibility and flame viewing options. A wide range of face styles and options are available to create an Xtrordinary fire.
- Page 22 864 HH Face Options Black Grill Set Black Painted (Arch Accent is removable) Metropolitan™ 41" W x 36 5/8" H 40 3/4” W x 35 1/2” H Section 2 - Fireplaces 864 Home Heater Brushed Nickel Black Painted Metropolitan™ Classic Arch 40 3/4”...
- Page 23 864 HH - Home Heater The 864 HH Home Heater offers more heat for colder climates and heats larger spaces - up to 2,250 sq. ft. Heat can be distributed to two additional heat zones for faster heat distribution to those rooms. The 864 HH includes the award-winning Ember-Fyre™...
- Page 24 864 S ee-Thru Face O ptions Black Painted Black Grill Set Metropolitan™ (Arch Accent is removable) 41” W x 36 5/8” H 40 3/4" W x 35 5/8" H Section 2 - Fireplaces 864 See-Thru 864 See-Thru Shown with arched Architectural Double Doors with Bronze Onlays and Common Brick Fireback.
- Page 25 864 S ee-Thru A home is a combination of dreams and choices, each a reflection of you. From the most intimate engraved details on a fireplace face to the grandest of fires, our fireplaces bring a sense of tranquility to your home. The 864 ST maintains this tranquility with a perfect balance between the firebox, logs and flames.
- Page 26 36 D V -X L Face O ptions Black Painted Metropolitan™ 38" W x 27 1/2" H Section 2 - Fireplaces Model 36 DV-XL Shown with Brushed Nickel Classic Arched face and Brick Fireback. Brushed Nickel Black Painted Metropolitan™ Classic Arch 38"...
- Page 27 36 D V -X L - Top V ent The 36 DV XL is our most popular model gas fireplace. The 36 DV XL is sized to heat a larger space, typical of today’s homes. It features high efficiency, ever-changing flame patterns from the patented Ember-Fyre™...
- Page 28 Model 44 DV-XXL Shown with Antique Gold French Country arched face and Brick Fireback. 44 D V -X X L Face O ptions Black Painted Brushed Nickel Black Painted Classic Arch Classic Arch Metropolitan™ 46" W x 33 7/8" H 46"...
- Page 29 44 D V -X X L The 44 DV XXL, our largest gas fireplace, features an impres- sive 30,000-58,000 BTU heating range, high efficiency, realis- tic logs and flames and numerous installation options. The 44 DV XXL is another example why this is the only fireplace line that can be called Xtraordinary.
-
Page 30: Section 3 - Installation
Pre-M anufactured Installation Systems Now it is easy to choose a fireplace system, and it can be installed in an afternoon. Fireplace Xtrordinair, Hearth Classics™, J. C. Huffman™ and Grand Mantel™ have joined together to provide a one-stop solution. You select from the highest-quality gas fire places, tile or stone hearth products, and custom wood mantels -- all designed to work in perfect harmony. - Page 31 Wall Thermostat or Remotes operation of your fireplace. The Omega remote allows for ON/OFF and thermostat controls along with modulating (high to low) control of flame heat, blower speed and accent light intensity. Not available for the 36 DV-XL or 44 DV-XXL. O utdoor Room Installation The outdoor living room is the most asked for room addition found in new home construction and remodels.
- Page 32 Section 3 - Installation...
- Page 33 www.fireplacex.com...
- Page 34 Fireplaces The dimensions and clearances on this page are for reference only! Refer to the Owner’s Manual prior to installation S P E C IF IC A T IO N S Height (including standoffs) Width Depth Flue Diameter Unit Weight Burner System Glass Area (will vary slightly with face plate design)
- Page 35 See-T h r u 864 See-Thru ⁄ " 41" 41" 24" ⁄ " (Includes clearance) 8" ( 8" ( ") Top vent can be reduced to 6 ⁄8 275 lbs. 225 lbs. 2 Stage Pan Burner Ember Fyre™* Each side 36" W x 24" H = 1728 sq. in. 36"...
-
Page 36: Warranty
Warranty Your gas fireplace is backed by up by a network of Specialty Hearth Dealers and certified factory trained Installers. Fireplace Xtrordinair warrants our products to be free from defects in material and workmanship for a period of 5 years from date of purchase. All parts, electronics (except light bulbs and filter), and labor are covered for a full 2 years. Trim and faces are covered for a period of one year.
