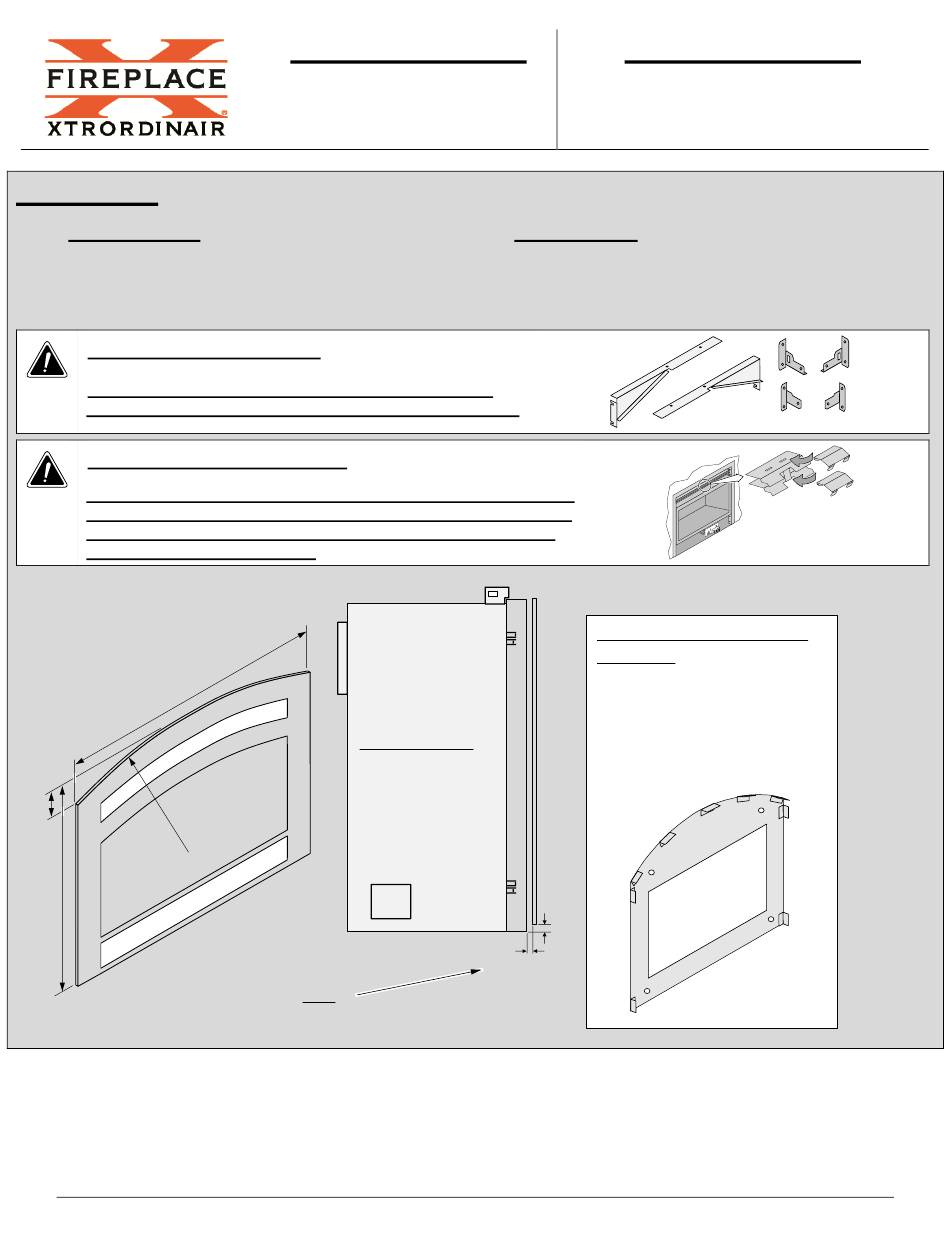

564 Faces
Compatibility:
• 564 SS GS2 & GSR2
• 564 25K
• 564 HO
• 564 35K
564 GAS FIREPLACES ONLY:
The FPX Face Upgrade Kit (sku# 98500683) must be
installed prior to installing the facing material and face.
564 SS GAS FIREPLACES ONLY:
The center deflectors must be in place when using this face to
prevent the facing above the fireplace from becoming too hot.
If this face is replacing a Lopi Grill (96200801), make sure to
replace the center deflectors.
36"
2-3/4"
61"Radius
29"
Page 1 of 5
564 Arched Face
Classic Black 95400402
French Country Black 95400408
Artisan Charcoal 95400418
Artisan Patina Bronze 95400417
Metalsmith 95400440
SIDE OF FIREPLACE
NOTE:
This face has an adjustable bracket that allows for
different facing depths to be tucked under the face.
17602069 - 10/16/20
864 Arched Face
Classic Black: 99300497
Artisan Charcoal: 99300498
French Country Black: 95800616
Artisan Patina Bronze 95800621
Packing List:
• Face
• (2) 564 SS Top Brackets (w screws)
• (2) 10-24 1-1/2" Screws
• (4) 8-32 Nuts
NOTE FOR THICK FACING (BRICK,
ROCK, ETC.):
The Fireplace Xtrodinair 564 Set-Up
Face is recommended for masonry
installation (98500674). The set-up face
helps locate and support the masonry
during installation.
1"
5/16" TO 1"
Metalsmith 95800746
