Free Layout

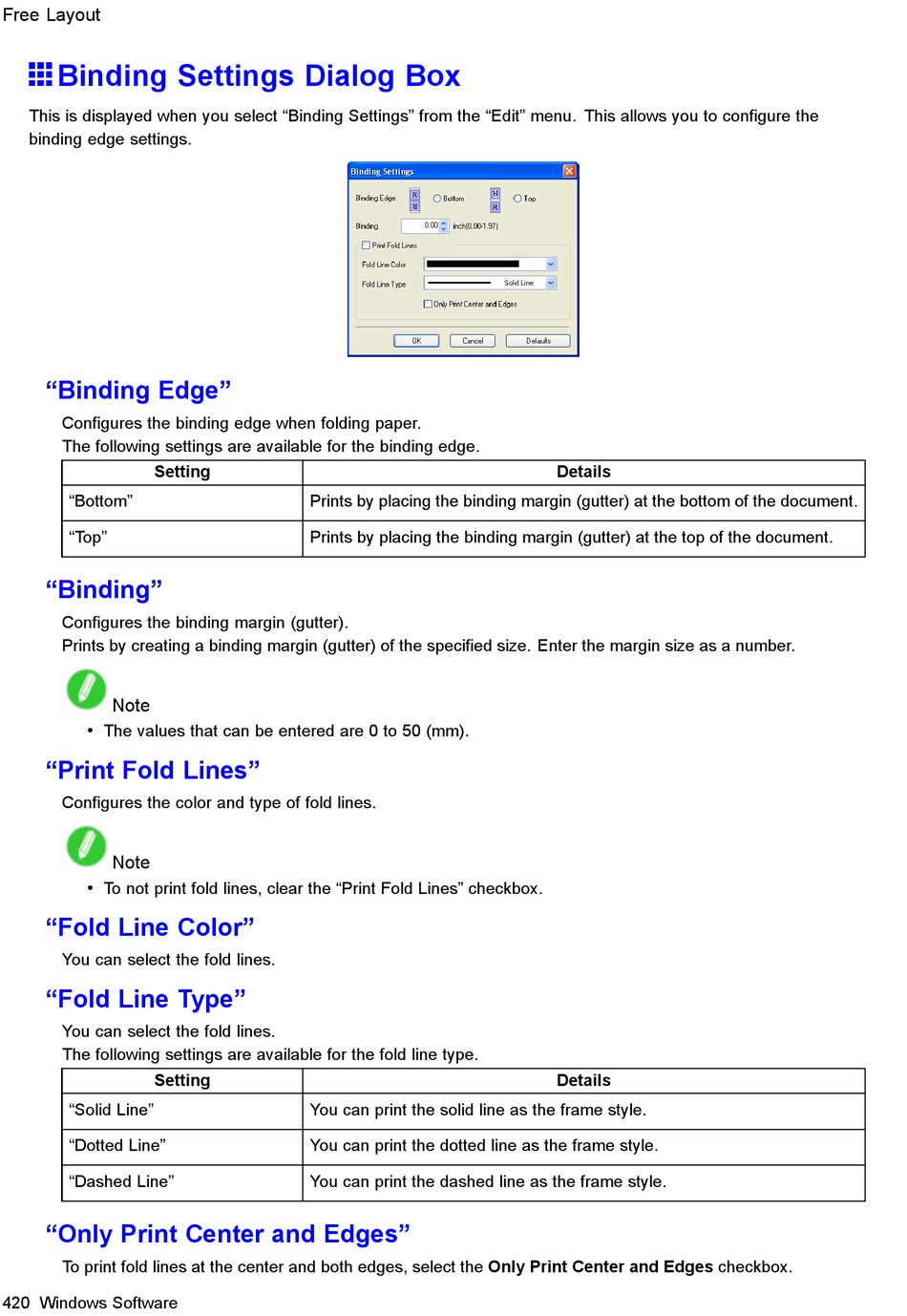

Binding Settings Dialog Box

This is displayed when you select "Binding Settings" from the "Edit" menu. This allows you to congure the
binding edge settings.

"Binding Edge"

Congures the binding edge when folding paper.
The following settings are available for the binding edge.
Setting
"Bottom"
"Top"
"Binding"
Congures the binding margin (gutter).
Prints by creating a binding margin (gutter) of the specied size. Enter the margin size as a number.
Note
•
The values that can be entered are 0 to 50 (mm).

"Print Fold Lines"

Congures the color and type of fold lines.
Note
•
To not print fold lines, clear the "Print Fold Lines" checkbox.

"Fold Line Color"

You can select the fold lines.

"Fold Line Type"

You can select the fold lines.
The following settings are available for the fold line type.
Setting
"Solid Line"
"Dotted Line"
"Dashed Line"

"Only Print Center and Edges"

To print fold lines at the center and both edges, select the Only Print Center and Edges checkbox.
420 Windows Software
Prints by placing the binding margin (gutter) at the bottom of the document.
Prints by placing the binding margin (gutter) at the top of the document.
You can print the solid line as the frame style.
You can print the dotted line as the frame style.
You can print the dashed line as the frame style.
Details
Details
