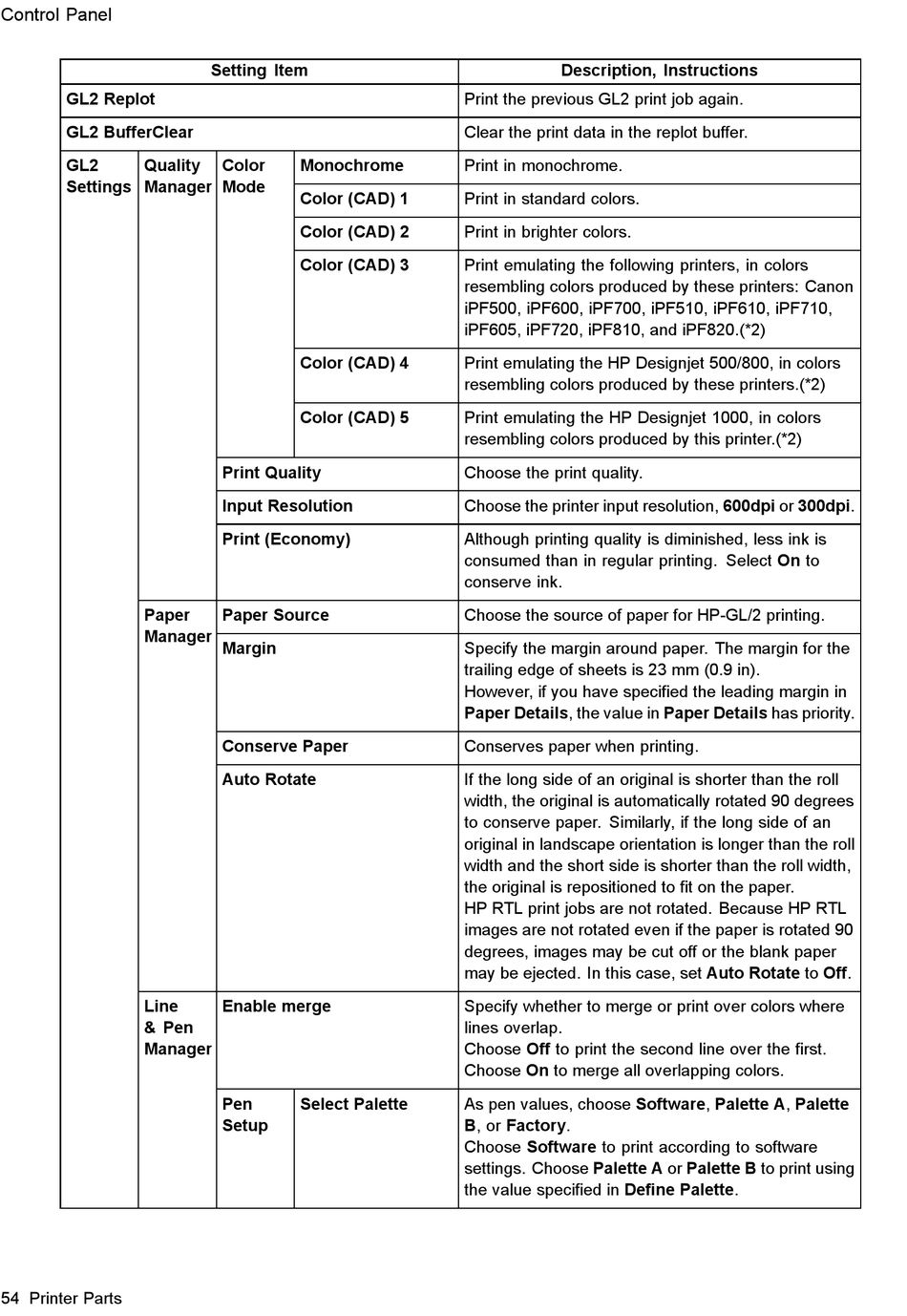

Control Panel
GL2 Replot
GL2 BufferClear
GL2 Quality
Settings Manager
Paper
Manager
Line
& Pen
Manager
54 Printer Parts
Setting Item
Color Monochrome
Mode
Color (CAD) 1
Color (CAD) 2
Color (CAD) 3
Color (CAD) 4
Color (CAD) 5
Print Quality
Input Resolution
Print (Economy)
Paper Source
Margin
Conserve Paper
Auto Rotate
Enable merge
Pen Select Palette
Setup
Description, Instructions
Print the previous GL2 print job again.
Clear the print data in the replot buffer.
Print in monochrome.
Print in standard colors.
Print in brighter colors.
Print emulating the following printers, in colors
resembling colors produced by these printers: Canon
iPF500, iPF600, iPF700, iPF510, iPF610, iPF710,
iPF605, iPF720, iPF810, and iPF820.(*2)
Print emulating the HP Designjet 500/800, in colors
resembling colors produced by these printers.(*2)
Print emulating the HP Designjet 1000, in colors
resembling colors produced by this printer.(*2)
Choose the print quality.
Choose the printer input resolution, 600dpi or 300dpi.
Although printing quality is diminished, less ink is
consumed than in regular printing. Select On to
conserve ink.
Choose the source of paper for HP-GL/2 printing.
Specify the margin around paper. The margin for the
trailing edge of sheets is 23 mm (0.9 in).
However, if you have specied the leading margin in
Paper Details, the value in Paper Details has priority.
Conserves paper when printing.
If the long side of an original is shorter than the roll
width, the original is automatically rotated 90 degrees
to conserve paper. Similarly, if the long side of an
original in landscape orientation is longer than the roll
width and the short side is shorter than the roll width,
the original is repositioned to t on the paper.
HP RTL print jobs are not rotated. Because HP RTL
images are not rotated even if the paper is rotated 90
degrees, images may be cut off or the blank paper
may be ejected. In this case, set Auto Rotate to Off.
Specify whether to merge or print over colors where
lines overlap.
Choose Off to print the second line over the rst.
Choose On to merge all overlapping colors.
As pen values, choose Software, Palette A, Palette
B, or Factory.
Choose Software to print according to software
settings. Choose Palette A or Palette B to print using
the value specied in Dene Palette.
