Canon iPF655 Service Bulletin

Canon large format printer service bulletin

Hide thumbs Also See for iPF655:

Download this manual See also: Basic Manual, User Manual

Model:

iPF650/655

iPF750/755

Location:

Platen & Guide Unit

Subject:

Change of plastic sheet in the Tube Guide Unit

Detail:

1. Outline

To prevent the plastic sheet on the TUBE GUIDE UNIT to peel off or to be lifted at the edge, its material has been

changed.

2. Contents

Peeling off/lifting of the edge of the plastic sheet on the TUBE GUIDE UNIT might cause the sheet to touch the

carriage unit, resulting in a hardware error, 03130031-2F26 (carriage inoperable).

Service Bulletin

Issued by Canon Europa N.V.

Ref No.:

LFP-441

(SIH-10014E)

Date:

July, 2010

Large Format Printer

Hardware

(1/4)

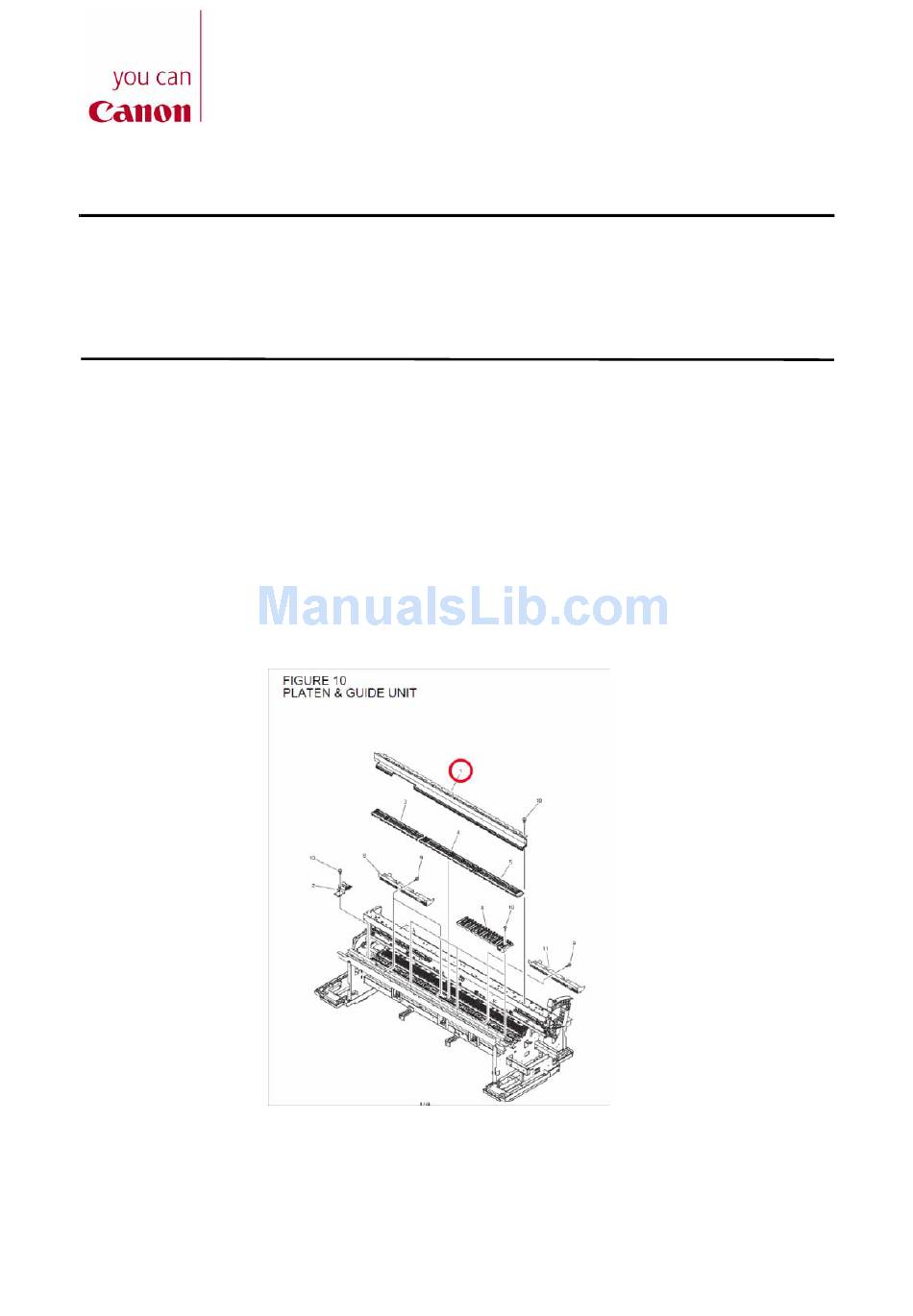

Page 1 Service Bulletin Large Format Printer Issued by Canon Europa N.V. Hardware Model: Ref No.: iPF650/655 LFP-441 iPF750/755 (SIH-10014E) Date: July, 2010 Location: Platen & Guide Unit Subject: Change of plastic sheet in the Tube Guide Unit Detail: 1. Outline To prevent the plastic sheet on the TUBE GUIDE UNIT to peel off or to be lifted at the edge, its material has been changed.
Page 2 LFP-441 To prevent this, the material of the plastic sheet as well as its production process has been changed. (2/4)
Page 3 LFP-441 3. Field measure If the hardware error “03130031-2F26” occurs repeatedly, check the TUBE GUIDE UNIT. If there is a peeling off/ lifting of the plastic sheet, replace the TUBE GUIDE UNIT by following the procedure below. a. For the iPF750/755 (1) Remove the operation panel, upper left cover, upper cover, and rear upper cover.
Page 4 * Pictures are omitted because the disassembly procedure is the same as that of the iPF750/755. 4. Parts: 5. Serial numbers for switching-over: iPF750 EUR 2983B003AA: AAAC3991 or later iPF755 EUR 3432B003AA: AAAJ1503 or later iPF650 EUR 2990B003AA: AAAR0944 or later iPF655 EUR 3433B003AA: AAAX0270 or later (4/4)
