Support Bracket
Dell™ Inspiron™ 535s/537s/545s/546s Service Manual
Removing the Support Bracket
Replacing the Support Bracket
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
Removing the Support Bracket
1. Follow the procedures in Before You
2. Remove the computer cover (see
Inspiron™ 535s/537s

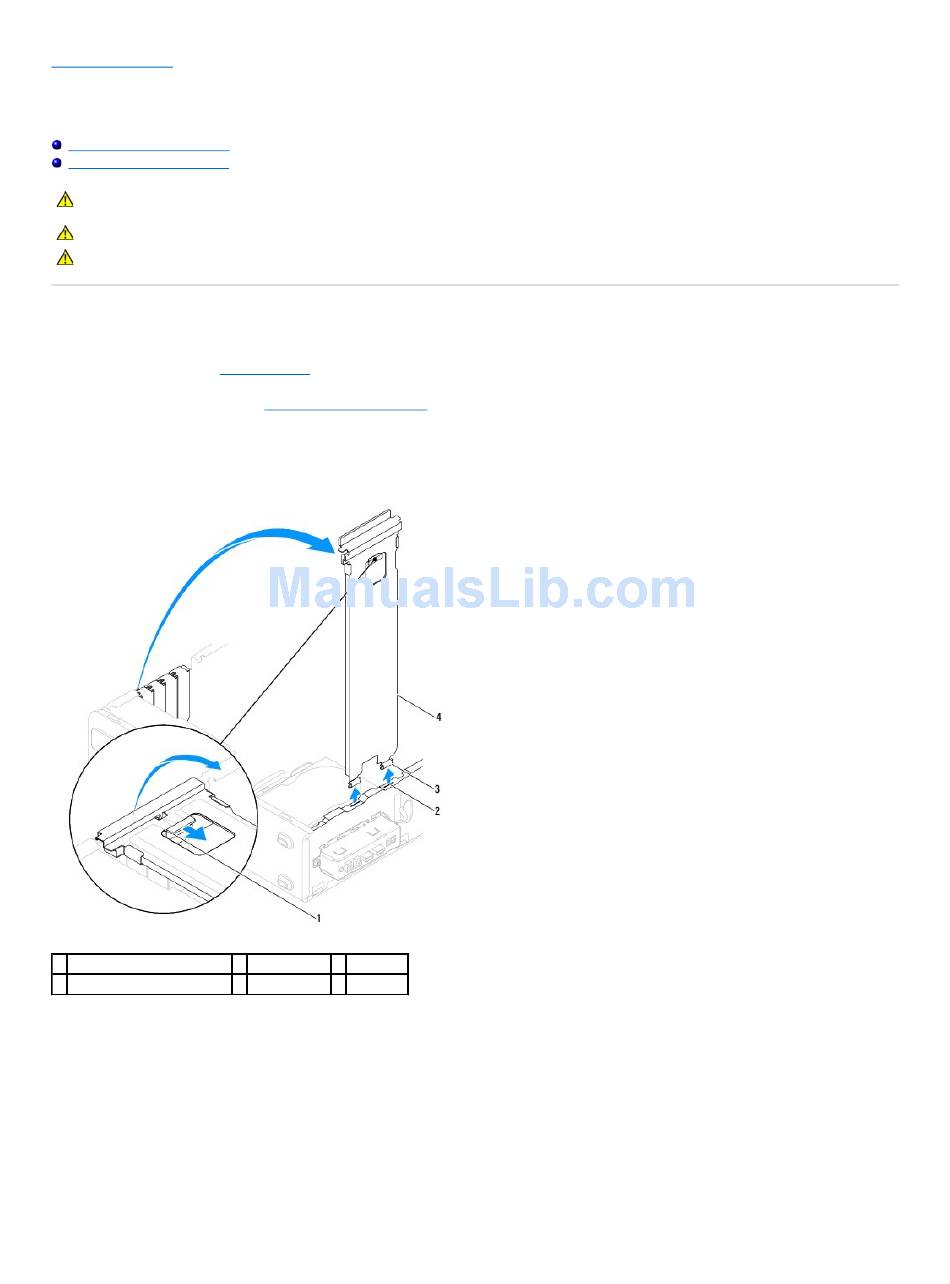

a. Pull back the support bracket release latch and pivot the support bracket up.
b. Lift the support bracket off the hinge tabs and set it aside in a secure place.
1 support bracket release latch 2 hinge tabs (2) 3 hinges (2)
4 support bracket
Inspiron 545s/546s
a. Remove the screw securing the card retention bracket.
b. Push the card retention bracket towards the back of the computer.
c. Pivot the support bracket up and lift it off the hinge tab.
d. Set the support bracket aside in a secure location.
Begin.
Removing the Computer Cover).
