Removing An Optical Drive - Dell Inspiron 535s Service Manual

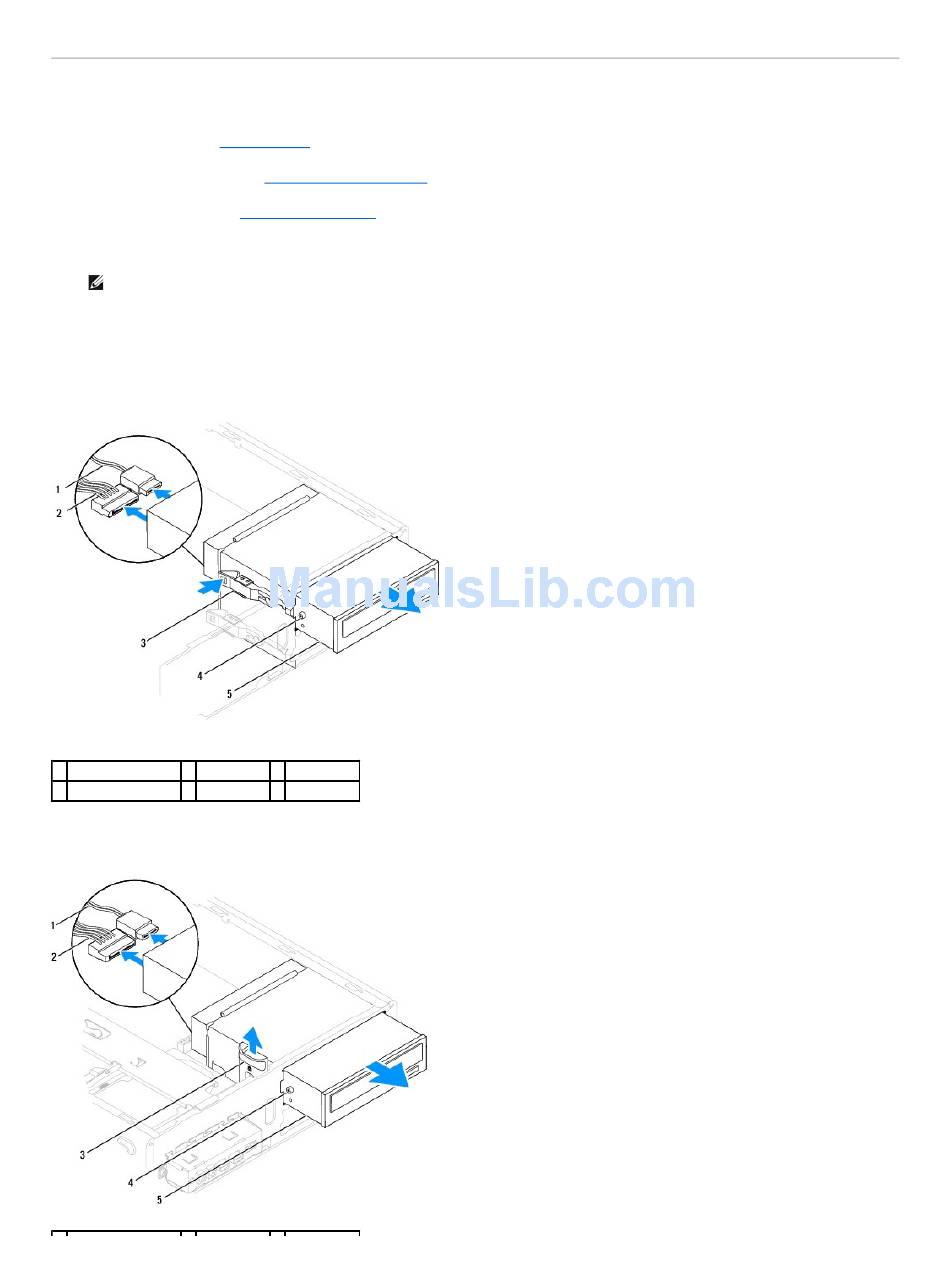

Removing an Optical Drive
1. Follow the procedures in Before You
2. Remove the computer cover (see
3. Remove the front bezel (see
4. Disconnect the power cable and the data cable from the back of the optical drive.
NOTE: If you are not replacing the optical drive at this time, disconnect the other end of the data cable from the system board and set it aside.
You can use the data cable to install an optical drive at a later time.
5. Remove the optical drive.
Inspiron 535s/537s
a. Press in on the securing tab on the side of the optical drive and slide it out.
1 data cable 2 power cable 3 securing tab
4 shoulder screws (2) 5 optical drive
Inspiron 545s/546s
a. Pull the securing tab upwards and slide the optical drive out.
Begin.
Removing the Computer Cover).
Removing the Front Bezel).
