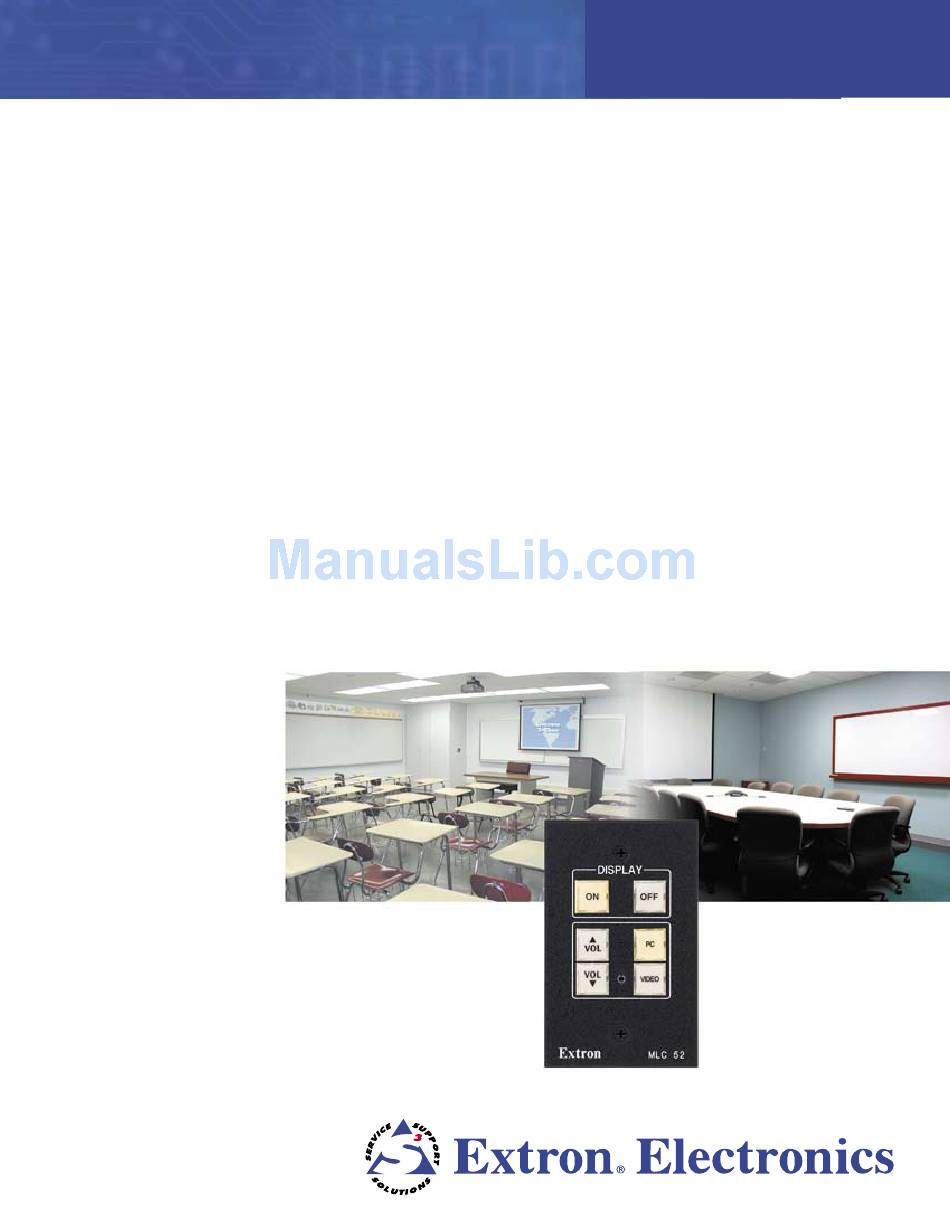

MLC 52
baSic mlc - medialink
cOntrOller
Economical control for
classroom A / V systems
™
medialink
Universal display control
➤
Discrete ON and OFF display power
➤
controls
Configurable buttons
➤
Backlit, easy-to-label buttons
➤
Three easy ways to configure:
➤
IR learning, preconfigured display
drivers, and IR beaming
Inactivity timer for display shutoff
➤
Front panel security lockout
➤
Includes black and white high-impact
➤
plastic mounting faceplates
www.extron.com
Advertisement
Related Manuals for Extron electronics Basic MediaLink Controllers MLC 52 IR
Summary of Contents for Extron electronics Basic MediaLink Controllers MLC 52 IR
- Page 1 MLC 52 baSic mlc - medialink cOntrOller Economical control for classroom A / V systems Universal display control ➤ Discrete ON and OFF display power ➤ controls ™ Configurable buttons ➤ Backlit, easy-to-label buttons ➤ Three easy ways to configure: ➤...
- Page 2 introduction The Extron MLC 52 IR and MLC 52 RS Basic MediaLink Controllers are economical control panels ideally suited for classroom A/V systems. Each model comes with a black and white faceplate and offers IR control, while the MLC 52 RS also includes unidirectional RS-232 control.
- Page 3 Overview Display ON/OFF Clearly labeled buttons make it easy and convenient to turn the display on and off, eliminating the need for an external display remote Volume Control Provides up and down volume control of the display. If volume control is not required, or additional source switching is needed, these buttons can be configured for input selection or other commands...
- Page 4 mlc 52 medialink controller models MLC 52 IR Basic MLC - MediaLink Controller with ™ IR Display Control UniqUe FeatUreS • IR port for universal display control • One-gang faceplate MLC 52 IR VC Basic MLC - MediaLink Controller with IR and Volume Control UniqUe FeatUreS •...
-
Page 5: Application Diagram
application diagram Extron SI 3CT LP Full-Range Ceiling Speakers - 1 Pair Extron PCM 240 Projector Drop Ceiling Mount Option Extron PMK 350 Pole Mounting Kit Extron UPB 25 Universal Projector Mounting Bracket Option IR Projector Control D IS MPA Volume Control Extron MLC 52 IR VC... -
Page 6: Specifications
specifications Specifications Control/remote — mlC Controller host ports Serial control port ... 1 front panel 2.5 mm mini stereo jack (tip-ring-sleeve) Baud rate and protocol ... 9600 baud, 8 data bits, 1 stop bit, no parity Serial control pin configurations ... Mini stereo jack: tip = TX, ring = RX, sleeve = GND Program control ...
