ASSI I li LY
e

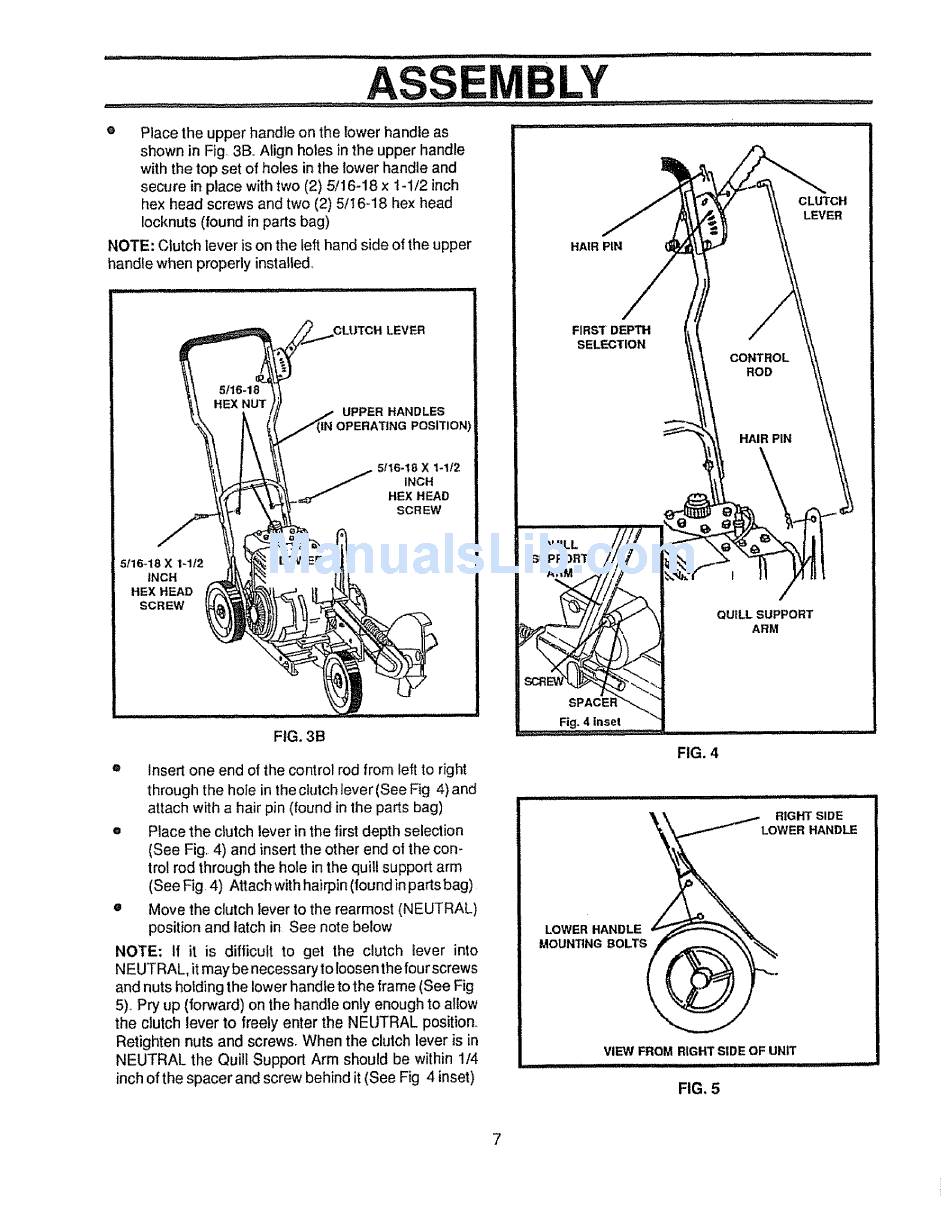

Place the upper handle on the lower handle as
shown in Fig. 3B. A1ign hotes in the upper handle
with the top set of holes in the lower handle and
secure in place with two (2) 5/16-18 x t-1/2 inch
hex head screws and two (2) 5/16-18 hex head
Iocknuts (found in parts bag)
NOTE: Clutch lever is on the left hand side of the upper
handle when properly instatted_
LEVER
FIG, 3B
•
Insert one end of the control rod from left to right
through the hole in the clutch fever(See Fig 4) and
attach with a hair pin (found in the parts bag)
o
Place the clutch lever in the first depth selection
(See Fig. 4) and insertthe other end oi the con-
trol rod through the hole in the quill support arm
(See Fig. 4) Attach with hairpin (found in parts bag)
•
Move the clutch lever to the rearmost (NEUTRAL)
position and latch in See note below
NOTE: if it is difficult to get the clutch lever into
NEUTRAL, it may be necessary to loosen the four screws
and nuts holding the lower handle to the frame (See Fig
5).. Pry up (forward) on the handle only enough to allow
the clutch lever to freely enter the NEUTRAL position..
Retighten nuts and screws. When the clutch lever is in
NEUTRAL the Quill Support Arm should be within 1/4
inch of the spacer and screw behind it (See Fig 4 inset)
HAIR PIN
CLUTCH
LEVER
FIRST DEPTH
SELECTION
CONTROL
ROD
HAIR PIN
QUILL
SUPPORT
ARM
SPACER
Fig. 4 inset
FIG. 4
QUILL
SUPPORT
ARM
LOWER HANDLE
MOUNTING BOLTS
VIEW FROM RIGHT SIDE OF UNIT
FIG, 5
7
