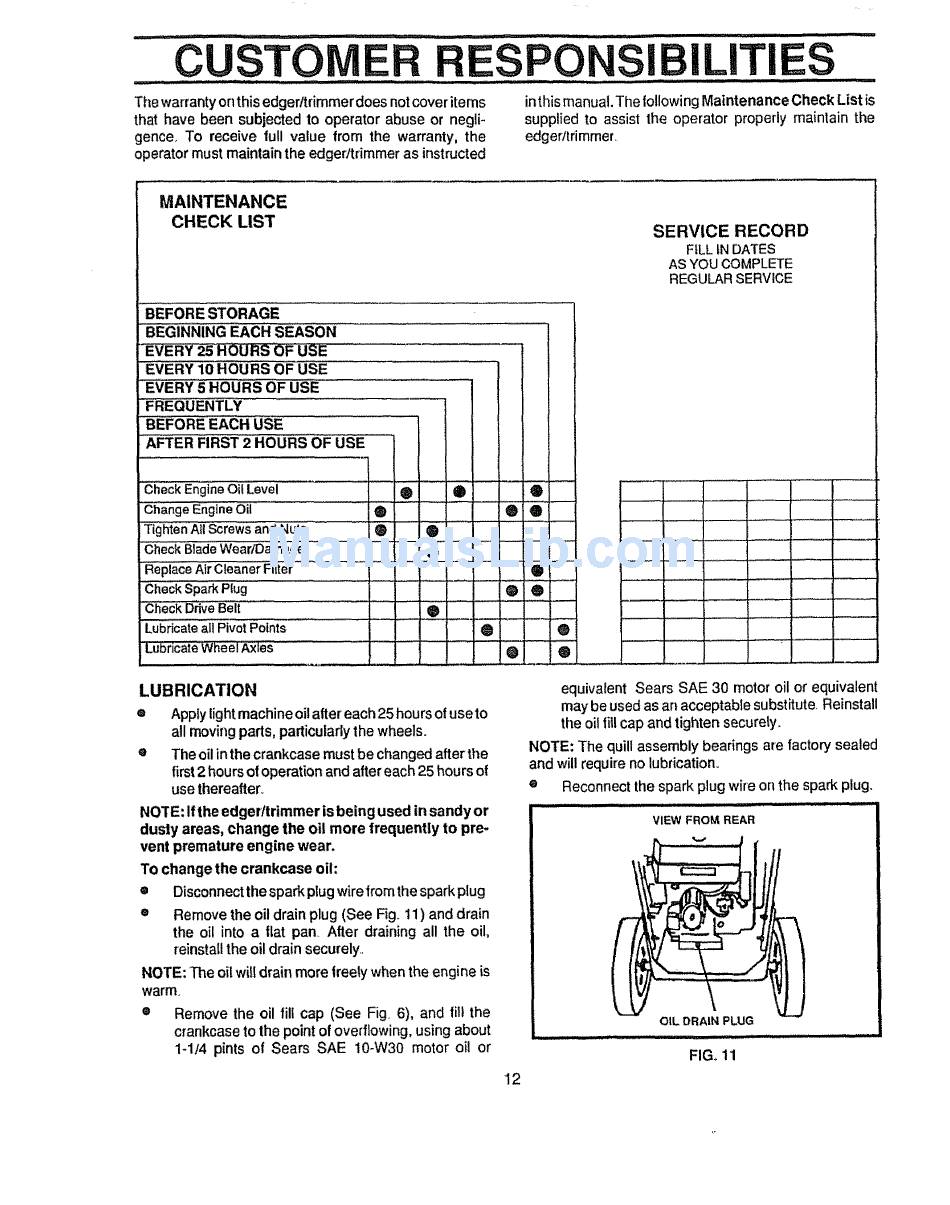

CUSTOMER
RESPONSIBILITIES
..............
:
..................
JL,,
llll,
i,
iu llllll
,,,,ui
ii
,,,,,,,,,,,ill
i
......
The warranty on this edger/trimmer does not cover items
that have been subjected to operator abuse or negli-
gence. To receive full value from the warranty, the
operator must maintain the edger/trimmer as instructed
in thismanual, The followingMaintenance Check List is
supplied to assist the operator properly maintain the
edgerttrimmer
MAINTENANCE
CHECK LIST
BEFORE STORAGE
BEGINNING EACH SEASON
:_-VERY25 HOU RS OF-USE
i EVERY 10 HOURS OF USE
EVERY 5 HOURS OF USE
FREQUENTLY
BEFORE EACH USE
AFTER FIRST 2 HOURS OF USE
Check Engine Oil Level
Change Engine Oil
Tighten All Screws and Nuts
Check Blade Wear/Damage
Replace Air Cleaner Filter
Check Spark Plug
Lubricate all Pivot Points
l_uSricat_:Wh_l
_les
®
®
®
_
!® ............
.......
Q
,,,,,,,, ,,,,
,, ....
®
®
LUBRICATION
®
Apply light machine oil after each 25 hours of use to
all moving parts, particularly the wheels.
e
The oilin the crankcase must be changed after the
first 2 hoursof operation and after each 25 hours of
use thereafter.
NOTE: If the edger/trimmer is being used in sandy or
dusty areas, change the oil more frequently to pre-
vent premature engine wear,
To change the crankcase oil:
e
Disconnect the spark plug wire from the spark plug
®
Remove the oil drain plug (See Fig. 11) and drain
the oil into a flat pan After drafffing all the oil,
reinstall the oil drain securely.
NOTE: The oil will drain more freely when the engine is
warm.
Remove the oil fill cap (See Fig. 6), and fil! the
crankcase to the point of overflowing, using about
1-1/4 pints of Sears SAE 10-W30 motor oil or
,,,,_
®
®
12
®
O
®
.....
i
®
i
i®
SERVICE
RECORD
FILL IN DATES
AS YOU COMPLETE
REGULARSERVICE
, ,,,,
equivalent Sears SAE 30 motor oil or equivalent
may be used as an acceptable substitute Reinstall
the oil _l cap and tighten securety.
NOTE: The quill assembly bearings are factory sealed
and will require no lubrication.
o
Reconnect the spark plug wire on the spark plug.
VIEW
FROM
REAR
