Craftsman 536.797460 Owner's Manual

Craftsman 536.797460 Owner's Manual

3.5 horsepower 9 inch edger
Hide thumbs
Table of Contents

Advertisement

Quick Links

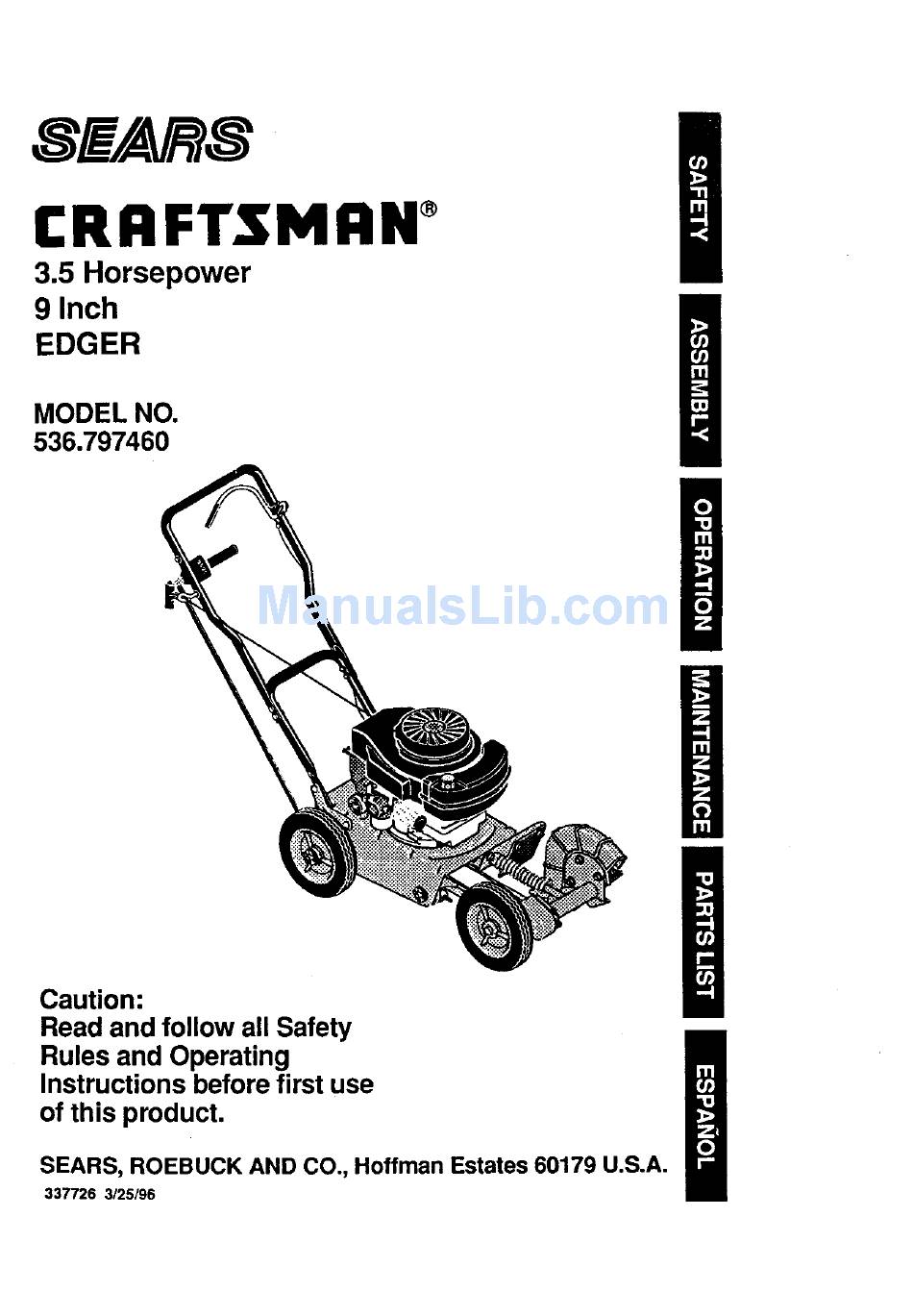

CRR FT$1VlRW
3.5 Horsepower
9 Inch
EDGER
MODEL NO.
536.797460
Caution:
Read and follow all Safety
Rules and Operating
Instructions before first use
of this product.
SEARS, ROEBUCK
AND CO., Hoffman Estates 60179 U.S.A.
337726
3125/96

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 536.797460

Summary of Contents for Craftsman 536.797460

  • Page 1 CRR FT$1VlRW 3.5 Horsepower 9 Inch EDGER MODEL NO. 536.797460 Caution: Read and follow all Safety Rules and Operating Instructions before first use of this product. SEARS, ROEBUCK AND CO., Hoffman Estates 60179 U.S.A. 337726 3125/96...

  • Page 2: Table Of Contents

    ON CRAFTSMAN EDGER For one year from the date of purchase, when this Craftsman Edger is maintained, bricated, and tuned up according to the operating and maintenance instructions in the owner's manual, Sears will repair, free of charge, any defect in material or workman- ship.
  • Page 3 • Never store the edger with fuel in the fuel • Never remove the fuel tank cap or add tank inside a building where ignition fuel to a running or hot engine. sources are present such as water and • Never store fuel or edger with fuel in the space heaters, clothes dryers, and the tank inside a building where fumes may like.

  • Page 4: Assembly

    Contents of Parts Bag (shown full size) (2)- Hex Head Screws (2) - Hex Head Nuts (2) - Hair Pins 5/16-18x 1-1/4 inch 5/16-18 (2) - Flatwashers(large) (3) - Retaining Rings (2) - Flatwashers(small) ,520xl .25x.209 (1 is a spare) .504x.75x.059 Parts packed separately in carton (not shown full size) (1)-Control...
  • Page 5 TO REMOVE EDGER FROM CARTON • Insert one end of the control rod from right to left through the hole in the depth • Remove the control rod from the carton, control lever and attach with a hair pin • Remove wheels, parts bag and packing found in parts bag.

  • Page 6: Safety Rules

    CHECKLIST All fasteners have been properly stalled and tightened. Before you operate your new Edger, While learning how to use your edger, ensure that you receive the best perfor- pay extra attention to the following mance and satisfaction from this quality important items: product, please review the following...

  • Page 7: Operation

    when cleaning, replacing or inspecting the Throttle Control - Used to control the en- edger. gine speed. Primer Button - Injects fuel directly into the Engine Control Lever carburetor manifold for faster starts. Starter Handle - The engine On this edger is equipped with an easy pull recoil starter.
  • Page 8 BEFORE STARTING ENGINE CAUTION: Never fill the gas tank while the engine is running or hot. PRE-USECHECK OFCONTROLS Immediately wipe off any spilled gasoline All controls should be checked for proper before attempting to start the engine. function before servicing or starting the engine.
  • Page 9 inch from the top to provide space for NOTE: The cutting blade speed is expansion of fuel. Always fill fuel tank controlled by the engine speed. To outdoors and use a funnel or spout to reduce the cutting blade speed, push back on the throttle control lever.
  • Page 10 CUSTOMER RESPONSIBILITIES SCHEDULE SERVICE SERVICE DATES RECORDS Fill In dates After Before Fie. E_en/ Every Every Begin Before you complete First Each quently _Each Storaga regular service Hours Hours Hours Season Hours Lubricateall Pivot Points LubricateWheel Axles Check Engine Oil Level Change Engine Oil !Replace Air Cleaner Filter Check Spark Plug...
  • Page 11 Oil Drain Plug CAUTION: Never run the engine without the air cleaner element installed. A defective air cleaner can result in loss of engine power and can cause excessive wear or damage to the engine components if dirt or dust is permitted to enter the engine through the carburetor.
  • Page 12 BLADE REPLACEMENT CAUTION: Always stop the engine and disconnect the spark plug wire before The cutting blade is subject to wear and making any repairs to the edger. damage such as nicks and dents. This will not generally affect its function. V-BELT REPLACEMENT This blade is specially designed to not re- Your edger is equipped with a V-belt made...

  • Page 13: Maintenance

    raise the blade and out (countemlock- LEVELING ADJUSTMENT wise) to lower the blade. The adjustment • When the depth control lever is in the is correct when there is a 1/4 inch space forward adjustment slot, the engine between the edging guide and the bench platform should be approximately level top.
  • Page 14 • If you do not want to remove gasoline, starter two or three times. Finally, a fuel stabilizer (such as Sears reinstall spark plug and attach spark plug Craftsman fuel stabilizer No. 33500) wire. may be added to any gasoline left in TROUBLE...
  • Page 15 CRAFTSMAN 9" - 3.5 H.P. EDGER 536.797460 ENGINE/FRAME ASSEMBLY Note: Always use original equipment All unnumbered items ere parts. Use of service/replacement interchangeable with opposite side partsother than original parts may void your warranty. 339589A REF. REF, PART NO. PART NAME PART NAME PART NO.
  • Page 16 CRAFTSMAN 9" - 3.5 H.P. EDGER 536.797460 HANDLE ASSEMBLY 339591 REF. PART NO. PART NAME PART NAME PARTNO. 337323-833 Bracket, Handle 337713-853 Handle, Upper 57101 Carriage Bolt 5/16-18x 75 337744 Bail, Operator Control 45174 Nut, 5/16-18 Hexwdfllk 337775 Spring, Torsion 332232-853 Handle, Lower 7/8"...

  • Page 17: Parts Diagram

    CRAFTSMAN 9" - 3.5 H.P. EDGER 536.797460 WHEELS/LINKAGE ASSEMBLY 339590A PART NAME PART NAME PARTNO. PARTNO. 120394 Flatwasher .406x.81x.065 339286 Front Axle 1499 339146 Nut, 3/8-16 Reghexctrlk Spring, Axle Torsion Rod. Control 337327 20864 Ring, Ret. E. 584593 Nut, Trunnion 5/16-24...
  • Page 18 CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.963508 370A 260 f Q"- 292 • 285...
  • Page 19 CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.963508 REF. REF. PART NO. PART NAME PART NO. PART NAME 36470A Cylinder 29315C Intake Valve (1/32" OS) (Incl. 2, 7, 20, & 125) (Ind 151) 26727 Dowel 6021A Screw 5/16-18 x 1-1/2 33734 Breather Element...
  • Page 20 CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.963508 Carburetor No,632046A REF. PART REF. PART PART NAME • PART NAME 632046A Carburetor 631024 Float Shaft _nct, 184 of Engine Parts List) 632019 Float 631615 hrottle Shaft & Lever Ass'y, 631028 Folat Bowl "O" Ring...
  • Page 21 CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.963508 Starter No. 590694 REF. PART PART NAME 590694 Rewind Smiler 590599,4 Spring Pin (Incl.4) 590600 Washer 590696 Retainer 590601 Washer 590697 Brake Spring 590698 Starter Dog 590699 Dog Spring 590700 Pulley & Rewind Sprg Assy.
  • Page 24 For the repair or replacement parts you need delivered directly to your home Call 7 am-7 pm, 7 days a week 1-800-366-PART (1-800-366-7278) Pare ordenar piezas con entrega a domicilio -1-800-659-7084 For in-house major brand repair service Call 24 hours a day, 7 days a week 1-800-4-REPAIR (1-800-473-7247) Para pedir servicio de reparacion a...
