Q
CAUTION:
ALWAYS
WEAR SAFETY
GLASSES OR EYE SHIELDS WHILE
ASSEMBLING EDGER!TRIMMER.
::
...........
...........
::
:

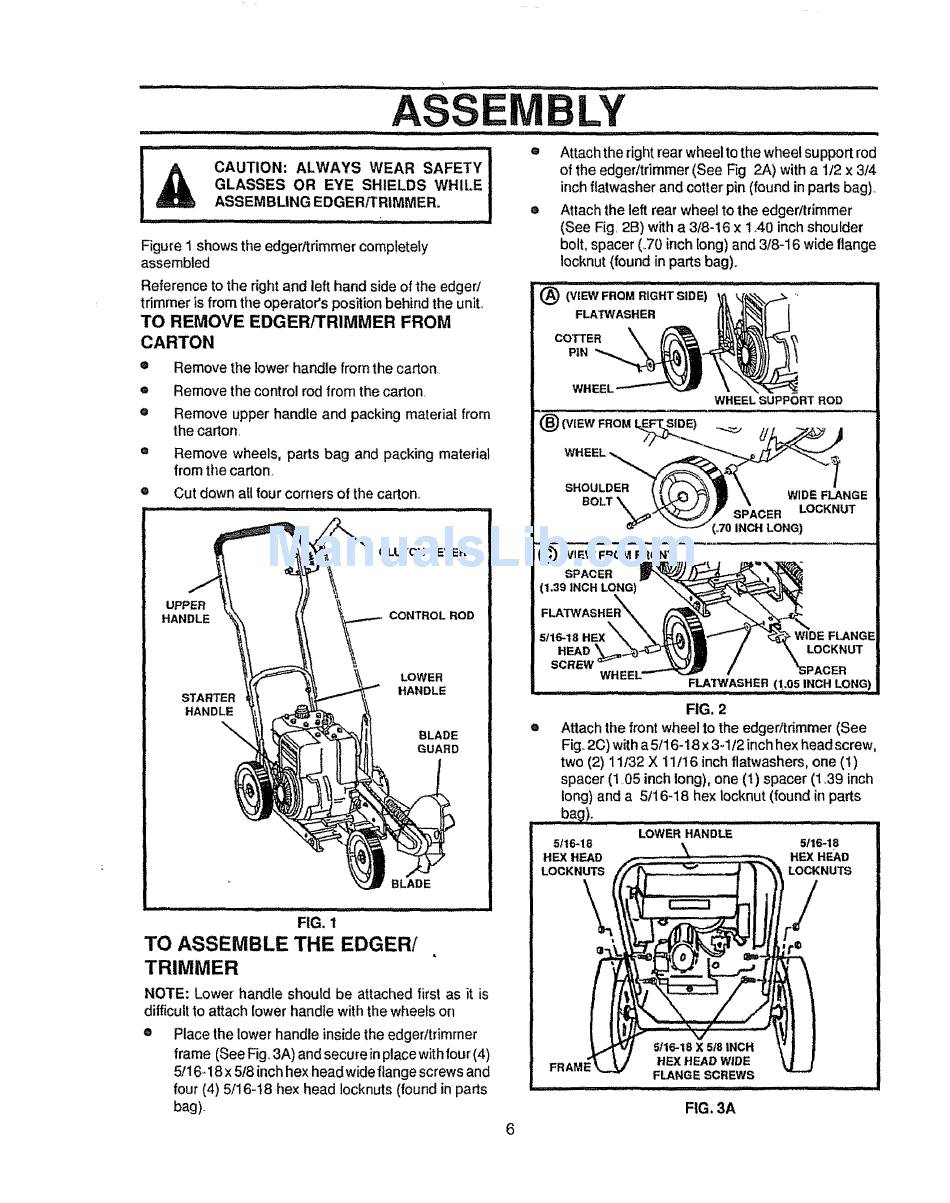

Figure I shows the edger/trimmer completely
assembled
Reference to the right and left hand side of the edger/
trimmer is from the operator's positionbehind the unit..
TO REMOVE
EDGER/TRIMMER
FROM
CARTON
®
Remove the lower'handle from the carton.
e
Remove the control rod from the carton
®
Remove upper handle and packing material from
the carton.
Remove wheels, parts bag and packing material
from tile carton
Cut down all fourcorners of the carton_
IJL IIIII I I I
IIIII
...........................
CLUTCH LEVER
UPPER
HANDLE
'_......,
CONTROL ROD
STARTER
HANDLE
LOWER
HANDLE
BLADE
GUARD
BLADE
FIG. 1
TO ASSEMBLE
THE EDGER/
TRIMMER
NOTE: Lower handle should be attached first as it is
difficult to attach lower handle with the wheels on
®
Place the lower handle inside the edger/trimmer
frame (See Fig_3A) and secure inplace with four(4)
5/16-!8 x 5/8 inch hex head wide flange screws and
four (4) 5/16-18 hex head iocknuts (found in parts
bag)..
o
Attach the right rear wheel to the wheel support rod
of the edger/trimmer (See Fig 2A) with a 1/2 x 3/4
inch flatwasher and cotter pin (found in parts bag)..
Attach the left rear wheel to the edger/trimmer
(See Fig, 2B) with a 3/8-16 x 1A0 inch shoulder
bolt, spacer (_70 inch long) and 3/8-16 wide flange
Iocknut (found in parts bag).
(_)
(VIEW FROM RIGHT SIDE)
FLATWASHER
COTTER
PIN
WHEEL
(_) (VIEW FROM
WHEEL _
SHOULDER
_
(VIEW FROM
SPACER
(1,39 INCH LONG)
WHEEL SUPPC)RT ROD
WIDE FLANGE
SPACER
LOCi(NUT
Io7O INCHLONG)
5f16-18 HEX
WIDE FLANGI
LOCKNUT
SCREW
WHEEL"
ACER
FLATWASHER (!,,05 !NCH LONG
FIG. 2
Attach the front wheel to the edger/trimmer (See
Fig.,2C) with a 5/16-18 x 3-1/2 inch hex head screw,
two (2) 11/32 X 11/16 inch flatwashers, one (t)
spacer (1.05 inch long), one (t) spacer (139 inch
long) and a 5/16-18 hex locknut (found in parts
bag): ......................................
LOWER HANDLE
5116-18
5f16-18
HEX HEAD
HF-.XHEAD
LOCKNUTS
LOCKNUTS
O
6
5/16-18 X 5f8 INCH
HEX HEAD WIDE
FLANGE SCREWS
IIII
I
iii I,
FIG, 3A
