CRAFTSMAN

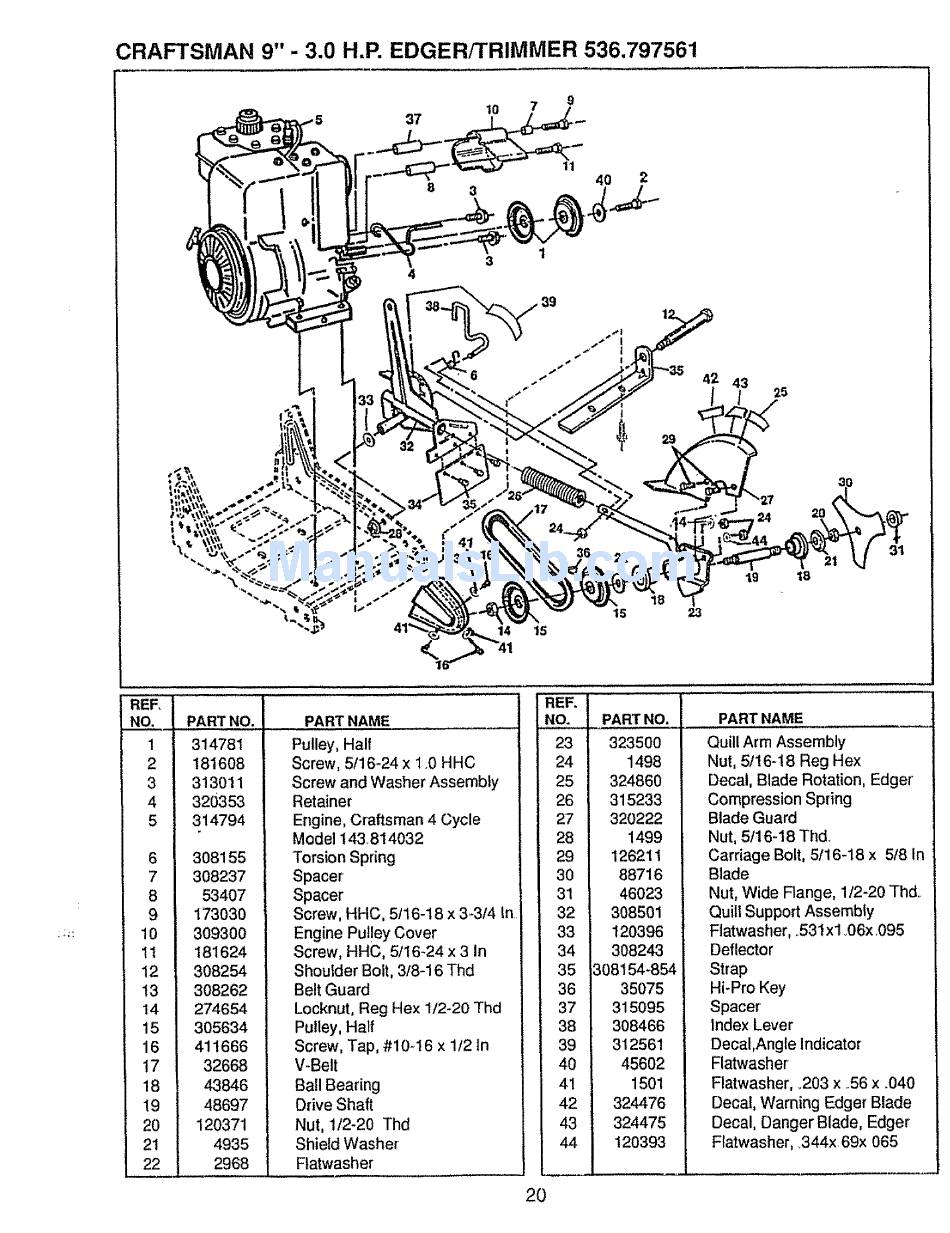

9"- 3.0 H.P. EDGER/TRIMMER
536.797561
37
t0
11
40
2
1
3
4
!
"t9
t8
REF,
NO.
PARTNO.
1
31478t
2
181608
3
313011
4
320353
5
314794
6
7
8
9
10
1t
12
13
14
15
16
t7
18
19
20
2t
22
308155
308237
53407
173030
309300
181624
308254
308262
274654
305634
41t666
32668
43846
48697
120371
4935
2968
PART NAME
__
Pulley, Half
Screw, 5/16-24 x 1.0 HHC
Screw and Washer Assembly
Retainer
Engine, Craftsman 4 Cycle
Model 143814032
Torsion Spring
Spacer
Spacer
Screw, HHC, 5/16-18 x 3-314 In..
Engine Pulley Cover
Screw, HHC, 5/t6-24 x 3 In
Shoulder Boil, 3/8-16 Thd
Belt Guard
Locknut, Reg Hex 1/2-20 Thd
Pulley, Half
Screw, Tap, #10-16 x 112 In
V-Belt
Ball Bearing
Drive Shaft
Nut, 1/2-20 Thd
Shield Washer
Flatwasher
REF. I
NO,
23 I
24 I
25 I
26 i
27 I
28 i
29 I
3O I
31 l
32 1
33 I
34 I
35 !
36 ;
37 :
38
39
40
41
42
43
i44
2O
PARTNO,
323500
1498
324860
315233
320222
1499
126211
88716
46023
308501
120396
308243
308154-854
35075
315095
308466
312561
45602
1501
324476
324475
120393
PART NAME
Quill Arm Assembly
Nut, 5/16_18 Reg Hex
Decal, Blade Rotation, Edger
Compression Spring
Blade Guard
Nut, 5/16-18 Thd,
Carriage Bolt, 5/16-18 x 5/8 In
Blade
Nut, Wide Flange, 1/2-20 "l-hd_
Quill Support Assembly
Ftatwasher, _531x1.06x 095
Deflector
Strap
Hi-Pro Key
Spacer
Index Lever
Decal ,Angle Indicator
Flatwasher
Flatwasher, _203 x .56 x _040
Decal, Warning Edger Blade
Decal, Danger Blade, Edger
Flatwasher, 344x 69x 065
