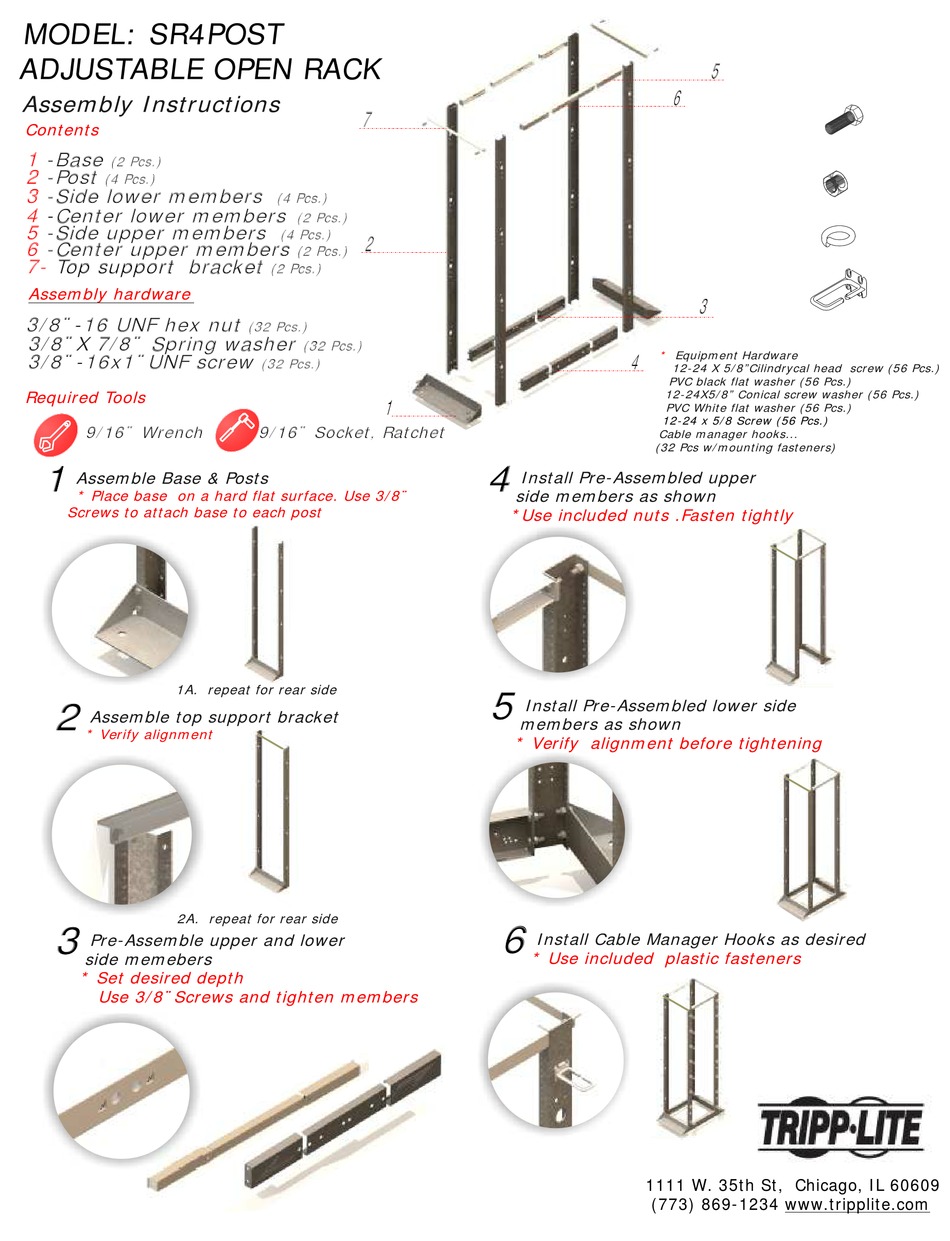

Tripp Lite SR4POST Assembly Instructions

MODEL: SR4POST
ADJUSTABLE OPEN RACK

Assembly Instructions

Contents
1 1 -Base -Base
(2 Pcs.) (2 Pcs.)
2 -Post 2 -Post
(4 Pcs.) (4 Pcs.)
3 -Side lower members 3 -Side lower members
4 -Center lower members 4 -Center lower members
5 -Side upper members 5 -Side upper members
6 -Center upper members 6 -Center upper members
7- 7- Top support bracket Top support bracket
Assembly hardware
3/8¨-16 UNF hex nut 3/8¨-16 UNF hex nut
3/8¨X 7/8¨ Spring washer 3/8¨X 7/8¨ Spring washer
3/8¨-16x1¨UNF screw 3/8¨-16x1¨UNF screw
Required Tools
9/16¨ Wrench 9/16¨ Wrench
1 1
Assemble Base & Posts
* Place base on a hard flat surface. Use 3/8¨
Screws to attach base to each post
1A. repeat for rear side
2 2
Assemble top support bracket
* Verify alignment
2A. repeat for rear side
3 3
Pre-Assemble upper and lower
side memebers
* Set desired depth
Use 3/8¨Screws and tighten members
7 7
(4 Pcs.) (4 Pcs.)
(2 Pcs.) (2 Pcs.)
(4 Pcs.) (4 Pcs.)
2 2
(2 Pcs.) (2 Pcs.)
(2 Pcs.) (2 Pcs.)
(32 Pcs.) (32 Pcs.)
(32 Pcs.) (32 Pcs.)
(32 Pcs.) (32 Pcs.)
1 1
9/16¨ Socket, Ratchet 9/16¨ Socket, Ratchet
*
4 4
12-24 x 5/8 Screw (56 Pcs.)
Cable manager hooks...
(32 Pcs w/mounting fasteners)
4 4
Install Pre-Assembled upper
side members as shown
*Use included nuts .Fasten tightly
5 5
Install Pre-Assembled lower side
members as shown
* Verify alignment before tightening
6 6
Install Cable Manager Hooks as desired
* Use included plastic fasteners
1111 W. 35th St, Chicago, IL 60609
(773) 869-1234 www.tripplite.com
5 5
6 6
3 3
Equipment Hardware
12-24 X 5/8"Cilindrycal head screw (56 Pcs.)
PVC black flat washer (56 Pcs.)
12-24X5/8" Conical screw washer (56 Pcs.)
PVC White flat washer (56 Pcs.)
