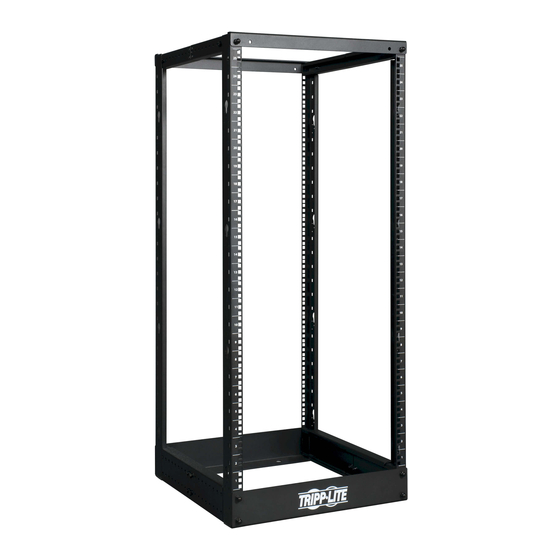

25U 4-Post SmartRack Open Frame Rack - Organize
and Secure Network Rack Equipment
MODEL NUMBER: SR4POST25
Description
SmartRack 4-post open frame racks are ideal for cost conscious 19 inch rack mount applications. Multiple units can be bolted together side by side.
Features
Supports 1000lbs of rackmount equipment
Adjustable mounting depth (22 to 39 inches)
Textured powder coat finish
Heavy-duty cold-rolled steel construction
Numbered mounting positions
Bolt down provisions
Self squaring design
Black finish
Easy assembly
Specifications
PHYSICAL
Installed whole system maximum
rack depth (inches)
Installed whole system maximum
rack depth (cm)
Installed whole system minimum
rack depth (inches)
Installed whole system minimum
rack depth (cm)
39.3
99.82
22
55.88
1 / 3
Highlights
25U 4-post open frame rack
Black steel with square,
numbered mounting holes
Toolless button holes to accept
PDUs or cable managers
Package Includes
SR4POST25
Installation hardware
32x pieces of M6 cage nuts,
screws, and washers for
equipment mounting
Cable management hooks
Owner's manual with warranty
information
Advertisement
Related Manuals for Tripp Lite SR4POST25
Summary of Contents for Tripp Lite SR4POST25
-
Page 1: Specifications
25U 4-Post SmartRack Open Frame Rack - Organize Highlights 25U 4-post open frame rack and Secure Network Rack Equipment Black steel with square, MODEL NUMBER: SR4POST25 numbered mounting holes Toolless button holes to accept PDUs or cable managers Package Includes... - Page 2 Rack Height Shipping Dimensions (HWD/in) 4.13 x 5.71 x 56.5 Shipping Dimensions (HWD/cm) 10.5 x 14.5 x 143.51 Shipping weight (lbs) Shipping weight (kg) 20.7 Unit Dimensions (HWD/cm) 125.2 x 51.3 x 55.9~99.8 (depth adjustable) Unit Dimensions (in.) 49.3 x 20.2 x 22~39.3 (depth adjustable) Unit weight (lbs) Unit weight (kg) 20.25...
- Page 3 © 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
