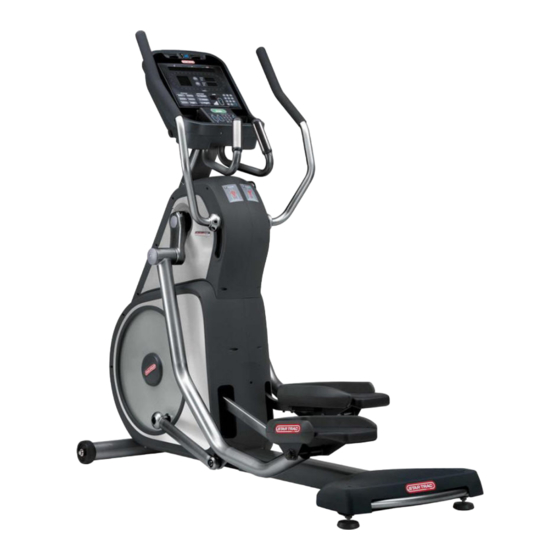

Star Trac E-TBTe Installation Manual

Star Trac E-TBTe Installation Manual

Hide thumbs Also See for E-TBTe:

Advertisement

Quick Links

Download this manual See also: Operating Manual

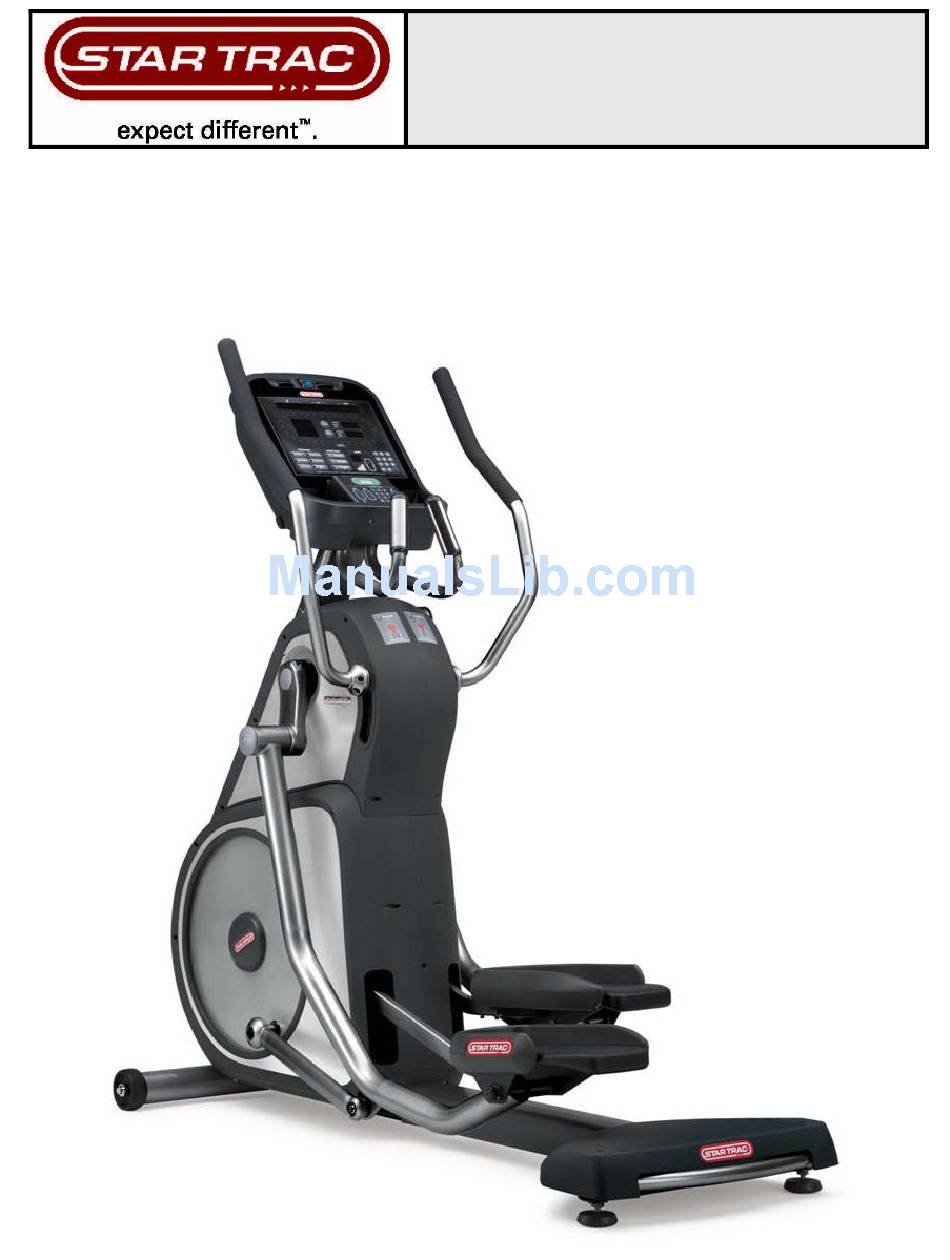

STAR TRAC
14410 Myford Road
Irvine, CA 926060 USA
WORK INSTRUCTIONS,
E-TBT / E-TBTe INSTALLATION
2
620-7921 Rev A

Advertisement

loading

Related Manuals for Star Trac E-TBTe

Summary of Contents for Star Trac E-TBTe

  • Page 1 STAR TRAC 14410 Myford Road Irvine, CA 926060 USA WORK INSTRUCTIONS, E-TBT / E-TBTe INSTALLATION 620-7921 Rev A...

  • Page 2: Tools Required

    • Copyright 2008. Star Trac by Unisen, Inc. Star Trac Fitness, Star Trac®, and the Star Trac Logo are registered trademarks of Unisen Inc. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Star Trac.

  • Page 3: Unpacking Instructions

    UNPACKING INSTRUCTIONS Step 1. Step 2. Lay the box with heavy end facing down in the Lift and remove the box from the pallet base. area where it is going to be assembled. Cut and remove packaging straps then open and remove the top cover.
  • Page 4 Step 5. Remove remaining packaging ma- terials and lay all components on the floor. Step 6. Verify the following components are included in the package: 1. TBT frame. 2. Display console assembly. 3. Upper neck. 4. Left and right upper body arms. 5.

  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS Step 1. Step 2. Route display cables up through upper half of Insert the upper half of the neck into the lower neck through the holes provided. half. Caution: Be careful not to pinch any cables between the two sections of the assembled neck. Step 3.
  • Page 6 Step 5. Step 6. Using provided screwdriver, remove the M4 x Slide the back of the display with the mounting 0.7 screws that hold the display assembly to- bracket onto the upper neck of the Total Body gether, then separate the back of the display Trainer.
  • Page 7 Step 9. Step 10. Identify the four cables coming out of the neck Plug-in the 12-pin main I/O cable into the front and mounting bracket: display circuit board at J4 connector. 1. Heart rate cable 2. Main I/O cable 3. Coax cable 4.
  • Page 8 Step 13. Step 14. Assemble the front and back display parts to- Using provided Phillips head screw driver, se- gether by sliding the bottom of the front display cure the front display to the back with (8) M4 x under the 2 tabs at the base first, then pressing 0.7 x 19mm long Phillips head screws.
  • Page 9 Step 17. Step 18. Place the Total Body Trainer on the floor in the Perform a visual inspection, and test the fea- position it will be used. Then adjust leveling tures and functions of the unit prior to use. feet to assure that the Total Body Trainer is lev- Note: Refer to the User’s Manual for other settings eled to the floor and does not rock back and and instructions.
  • Page 10 10.Once powered up, all features of the unit function properly. ATTENTION Star Trac recommends that the Total Body Trainers be spaced a minimum of 20.0 inches (0.5 • m) apart to allow safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the Total Body Trainer.
  • Page 11 EMBEDDED DISPLAY CONSOLE INSTALLATION INSTRUCTIONS Step 2. Step 1. Verify the tool kit has the following parts: Remove all contents from the packaging and verify that you have the following parts: Item Description 1. Embedded display console. 2. Operation manual. Assembly instructions 3.
  • Page 12 Step 5. Step 6. Disconnect the ground cable from the ground Mount the back cover to the display mounting quick disconnect tab on the embedded display. bracket using four (4) M4 x 0.7 x 19mm long Save the cable for later use. Phillips head screws and four (4) M4 flat wash- ers.
  • Page 13 After Before Step 9. Step 10. Now screw in the coax adaptor to the coax ca- Go back to the embedded display assembly and ble coming out of the base neck. remove the plastic tabs from the lower back cover. Step 11.
  • Page 14 Step 13. Step 14. Plug-in the heart rate cable from the neck into Plug-in the 12-pin main I/O cable from the neck the heart rate board connector on the FitCPU to the 12 pin connector on the FitCPU board of board of the embedded display assembly.
  • Page 15 Step 17. Step 18. Plug in the Heart rate ground cable into the Plug in the ground cable coming from upper left quick disconnect tab on the display mount. side of the display mounting bracket into the quick disconnect tab on the embedded display assembly.
  • Page 16 Step 21. Step 22. Now it is time to connect entertainment cable Turn power on. Perform a visual inspection, and power to the unit. Connect the in-house and test the features and functions of the unit entertainment cable to the RF input at the base prior to use.
  • Page 17 11. TV is setup properly per the owner’s manual, signal is clear and audio is coming from both ear- phones. ATTENTION Star Trac recommends that the Total Body Trainers be spaced a minimum of 20.0 inches (0.5 • m) apart to allow safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the Total Body Trainer.
  • Page 18 iPod® CENTER CONSOLE INSTALLATION INSTRUCTIONS Step 1. Step 2. Remove all contents from the packaging and Verify the cable kit has the following two parts: verify that you have the following parts: 1. Center console power cable. 1. iPod® center console. 2.
  • Page 19 Step 5. Step 6. Disconnect the ground wire between the heart Disconnect the 12-pin serial connector from the rate board and the display mount. display Step 7. Step 8. Now disconnect the heart rate connector from Be careful with the display and place it face the display down on top of a non-scratching surface to pro- tect it from being damaged.
  • Page 20 Step 9. Step 10. Using a #2 Phillips head screwdriver, remove Next remove the bottom cover, then remove the the (4) screws that hold bottom side of the dis- headphone blank cover. You will no longer play console on, then remove the (1) screw that need those covers and they can be stored away holds the headphone jack cap.
  • Page 21 Step 13. Step 14. Now install the new head phone jack mount. Identify the cables coming out of the new center Use the screw saved from the earlier step to se- console: cure the mount to the display. 1. Center console keypad ribbon cable. 2.
  • Page 22 Step 17. Step 18. Take the headphone jack cable from the center Take the center console power cable from the console and connect it to the newly installed kit, attach the male 12 pin connector to the fe- headphone jack in the front of the display. male 12 pin connector on the display board.
  • Page 23 After Before Step 21. Step 22. Take the new bottom cover and remove the Slide off and remove the CSAFE power connec- handlebar plastic tabs. tor from the old bottom plastic cover. Step 23. Step 24. Install the CSAFE power connector on the new Install the new bottom plastic cover onto display, bottom plastic cover.
  • Page 24 Step 25. Step 26. Connect the CSAFE power cable from the bot- Take the front display plastics with the new cen- tom cover to J10 connector on the display ter console to the base unit. Hold the front dis- board. play plastics at the top with one hand while con- necting the cables and harnesses with the other.
  • Page 25 Step 29. Step 30. Next, plug-in the heart rate cable from the neck Plug back the Heart rate ground cable into the into the heart rate board connector on the dis- quick disconnect tab on the display mount. play. Step 31. Step 32.
  • Page 26 Step 33. Step 34. Using a Phillips head screw driver, secure the Turn power on. Perform a visual inspection, and front display to the back with (8) M4 x 0.7 x test the features and functions of the unit prior to 19mm long Phillips head screws.
  • Page 27 8. Verify clear audio coming from both earphones. ATTENTION Star Trac recommends that the Total Body Trainers be spaced a minimum of 20.0 inches (0.5 • m) apart to allow safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the Total Body Trainer.
  • Page 28 MYE® ENTERTAINMENT CENTER CONSOLE INSTALLATION INSTRUCTIONS Step 1. Step 2. Remove all contents from the packaging and Using a #2 Phillips screwdriver, remove the (8) verify that you have the following parts: screws on the back of the display plastic. Set 1.
  • Page 29 Step 5. Step 6. Disconnect the 12-pin serial connector from the Now disconnect the heart rate connector from display the display Step 7. Step 8. Be careful with the display and place it face Using a #2 Phillips head screwdriver, remove down on top of a non-scratching surface to pro- the (4) screws that hold bottom side of the dis- tect it from being damaged.
  • Page 30 Step 9. Step 10. Next remove the bottom cover, then remove the Using a Phillips head screwdriver, remove the headphone blank cover. You will no longer (4) screws that hold the original center console need those covers and they can be stored away in place, then remove the center console.
  • Page 31 Step 13. Step 14. Identify the cables coming out of the new center Connect the center console keypad cable to J8 console: connector on the display board. 1. Center console keypad ribbon cable. 2. Center console power cable 3. Center console ground cable. 4.
  • Page 32 Step 17. Step 18. Take the new iPod® cradle from the kit and in- Now connect iPod® cable from the iPod cradle stall it onto display console. to J10 connector on the center console board. After Before Step 19. Step 20. Take the new bottom cover and remove the Slide off and remove the CSAFE power connec- handlebar plastic tabs.
  • Page 33 Step 21. Step 22. Install the CSAFE power connector on the new Install the new bottom plastic cover onto display, bottom plastic cover. use the screws saved from the earlier step to secure the display bottom. Tighten the screws so they are snug, then plug in the CSAFE power cable to the back of the display.
  • Page 34 Step 25. Step 26. Plug-in the 12-pin main I/O cable from the neck Next, plug-in the heart rate cable from the neck to the new 12 pin adaptor. into the heart rate board connector on the dis- play. Step 27. Step 28.
  • Page 35 Step 29. Step 30. Assemble the front and back display parts to- Using a Phillips head screw driver, secure the gether by sliding the bottom of the front display front display to the back with (8) M4 x 0.7 x under the 2 tabs at the base first, then pressing 19mm long Phillips head screws.
  • Page 36 Verify iPod menu is functioning and user can browse and listen to music. ATTENTION Star Trac recommends that the Total Body Trainers be spaced a minimum of 20.0 inches (0.5 • m) apart to allow safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the Total Body Trainer.
  • Page 37 PERSONAL VIEWING SCREEN (PVS) INSTALLATION INSTRUCTIONS Step 1. Step 2. Remove all contents from the packaging and verify Remove all content from the hardware kit packaging that you have the following parts: and verify that you have the following parts: Item Description Item Description PVS assembly with mounting bracket.
  • Page 38 Step 5. Step 6. Disconnect the ground wire between the heart Disconnect the 12-pin serial connector from the rate board and the display mount. display. Step 7. Step 8. Now disconnect the heart rate connector from Be careful with the display and place it face the display.
  • Page 39 Screws Screws Step 9. Step 10. Remove the cap cover with the Star Trac logo Remove the (2) M8 buttonhead screws retain- from the back cover plastics by removing the (2) ing the cross-brace using provided 5mm Hex screws using a #2 Phillips screwdriver. Retain key.
  • Page 40 Step 13. Step 14. Using a #2 Phillips head screwdriver, remove Next remove the bottom cover, then remove the the (4) screws that hold the bottom cover of the headphone blank cover. display console, then remove the (1) screw that holds the headphone jack cap.
  • Page 41 Step 17. Step 18. Install the iPod® cable into the iPod® cradle on Tie the iPod® cable to the plastic using the 3.5” the front side of the display console by removing tie wrap. the plug from the cradle then inserting the cable through opening.
  • Page 42 Step 21. Step 22. Connect the center console keypad cable to J8 Connect the seven-pin interface cable from the connector on the display board. console to J14 connector on the display board. Step 23. Step 24. Now connect the iPod® cable from the bottom Next replace the bottom cover.
  • Page 43 Step 25. Step 26. Take the front display plastics with the new cen- Identify the four cables coming out of the neck ter console to the base unit. Hold the front dis- and mounting bracket: play plastics at the top with one hand while con- 1.
  • Page 44 Tie Wrap Step 29. Step 30. Take the 5” piece of tape from the PVS kit and Using a 5” tie wrap from the PVS kit, bind the wrap the connectors so that all of the metal sur- cables from the PVS neck to one side of the face is covered.
  • Page 45 Step 33. Step 34. Plug the DC power cable from the base neck to Plug the data interface cable coming from the either one of the DC connectors on new center PVS neck into the center console board. console board. Then plug the DC power cable from the PVS neck to the other DC connectors on same center console board.
  • Page 46 Step 37. Step 38. Plug back the Heart rate ground cable into the Plug the center console ground cable into the quick disconnect tab on the display mount. quick disconnect tab on the display mount. Step 39. Step 40. Plug the headphone jack cable coming from the Assemble the front and back display parts to- PVS neck into the, newly installed, headphone gether by sliding the bottom of the front display...
  • Page 47 Step 41. Step 42. Using a Phillips head screw driver, secure the Now it is time to connect entertainment cable front display to the back with (8) M4 x 0.7 x and power to the unit. Connect the in-house 19mm long Phillips head screws. entertainment cable to the RF input at the base of the unit.
  • Page 48 10. TV is setup properly per the owner’s manual, signal is clear and audio is coming from both earphones. ATTENTION Star Trac recommends that the Total Body Trainers be spaced a minimum of 20.0 inches (0.5 • m) apart to allow safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the Total Body Trainer.
  • Page 49 STAR TRAC 14410 Myford Road Irvine, California 92606 Telephone: (800) 228-6635, (714) 669-1660 Fax: (714) 508-3303 http://www.startrac.com 620-7921 Rev A...

  • Page 51: Maintenance Mode

    ANAGER AINTENANCE After using your STAR TRAC E SERIES TOTAL BODY TRAINERS for a period of time, you may wish to change some of its settings. MANAGER MODE The Manager Mode allow you to query and modify the basic settings of your Total Body Trainer. To enter Manager Mode: 1.
  • Page 52 Number of times the Interval Heart Rate Control Program was run since last reset. CHR Prog 65535 Number of times the Constant Heart Rate Control Program was run since last reset. STAR TRAC E SERIES TOTAL BODY TRAINERS O ’ WNER ANUAL...

  • Page 53: Troubleshooting

    - One or more keys on the display panel are stuck in the “on” position. This can occur if a user presses keys before the system is turned on, or if a key is held down for more than 10 seconds. Call Star Trac Product Support for assistance if the message continues to display.
