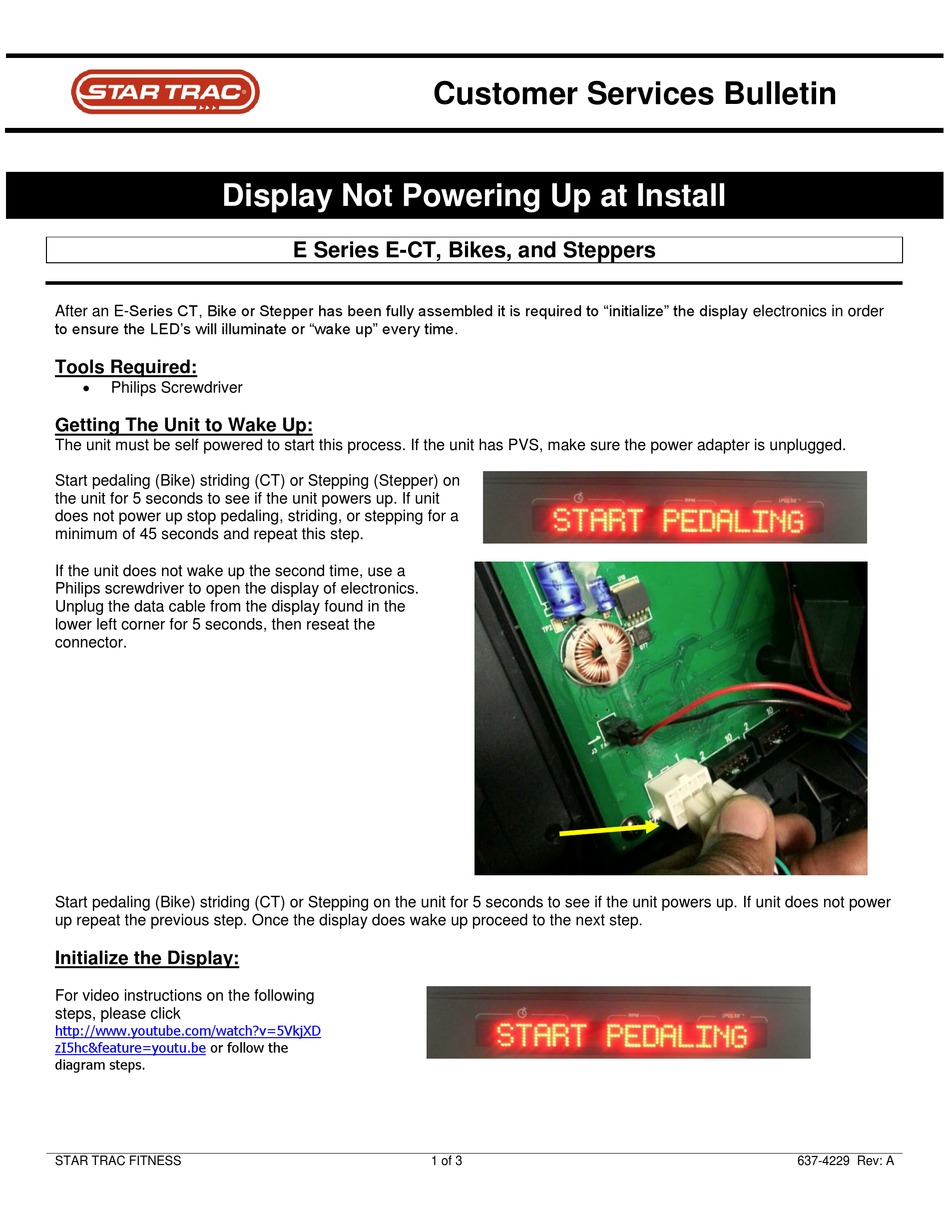

Customer Services Bulletin
Display Not Powering Up at Install
E Series E-CT, Bikes, and Steppers
After an E-Series CT, Bike or Stepper has been fully assembled it is required to "initialize" the display electronics in order
to ensure the LED's will illuminate or "wake up" every time.
Tools Required:

Philips Screwdriver
Getting The Unit to Wake Up:
The unit must be self powered to start this process. If the unit has PVS, make sure the power adapter is unplugged.
Start pedaling (Bike) striding (CT) or Stepping (Stepper) on
the unit for 5 seconds to see if the unit powers up. If unit
does not power up stop pedaling, striding, or stepping for a
minimum of 45 seconds and repeat this step.
If the unit does not wake up the second time, use a
Philips screwdriver to open the display of electronics.
Unplug the data cable from the display found in the
lower left corner for 5 seconds, then reseat the
connector.
Start pedaling (Bike) striding (CT) or Stepping on the unit for 5 seconds to see if the unit powers up. If unit does not power
up repeat the previous step. Once the display does wake up proceed to the next step.
Initialize the Display:
For video instructions on the following
steps, please click
http://www.youtube.com/watch?v=5VkjXD
zI5hc&feature=youtu.be or follow the
diagram steps.
