Using LANVIEW

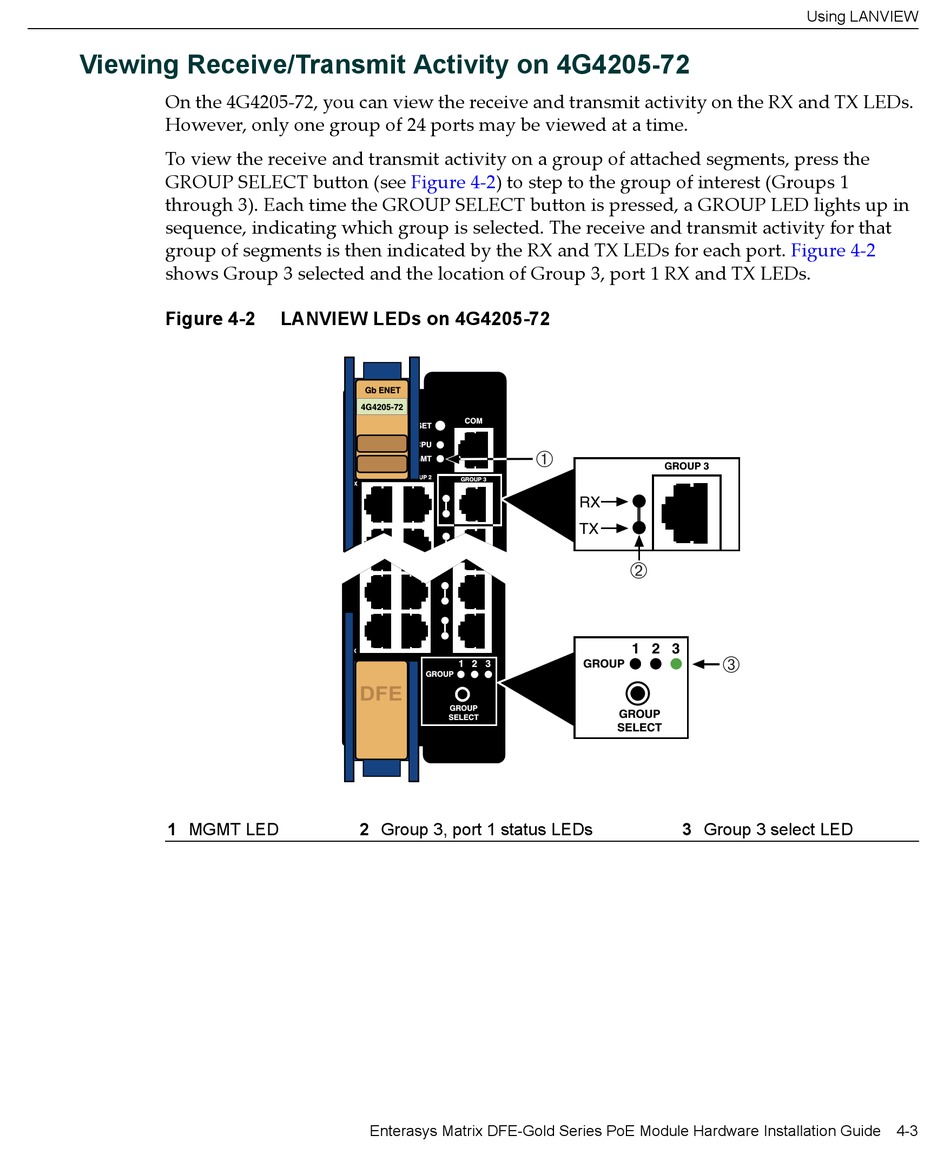

Viewing Receive/Transmit Activity on 4G4205-72

On the 4G4205‐72, you can view the receive and transmit activity on the RX and TX LEDs.

However, only one group of 24 ports may be viewed at a time.

To view the receive and transmit activity on a group of attached segments, press the

GROUP SELECT button (see Figure

4‐2) to step to the group of interest (Groups 1

through 3). Each time the GROUP SELECT button is pressed, a GROUP LED lights up in

sequence, indicating which group is selected. The receive and transmit activity for that

group of segments is then indicated by the RX and TX LEDs for each port. Figure

4‐2

shows Group 3 selected and the location of Group 3, port 1 RX and TX LEDs.

Figure 4-2

1 MGMT LED

2 Group 3, port 1 status LEDs

3 Group 3 select LED

Enterasys Matrix DFE-Gold Series PoE Module Hardware Installation Guide 4-3
