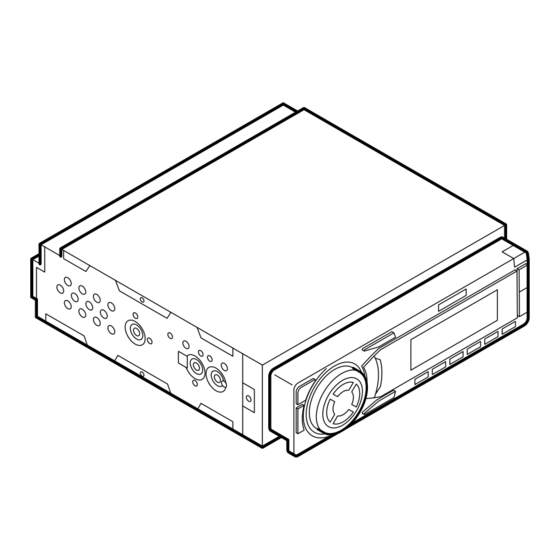

Eclipse CD5030 Owner's Manual

Cd/usb multi-source receiver/built-in a2dp bluetooth wireless technology
Hide thumbs Also See for ECLIPSE CD5030:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual
Owner's Manual / Manual del propietario / Manuel de I'utilisateur
CD5030
CD/USB Multi-Source Receiver / Built-in A2DP Bluetooth
wireless technology
We appreciate your purchase of this receiver.
Please read through this manual for correct operation.
We suggest that after reading it you keep this manual
in a safe place for future reference.
Tras adquirir este receptor rogamos lea atentamente su
manual para una correcta utilizaci
Igualmente, guarde dicho manual en un lugar adecuado para poder
recurrir a él en caso de futuras consultas.
Nous vous remercions d'avoir acheté ce récepteur.
Veuillez lire ce manuel afin d'utiliser votre appareil correctement.
Nous vous recommandons de conserver ce manuel
dans un endroit sûr afin de pouvoir le consulter ultérieurement.
ó
n del equipo.

Advertisement

Table of Contents
loading

Related Manuals for Eclipse ECLIPSE CD5030

Summary of Contents for Eclipse ECLIPSE CD5030

  • Page 1 Owner's Manual / Manual del propietario / Manuel de I'utilisateur CD5030 CD/USB Multi-Source Receiver / Built-in A2DP Bluetooth wireless technology We appreciate your purchase of this receiver. Please read through this manual for correct operation. We suggest that after reading it you keep this manual in a safe place for future reference.

  • Page 2: For Your Safety In Using The Cd5030

    For your safety in using the CD5030 For your safety in using the CD5030 For your safety in using the CD5030 Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CD5030. They show safe and correct ways to handle the product so as to prevent personal injury to you, others and to avoid property damage.
  • Page 3 For your safety in using the CD5030 WARNING ● Air bags are vital safety equipment. Never install the main unit in a way which will alter air bag wiring or interfere with air bag deployment. When you install the main unit, make sure that the air bags function properly in the event of an accident.
  • Page 4 For your safety in using the CD5030 CAUTION ● Wiring and installing this main unit requires expertise and experience. Professional installation is recommended. Consult with your dealer or a professional installer. Incorrect wiring may damage the main unit or interfere with safe vehicle operation. ●...
  • Page 5 For your safety in using the CD5030 CAUTION ● When inserting batteries into the equipment or devices, be careful with the polarity (positive/negative), and insert them as indicated. If the battery polarities are incorrect, injuries and pollution to the surroundings may result from battery ruptures and leakage. ●...

  • Page 7: Table Of Contents

    Table of Contents For your safety in using the CD5030......... 2 Operating precautions.............. 14 Names of controls and parts ........... 15 How to operate the CD/MP3/WMA player ....... 21 How to operate the USB music file player......31 The Bluetooth audio function ..........35 How to operate the tuner............
  • Page 8 Table of Contents For your safety in using the CD5030............ 2 Operating precautions................. 14 Notes on operation ....................... 14 Names of controls and parts............... 15 Turning the power on and off..................17 Switching Audio Modes ....................17 Adjusting volume ......................17 Switching Rotary Modes....................
  • Page 9 Table of Contents DISPLAYING TITLE ..................... 29 Ejecting the disc ......................30 How to operate the USB music file player ......... 31 About playable USB memory standards............... 31 Playable MP3 file standards................... 31 Playable WMA file standards ................. 32 Format of USB memory ..................32 How to operate the USB music file player ..............
  • Page 10 Table of Contents The Bluetooth hands-free function ........... 45 About the Bluetooth hands-free function ..............45 About the Bluetooth specifications ................45 Supported Bluetooth specifications ................ 45 Supported profile....................45 What is Bluetooth? ....................... 46 Setting the Bluetooth hands-free function ..............46 Displaying the Phone Setting selection mode ............
  • Page 11 Table of Contents How to operate the Sound Adjustment Mode ........64 About Sound Adjustment Mode..................64 About parametric EQ....................65 About time alignment ..................... 66 About crossover ..................... 66 Switching the sound adjustment mode................. 68 Parametric equalizer adjustment (PEQ) ............... 68 Manually adjusting the equalizer mode ..............
  • Page 12 Table of Contents How to operate the main unit with an optional CD changer connected ..................... 87 Listening to a CD ......................87 Advancing to the next track or returning to the beginning of the track being played ..87 Operations during rotary mode..................
  • Page 13 Table of Contents How to operate the main unit with the optional direct cable ® for iPod connected ................98 Listening to iPod music files (If an iPod is not connected) ........... 98 Listening to iPod music files (If an iPod is connected) ..........98 Switching the operation mode ..................

  • Page 14: Operating Precautions

    Operating precautions Operating precautions Operating precautions <Your CD5030 will perform well over a long period of time through correct handling and care.> Notes on operation • For your safety, play only at volume levels that allow outside sounds to be heard. •...

  • Page 15: Names Of Controls And Parts

    Names of controls and parts Names of controls and parts Names of controls and parts Front view Button Name/Working Button Name/Working [ENTER] button [MUTE] button Enters selected item. Activates and deactivates mute. [VOL] knob Buttons [1] to [6] Adjusts volume. Selects radio preset channels and performs disc mode functions.
  • Page 16 Names of controls and parts Name/Working Disc slot Inserts compact discs. CAUTION Never place an object or rest your hands or the like on the front panel.

  • Page 17: Turning The Power On And Off

    Names of controls and parts Turning the power on and off Switching Audio Modes When the power is turned on, the state used Press the [SOURCE/PWR] button when the power was turned off such as CD and for less than one second. tuner playback is restored.

  • Page 18: Switching Rotary Modes

    Names of controls and parts Switching Rotary Modes About a shortcut The [VOL] knob can be switched to other Create a shortcut for frequently-used functions functions. When the rotary mode is set to ON, so that they can be recalled with a single you can switch from the volume adjustment operation.

  • Page 19: Using A Shortcut

    Names of controls and parts Using a shortcut Pattern Display Displays a screen Press the [ /MENU] button for showing the Display C currently selected more than one second. audio mode, the The Menu Selection mode will be elapsed audio activated.

  • Page 20: Detaching The Front Panel

    Names of controls and parts Detaching the front panel Using the detachable panel How to attach the detachable panel The front panel of the main unit can be While holding the right end of the removed. front panel, insert the left end of By removing this panel when you leave the the front panel into the catch on vehicle, you can prevent the theft of the main...

  • Page 21: How To Operate The Cd/Mp3/Wma Player

    How to operate the CD/MP3/WMA player How to operate the CD/MP3/WMA player About compact discs Operation • The signal recorded on a compact disc is read by a laser beam, so nothing touches the disc surface. A scratch on the recorded surface or a badly warped disc may cause deteriorated sound quality or intermittent playback.

  • Page 22: About Brand New Cds

    Operation About brand new CDs Rough Edges • You may notice that some brand new discs are rough around the center hole or outside edge. Remove the rough edges with the side of Ballpoint pen a ballpoint pen, etc. Rough edges may prevent proper loading in the main unit.

  • Page 23: About Irregularly-Shaped Cds

    How to operate the CD/MP3/WMA player About irregularly-shaped CDs • Specially-shaped CDs, such as heart-shaped or octagonal CDs, cannot be played. Do not attempt to play them, even with an adapter connected, as they may damage the player. About cleaning a CD •...

  • Page 24: Playable Mp3 File Standards

    Operation Playable MP3 file standards • Supported standards: MPEG-1 Audio Layer III • Supported sampling frequencies: 44.1 kHz and 48 kHz • Supported bit rate: 64 to 320 (kbps) * Supports VBR. * Does not support free format. • Supported channel modes: monaural, stereo, joint, dual Playable WMA file standards •...

  • Page 25: Format Of Discs

    How to operate the CD/MP3/WMA player Format of discs The format of discs to be used must be ISO9660 Level 1 or Level 2. Control items for this standard are as follows: • Maximum directory layers: 8 layers • Maximum number of characters for folder names/file names: 32 (including "."...

  • Page 26: File Names

    Operation File names Only files with the MP3/WMA file extension ".mp3" or ".wma" can be recognized as MP3/WMA and played. Be sure to save MP3 files with the ".mp3" file extension. Also, save WMA files with the ".wma" file extension. "MP" of the file extension can be either uppercase or lowercase letters. CAUTION If the ".mp3"...

  • Page 27: Listening To A Cd

    How to operate the CD/MP3/WMA player Listening to a CD TRACK (FILE) UP/DOWN CD, MP3/WMA Press the [ (OPEN)] button. The front panel opens. Press the [<] or [>] button. If a CD is already inserted into the slot, [>]: eject it by pressing the [e (EJECT)] button.

  • Page 28: Folder Up/Down

    Operation FAST FORWARD/REWIND Press the [ENTER] button. CD, MP3/WMA ATTENTION For details, refer to the Rotary Mode operation Hold down the [<] or [>] button. on page 18. [>]: Fast forwards. FOLDER UP/DOWN [<]: Rewinds. MP3/WMA SCAN /REPEAT/RANDOM Press the [ ] or [ ] button. [ ]: Selects the next folder.

  • Page 29: Scan*/Repeat/Random

    How to operate the CD/MP3/WMA player MP3/WMA FOLDER SCAN /REPEAT/ RANDOM Press the [4 SCAN] , [5 RPT], or [6 RAND] button. MP3/WMA [4 SCAN] The main unit will play the first ten Press the [4 SCAN] , [5 RPT], or [6 seconds of all files located in the RAND] button for at least one sec- same layer as the folder currently...

  • Page 30: Ejecting The Disc

    Operation Ejecting the disc MP3/WMA Press the [SCREEN/TEXT] button Press the [ (OPEN)] button. for more than one second. Each time the button is pressed, the The front panel opens. text will be displayed in the following order. Press the [e (EJECT)] button. →...

  • Page 31: How To Operate The Usb Music File Player

    How to operate the USB music file player How to operate the USB music file player About playable USB memory standards Operation • Supported File System: FAT 12/16/32 • Playable Audio Format: MP3/WMA • Max.Current: 500 mA • Compatibility: USB1.1/2.0 (Full speed) •...

  • Page 32: Playable Wma File Standards

    Operation Playable WMA file standards • Supported standards: WMA Ver.7 WMA Ver.8 WMA Ver.9 WMA Ver.9.1 WMA Ver.9.2 • Supported sampling frequencies: 32, 44.1, 48 (kHz) • Supported bit rate: 48 to 320 (kbps) * Supports VBR. (48 to 384 kbps) * Does not play DRM.

  • Page 33: How To Operate The Usb Music File Player

    How to operate the USB music file player How to operate the USB music file player Plug a digital audio player or a USB memory (having a USB terminal) into the USB connector and set the main unit to the USB mode, and you can listen to a music file of the audio player or USB memory. USB connection terminal for USB memory or digital audio player.

  • Page 34: Listening To Music Files In Usb Memory

    Operation Disconnecting USB memory Listening to music files in USB memory Disconnect the USB memory Connect the USB memory to the parallel to the USB connector. USB connector. ATTENTION Hold down the [SOURCE/PWR] Do not disconnect the USB memory during button for less than 1 second until playback.

  • Page 35: The Bluetooth Audio Function

    The Bluetooth audio function The Bluetooth audio function About the Bluetooth audio Operation ATTENTION function • If the portable device is used with other wireless devices, it may have a negative The use of Bluetooth wireless communication effect on the communication capabilities of technology enables Bluetooth-compatible...

  • Page 36: What Is Bluetooth

    Operation What is Bluetooth? • Device INFO display: Displays device information for the main unit. Bluetooth is a form of short-range wireless Displaying the BT Audio Set communication technology used to connect cell selection mode phones and personal computers. This technology enables hands-free calling and data transmission between Bluetooth-compatible Press the [ /MENU] button for...

  • Page 37: Connecting The Main Unit And The Portable Device

    The Bluetooth audio function Select "ON" or "OFF" by pressing ATTENTION the [ ] or [ ] button. • For details on how to operate the portable device, read its instruction manual. Enables BT-Audio • Be sure to perform the connection of the OFF: portable device only while the "Waiting"...

  • Page 38: Disconnecting The Main Unit And The Portable Device

    Operation Disconnecting the main unit and the Displaying device information for portable device the main unit The name of the device (main unit), the In the BT Audio Setting selection passcode and the BD ADD (device address) mode, select "Disconnect" by can be displayed.

  • Page 39: Listening To Music

    The Bluetooth audio function Listening to music Pausing the music Hold down the [SOURCE/PWR] Press button [1]. button for less than 1 second until the Bluetooth Audio mode is The music being played is paused. shown. ATTENTION For details, refer to "Switching Audio Modes"...

  • Page 40: How To Operate The Tuner

    Operation How to operate the tuner Operation If you hold down the [<] or [>] ATTENTION button for a little longer time, the If stations have been stored in memory, device starts to search for stations pressing a button from [1] to [6] will enable you automatically.

  • Page 41: Automatically Storing Stations Into Memory. (The Automatic Preset Mode: Asm)

    How to operate the tuner Automatically storing stations Manually storing stations into into memory. (The automatic memory preset mode: ASM) Store a station to a preset button. Hold down the [ ] button (for more Tune to a station frequency you than one second) until the beep wish to store by pressing the [<] sounds.

  • Page 42: Changing The Reception Sensitivity For Automatic Scanning

    Operation Changing the reception Changing the radio band location sensitivity for automatic The location for the radio bands used between scanning the North American region and the Asia/ Australia/Latin region can be switched. The The main unit lets you select the reception default setting is USA (North America).

  • Page 43: How To Use The Remote Control

    How to use the remote control How to use the remote control Precautions in use of the remote control Operation • Be careful when handling the control, especially because it is small and light. Dropping or striking it hard may damage it, wear out the battery or cause a malfunction. •...

  • Page 44: Replacing The Battery

    Operation Insert the two batteries as Button Name/Working indicated into the battery [ d PRESET CH u ]buttons compartment. [ d DISC u ] button Selects radio preset channels and performs disc mode functions. [MODE] button Switches audio source mode. [DISC] button Switches to DISC mode (CD, CD changer, USB or iPod).

  • Page 45: The Bluetooth Hands-Free Function

    The Bluetooth hands-free function The Bluetooth hands-free function About the Bluetooth hands-free • Depending on the surrounding environment, Operation the connection may become unstable, and the function Bluetooth hands-free function may not be able to be operated from the main unit. In The use of Bluetooth wireless communication such cases, confirm that the connection technology enables a Bluetooth-compatible cell...

  • Page 46: What Is Bluetooth

    Operation What is Bluetooth? • Device INFO display setting: To display device information for the main unit. Bluetooth is a form of short-range wireless • Dial setting: communication technology used to connect cell To enable a phone number to be input using phones and personal computers.
  • Page 47 The Bluetooth hands-free function Registering using a cell phone When the registration has been completed, "COMPLETED" will be If a cell phone is currently connected, it must be displayed. disconnected prior to registration of additional cell phones. The cell phone has been registered. appear on the display.) In the Phone Setting selection mode, select "Registration"...

  • Page 48: Delete A Registered Cell Phone

    Operation Searching for cell phones to be When the registration has been registered completed, "COMPLETED" will be displayed. In the Phone Setting selection The cell phone has been registered. mode, select "Registration" by appear on the display.) pressing the [ ] or [ ] button. "FAILED"...

  • Page 49: Connecting A Registered Cell Phone

    The Bluetooth hands-free function Connecting a registered cell phone Disconnecting a cell phone In the Phone Setting selection In the Phone Setting selection mode, select "Select Phone" by mode, select "Select Phone" by pressing the [ ] or [ ] button. pressing the [ ] or [ ] button.

  • Page 50: Registering Phone Number In The Phonebook

    Operation Registering phone number in the Setting Auto Answer phonebook When there is an incoming call, the phone can be set to answer it automatically five seconds after Phone numbers can be registered in the the phone starts ringing. phonebook of the main unit by transferring the phonebook data from the cell phone.

  • Page 51: Setting Auto Answer For Registered Cell Phones

    The Bluetooth hands-free function Setting Auto Answer for registered Displaying device information for cell phones the main unit Cell phones which have been registered to the The name of the device (ECLIPSE BT), the main unit will be connected automatically, if the passcode (default setting - 1234), and the BD main unit and the Bluetooth are in an area where ADD (device address) can be displayed.
  • Page 52 Operation Deleting data from the phonebook Deleting call history In the Phone Setting selection In the Phone Setting selection mode, select "Delete" by pressing mode, select "Delete" by pressing the [ ] or [ ] button. the [ ] or [ ] button. Press the [ENTER] button.

  • Page 53: Changing The Passcode

    The Bluetooth hands-free function Deleting preset dial Changing the passcode The passcode for the main unit can be changed. In the Phone Setting selection 4 to 8 digits must be used. The default setting is mode, select "Delete" by pressing 1234.

  • Page 54: Switching The Speech Output

    Operation Making a call Switching the speech output You can switch the front speaker (between Front This function enables you to dial phone numbers L, Front R, and Front LR) for output of Bluetooth from the main unit, or to make calls using the hands-free speech sound.

  • Page 55: Making A Call Using Preset Dial

    The Bluetooth hands-free function Making a call using the incoming/ ATTENTION outgoing call history A maximum of 28 digits can be input per Calls can be made using phone numbers stored phone number. in the incoming/outgoing call history of the main If you input an incorrect number, move the unit.

  • Page 56: Making A Call Using The Phonebook

    Operation Receiving a call Making a call using the phonebook Calls can be made using the phone numbers Calls can be received while in any source mode. stored in the phonebook of the main unit. There is also an automatic answering function to answer automatically.

  • Page 57: Adjusting The Voice Volume

    The Bluetooth hands-free function Adjusting the voice volume Adjust the voice volume while the call is in progress. Turn the [VOL] knob to adjust the volume. Turning the [VOL] knob to the right: Increases the speech level. Turning the [VOL] knob to the left: Decreases the speech level.

  • Page 58: Esn Security Operating Procedure

    Various Settings ESN security operating procedure About ESN Various Settings Press the [ (OPEN)] button. The main unit is equipped with ESN (ECLIPSE The front panel opens. Security Network). A music CD (Key CD) which has been registered in the main unit, is Insert the Key CD into the disc slot.

  • Page 59: How To Change The Key Cd

    ESN security operating procedure How to resume normal operation Press the [ (OPEN)] button. (ESN security lock out) The front panel opens. If power is disconnected while ESN security is active programmed), ATTENTION operation is disabled until power is restored and the main unit unlocked.

  • Page 60: What Happens If An Incorrect Cd Is Inserted

    Various Settings What happens if an incorrect CD is ATTENTION inserted? • If an incorrect CD is inserted, "ERR_" ("ERR" and error count) message will After the 5th incorrect attempt, the appear for two seconds. Then, "Eject DATA "HELP" message will be displayed DISC"...

  • Page 61: How To Read The Electronic Serial Number

    ESN security operating procedure How to read the Electronic Serial Number Check that the power of the main unit is in the standby state (with the power turned off). While pressing button [4], press the [SCREEN/TEXT] button, and hold both for more than one second.

  • Page 62: How To Operate The Audio Control

    Various Settings How to operate the AUDIO CONTROL Switching audio control modes Various Settings Various audio control modes may be fine-tuned using this procedure. Press the [ENTER] button for less than one second. The Audio Control mode will be activated. Press the [ENTER] button to select an item to be adjusted.
  • Page 63 How to operate the AUDIO CONTROL SVC Setting examples: The volume for the default FM mode (default value: 40) is used as a reference for storing the differences in volume that have been set for each audio mode. Audio mode BT-Audio Default value Reference...

  • Page 64: How To Operate The Sound Adjustment Mode

    Various Settings How to operate the Sound Adjustment Mode About Sound Adjustment Mode Various Settings The system has several features that allow you to adjust the acoustic characteristics inside the cabin. Item Function Page You can adjust the 7-band parametric equalizer. This mode is also used to automatically measure the frequency characteristics Parametric EQ in the vehicle, and automatically adjust to the smooth characteristics with low...

  • Page 65: About Parametric Eq

    How to operate the Sound Adjustment Mode About parametric EQ Various materials such as sheets or glass are used in the vehicle, absorbing or reflecting sound in different directions. The parametric EQ adjusts and corrects the peak and dip of the frequency. High Peak [Sound pressure]...

  • Page 66: About Time Alignment

    Various Settings About time alignment With vehicle audio systems, the installation position of the speakers and the position of the listener mean that the distances from the listener to the left and right speakers are almost always different. These differences in the distance from the listener to each speaker in turn means that the time taken for the sound to reach the listener is different for each speaker.
  • Page 67 How to operate the Sound Adjustment Mode For example, when adjusting the HPF, frequencies that are lower than the specified frequency are progressively dampened, rather than simply not being played back at all. The "slope" adjustment function is the function that is used to adjust these dampening characteristics. The slope characteristics of a filter are such that with larger slope values (for example 12 dB/oct), the slope becomes steeper, and so the amount of sound mixing in with neighboring bands becomes less so that only the target band is played back.

  • Page 68: Switching The Sound Adjustment Mode

    Various Settings Switching the sound adjustment Parametric equalizer adjustment mode (PEQ) You can adjust the 7-band parametric equalizer. Press the [ /MENU] button for Each band can be set to the following median more than one second. frequencies: The Menu Selection mode will be activated.

  • Page 69: Manually Adjusting The Equalizer Mode

    How to operate the Sound Adjustment Mode Manually adjusting the equalizer Press a button from [1] to [4] for mode more than two seconds to preset a setting value. Select "Parametric EQ" by The preset value is overwritten by the pressing the [ ] or [ ] button.

  • Page 70: Automatically Adjusting The Equalizer Mode (Auto Eq)

    Various Settings Measuring frequency characteristics Press the [ENTER] button. Connect the RCA connector of the This resets the adjustment values optional microphone (MEI-100) to saved in the [1] to [4] buttons to the the L-CH of the AUX jack of the defaults.

  • Page 71: Changing The Equalizer Mode (Auto Eq) Based On The Measurement Result

    How to operate the Sound Adjustment Mode Time alignment adjustment (Time The measurement result can be referred to when adjusting parametric Alignment) equalizer. The delay time and level of the sound from each ATTENTION speaker can be adjusted in order to correct any phase mismatches in the sound resulting from Bluetooth is temporarily disconnected while the listening position.

  • Page 72: Automatically Adjusting Time Alignment (Auto Ta)

    Various Settings Automatically adjusting Time ATTENTION Alignment (Auto TA) • Refer to the following for the method of You can automatically measure and adjust the calculating the delay time. delay time and sound level from each speaker A = (B-C) / 34 if the optional measurement microphone A: Delay time (ms) (MEI-100) is connected to this system.

  • Page 73: Position Selector

    How to operate the Sound Adjustment Mode Position selector Press the [ENTER] button. You can adjust the sound field to the listener seat crossover setting mode position. activated. Select "Position Selector" by Press the [ENTER] button to set pressing the [ ] or [ ] button. the crossover adjustment channel.

  • Page 74: Multi-Harmonizer Settings (Harmonizer)

    Various Settings Multi-harmonizer settings Non-fader settings (Non-F (Harmonizer) Setting) This function uses harmonic synthesis to restore • Non-Fader Output (Output) the high-frequency component that is lost as a Non-Fader Output can be stereo or mono. result of the compression process, so that Select the method that matches the output fresher sound can be obtained during MP3/ method for the sub-woofer system that is...

  • Page 75: Making Changes With Display Adjustment Mode

    Making changes with Display Adjustment Mode Making changes with Display Adjustment Mode Various Settings This mode lets you adjust the display brightness, change the button illumination color, etc. Switching the Display Switching the brightness (Bright) Adjustment Mode Default setting is maximum brightness (8). Press the [ /MENU] button for Select "Bright"...

  • Page 76: Changing Illumination Color

    Various Settings Changing illumination color Changing Background (Background) You can change the button illumination color in the following way. Select "Background" by pressing Select "Illumination" by pressing the [ ] or [ ] button. the [ ] or [ ] button. Press the [ENTER] button.

  • Page 77: Changing The Scroll Type (Scroll Type)

    Making changes with Display Adjustment Mode Changing the scroll type (Scroll Importing display data (DISP Type) Data) The scroll type of the text display can be Screens can be downloaded from the ECLIPSE changed. website (E-iSERV) and used instead of the pre- set motion pictures.
  • Page 78 Various Settings When the power is off, hold down Press the [ENTER] button. the [ /MENU] button for more than three seconds. Start importing the data into the main unit. If the data has already been “Customize data?” message imported, it will be overwritten. After appears on the display.

  • Page 79: Making Changes With Function Mode

    Making changes with Function Mode Making changes with Function Mode Various Settings Setting the guide tone A variety of settings can be changed. Switching the Function Mode The main unit is set at the factory to emit a beep tone in response to button operation. The guide tone feature may be disabled in the following Press the [ /MENU] button for...

  • Page 80: Setting Time (Clock Adjust)

    Various Settings Setting time (Clock Adjust) Switching demonstration screen display (Demo) This main unit uses the 12-hour display notation. Demonstration screen display settings can be Select "Clock Adjust" by pressing performed. the [ ] or [ ] button. Default setting is ON. If the demonstration screen display is set to ON, operation, motion picture, Press the [ENTER] button.

  • Page 81: Setting Spectrum Analyzer Sensitivity (S/A Sensitivity)

    Making changes with Function Mode Setting spectrum analyzer Setting the steering remote sensitivity (S/A Sensitivity) function (U.S.A. only) The sensitivity of the spectrum analyzer display The CD5030 supports two types of function can be changed. setup: (1) Automatic assignment of steering remote functions to the steering switch buttons Select "S/A Sensitivity"...

  • Page 82: Automatic Setup Of Steering Remote Functions (U.s.a. Only)

    Various Settings Automatic setup of steering remote Reading steering remote data (U.S.A. functions (U.S.A. only) only) Before loading the steering remote function Download the steering remote function data data to this main unit, be sure to turn the from the ECLIPSE Web site (E-iSERV), copy power Off and set the main unit to the standby this data on a CD-R disc, and load the disc status.

  • Page 83: Manual Setup Of Steering Remote Functions (U.s.a. Only)

    Making changes with Function Mode Manual setup of steering remote Press the [ENTER] button. functions (U.S.A. only) The CD-R is read. While it is reading, You can manually assign a function to each "READING" is displayed. steering switch button. After data reading has completed, To do so, turn the power supply off and set it to the standby state.
  • Page 84 Various Settings Select a desired function to set by pressing the [ ] or [ ] button. A function is selected in the following sequence each time you press the button. TRACK UP ↔ TRACK DOWN ↔ VOL UP ↔ VOL DOWN ↔ MODE ↔ MUTE ↔...

  • Page 85: Compatibility With Various Switches

    Making changes with Function Mode Compatibility with various switches The compatibility of the main unit's various modes and the steering remotes installed on your vehicle are as follows: Mode Switch Button Disc/USB Power BT-Audio BT-TEL function Name Tuner iPod mode mode mode Press...
  • Page 86 Various Settings Mode Switch Button Disc/USB Power BT-Audio BT-TEL function Name Tuner iPod mode mode mode Press — — — — — — ON HOOK briefly ON HOOK Press and — — — — — — — hold The TEL The TEL The TEL The TEL...

  • Page 87: How To Operate The Main Unit With An Optional Cd Changer Connected

    How to operate the main unit with an optional CD changer connected How to operate the main unit with an optional CD changer connected About the optional unit Fast forward/rewind This section covers the operation of an optional CD changer that is connected to the main unit. Fast forward or rewind the song currently being Listening to a CD played.

  • Page 88: Repeating The Same Track (Repeat)

    About the optional unit Repeating the same track • Random play is not cancelled even if a magazine is ejected. (REPEAT) Skipping to the next or previous Press the [5 RPT] button. Pressing on the button for less than one second causes the changer to repeat track currently...

  • Page 89: How To Operate The Tuner With An Optional Hd Radio Tuner Connected (U.s.a. Only)

    How to operate the tuner with an optional HD Radio tuner connected (U.S.A. only) How to operate the tuner with an optional HD Radio tuner connected (U.S.A. only) About HD Radio Switching between displays About the optional unit when receiving HD Radio If the optional HD Radio tuner unit is connected, terrestrial digital broadcasts can be received.

  • Page 90: Tuning To A Sub Channel (Sps)

    About the optional unit Tuning to a sub channel (SPS) Select a setting item by pressing the [ ] or [ ] button. When a station selected in the HD Radio has sub The HD Radio switches in the order channels (SPS), "P_"...

  • Page 91: Storing Tag Information About The Currently Played Track (Tagging)

    How to operate the tuner with an optional HD Radio tuner connected (U.S.A. only) Storing tag information about the currently played track (Tagging) You can use HD Radio to store tag information about the currently played track. Tag information for each track is automatically transferred to the iPod when it is connected to the main unit.

  • Page 92: How To Operate The Tuner With An Optional Xm Satellite Radio Tuner Connected (U.s.a./Canada Only)

    About the optional unit How to operate the tuner with an optional XM satellite radio tuner connected (U.S.A./CANADA only) About XM satellite radio Selecting a channel About the optional unit If the optional XM satellite radio tuner unit is Hold down the [ /BAND] button for connected, satellite radio broadcasts can be less than one second to switch to received.

  • Page 93: Category Selection

    How to operate the tuner with an optional XM satellite radio tuner connected (U.S.A./CANADA only) Manually storing channels into Category selection memory The channel can be selected from among categories such as ROCK and DANCE. This section covers the storing of channels in the Consult the XM website for the details of the numbered buttons in memory.

  • Page 94: Switching Displays When Using The Xm Satellite Radio

    About the optional unit Switching displays when using the XM satellite radio Press the [SCREEN/TEXT] button for more than one second. Each time the button is pressed, the display item changes in the following order: Channel name Category name → →...

  • Page 95: How To Operate The Tuner With An Optional Sirius Satellite Radio Tuner Connected (U.s.a./Canada Only)

    How to operate the tuner with an optional SIRIUS satellite radio tuner connected (U.S.A./CANADA only) How to operate the tuner with an optional SIRIUS satellite radio tuner connected (U.S.A./CANADA only) About SIRIUS satellite radio Selecting a channel About the optional unit If the optional SIRIUS satellite radio tuner unit is Hold down the [ /BAND] button for connected, satellite radio broadcasts can be...

  • Page 96: Category Selection

    About the optional unit Manually storing channels into Category selection memory The channel can be selected from among categories such as POP and ROCK. This section covers the storing of channels in the Consult the SIRIUS website for the details of numbered buttons in memory.

  • Page 97: Switching Displays When Using The Sirius Satellite Radio

    How to operate the tuner with an optional SIRIUS satellite radio tuner connected (U.S.A./CANADA only) Switching displays when using the SIRIUS satellite radio Press the [SCREEN/TEXT] button for more than one second. Each time the button is pressed the display item changes in the following order: channel name →...

  • Page 98: How To Operate The Main Unit With The Optional Direct Cable For Ipod ® Connected

    About the optional unit How to operate the main unit with the optional ® direct cable for iPod connected About the optional unit ® When the iPod is connected to the main unit using the optional iPod direct cable (iPC-109), you can listen to iPod music files.

  • Page 99: Switching The Operation Mode

    ® How to operate the main unit with the optional direct cable for iPod connected Switching the operation mode Fast forward/rewind You can control the iPod functions directly from Hold down the [<] or [>] button. the main unit or from the iPod by switching the operation mode.
  • Page 100 About the optional unit ATTENTION Press the [ENTER] button. • Each search item mode will display The following information is displayed information in the following order before according to the selected search mode displaying music file information. item. Search mode Display order Playlists: The playlist selected on the iPod is...

  • Page 101: Repeating The Same Music File (Repeat)

    ® How to operate the main unit with the optional direct cable for iPod connected Repeating the same music file Displaying text (REPEAT) The display can be switched to show the album name, the artist name and the song name. Press the [5 RPT] button.

  • Page 102: Others

    About the optional unit Others Connecting a portable audio Switching the AUX mode on and off About the optional unit player to the AUX jack Press the [ /MENU] button for more than one second. Use a commonly available accessory cable with an RCA connector or an optional AUX105 to The Menu selection mode is activated.

  • Page 103: Changing Auxiliary Input Sensitivity

    Others Changing auxiliary input sensitivity The sensitivity of the auxiliary mode can be changed. Press the [ /MENU] button for more than one second. The Menu selection mode is activated. Select "FUNC" by pressing the [ ] or [ ] button, and then press the [ENTER] button.

  • Page 104: If You Have A Question

    Other information If you have a question: Other information Check the items mentioned below before attempting to troubleshoot problems. CAUTION If a problem occurs, for instance when the main unit does not respond to any button presses, or the display doesn't work correctly, press the [RESET] button using a paper clip or similar item. Pressing the [RESET] button will delete all the entries from memory.
  • Page 105 If you have a question: Information Explanation and remedial action The CD changer is in the process of verifying the presence of CDs after a magazine has been inserted into the CD LOAD changer. NO VALID FILE IN CD-R OR FILE ERR Confirm the file.
  • Page 106 Other information Information Explanation and remedial action iPod SOFTWARE NOT ERROR2 Check the iPod software. SUPPORTED OUTGOING TRANSMISSION IS Check whether the cell phone is connected and confirm the ERROR IMPOSSIBLE condition of the cell phone. CONNECTION ERROR/ERROR When registering: Check whether the cell phone is Bluetooth compatible.

  • Page 107: When You Think There Is A Malfunction

    If you have a question: When you think there is a malfunction A slight difference in operation may be mistaken for a malfunction. Please check the items in the following table first. If the unit does not work, even after the appropriate remedial action has been taken, please contact your dealer.
  • Page 108 Other information Refer Mode Problems Causes Remedial action page The disc cannot Has an extra label or sticker been applied to Do not apply labels or stickers be inserted. the disc? to the disc. The disc is ejected as soon Try inserting another disc.

  • Page 109: Specifications

    Specifications Specifications Other information <GENERAL> Power Supply 14.4 V DC (11-16 V) Current Drain Dimensions (W x H x D) In-Dash Main unit 178 x 50 x 184.5 mm (7 x 2 x 7-1/4 inches) Mass (weight) Approx. 1.6 kg (3.65 lbs) Usage temperature range -20°C to +65°C (-4°F to +149°F ) Storage temperature range...
  • Page 110 Other information <Bluetooth Audio> Bluetooth Specification Bluetooth Specification Ver.2.0 Power Output Power class 2 (Max +4 dBm) Profile A2DP Ver.1.0 AVRCP Ver.1.0 <Bluetooth Hands-free> Bluetooth Specification Bluetooth Specification Ver.2.0 Power Output Power class 2 (Max +4 dBm) Profile HFP Ver.1.5 OPP Ver.1.1 <AUDIO AMPLIFIER>...

  • Page 111: How To Contact Customer Service

    How to contact customer service Other information Should the product require service, please contact the following ECLIPSE dealer near you. <U.S.A/CANADA> Fujitsu Ten Corp. of America 19600 South Vermont Avenue, Torrance, CA 90502 Phone: 1-800-233-2216 (Information) <AUSTRALIA> Fujitsu Ten (Australia) PTY LTD.

  • Page 112: Security Code

    Other information IMPORTANT RECORD YOUR “KEY CD (SECURITY CODE)” HERE... STORE YOUR “KEY CD (SECURITY CODE)”ALONG WITH YOUR OWNER'S MANUAL.
  • Page 113 How to contact customer service XXIII...

This manual is also suitable for:

Cd5030

Table of Contents
