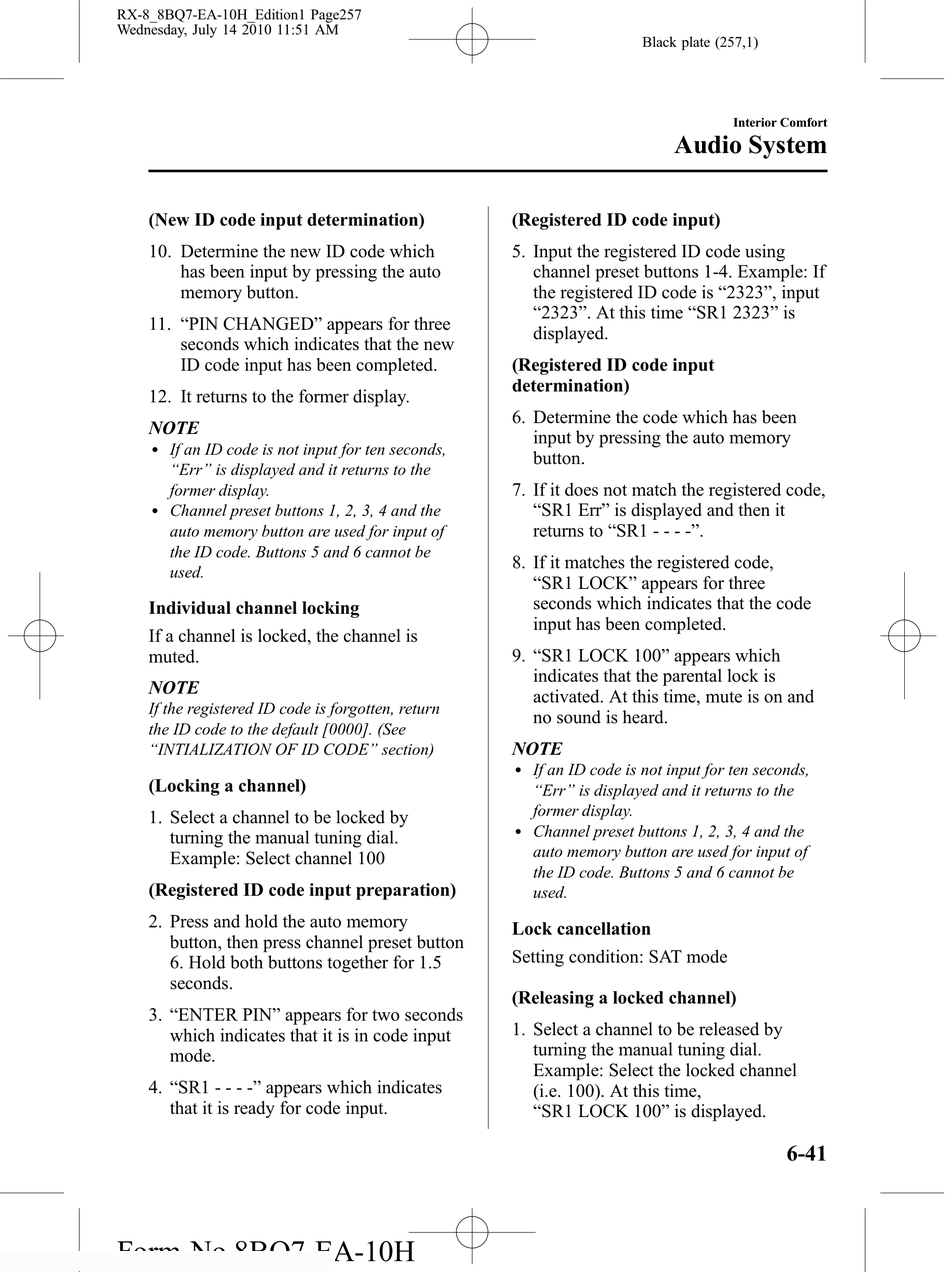

Mazda RX-8 Owner's Manual page 257

RX-8_8BQ7-EA-10H_Edition1 Page257
Wednesday, July 14 2010 11:51 AM
(New ID code input determination)
10. Determine the new ID code which
has been input by pressing the auto
memory button.
11. PIN CHANGED appears for three
seconds which indicates that the new
ID code input has been completed.
12. It returns to the former display.
NOTE
If an ID code is not input for ten seconds,
l
Err is displayed and it returns to the
former display.
Channel preset buttons 1, 2, 3, 4 and the
l
auto memory button are used for input of
the ID code. Buttons 5 and 6 cannot be
used.
Individual channel locking
If a channel is locked, the channel is
muted.
NOTE
If the registered ID code is forgotten, return
the ID code to the default [0000]. (See
INTIALIZATION OF ID CODE section)
(Locking a channel)
1. Select a channel to be locked by
turning the manual tuning dial.
Example: Select channel 100
(Registered ID code input preparation)
2. Press and hold the auto memory
button, then press channel preset button
6. Hold both buttons together for 1.5
seconds.
3. ENTER PIN appears for two seconds
which indicates that it is in code input
mode.
4. SR1 - - - - appears which indicates
that it is ready for code input.
Form No.8BQ7-EA-10H
Black plate (257,1)
Audio System
(Registered ID code input)
5. Input the registered ID code using
channel preset buttons 1-4. Example: If
the registered ID code is 2323 , input
2323 . At this time SR1 2323 is
displayed.
(Registered ID code input
determination)
6. Determine the code which has been
input by pressing the auto memory
button.
7. If it does not match the registered code,
SR1 Err is displayed and then it
returns to SR1 - - - - .
8. If it matches the registered code,
SR1 LOCK appears for three
seconds which indicates that the code
input has been completed.
9. SR1 LOCK 100 appears which
indicates that the parental lock is
activated. At this time, mute is on and
no sound is heard.
NOTE
If an ID code is not input for ten seconds,
l
Err is displayed and it returns to the
former display.
Channel preset buttons 1, 2, 3, 4 and the
l
auto memory button are used for input of
the ID code. Buttons 5 and 6 cannot be
used.
Lock cancellation
Setting condition: SAT mode
(Releasing a locked channel)
1. Select a channel to be released by
turning the manual tuning dial.
Example: Select the locked channel
(i.e. 100). At this time,
SR1 LOCK 100 is displayed.
Interior Comfort
6-41
