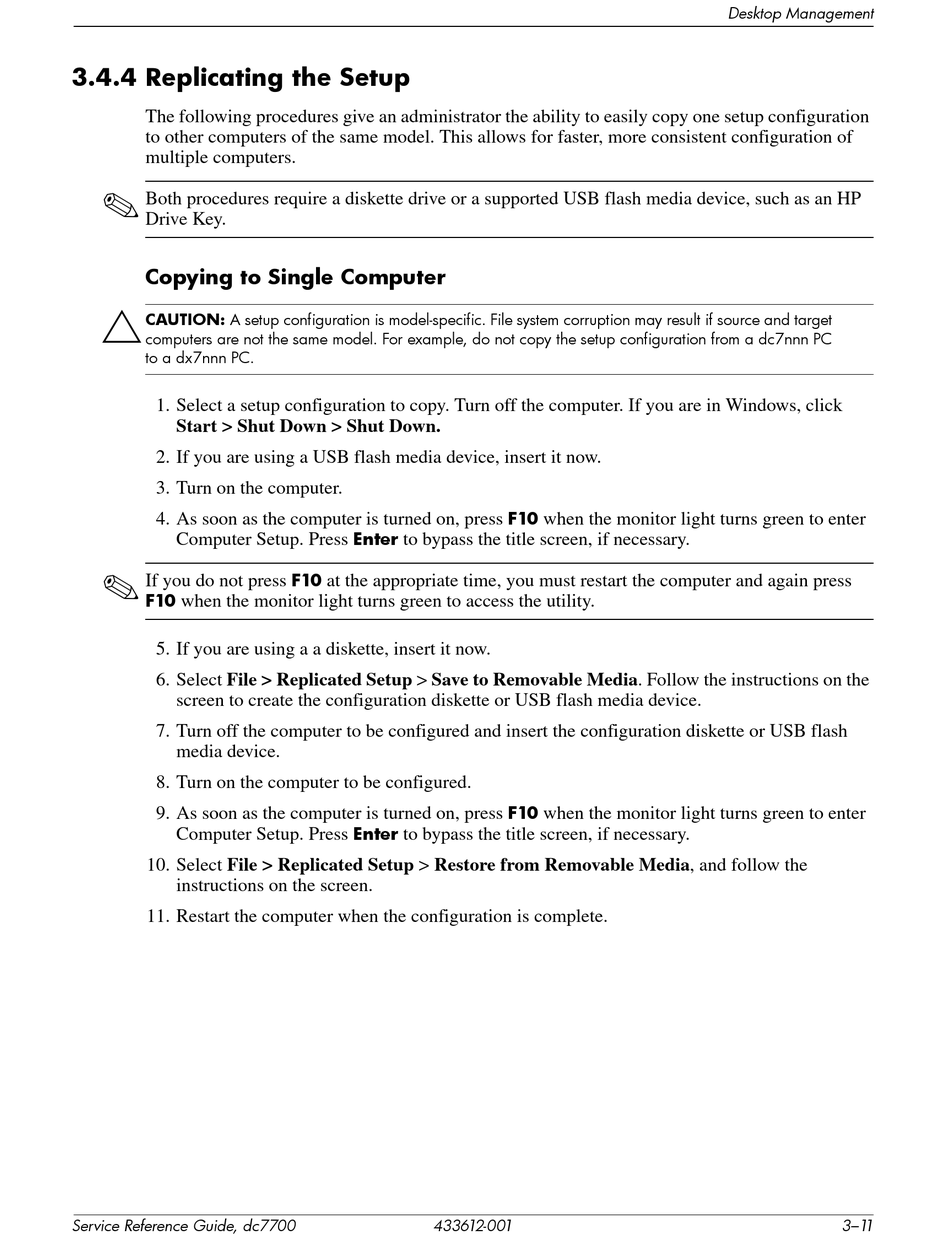

3.4.4 Replicating the Setup

The following procedures give an administrator the ability to easily copy one setup configuration
to other computers of the same model. This allows for faster, more consistent configuration of
multiple computers.
✎
Both procedures require a diskette drive or a supported USB flash media device, such as an HP
Drive Key.
Copying to Single Computer
Ä CAUTION: A setup configuration is model-specific. File system corruption may result if source and target
computers are not the same model. For example, do not copy the setup configuration from a dc7nnn PC
to a dx7nnn PC.
1. Select a setup configuration to copy. Turn off the computer. If you are in Windows, click
Start > Shut Down > Shut Down.
2. If you are using a USB flash media device, insert it now.
3. Turn on the computer.
4. As soon as the computer is turned on, press
Computer Setup. Press
✎
If you do not press
F10
when the monitor light turns green to access the utility.
5. If you are using a a diskette, insert it now.
6. Select File > Replicated Setup > Save to Removable Media. Follow the instructions on the
screen to create the configuration diskette or USB flash media device.
7. Turn off the computer to be configured and insert the configuration diskette or USB flash
media device.
8. Turn on the computer to be configured.
9. As soon as the computer is turned on, press
Computer Setup. Press
10. Select File > Replicated Setup > Restore from Removable Media, and follow the
instructions on the screen.
11. Restart the computer when the configuration is complete.
Service Reference Guide, dc7700
Enter
to bypass the title screen, if necessary.
F10
at the appropriate time, you must restart the computer and again press
Enter
to bypass the title screen, if necessary.
433612-001
F10
when the monitor light turns green to enter
F10
when the monitor light turns green to enter
