Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis

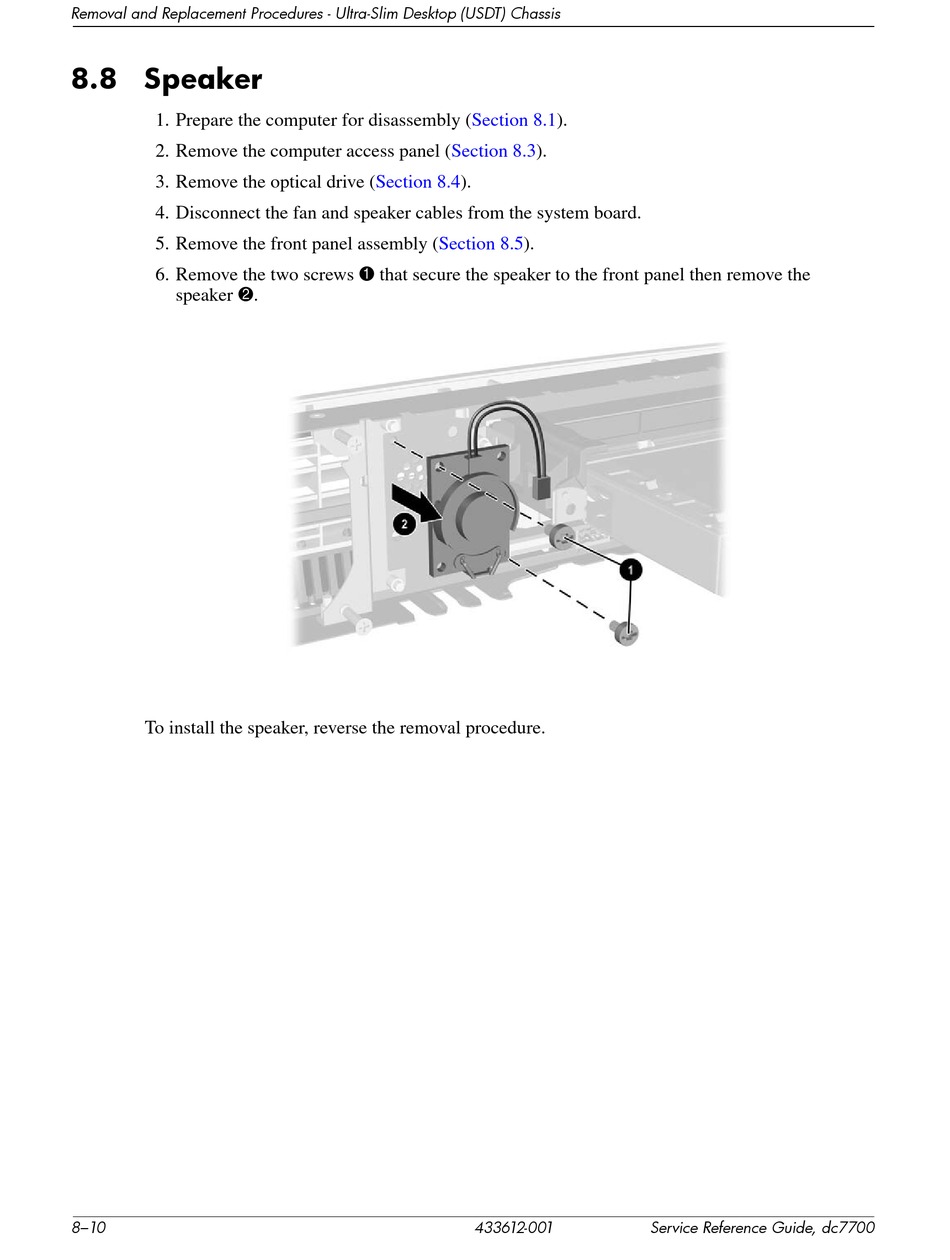

8.8 Speaker

1. Prepare the computer for disassembly
2. Remove the computer access panel
3. Remove the optical drive
4. Disconnect the fan and speaker cables from the system board.
5. Remove the front panel assembly
6. Remove the two screws 1 that secure the speaker to the front panel then remove the
speaker 2.
To install the speaker, reverse the removal procedure.
8–10
(Section 8.1).
(Section 8.3).
(Section 8.4).
(Section 8.5).
433612-001 Service Reference Guide, dc7700
