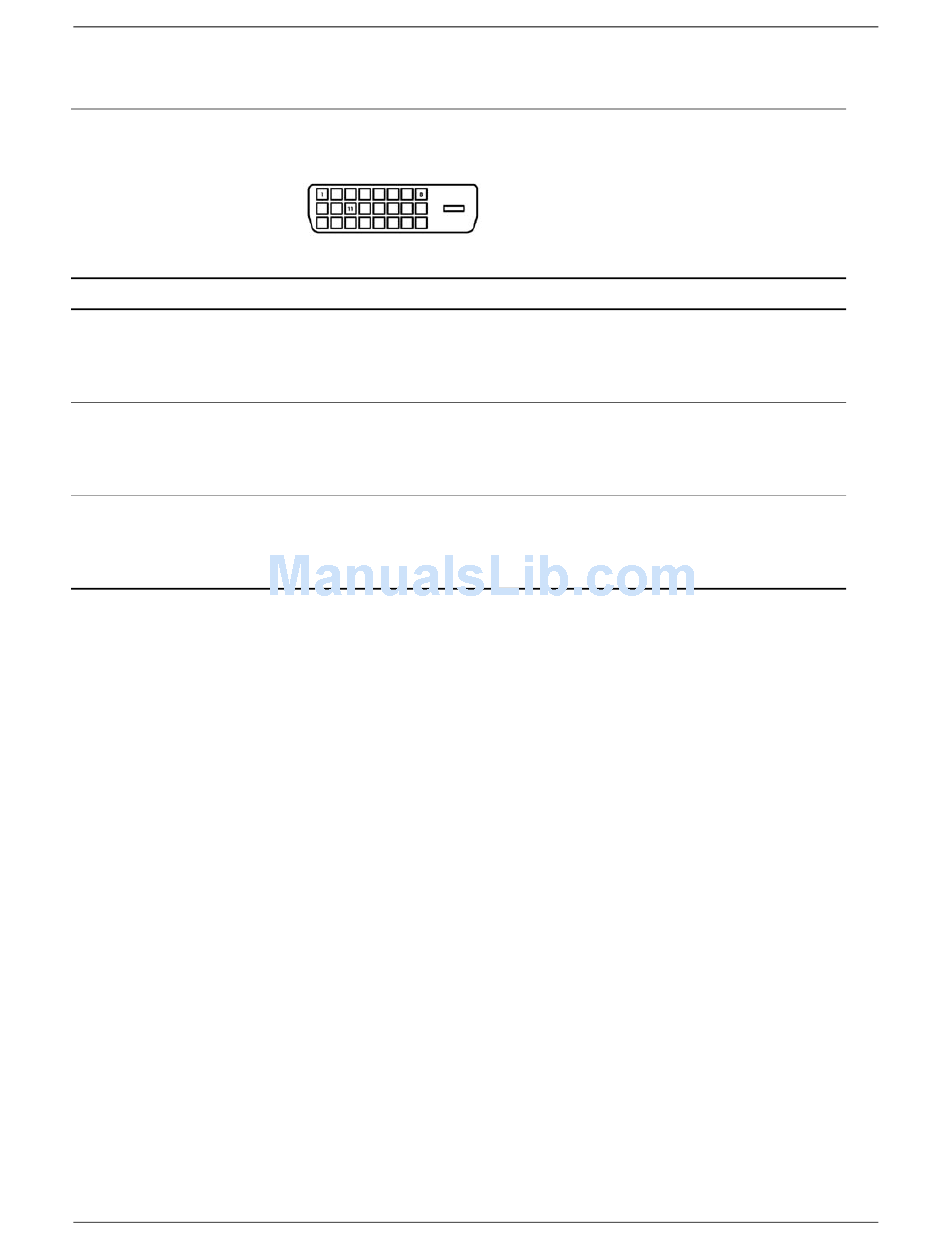

Connector Pin Assignments
DVI Connector
Pin
Signal
1
T.M.D.S. Data2-
2
T.M.D.S. Data2+
3
T.M.D.S. Data2/4 Shield
4
T.M.D.S. Data4-
T.M.D.S. Data4+
5
6
DDC Clock
7
DDC Data
8
No Connect
T.M.D.S. Data1-
9
T.M.D.S. Data1+
10
T.M.D.S. Data1/3 Shield
11
T.M.D.S. Data3-
12
A–10
Connector and Icon
Pin
Signal
13
T.M.D.S. Data3+
14
+5V Power
15
Ground (for +5V)
16
Hot Plug Detect
T.M.D.S. Data0-
17
T.M.D.S. Data0+
18
T.M.D.S. Data0/5 Shield
19
T.M.D.S. Data5-
20
T.M.D.S. Data5+
21
T.M.D.S. Data Shield
22
T.M.D.S. Clock+
23
T.M.D.S. Clock-
24
433612-001
Service Reference Guide, dc7700
