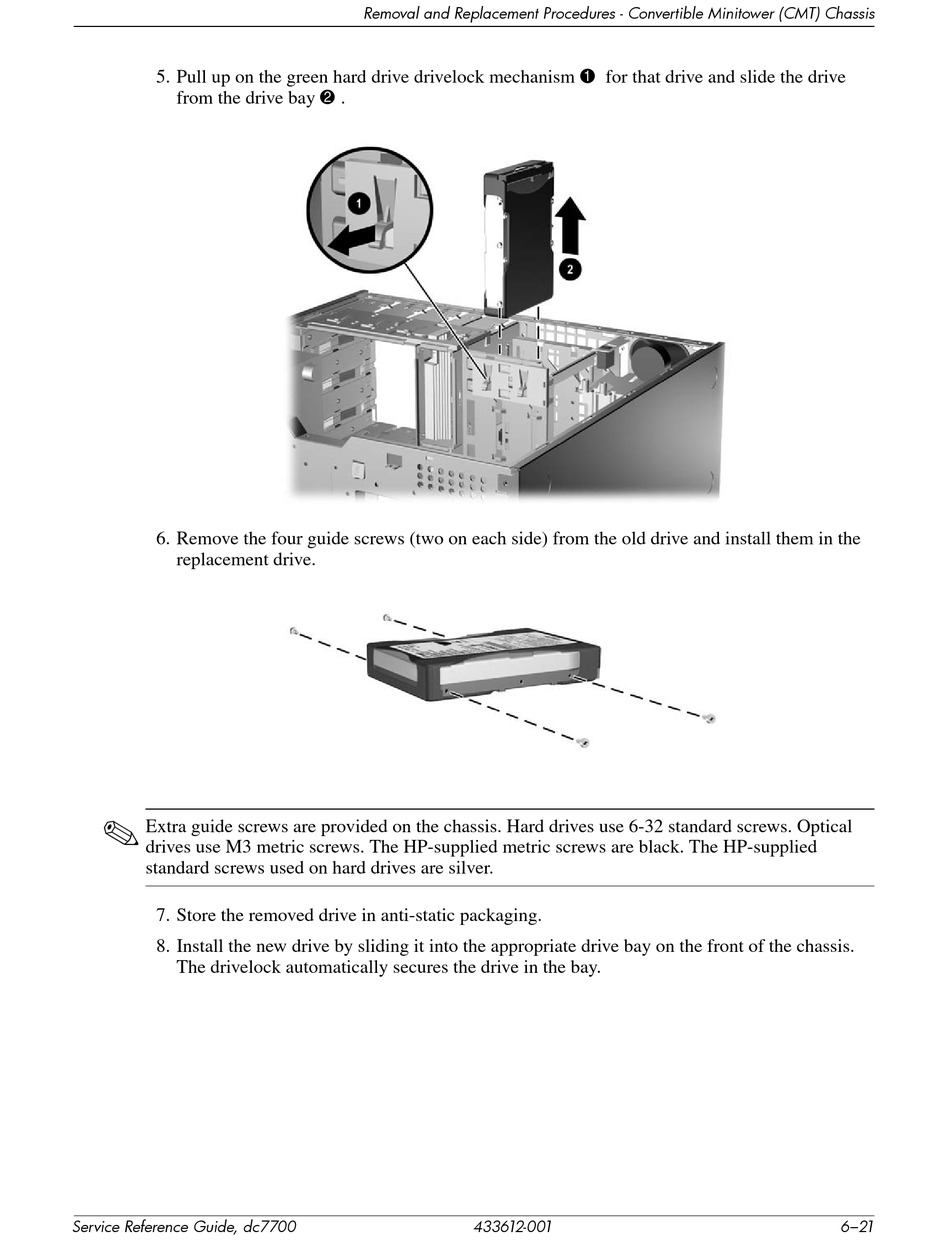

5. Pull up on the green hard drive drivelock mechanism 1 for that drive and slide the drive
from the drive bay 2 .
6. Remove the four guide screws (two on each side) from the old drive and install them in the
replacement drive.
✎
Extra guide screws are provided on the chassis. Hard drives use 6-32 standard screws. Optical
drives use M3 metric screws. The HP-supplied metric screws are black. The HP-supplied
standard screws used on hard drives are silver.
7. Store the removed drive in anti-static packaging.
8. Install the new drive by sliding it into the appropriate drive bay on the front of the chassis.
The drivelock automatically secures the drive in the bay.
