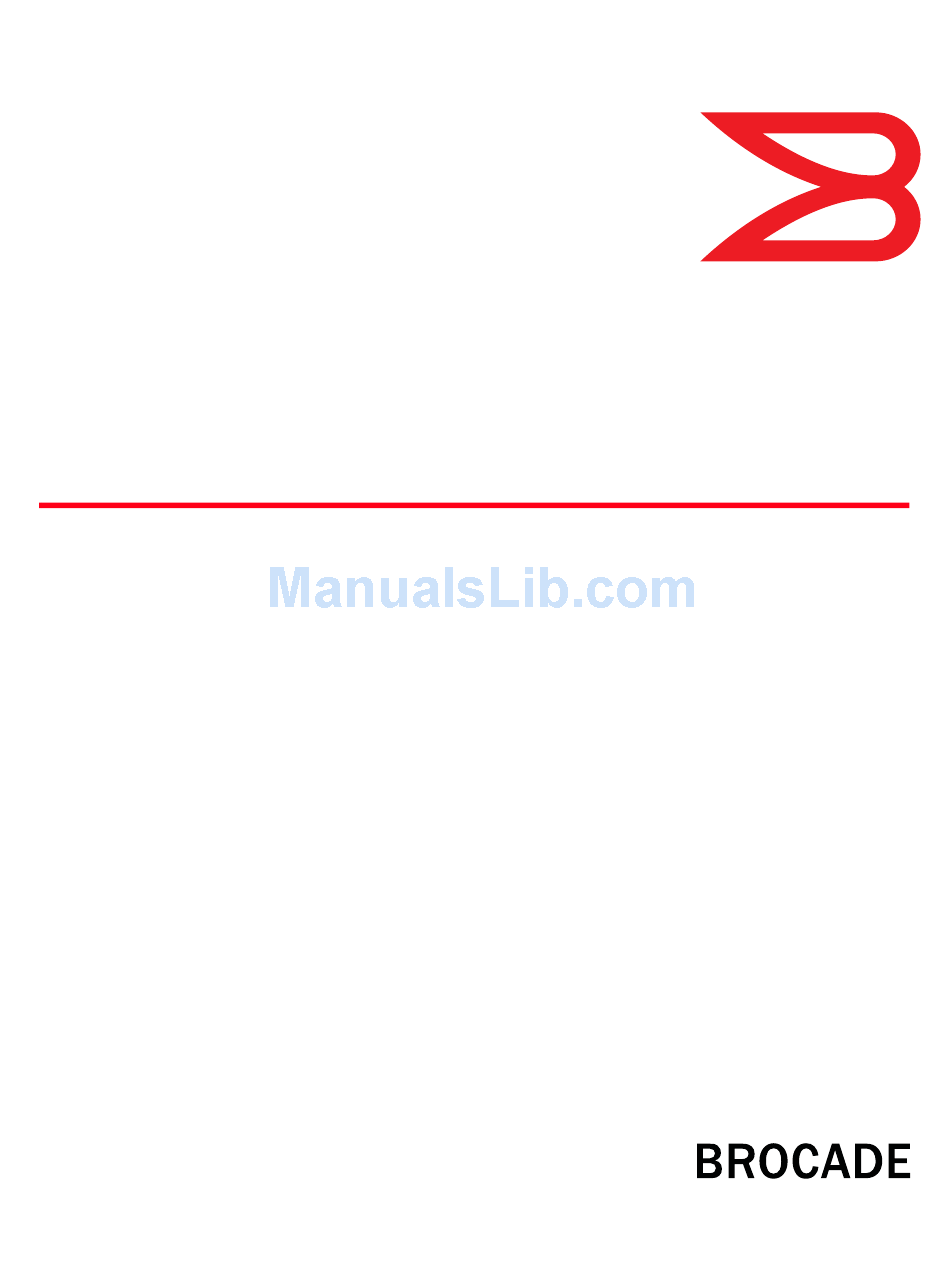

Brocade Communications Systems 8 Reference Manual

Fabric os mib reference
Hide thumbs Also See for 8:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Administrator's Manual, Reference
53-1001768-01
®
30 March 2010
Fabric OS
MIB Reference
Supporting Fabric OS v6.4.0

Advertisement

Table of Contents
loading

Related Manuals for Brocade Communications Systems 8

Summary of Contents for Brocade Communications Systems 8

  • Page 1 53-1001768-01 ® 30 March 2010 Fabric OS MIB Reference Supporting Fabric OS v6.4.0...

  • Page 2: Document History

    Copyright © 2006-2010 Brocade Communications Systems, Inc. All Rights Reserved. Brocade, the B-wing symbol, BigIron, DCX, Fabric OS, FastIron, IronPoint, IronShield, IronView, IronWare, JetCore, NetIron, SecureIron, ServerIron, StorageX, and TurboIron are registered trademarks, and DCFM, Extraordinary Networks, and SAN Health are trademarks of Brocade Communications Systems, Inc., in the United States and/or in other countries.
  • Page 3 Document Title Publication Number Summary of Changes Publication Date Brocade Fabric OS MIB Reference Manual 53-0000521-08 Updated to support the September 2004 Brocade 4100. Brocade Fabric OS MIB Reference Manual 53-0000521-09 Updated to support the April 2005 Brocade 48000 and 200E. Brocade Fabric OS MIB Reference Manual 53-1000045-01 Updated to support the...

  • Page 5: Table Of Contents

    Standard MIBS: ........7 Before loading MIBs........8 MIB loading order.
  • Page 6 Chapter 2 MIB-II (RFC1213-MIB) In this chapter ......... . . 21 MIB II overview .
  • Page 7 Chapter 4 Entity MIB Objects In this chapter ......... . 117 Entity MIB overview .
  • Page 8 .........225 linkIncidentMIBTraps group .......226 Chapter 8 FibreAlliance MIB Objects In this chapter .
  • Page 9 fcipConnStatsTable ........287 Chapter 10 iSCSI MIB Objects In this chapter .
  • Page 10 iSCSI instance information variables......321 Appendix B MIB OIDs and their Matching Object Names MIB OIDs ..........323 Index Fabric OS MIB Reference 53-1001768-01...

  • Page 11: About This Document

    • Chapter 7, “FICON MIB Objects,” provides information for FICON MIB (LINK-INCIDENT-MIB) object types. • Chapter 8, “FibreAlliance MIB Objects,” provides information for FibreAlliance MIB (FCMGMT-MIB) object types. • Chapter 9, “FCIP MIB Objects,” provides information on FCIP MIB support for 7500 switches and FC4-18i blades.

  • Page 12: Supported Hardware And Software

    • Appendix B, “MIB OIDs and their Matching Object Names,” provides a listing of the MIB object names and the corresponding MIB Object ID (OID) associated with each. Supported hardware and software In those instances in which procedures or parts of procedures documented here apply to some switches but not to others, this guide identifies exactly which switches are supported and which are not.

  • Page 13: What's New In This Document

    FC10-6 port blade FR4-18i router blade FX8-24 DCX Extension Blade • Brocade 48000 director FA4-18 Fibre Channel application blade FC4-16 port blade FC4-16IP FC4-32 port blade FC4-48 port blade FC10-6 port blade FR4-18i router blade • Brocade VA-40FC What’s new in this document The following changes have been made since this document was last released: •...

  • Page 14: Document Conventions

    For further information about new features and documentation updates for this release, refer to the release notes. Document conventions This section describes text formatting conventions and important notices formats. Text formatting The narrative-text formatting conventions that are used in this document are as follows: bold text Identifies command names Identifies the names of user-manipulated GUI elements...

  • Page 15: Key Terms

    DANGER A Danger statement indicates conditions or situations that can be potentially lethal or extremely hazardous to you. Safety labels are also attached directly to products to warn of these conditions or situations. Key terms For definitions specific to Brocade and Fibre Channel, see the technical glossaries on MyBrocade. “Brocade resources”...

  • Page 16: Other Industry Resources

    Release notes are available on the MyBrocade website and are also bundled with the Fabric OS firmware. Other industry resources For additional resource information, visit the Technical Committee T11 website. This website provides interface standards for high-performance and mass storage applications for Fibre Channel, storage management, and other applications: http://www.t11.org For information about the Fibre Channel industry, visit the Fibre Channel Industry Association...

  • Page 17: Document Feedback

    • Brocade 7600—On the bottom of the chassis • Brocade 48000—Inside the chassis next to the power supply bays • Brocade DCX—On the bottom right on the port side of the chassis • Brocade DCX-4S—On the bottom right on the port side of the chassis, directly above the cable management comb 3.
  • Page 18 xviii Fabric OS MIB Reference 53-1001768-01...

  • Page 19: In This Chapter

    Chapter Understanding Brocade SNMP In this chapter • Setting the SNMP security level ........1 •...

  • Page 20: Understanding Snmp Basics

    Understanding SNMP basics TABLE 1 Security level options Security level Protocol Query behavior Traps No security [0] SNMPv1 Allowed. Sent. (noAuthnoPriv) SNMPv3 Allowed. Sent. Authentication only [1] SNMPv1 Allowed. Sent. (authNoPriv) SNMPv3 All SNMPv3 users allowed except Sent for all SNMPv3 users noAuthNoPriv users.

  • Page 21: Understanding Mibs

    Understanding SNMP basics The agent can receive queries from one or more management stations and can send traps to up to six management stations. Understanding MIBs The management information base (MIB) is a database of monitored and managed information on a device, in this case a Brocade switch.

  • Page 22: Understanding Snmp Traps

    Understanding SNMP basics Use a MIB browser to access the MIB variables: all MIB browsers perform queries and load MIBs. Since different vendors vary the information in their private enterprise MIBs, it is necessary to verify their information. The Fibre Channel MIB standards dictate that certain information be included in all MIBs: it is the vendors’...
  • Page 23 Understanding SNMP basics An event trap (swEventTrap, connUnitEventTrap, or swFabricWatchTrap) is basically an error message (errShow output) that is SNMP-formatted and delivered. FA traps Consider enabling the FA traps if you want to use SNMP to monitor multiple connectivity units, including Brocade switches.

  • Page 24: Object Instances

    This trap is generated when an IPv6 address status change event occurs. It is generated only when IPv6 stateless state to deprecation state and not for just address change notification. 8. swPmgrEventTrap This trap is generated when any partition manager change happens.

  • Page 25: Brocade Mib Files

    Loading Brocade MIBs Brocade MIB files The Brocade MIB files are as follows: • bd.mib • BRCD_REG.mib • BRCD_TC.mib • brcdfcip.mib • CPQ_HOST.mib • CPQ_RACK.mib • FA.mib • FE_EXP.mib • FICON.mib • HA.mib • IBMBladeCenterTrapMIB.mib • SW.mib Standard MIBS: Distribution of standard MIBs has been stopped from v6.4.0. Download the following MIBs from http://www.oidview.com/ website: •...

  • Page 26: Before Loading Mibs

    Loading Brocade MIBs Before loading MIBs Before loading Brocade MIB files, ensure that you have the correct version of SNMP for your Fabric OS version (Table TABLE 2 Fabric OS-supported SNMP versions Firmware SNMPv1 SNMPv2 SNMPv3 Fabric OS v5.x Fabric OS v6.0.0 Fabric OS v6.1.0 Fabric OS v6.2.0 Fabric OS v6.1.2_CEE...
  • Page 27 Loading Brocade MIBs Select one FICON_v5_0.mib FICON-MIB BRCD.mib Brocade-REG-MIB Brocade-TC RFC1155-SMI FOS 2.6.x, 3.x, 4.x, 5.x, 6.x BD.mib FOS 6.4 Brocade-TC Brocade-REG-MIB FOS 6.4 FOS 6.4 SW_v5_5.mib FOS 2.6.x, 3.x, 4.x, Select one RFC1213-MIB RMON MIB FA_v2_2.mib MIB-II SW_v5_7.mib FCMGMT-MIB FOS 6.x FOS 2.6.x RFC2571...

  • Page 28: Snmp Cli Usage

    Loading Brocade MIBs NOTE FA_v3_0.mib obsoletes the use of the connUnitPortStatFabricTable used in the FA_v2_2.mib. FA_v3_0.mib now uses the connUnitPortStatTable for port statistics. The FA_v3_0.mib and the FA_v2_2.mib cannot be loaded concurrently on the same SNMP management system. The FE_RFC2837.mib and the FE_EXP.mib can be loaded concurrently on the same SNMP management system.
  • Page 29 Loading Brocade MIBs New Priv Passwd: Verify Priv Passwd: Engine ID: [0:0:0:0:0:0:0:0:0] 80:00:05:23:01:0A:23:34:1B User (rw): [snmpadmin3] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] Engine ID: [0:0:0:0:0:0:0:0:0] User (ro): [snmpuser1] Auth Protocol [MD5(1)/SHA(2)/noAuth(3)]: (1..3) [3] Priv Protocol [DES(1)/noPriv(2)/3DES(3)/AES128(4)/AES192(5)/AES256(6)]): (2..2) [2] Engine ID: [0:0:0:0:0:0:0:0:0] User (ro): [snmpuser2]...
  • Page 30 Loading Brocade MIBs Engine ID: 00:00:00:00:00:00:00:00:00 User 5 (ro): snmpuser2 Auth Protocol: noAuth Priv Protocol: noPriv Engine ID: 00:00:00:00:00:00:00:00:00 User 6 (ro): snmpuser3 Auth Protocol: noAuth Priv Protocol: noPriv Engine ID: 00:00:00:00:00:00:00:00:00 SNMPv3 Trap configuration: Trap Entry 1: 10.35.52.33 Trap Port: 162 Trap User: snmpadmin1 Trap recipient Severity level: 4 Trap Entry 2:...
  • Page 31 Loading Brocade MIBs To send all traps to the configured recipients: DCX_54:root> snmpTraps --send Number of traps sent : 27 To send all traps to the recipient 10.35.52.33: DCX_54:root> snmpTraps --send -ip_address 10.35.52.33 Number of traps sent : 27 To send the sw-fc-port-scn trap to the confiregured recipients: DCX_54:root>...
  • Page 32 Loading Brocade MIBs To enable the SW-MIB MIB only without changing the current trap configuration: switch:admin> snmpconfig --enable mibCapability -mib_name SW-MIB Operation succeeded switch:admin> snmpconfig --show mibCapability [...] SW-MIB: YES swFault: NO swSensorScn: NO swFCPortScn: NO swEventTrap: YES DesiredSeverity:None swFabricWatchTrap: YES DesiredSeverity:None swTrackChangesTrap: NO swIPv6ChangeTrap: NO...
  • Page 33 Loading Brocade MIBs swFabricWatchTrap: YES DesiredSeverity:None swTrackChangesTrap: YES swIPv6ChangeTrap: YES swPmgrEventTrap: YES swFabricReconfigTrap: YES swFabricSegmentTrap: YES swExtTrap: YES FA-TRAP: YES connUnitStatusChange: YES connUnitDeletedTrap: YES connUnitEventTrap: YES connUnitSensorStatusChange: YES connUnitPortStatusChange: YES FICON-TRAP: YES linkRNIDDeviceRegistration: YES linkRNIDDeviceDeRegistration: YES linkLIRRListenerAdded: YES linkLIRRListenerRemoved: YES linkRLIRFailureIncident: YES HA-TRAP: YES fruStatusChanged: YES...

  • Page 34: Access Gateway And Brocade Mibs

    Access Gateway and Brocade MIBs SNMP GET Security Level: Authentication and Privacy SNMP SET Security Level: Authentication and Privacy 4. In the Manager (SNMP Browser), create a user snmpadmin1 with Authentication protocol as noAuth, Privacy protocol as noPriv, set the password and set the trap port as 162. (Same values are set as in the switch SNMPv3 configuration.) Access Gateway and Brocade MIBs Brocade Access Gateway supports the following MIBs...

  • Page 35: Fabric Os Commands For Configuring Snmp

    Fabric OS commands for configuring SNMP Fabric OS commands for configuring SNMP Use the following commands (Table 4) to configure MIBs in the Fabric OS. Refer to the Fabric OS Administrator’s Guide for procedures for configuring SNMP on the Brocade switches. TABLE 4 Commands for configuring SNMP Command...
  • Page 36 Fabric OS commands for configuring SNMP TABLE 5 Detailed description of the commands (Continued) Command Operands Arguments mibCapability Selects configuration parameters related to the SNMP agent’s MIBs and trap capability parameters. These parameters include MIBs and traps supported by the SNMP agent.

  • Page 37: Support For Administrative Domains

    Support for Administrative Domains TABLE 5 Detailed description of the commands (Continued) Command Operands Arguments snmptraps --send [-trap_name --send -trap_name trap_name trap_name] [-ip_address ip_address] Sends one or all SNMP traps to all configured Specifies the trap by name. Use snmptraps recipients or to a specified recipient.
  • Page 38 Support for Virtual Fabric Fabric OS MIB Reference 53-1001768-01...

  • Page 39: Mib-Ii (Rfc1213-Mib)

    Chapter MIB-II (RFC1213-MIB) In this chapter • MIB II overview..........21 •...

  • Page 40: Mib-Ii Object Hierarchy

    MIB II overview MIB-II object hierarchy Figure 6 through Figure 17 depict the organization and structure of MIB-II. - iso - org - dod - internet - directory - mgmt - mib-2 - system - interfaces - at - ip - icmp - tcp - udp...
  • Page 41 1.3.6.1.2.1.2.1 ifTable 1.3.6.1.2.1.2.2 ifEntry 1.3.6.1.2.1.2.2.1 ifIndex 1.3.6.1.2.1.2.2.1.1 ifDescr 1.3.6.1.2.1.2.2.1.2 ifType 1.3.6.1.2.1.2.2.1.3 ifMtu 1.3.6.1.2.1.2.2.1.4 ifSpeed 1.3.6.1.2.1.2.2.1.5 ifPhysAddress 1.3.6.1.2.1.2.2.1.6 ifAdminStatus 1.3.6.1.2.1.2.2.1.7 ifOperStatus 1.3.6.1.2.1.2.2.1.8 ifLastChange 1.3.6.1.2.1.2.2.1.9 ifInOctets 1.3.6.1.2.1.2.2.1.10 ifInUcastPkts 1.3.6.1.2.1.2.2.1.11 ifInNUcastPkts 1.3.6.1.2.1.2.2.1.12 ifInDiscards 1.3.6.1.2.1.2.2.1.13 ifInErrors 1.3.6.1.2.1.2.2.1.14 ifInUnknownProtos 1.3.6.1.2.1.2.2.1.15 ifOutOctets 1.3.6.1.2.1.2.2.1.16 ifOutUcastPkts 1.3.6.1.2.1.2.2.1.17 ifOutNUcastPkts 1.3.6.1.2.1.2.2.1.18...
  • Page 42 MIB II overview - ip (1.3.6.1.2.1.4) ipForwarding 1.3.6.1.2.1.4.1 ipDefaultTTL 1.3.6.1.2.1.4.2 ipInReceives 1.3.6.1.2.1.4.3 ipInHdrErrors 1.3.6.1.2.1.4.4 ipInAddrErrors 1.3.6.1.2.1.4.5 ipForwDatagrams 1.3.6.1.2.1.4.6 ipInUnknownProtos 1.3.6.1.2.1.4.7 ipInDiscards 1.3.6.1.2.1.4.8 ipInDelivers 1.3.6.1.2.1.4.9 ipOutRequests 1.3.6.1.2.1.4.10 ipOutDiscards 1.3.6.1.2.1.4.11 ipOutNoRoutes 1.3.6.1.2.1.4.12 ipReasmTimeout 1.3.6.1.2.1.4.13 ipReasmReqds 1.3.6.1.2.1.4.14 ipReasmOKs 1.3.6.1.2.1.4.15 ipReasmFails 1.3.6.1.2.1.4.16 ipFragOKs 1.3.6.1.2.1.4.17 ipFragFails 1.3.6.1.2.1.4.18...
  • Page 43 MIB II overview - icmp (1.3.6.1.2.1.5) icmpInMsgs 1.3.6.1.2.1.5.1 icmpInErrors 1.3.6.1.2.1.5.2 icmpInDestUnreachs 1.3.6.1.2.1.5.3 icmpInTimeExcds 1.3.6.1.2.1.5.4 icmpInParmProbs 1.3.6.1.2.1.5.5 icmpInSrcQuenchs 1.3.6.1.2.1.5.6 icmpInRedirects 1.3.6.1.2.1.5.7 icmpInEchos 1.3.6.1.2.1.5.8 icmpInEchoReps 1.3.6.1.2.1.5.9 icmpInTimestamps 1.3.6.1.2.1.5.10 icmpInTimestampReps 1.3.6.1.2.1.5.11 icmpInAddrMasks 1.3.6.1.2.1.5.12 icmpInAddrMaskReps 1.3.6.1.2.1.5.13 icmpOutMsgs 1.3.6.1.2.1.5.14 icmpOutErrors 1.3.6.1.2.1.5.15 icmpOutDestUnreachs 1.3.6.1.2.1.5.16 icmpOutTimeExcds 1.3.6.1.2.1.5.17 icmpOutParmProbs 1.3.6.1.2.1.5.18...
  • Page 44 MIB II overview - tcp (1.3.6.1.2.1.6) tcpRtoAlgorithm 1.3.6.1.2.1.6.1 tcpRtoMin 1.3.6.1.2.1.6.2 tcpRtoMax 1.3.6.1.2.1.6.3 tcpMaxConn 1.3.6.1.2.1.6.4 tcpActiveOpens 1.3.6.1.2.1.6.5 tcpPassiveOpens 1.3.6.1.2.1.6.6 tcpAttemptFails 1.3.6.1.2.1.6.7 tcpEstabResets 1.3.6.1.2.1.6.8 tcpCurrEstab 1.3.6.1.2.1.6.9 tcpInSegs 1.3.6.1.2.1.6.10 tcpOutSegs 1.3.6.1.2.1.6.11 tcpRetransSegs 1.3.6.1.2.1.6.12 tcpConnTable 1.3.6.1.2.1.6.13 tcpConnEntry 1.3.6.1.2.1.6.13.1 tcpConnState 1.3.6.1.2.1.6.13.1.1 tcpConnLocalAddress 1.3.6.1.2.1.6.13.1.2 tcpConnLocalPort 1.3.6.1.2.1.6.13.1.3 tcpConnRemAddress 1.3.6.1.2.1.6.13.1.4...
  • Page 45 MIB II overview - egp (1.3.6.1.2.1.8) - egpInMsgs - egpInErrors - egpOutMsgs - egpOutErrors - egpNeighTable - egpNeighEntry - egpNeighState - egpNeighAddr - egpNeighAs - egpNeighInMsgs - egpNeighInErrs - egpNeighOutMsgs - egpNeighOutErrs - egpNeighInErrMsgs - egpNeighOutErrMsgs - egpNeighStateUps - egpNeighStateDowns...
  • Page 46 1.3.6.1.2.1.16.1 etherStatsTable 1.3.6.1.2.1.16.1.1 etherStatsEntry 1.3.6.1.2.1.16.1.1.1 etherStatsIndex 1.3.6.1.2.1.16.1.1.1.1 etherStatsDataSource 1.3.6.1.2.1.16.1.1.1.2 etherStatsDropEvents 1.3.6.1.2.1.16.1.1.1.3 etherStatsOctets 1.3.6.1.2.1.16.1.1.1.4 etherStatsPkts 1.3.6.1.2.1.16.1.1.1.5 etherStatsBroadcastPkts 1.3.6.1.2.1.16.1.1.1.6 etherStatsMulticastPkts 1.3.6.1.2.1.16.1.1.1.7 etherStatsCRCAlignErrors 1.3.6.1.2.1.16.1.1.1.8 etherStatsUndersizePkts 1.3.6.1.2.1.16.1.1.1.9 etherStatsOversizePkts 1.3.6.1.2.1.16.1.1.1.10 etherStatsFragments 1.3.6.1.2.1.16.1.1.1.11 etherStatsJabbers 1.3.6.1.2.1.16.1.1.1.12 etherStatsCollisions 1.3.6.1.2.1.16.1.1.1.13 etherStatsPkts64Octets 1.3.6.1.2.1.16.1.1.1.14 etherStatsPkts65to127Octets 1.3.6.1.2.1.16.1.1.1.15 etherStatsPkts128to255Octets 1.3.6.1.2.1.16.1.1.1.16 etherStatsPkts256to511Octets 1.3.6.1.2.1.16.1.1.1.17 etherStatsPkts512to1023Octets 1.3.6.1.2.1.16.1.1.1.18...

  • Page 47: Textual Conventions

    - ifMIB (1.3.6.1.2.1.31) ifXTable 1.3.6.1.2.1.31.1.1 ifXentry 1.3.6.1.2.1.31.1.1.1 ifName 1.3.6.1.2.1.31.1.1.1.1 ifInMulticastPkts 1.3.6.1.2.1.31.1.1.1.2 ifInBroadcastPkts 1.3.6.1.2.1.31.1.1.1.3 ifOutMulticastPkts 1.3.6.1.2.1.31.1.1.1.4 ifOutBroadcastPkts 1.3.6.1.2.1.31.1.1.1.5 ifHCInOctets 1.3.6.1.2.1.31.1.1.1.6 ifHCInUcastPkts 1.3.6.1.2.1.31.1.1.1.7 ifHCInMulticastPkts 1.3.6.1.2.1.31.1.1.1.8 ifHCInBroadcastPkts 1.3.6.1.2.1.31.1.1.1.9 ifHCOutOctets 1.3.6.1.2.1.31.1.1.1.10 ifHCOutUcastPkts 1.3.6.1.2.1.31.1.1.1.11 ifHCOutMulticastPkts 1.3.6.1.2.1.31.1.1.1.12 ifHCOutBroadcastPkts 1.3.6.1.2.1.31.1.1.1.13 ifLinkUpDownTrapEnable 1.3.6.1.2.1.31.1.1.1.14 ifHighSpeed 1.3.6.1.2.1.31.1.1.1.15 ifPromiscuousMode 1.3.6.1.2.1.31.1.1.1.16 ifConnectorPresent 1.3.6.1.2.1.31.1.1.1.17 ifAlias 1.3.6.1.2.1.31.1.1.1.18...

  • Page 48: System Group

    System group System group All systems must implement the System group. If an agent is not configured to have a value for any of the System group variables, a string of length 0 is returned. sysDescr 1.3.6.1.2.1.1.1 A textual description of the entity. This value should include the full name and version identification of the hardware type, software operating system, and networking software.

  • Page 49: Interfaces Group

    sysName 1.3.6.1.2.1.1.5 sysName 1.3.6.1.2.1.1.5 An administratively assigned name for this managed node. By convention, this is the node’s fully qualified domain name. Default Preassigned name of the logical switch. Set command Set this value using the snmpconfig command. sysLocation 1.3.6.1.2.1.1.6 The physical location of this node (for example, telephone closet, 3rd floor).
  • Page 50 ifNumber 1.3.6.1.2.1.2.1 ifNumber 1.3.6.1.2.1.2.1 The number of network interfaces and existing FC ports present on this system, regardless of their current state. This number will vary across platforms (switches). The return value is dynamic for all Brocade switches and depends on the number of GbE ports, FC ports and transport interfaces.
  • Page 51 ifType 1.3.6.1.2.1.2.2.1.3 • For transport interface- FCIP tunnel ID • For FC ports- Port name (if set), otherwise, FC port <slot/port> ifType 1.3.6.1.2.1.2.2.1.3 The type of interface, designated by the physical link protocols immediately below the network layer in the protocol stack. •...
  • Page 52 Supports Read only, should return same value with ifOperStatus for WAN and FC ports interfaces. NOTE The testing (3) state indicates that no operational packets can be passed. This object is read-only in Fabric OS v4.x and above. ifOperStatus 1.3.6.1.2.1.2.2.1.8 The current operational state of the interface. • Values up (1) •...
  • Page 53 ifLastChange 1.3.6.1.2.1.2.2.1.9 ifLastChange 1.3.6.1.2.1.2.2.1.9 The value of sysUpTime at the time the interface entered its current operational state. If the current state was entered prior to the last re-initialization of the local network management subsystem, then this object contains a zero value. ifInOctets 1.3.6.1.2.1.2.2.1.10 The total number of octets received on the interface, including framing characters.

  • Page 54: At Group

    ifOutUcastPkts 1.3.6.1.2.1.2.2.1.17 ifOutUcastPkts 1.3.6.1.2.1.2.2.1.17 The total number of packets that were requested, by higher-level protocols, to be transmitted to a subnetwork-unicast address, including those that were discarded or not sent. ifOutNUcastPkts 1.3.6.1.2.1.2.2.1.18 The total number of packets that were requested, by higher-level protocols, to be transmitted to a nonunicast address (for example, a subnetwork-broadcast or subnetwork-multicast), including those that were discarded or not sent.

  • Page 55: Ip Group

    atTable 1.3.6.1.2.1.3.1 atTable 1.3.6.1.2.1.3.1 The Address Translation group contains one table, which is the union across all interfaces of the translation tables for converting a network address (for example, an IP address) into a subnetwork-specific address. This document refers to such a subnetwork-specific address as a physical address.
  • Page 56 The number of locally addressed datagrams received successfully but discarded because of an unknown or unsupported protocol. ipInDiscards 1.3.6.1.2.1.4.8 The number of input IP datagrams for which no problems were encountered to prevent their continued processing, but which were discarded (for example, for lack of buffer space).
  • Page 57 ipOutRequests 1.3.6.1.2.1.4.10 ipOutRequests 1.3.6.1.2.1.4.10 The total number of IP datagrams that local IP user protocols (including ICMP) supplied to IP in requests for transmission. Note that this counter does not include any datagrams counted in ipForwDatagrams. ipOutDiscards 1.3.6.1.2.1.4.11 The number of output IP datagrams for which no problem was encountered to prevent their transmission to their destination, but which were discarded (for example, for lack of buffer space).
  • Page 58 ipFragOKs 1.3.6.1.2.1.4.17 NOTE This is not necessarily a count of discarded IP fragments, because some algorithms (notably the algorithm in RFC 815) can lose track of the number of fragments by combining them as they are received. ipFragOKs 1.3.6.1.2.1.4.17 The number of IP datagrams that have been successfully fragmented at this entity. ipFragFails 1.3.6.1.2.1.4.18 The number of IP datagrams that have been discarded because they needed to be fragmented at this entity but could not be (for example, because their Don't Fragment flag was set).
  • Page 59 ipAdEntBcastAddr 1.3.6.1.2.1.4.20.1.4 ipAdEntBcastAddr 1.3.6.1.2.1.4.20.1.4 The value of the least-significant bit in the IP broadcast address used for sending datagrams on the (logical) interface associated with the IP address of this entry. For example, when the Internet standard all-ones broadcast address is used, the value will be 1. This value applies to both the subnet and network broadcasts addresses used by the entity on this (logical) interface.
  • Page 60 IP address on that interface.) ipRouteType 1.3.6.1.2.1.4.21.1.8 The type of route. Setting this object to 2 (invalid) has the effect of invalidating the corresponding entry in the ipRouteTable object. That is, it effectively dissasociates the destination identified with said entry from the route identified with said entry.
  • Page 61 ipRouteAge 1.3.6.1.2.1.4.21.1.10 Inclusion of values for gateway routing protocols is not intended to imply that hosts should support those protocols. ipRouteAge 1.3.6.1.2.1.4.21.1.10 The number of seconds since this route was last updated or otherwise determined to be correct. Older semantics cannot be implied except through knowledge of the routing protocol by which the route was learned.

  • Page 62: Icmp Group

    ipNetToMediaEntry 1.3.6.1.2.1.4.22.1 NOTE The IP address translation table contains the IP address to physical address equivalences. Some interfaces do not use translation tables for determining address equivalences. For example, DDN-X.25 has an algorithmic method; if all interfaces are of this type, then the Address Translation table is empty.
  • Page 63 1.3.6.1.2.1.5.6 The number of ICMP Source Quench messages received. icmpInRedirects 1.3.6.1.2.1.5.7 The number of ICMP Redirect messages received. icmpInEchos 1.3.6.1.2.1.5.8 The number of ICMP Echo (request) messages received. icmpInEchoReps 1.3.6.1.2.1.5.9 The number of ICMP Echo Reply messages received. icmpInTimestamps 1.3.6.1.2.1.5.10 The number of ICMP Timestamp (request) messages received.
  • Page 64 icmpInTimestampReps 1.3.6.1.2.1.5.11 icmpInTimestampReps 1.3.6.1.2.1.5.11 The number of ICMP Timestamp Reply messages received. icmpInAddrMasks 1.3.6.1.2.1.5.12 The number of ICMP Address Mask Request messages received. icmpInAddrMaskReps 1.3.6.1.2.1.5.13 The number of ICMP Address Mask Reply messages received. icmpOutMsgs 1.3.6.1.2.1.5.14 The total number of ICMP messages that this entity attempted to send. NOTE This counter includes all those counted by icmpOutErrors.

  • Page 65: Tcp Group

    icmpOutRedirects 1.3.6.1.2.1.5.20 icmpOutRedirects 1.3.6.1.2.1.5.20 The number of ICMP Redirect messages sent. For a host, this object is always 0, since hosts do not send redirects. icmpOutEchos 1.3.6.1.2.1.5.21 The number of ICMP Echo (request) messages sent. icmpOutEchoReps 1.3.6.1.2.1.5.22 The number of ICMP Echo Reply messages sent. icmpOutTimestamps 1.3.6.1.2.1.5.23 The number of ICMP Timestamp (request) messages sent.
  • Page 66 SYN-SENT state or the SYN-RCVD state, plus the number of times TCP connections have made a direct transition to the LISTEN state from the SYN-RCVD state. tcpEstabResets 1.3.6.1.2.1.6.8 The number of times TCP connections have made a direct transition to the CLOSED state from either the ESTABLISHED state or the CLOSE-WAIT state.

  • Page 67: Tcp Connection Table

    tcpCurrEstab 1.3.6.1.2.1.6.9 tcpCurrEstab 1.3.6.1.2.1.6.9 The number of TCP connections for which the current state is either ESTABLISHED or CLOSE-WAIT. tcpInSegs 1.3.6.1.2.1.6.10 The total number of segments received, including those received in error. This count includes segments received on currently established connections. tcpOutSegs 1.3.6.1.2.1.6.11 The total number of segments sent, including those on current connections but excluding those containing only retransmitted octets.
  • Page 68 (3) • synReceived (4) • established (5) • finWait1 (6) • finWait2 (7) • closeWait (8) • lastAck (9) • closing (10) • timeWait (11) • deleteTCB (12) NOTE Fabric OS v3.1.x and v4.x do not allow the SET operation on this variable.

  • Page 69: Udp Group

    tcpOutRsts 1.3.6.1.2.1.6.15 tcpOutRsts 1.3.6.1.2.1.6.15 The number of TCP segments sent containing the RST flag. UDP group Implementation of the UDP group is mandatory for all systems that implement the UDP. udpInDatagrams 1.3.6.1.2.1.7.1 The total number of UDP datagrams delivered to UDP users. udpNoPorts 1.3.6.1.2.1.7.2 The total number of received UDP datagrams for which there was no application at the destination port.

  • Page 70: Egp Group

    udpLocalPort 1.3.6.1.2.1.7.5.1.2 udpLocalPort 1.3.6.1.2.1.7.5.1.2 The local port number for this UDP listener. EGP group Brocade does not support the EGP group. This section is not applicable. Refer to the RFC1213 for complete information regarding the EGP group. Transmission group Brocade does not support the Transmission group. This section is not applicable. Refer to the RFC1213 for complete information regarding the Transmission group.
  • Page 71 The total number of ASN.1 or BER errors encountered by the SNMP protocol entity when decoding received SNMP messages. NOTE 1.3.6.1.2.1.11.7 is not supported. snmpInTooBigs 1.3.6.1.2.1.11.8 The total number of SNMP PDUs that were delivered to the SNMP protocol entity and for which the value of the error-status field is “tooBig.” snmpInNoSuchNames 1.3.6.1.2.1.11.9 The total number of SNMP PDUs that were delivered to the SNMP protocol entity and for which the value of the error-status field is “noSuchName.”...
  • Page 72 snmpInTotalSetVars 1.3.6.1.2.1.11.14 snmpInTotalSetVars 1.3.6.1.2.1.11.14 The total number of MIB objects that have been altered successfully by the SNMP protocol entity as the result of receiving valid SNMP Set-Request PDUs. snmpInGetRequests 1.3.6.1.2.1.11.15 Status Mandatory The total number of SNMP Get-Request PDUs that have been accepted and processed by the SNMP protocol entity.
  • Page 73 snmpOutBadValues 1.3.6.1.2.1.11.22 snmpOutBadValues 1.3.6.1.2.1.11.22 The total number of SNMP PDUs that were generated by the SNMP protocol entity and for which the value of the error-status field is “badValue.” NOTE 1.3.6.1.2.1.11.23 is not supported. snmpOutGenErrs 1.3.6.1.2.1.11.24 The total number of SNMP PDUs that were generated by the SNMP protocol entity and for which the value of the error-status field is “genErr.”...

  • Page 74: Rmon Group

    snmpSilentDrops 1.3.6.1.2.1.11.31 • disabled (2) This object is stored in nonvolatile memory so that it remains constant between reinitializations of the switch. This value can be changed with the snmpconfig command. snmpSilentDrops 1.3.6.1.2.1.11.31 The total number of Confirmed Class PDUs (such as GetRequest-PDUs, GetNextRequest-PDUs, GetBulkRequest-PDUs, SetRequest-PDUs, and InformRequest-PDUs) delivered to the SNMP entity and which were silently dropped because the size of a reply containing an alternate Response Class PDU (such as a Response-PDU) with an empty variable-bindings field was greater than either...
  • Page 75 etherStatsIndex 1.3.6.1.2.1.16.1.1.1.1 etherStatsIndex 1.3.6.1.2.1.16.1.1.1.1 The value of this object uniquely identifies this etherStats entry. etherStatsDataSource 1.3.6.1.2.1.16.1.1.1.2 This object identifies the source of the data that this etherStats entry is configured to analyze. This source can be any Ethernet interface on this device. To identify a particular interface, this object will identify the instance of the ifIndex object, defined in RFC 1213 and RFC 1573 [4,6], for the desired interface.
  • Page 76 1.3.6.1.2.1.16.1.1.1.8 etherStatsCRCAlignErrors 1.3.6.1.2.1.16.1.1.1.8 The total number of packets received that had a length (excluding framing bits, but including FCS octets) between 64 and 1518 octets, inclusive, but had one of the following errors: • FCS error: A bad Frame Check Sequence (FCS) with an integral number of octets.
  • Page 77 etherStatsPkts65to127Octets 1.3.6.1.2.1.16.1.1.1.15 etherStatsPkts65to127Octets 1.3.6.1.2.1.16.1.1.1.15 The total number of packets (including bad packets) received that were between 65 and 127 octets in length inclusive (excluding framing bits but including FCS octets). etherStatsPkts128to255Octets 1.3.6.1.2.1.16.1.1.1.16 The total number of packets (including bad packets) received that were between 128 and 255 octets in length inclusive (excluding framing bits but including FCS octets).
  • Page 78 alarmEntry 1.3.6.1.2.1.16.3.1.1 alarmEntry 1.3.6.1.2.1.16.3.1.1 A list of parameters that set up a periodic checking for alarm conditions. alarmIndex 1.3.6.1.2.1.16.3.1.1.1 An index that uniquely identifies an entry in the alarm table. Each such entry defines a diagnostic sample at a particular interval for an object on the device. alarmInterval 1.3.6.1.2.1.16.3.1.1.2 The interval in seconds over which the data is sampled and compared with the rising and falling thresholds.
  • Page 79 1.3.6.1.2.1.16.3.1.1.8 alarmFallingThreshold 1.3.6.1.2.1.16.3.1.1.8 A threshold for the sampled statistic. When the current sampled value is less than or equal to this threshold, and the value at the last sampling interval was greater than this threshold, a single event will be generated. After a falling event is generated, another such event will not be generated until the sampled value rises above this threshold and reaches the alarmRisingThreshold.
  • Page 80 eventDescription 1.3.6.1.2.1.16.9.1.1.2 eventDescription 1.3.6.1.2.1.16.9.1.1.2 A comment describing this event entry. eventType 1.3.6.1.2.1.16.9.1.1.3 The type of notification that the probe will make about this event. In the case of a log, an entry is made in the log table for each event. In the case of snmp-trap, an SNMP trap is sent to one or more management stations.

  • Page 81: Ifmib Group

    logIndex 1.3.6.1.2.1.16.9.2.1.2 logIndex 1.3.6.1.2.1.16.9.2.1.2 An index that uniquely identifies an entry in the log table amongst those generated by the same eventEntries. logTime 1.3.6.1.2.1.16.9.2.1.3 The value of sysUpTime when this log entry was created. logDescription 1.3.6.1.2.1.16.9.2.1.4 An implementation-dependent description of the event that activated this log entry. ifMIB group The ifMIB group is implemented in Fabric OS 5.3.0 and higher to support FCIP tunnels.
  • Page 82 ifInMulticastPkts 1.3.6.1.2.1.31.1.1.1.2 ifInMulticastPkts 1.3.6.1.2.1.31.1.1.1.2 The number of packets, delivered by this sub-layer to a higher (sub-)layer, which were addressed to a multicast address at this sub-layer. For a MAC layer protocol, this includes both Group and Functional addresses. Discontinuities in the value of this counter can occur at re-initialization of the management system, and at other times as indicated by the value of ifCounterDiscontinuityTime.
  • Page 83 Discontinuities in the value of this counter can occur at re-initialization of the management system, and at other times as indicated by the value of ifCounterDiscontinuityTime. ifHCInMulticastPkts 1.3.6.1.2.1.31.1.1.1.8 The number of packets, delivered by this sub-layer to a higher (sub-)layer, which were addressed to a multicast address at this sub-layer.
  • Page 84 ifHCOutMulticastPkts 1.3.6.1.2.1.31.1.1.1.12 ifHCOutMulticastPkts 1.3.6.1.2.1.31.1.1.1.12 The total number of packets that higher-level protocols requested be transmitted, and which were addressed to a multicast address at this sub-layer, including those that were discarded or not sent. For a MAC layer protocol, this includes both Group and Functional addresses. This object is a 64-bit version of ifOutMulticastPkts.

  • Page 85: Generic Traps

    ifAlias 1.3.6.1.2.1.31.1.1.1.18 ifAlias 1.3.6.1.2.1.31.1.1.1.18 This object is an alias name for the interface as specified by a network manager, and provides a non-volatile handle for the interface. On the first instantiation of an interface, the value of ifAlias associated with that interface is the zero-length string. As and when a value is written into an instance of ifAlias through a network management set operation, then the agent must retain the supplied value in the ifAlias instance associated with the same interface for as long as that interface remains instantiated, including across all re-initializations or reboots of the network...
  • Page 86 linkDown 1.3.6.1.6.3.1.1.5.3 linkDown 1.3.6.1.6.3.1.1.5.3 A linkDown trap signifies that the sending protocol entity recognizes a failure in one of the communication links represented in the agent's configuration. This trap is generated for the following ports: • FCIP GE ports [Brocade 7800E/Brocade 7500/FR4-18i router blade/FX8-24 DCX Extension Blade] •...
  • Page 87 authenticationFailure 1.3.6.1.6.3.1.1.5.5 NOTE authTraps must be enabled in the switch with the command: snmpconfig -set systemgroup. Fabric OS MIB Reference 53-1001768-01...
  • Page 88 authenticationFailure 1.3.6.1.6.3.1.1.5.5 Fabric OS MIB Reference 53-1001768-01...

  • Page 89: Fe Mib Objects

    Chapter FE MIB Objects In this chapter • FE MIB overview..........71 •...

  • Page 90: Fibre-Channel-Fe-Mib (Mib-Ii Branch)

    FIBRE-CHANNEL-FE-MIB (MIB-II branch) TABLE 7 FE MIBs and supported Fabric OS versions Fabric OS version FIBRE-CHANNEL-FE-MIB (MIB-II branch) FCFABRIC-ELEMENT-MIB (experimental branch) v4.x v3.1.x v3.0.x v2.6.x FIBRE-CHANNEL-FE-MIB (MIB-II branch) This section contains descriptions and other information specific to FIBRE-CHANNEL-FE-MIB (in the MIB-II branch), including: •...

  • Page 91: Fibre-Channel-Fe-Mib Organization

    FIBRE-CHANNEL-FE-MIB (MIB-II branch) FIBRE-CHANNEL-FE-MIB organization Figure 18 through Figure 23 depict the organization and structure of FIBRE-CHANNEL-FE-MIB. - iso - org - dod - internet - mgmt - mib-2 - fcFeMIB - fcFeMIBObjects - fcFeConfig - fcFeStatus - fcFeError - fcFeAccounting - fcFeCapabilities - fcFeMIBConformance - fcFeMIBCompliances...
  • Page 92 1.3.6.1.2.1.75.1.1.5 fcFxPortEntry 1.3.6.1.2.1.75.1.1.5.1 fcFxPortIndex 1.3.6.1.2.1.75.1.1.5.1.1 fcFxPortName 1.3.6.1.2.1.75.1.1.5.1.2 fcFxPortFcphVersionHigh 1.3.6.1.2.1.75.1.1.5.1.3 fcFxPortFcphVersionLow 1.3.6.1.2.1.75.1.1.5.1.4 fcFxPortBbCredit 1.3.6.1.2.1.75.1.1.5.1.5 fcFxPortRxBufSize 1.3.6.1.2.1.75.1.1.5.1.6 fcFxPortRatov 1.3.6.1.2.1.75.1.1.5.1.7 fcFxPortEdtov 1.3.6.1.2.1.75.1.1.5.1.8 fcFxPortCosSupported 1.3.6.1.2.1.75.1.1.5.1.9 fcFxPortIntermixSupported 1.3.6.1.2.1.75.1.1.5.1.10 fcFxPortStackedConnMode 1.3.6.1.2.1.75.1.1.5.1.11 fcFxPortClass2SeqDeliv 1.3.6.1.2.1.75.1.1.5.1.12 fcFxPortClass3SeqDeliv 1.3.6.1.2.1.75.1.1.5.1.13 fcFxPortHoldTime 1.3.6.1.2.1.75.1.1.5.1.14 FIGURE 19 fcFeConfig hierarchy Fabric OS MIB Reference...
  • Page 93 1.3.6.1.2.1.75.1.2.2.1.4 fcFxloginTable 1.3.6.1.2.1.75.1.2.3 fcFxloginEntry 1.3.6.1.2.1.75.1.2.3.1 fcFxPortNxLoginIndex 1.3.6.1.2.1.75.1.2.3.1.1 fcFxPortFcphVersionAgreed 1.3.6.1.2.1.75.1.2.3.1.2 fcFxPortNxPortBbCredit 1.3.6.1.2.1.75.1.2.3.1.3 fcFxPortNxPortRxDataFieldSize 1.3.6.1.2.1.75.1.2.3.1.4 fcFxPortCosSuppAgreed 1.3.6.1.2.1.75.1.2.3.1.5 fcFxPortIntermixSuppAgreed 1.3.6.1.2.1.75.1.2.3.1.6 fcFxPortStackedConnModeAgreed 1.3.6.1.2.1.75.1.2.3.1.7 fcFxPortClass2SeqDelivAgreed 1.3.6.1.2.1.75.1.2.3.1.8 fcFxPortClass3SeqDelivAgreed 1.3.6.1.2.1.75.1.2.3.1.9 fcFxPortNxPortName 1.3.6.1.2.1.75.1.2.3.1.10 fcFxPortConnectedNxPort 1.3.6.1.2.1.75.1.2.3.1.11 fcFxPortBbCreditModel 1.3.6.1.2.1.75.1.2.3.1.12 FIGURE 20 fcFeStatus hierarchy - fcFeError fcFxPortErrorTable 1.3.6.1.2.1.75.1.3.1 fcFxPortErrorEntry 1.3.6.1.2.1.75.1.3.1.1 fcFxPortLinkFailures 1.3.6.1.2.1.75.1.3.1.1.1...
  • Page 94 - fcFeAccounting fcFxPortC1AccountingTable 1.3.6.1.2.1.75.1.4.1 fcFxPortC1AccountingEntry 1.3.6.1.2.1.75.1.4.1.1 fcFxPortC1InFrames 1.3.6.1.2.1.75.1.4.1.1.1 fcFxPortC1OutFrames 1.3.6.1.2.1.75.1.4.1.1.2 fcFxPortC1InOctets 1.3.6.1.2.1.75.1.4.1.1.3 fcFxPortC1OutOctets 1.3.6.1.2.1.75.1.4.1.1.4 fcFxPortC1Discards 1.3.6.1.2.1.75.1.4.1.1.5 fcFxPortC1FbsyFrames 1.3.6.1.2.1.75.1.4.1.1.6 fcFxPortC1FrjtFrames 1.3.6.1.2.1.75.1.4.1.1.7 fcFxPortC1InConnections 1.3.6.1.2.1.75.1.4.1.1.8 fcFxPortC1OutConnections 1.3.6.1.2.1.75.1.4.1.1.9 fcFxPortC1ConnTime 1.3.6.1.2.1.75.1.4.1.1.10 fcFxPortC2AccountingTable 1.3.6.1.2.1.75.1.4.2 fcFxPortC2AccountingEntry 1.3.6.1.2.1.75.1.4.2.1 fcFxPortC2InFrames 1.3.6.1.2.1.75.1.4.2.1.1 fcFxPortC2OutFrames 1.3.6.1.2.1.75.1.4.2.1.2 fcFxPortC2InOctets 1.3.6.1.2.1.75.1.4.2.1.3 fcFxPortC2OutOctets 1.3.6.1.2.1.75.1.4.2.1.4 fcFxPortC2Discards 1.3.6.1.2.1.75.1.4.2.1.5 fcFxPortC2FbsyFrames 1.3.6.1.2.1.75.1.4.2.1.6...

  • Page 95: Definitions For Fibre-Channel-Fe-Mib

    World Wide Name or Fibre Channel name associated with an FC entity. It is a Network_Destination_ID or Network_Source_ID composed of a value up to 60 bits wide, occupying the remaining 8 bytes while the first nibble identifies the format of the Name_Identifier. Name_Identifier hex values:...
  • Page 96 1 (other) None of below rates 2 (one-eighth) 155 Mbaud (12.5 MB/s) 4 (quarter) 266 Mbaud (25.0 MB/s) 8 (half) 532 Mbaud (50.0 MB/s) 16 (full) 1 Gbaud (100 MB/s) 32 (double) 2 Gbaud (200 MB/s) 64 (quadruple) 4 Gbaud (400 MB/s)

  • Page 97: Fcfeconfig Group

    TABLE 8 FIBRE-CHANNEL-FE-MIB definitions (Continued) Type definition Value Description FcFeFxPortCapacity Integer from 1 to 448 Maximum number of Fx_Ports within a module. For the Brocade 300, this value is 24. For the Brocade 4100, this value is 32.
  • Page 98 fcFeModuleCapacity 1.3.6.1.2.1.75.1.1.3 Returns Displays the WWN of the switch. fcFeModuleCapacity 1.3.6.1.2.1.75.1.1.3 The maximum number of modules in the fabric element, regardless of their current state. Value The valid value for all Brocade switches is 1. fcFeModuleTable 1.3.6.1.2.1.75.1.1.4 A table that contains information about the modules, one entry for each module in the fabric element.
  • Page 99 fcFeModuleLastChange 1.3.6.1.2.1.75.1.1.4.1.5 Values 1 - online, module functioning properly 2 - offline, module not available 3 - testing, module in test mode 4 - faulty, module is defective fcFeModuleLastChange 1.3.6.1.2.1.75.1.1.4.1.5 Contains the value of sysUpTime when the module entered its current operational status. A value of 0 indicates that the operational status of the module has not changed since the agent last restarted.
  • Page 100 fcFxPortTable 1.3.6.1.2.1.75.1.1.5 fcFxPortTable 1.3.6.1.2.1.75.1.1.5 A table that contains configuration and service parameters of the Fx_Ports, one entry for each Fx_Port in the fabric element. fcFxPortEntry 1.3.6.1.2.1.75.1.1.5.1 An entry containing the configuration and service parameters of an Fx_Port. Index 1: fcFeModuleIndex 2: fcFxPortIndex fcFxPortIndex 1.3.6.1.2.1.75.1.1.5.1.1 Identifies the Fx_Port within the module.
  • Page 101 Nx_Port resource such as a Recovery_Qualifier. It represents E_D_TOV (Refer to “fcFxPortEdtov 1.3.6.1.2.1.75.1.1.5.1.8” on page 83) plus twice the maximum time that a frame might be delayed within the fabric and still be delivered.

  • Page 102: Fcfestatus Group

    fcFxPortHoldTime 1.3.6.1.2.1.75.1.1.5.1.14 fcFxPortHoldTime 1.3.6.1.2.1.75.1.1.5.1.14 The maximum time (in microseconds) that the Fx_Port holds a frame before discarding the frame if it is unable to deliver the frame. The value 0 means that the Fx_Port does not support this parameter. The formula used to calculate this object is (RATOV - EDTOV - (2 * WAN_TOV)) / (MAX_HOPS + 1)) / 2).
  • Page 103 fcFxPortAdminMode 1.3.6.1.2.1.75.1.2.1.1.4 fcFxPortAdminMode 1.3.6.1.2.1.75.1.2.1.1.4 The desired operational mode of the Fx_Port. NOTE This object is read-only. It is listed incorrectly in the MIB definition as read-write. Fx_Port Physical Level Table This table contains the physical level status and parameters of the Fx_Ports, one entry for each Fx_Port in the fabric element.
  • Page 104 fcFxPortPhysLastChange 1.3.6.1.2.1.75.1.2.2.1.3 1: online (1) 2: offline (2) 3: testing (3) 4: linkFailure (4) The testing state (3) indicates that no operational frames can be passed. If fcFxPortPhysAdminStatus is offline (2), then fcFxPortPhysOperStatus should be offline (2). If fcFxPortPhysAdminStatus is changed to online (1), then fcFxPortPhysOperStatus should change to online (1) if the Fx_Port is ready to accept fabric login request from the attached Nx_Port;...
  • Page 105 Indicates whether the Fx_Port has agreed to support stacked connect from the fabric login. This is only meaningful if Class 1 service has been agreed to. fcFxPortClass2SeqDelivAgreed 1.3.6.1.2.1.75.1.2.3.1.8 Indicates whether the Fx_Port has agreed to support Class 2 sequential delivery from the fabric login.

  • Page 106: Fcfeerror Group

    fcFxPortClass3SeqDelivAgreed 1.3.6.1.2.1.75.1.2.3.1.9 fcFxPortClass3SeqDelivAgreed 1.3.6.1.2.1.75.1.2.3.1.9 A flag indicating whether the Fx_Port has agreed to support Class 3 sequential delivery from the fabric login. This is only meaningful if Class 3 service has been agreed to. Values Possible values are: • yes (1) The Fx_Port has agreed to support Class 3 sequential delivery from the fabric login. •...
  • Page 107 The number of invalid cyclic redundancy checks (CRC) detected by this Fx_Port. fcFxPortDelimiterErrors 1.3.6.1.2.1.75.1.3.1.1.7 The number of delimiter errors detected by this Fx_Port. fcFxPortAddressIdErrors 1.3.6.1.2.1.75.1.3.1.1.8 The number of address identifier errors detected by this Fx_Port. Fabric OS MIB Reference 53-1001768-01...

  • Page 108: Fcfeaccounting Group

    fcFxPortLinkResetIns 1.3.6.1.2.1.75.1.3.1.1.9 fcFxPortLinkResetIns 1.3.6.1.2.1.75.1.3.1.1.9 The number of Link Reset Protocol errors received by this Fx_Port from the attached Nx_Port. fcFxPortLinkResetOuts 1.3.6.1.2.1.75.1.3.1.1.10 The number of Link Reset Protocol errors issued by this Fx_Port to the attached Nx_Port. fcFxPortOlsIns 1.3.6.1.2.1.75.1.3.1.1.11 The number of Offline Sequence errors received by this Fx_Port. fcFxPortOlsOuts 1.3.6.1.2.1.75.1.3.1.1.12 The number of Offline Sequence issued by this Fx_Port.
  • Page 109 The number of F_BSY frames generated by this Fx_Port against Class 1 connect-request. fcFxPortC1FrjtFrames 1.3.6.1.2.1.75.1.4.1.1.7 The number of F_RJT frames generated by this Fx_Port against Class 1 connect-request. fcFxPortC1InConnections 1.3.6.1.2.1.75.1.4.1.1.8 The number of Class 1 connections successfully established in which the attached Nx_Port is the source of the connect-request.
  • Page 110 fcFxPortC2AccountingTable 1.3.6.1.2.1.75.1.4.2 fcFxPortC2AccountingTable 1.3.6.1.2.1.75.1.4.2 A table that contains Class 2 accounting information recorded since the management agent has reinitialized, one entry for each Fx_Port in the fabric element. fcFxPortC2AccountingEntry 1.3.6.1.2.1.75.1.4.2.1 An entry containing Class 2 accounting information for each Fx_Port. Augments: 1: fcFxPortEntry fcFxPortC2InFrames 1.3.6.1.2.1.75.1.4.2.1.1...

  • Page 111: Fcfecapabilities Group

    fcFxPortC3AccountingTable 1.3.6.1.2.1.75.1.4.3 fcFxPortC3AccountingTable 1.3.6.1.2.1.75.1.4.3 A table that contains Class 3 accounting information recorded since the management agent has reinitialized, one entry for each Fx_Port in the fabric element. fcFxPortC3AccountingEntry 1.3.6.1.2.1.75.1.4.3.1 An entry containing Class 3 accounting information for each Fx_Port. Augments: 1: fcFxPortEntry fcFxPortC3InFrames 1.3.6.1.2.1.75.1.4.3.1.1...
  • Page 112 fcFxPortCapTable 1.3.6.1.2.1.75.1.5.1 fcFxPortCapTable 1.3.6.1.2.1.75.1.5.1 A table that contains the capabilities of the port within the fabric element, one entry for each Fx_Port. fcFxPortCapEntry 1.3.6.1.2.1.75.1.5.1.1 An entry containing the capabilities of a Fx_Port. Augments: 1: fcFxPortEntry fcFxPortCapFcphVersionHigh 1.3.6.1.2.1.75.1.5.1.1.1 The highest or most recent version of FC-PH that the Fx_Port is capable of supporting. fcFxPortCapFcphVersionLow 1.3.6.1.2.1.75.1.5.1.1.2 The lowest or earliest version of FC-PH that the Fx_Port is capable of supporting.

  • Page 113: Fcfabric-Element-Mib (Experimental Branch)

    1.3.6.1.2.1.75.1.5.1.1.8 fcFxPortCapIntermix 1.3.6.1.2.1.75.1.5.1.1.8 A flag indicating whether the Fx_Port is capable of supporting the intermixing of Class 2 and Class 3 frames during a Class 1 connection. This flag is only valid if the port is capable of supporting Class 1 service.

  • Page 114: Fcfabric-Element-Mib Organization

    FCFABRIC-ELEMENT-MIB (experimental branch) NOTE Brocade does not support the settable “Write” function for any of the Fibre Channel FE MIB objects except “fcFxPortPhysAdminStatus 1.3.6.1.2.1.75.1.2.2.1.1”. The descriptions of each of the MIB variables in this chapter come directly from the FCFABRIC-ELEMENT-MIB itself. The notes that follow the descriptions typically pertain to Brocade-specific information and are provided by Brocade.
  • Page 115 1.3.6.1.3.42.2.1.1.4.1.7 fcFxConfTable 1.3.6.1.3.42.2.1.1.5 fcFxConfEntry 1.3.6.1.3.42.2.1.1.5.1 fcFxConfModuleIndex 1.3.6.1.3.42.2.1.1.5.1.1 fcFxConfFxPortIndex 1.3.6.1.3.42.2.1.1.5.1.2 fcFxPortName 1.3.6.1.3.42.2.1.1.5.1.3 fcFxPortFcphVersionHigh 1.3.6.1.3.42.2.1.1.5.1.4 fcFxPortFcphVersionLow 1.3.6.1.3.42.2.1.1.5.1.5 fcFxPortBbCredit 1.3.6.1.3.42.2.1.1.5.1.6 fcFxPortRxBufSize 1.3.6.1.3.42.2.1.1.5.1.7 fcFxPortRatov 1.3.6.1.3.42.2.1.1.5.1.8 fcFxPortEdtov 1.3.6.1.3.42.2.1.1.5.1.9 fcFxPortCosSupported 1.3.6.1.3.42.2.1.1.5.1.10 fcFxPortIntermixSupported 1.3.6.1.3.42.2.1.1.5.1.11 fcFxPortStackedConnMode 1.3.6.1.3.42.2.1.1.5.1.12 fcFxPortClass2SeqDeliv 1.3.6.1.3.42.2.1.1.5.1.13 fcFxPortClass3SeqDeliv 1.3.6.1.3.42.2.1.1.5.1.14 fcFxPortHoldTime 1.3.6.1.3.42.2.1.1.5.1.15 fcFxPortBaudRate 1.3.6.1.3.42.2.1.1.5.1.16 fcFxPortMedium 1.3.6.1.3.42.2.1.1.5.1.17 fcFxPortTxType 1.3.6.1.3.42.2.1.1.5.1.18...
  • Page 116 - fcFeOp fcFxPortOperTable 1.3.6.1.3.42.2.1.2.1 fcFxPortOperEntry 1.3.6.1.3.42.2.1.2.1.1 fcFxPortOperModuleIndex 1.3.6.1.3.42.2.1.2.1.1.1 fcFxPortOperFxPortIndex 1.3.6.1.3.42.2.1.2.1.1.2 fcFxPortID 1.3.6.1.3.42.2.1.2.1.1.3 fcFPortAttachedPortName 1.3.6.1.3.42.2.1.2.1.1.4 fcFPortConnectedPort 1.3.6.1.3.42.2.1.2.1.1.5 fcFxPortBbCreditAvailable 1.3.6.1.3.42.2.1.2.1.1.6 fcFxPortOperMode 1.3.6.1.3.42.2.1.2.1.1.7 fcFxPortAdminMode 1.3.6.1.3.42.2.1.2.1.1.8 fcFxPortPhysTable 1.3.6.1.3.42.2.1.2.3 fcFxPortPhysEntry 1.3.6.1.3.42.2.1.2.3.1 fcFxPortPhysModuleIndex 1.3.6.1.3.42.2.1.2.3.1.1 fcFxPortPhysFxPortIndex 1.3.6.1.3.42.2.1.2.3.1.2 fcFxPortPhysAdminStatus 1.3.6.1.3.42.2.1.2.3.1.3 fcFxPortPhysOperStatus 1.3.6.1.3.42.2.1.2.3.1.4 fcFxPortPhysLastChange 1.3.6.1.3.42.2.1.2.3.1.5 fcFxPortPhysRttov 1.3.6.1.3.42.2.1.2.3.1.6 fcFxlogiTable 1.3.6.1.3.42.2.1.2.4 fcFxlogiEntry 1.3.6.1.3.42.2.1.2.4.1...

  • Page 117: Definitions For Fcfabric-Element-Mib

    World Wide Name or Fibre Channel name associated with an FC entry. This is a Network_Destination_ID or Network_Source_ID composed of a value up to 60 bits wide, occupying the remaining 8 bytes while the first nibble identifies the format of the Name_Identifier.
  • Page 118 1 (other) None of below rates 2 (one-eighth) 155 Mbaud (12.5 MB/s) 4 (quarter) 266 Mbaud (25.0 MB/s) 8 (half) 532 Mbaud (50.0 MB/s) 16 (full) 1 Gbaud (100 MB/s) 32 (double) 2 Gbaud (200 MB/s) 64 (quadruple) 4 Gbaud (400 MB/s)

  • Page 119: Fcfeconfig Group

    3 (multimode fiber 62.5 micron (m6)) bit 4 (video cable (tv)) bit 5 (miniature cable (mi)) bit 6 (shielded twisted pair (stp)) bit 7 (twisted wire (tw)) bit 8 (long video (lv)) bits 9-15 (reserved for future use) Fc0Medium Integer 1 (unknown)
  • Page 120 fcFabricName 1.3.6.1.3.42.2.1.1.1 Implementation of this group is mandatory. fcFabricName 1.3.6.1.3.42.2.1.1.1 The Name_Identifier of the fabric to which this fabric element belongs. Return Returns the WWN of the primary switch in the fabric. fcElementName 1.3.6.1.3.42.2.1.1.2 The Name_Identifier of the fabric element. Return Returns the WWN of the switch.
  • Page 121 fcFeModuleDescr 1.3.6.1.3.42.2.1.1.4.1.2 fcFeModuleDescr 1.3.6.1.3.42.2.1.1.4.1.2 A textual description of the module. This value should include the full name and version identification of the module. It should contain printable ASCII characters. Refer to “sysDescr 1.3.6.1.2.1.1.1” on page 30. fcFeModuleObjectID 1.3.6.1.3.42.2.1.1.4.1.3 The vendor’s authoritative identification of the module. This value might be allocated within the SMI enterprises subtree (1.3.6.1.4.1) and provides a straight-forward and unambiguous means for determining what kind of module is being managed.
  • Page 122 Fx_Port Configuration Table Fx_Port Configuration Table This table contains, one entry for each Fx_Port, the configuration parameters of the ports. fcFxConfTable 1.3.6.1.3.42.2.1.1.5 A table that contains, one entry for each Fx_Port in the fabric element, configuration and service parameters of the Fx_Ports. fcFxConfEntry 1.3.6.1.3.42.2.1.1.5.1 An entry containing the configuration and service parameters of an Fx_Port.
  • Page 123 1.3.6.1.3.42.2.1.1.5.1.7 The largest Data_Field Size (in octets) for an FT_1 frame that can be received by the Fx_Port. fcFxPortRatov 1.3.6.1.3.42.2.1.1.5.1.8 The Resource_Allocation_Timeout Value configured for the Fx_Port. This is used as the time-out value for determining when to reuse an Nx_Port resource such as a Recovery_Qualifier. It represents E_D_TOV (Refer to “fcFxPortEdtov 1.3.6.1.2.1.75.1.1.5.1.8”...

  • Page 124: Fcfeop Group

    fcFxPortClass2SeqDeliv 1.3.6.1.3.42.2.1.1.5.1.13 fcFxPortClass2SeqDeliv 1.3.6.1.3.42.2.1.1.5.1.13 A flag indicating whether Class 2 sequential delivery is supported by the Fx_Port. Values Possible values are: • yes (1) • no (2) fcFxPortClass3SeqDeliv 1.3.6.1.3.42.2.1.1.5.1.14 A flag indicating whether Class 3 sequential delivery is supported by the Fx_Port. Values Possible values are: •...
  • Page 125 fcFxPortOperTable 1.3.6.1.3.42.2.1.2.1 NOTE Implementation of this group is mandatory. fcFxPortOperTable 1.3.6.1.3.42.2.1.2.1 A table that contains one entry for each Fx_Port in the fabric element, operational status, and parameters of the Fx_Ports. fcFxPortOperEntry 1.3.6.1.3.42.2.1.2.1.1 An entry containing operational status and parameters of an Fx_Port. Index fcFxPortOperModuleIndex, fcFxPortOperFxPortIndex fcFxPortOperModuleIndex 1.3.6.1.3.42.2.1.2.1.1.1...
  • Page 126 The value should be less than or equal to fcFxPortBbCredit. fcFxPortOperMode 1.3.6.1.3.42.2.1.2.1.1.7 The current operational mode of the Fx_Port. fcFxPortAdminMode 1.3.6.1.3.42.2.1.2.1.1.8 The desired operational mode of the Fx_Port. fcFxPortPhysTable 1.3.6.1.3.42.2.1.2.3 A table that contains, one entry for each Fx_Port in the fabric element, physical level status and parameters of the Fx_Ports.
  • Page 127 fcFxPortPhysOperStatus 1.3.6.1.3.42.2.1.2.3.1.4 A management station might place the Fx_Port in a desired state by setting this object accordingly. The testing state (3) indicates that no operational frames can be passed. When a fabric element initializes, all Fx_Ports start with fcFxPortPhysAdminStatus in the offline state (2). As the result of either explicit management action or per configuration information accessible by the fabric element, fcFxPortPhysAdminStatus is then changed to either the online (1) or testing (3) states or remains in the offline state (2).
  • Page 128 Indicates that the attached Nx_Port has requested the Fx_Port for the support of classes of services and the Fx_Port has granted the request. fcFxPortIntermixSuppAgreed 1.3.6.1.3.42.2.1.2.4.1.8 A variable indicating that the attached Nx_Port has requested the Fx_Port for Intermix support and the Fx_Port has granted the request.
  • Page 129 fcFxPortStackedConnModeAgreed 1.3.6.1.3.42.2.1.2.4.1.9 • yes (1) • no (2) fcFxPortStackedConnModeAgreed 1.3.6.1.3.42.2.1.2.4.1.9 Indicates whether the Fx_Port has agreed to support stacked connect from the fabric login. This is only meaningful if Class 1 service has been agreed to. fcFxPortClass2SeqDelivAgreed 1.3.6.1.3.42.2.1.2.4.1.10 A variable indicating whether the Fx_Port has agreed to support Class 2 sequential delivery from the fabric login.

  • Page 130: Fcfeerror Group

    fcFeError group fcFeError group This group consists of tables that contain information about the various types of errors detected. The management station might use the information in this group to determine the quality of the link between the Fx_Port and its attached Nx_Port. Implementation of this group is optional.

  • Page 131: Fcfeacct Group

    The number of primitive sequence protocol errors detected by the Fx_Port. fcFxPortInvalidTxWords 1.3.6.1.3.42.2.1.3.1.1.7 The number of invalid transmission word errors detected by the Fx_Port. fcFxPortInvalidCrcs 1.3.6.1.3.42.2.1.3.1.1.8 The number of invalid Cyclic Redundancy Checks (CRCs) detected by this Fx_Port. fcFxPortDelimiterErrors 1.3.6.1.3.42.2.1.3.1.1.9 The number of Delimiter errors detected by this Fx_Port.

  • Page 132: Fcfecap Group

    fcFeCap group fcFeCap group This group consists of a table describing information about what each Fx_Port is inherently capable of operating or supporting. A capability might be used or not, as expressed in its respective object value in the Configuration group. Implementation of this group is optional.
  • Page 133 The maximum size (in bytes) of the Data Field in a frame that the Fx_Port is capable of receiving from its attached Nx_Port. fcFxPortCapRxDataFieldSizeMin 1.3.6.1.3.42.2.1.5.1.1.8 The minimum size (in bytes) of the Data Field in a frame that the Fx_Port is capable of receiving from its attached Nx_Port.
  • Page 134 fcFxPortCapHoldTimeMax 1.3.6.1.3.42.2.1.5.1.1.14 Values Possible values are: • yes (1) • no (2) fcFxPortCapHoldTimeMax 1.3.6.1.3.42.2.1.5.1.1.14 The maximum holding time (in microseconds) that the Fx_Port is capable of supporting. fcFxPortCapHoldTimeMin 1.3.6.1.3.42.2.1.5.1.1.15 The minimum holding time (in microseconds) that the Fx_Port is capable of supporting. fcFxPortCapBaudRates 1.3.6.1.3.42.2.1.5.1.1.16 A value indicating the set of baud rates that the Fx_Port is capable of supporting.

  • Page 135: Chapter 4 Entity Mib Objects

    Chapter Entity MIB Objects In this chapter • Entity MIB overview ..........117 •...

  • Page 136: Entity Mib System Organization Of Mib Objects

    - entityPhysical entPhysicalTable 1.3.6.1.2.1.47.1.1.1 entPhysicalEntry 1.3.6.1.2.1.47.1.1.1.1 entPhysicalIndex 1.3.6.1.2.1.47.1.1.1.1.1 entPhysicalDescr 1.3.6.1.2.1.47.1.1.1.1.2 entPhysicalVendorType 1.3.6.1.2.1.47.1.1.1.1.3 entPhysicalContainedIn 1.3.6.1.2.1.47.1.1.1.1.4 entPhysicalClass 1.3.6.1.2.1.47.1.1.1.1.5 entPhysicalParentRelPos 1.3.6.1.2.1.47.1.1.1.1.6 entPhysicalName 1.3.6.1.2.1.47.1.1.1.1.7 entPhysicalHardwareRev 1.3.6.1.2.1.47.1.1.1.1.8 entPhysicalFirmwareRev 1.3.6.1.2.1.47.1.1.1.1.9 entPhysicalSoftwareRev 1.3.6.1.2.1.47.1.1.1.1.10 entPhysicalSerialNum 1.3.6.1.2.1.47.1.1.1.1.11 entPhysicalMfgName 1.3.6.1.2.1.47.1.1.1.1.12 entPhysicalModelName 1.3.6.1.2.1.47.1.1.1.1.13 entPhysicalAlias 1.3.6.1.2.1.47.1.1.1.1.14 entPhysicalAssetID 1.3.6.1.2.1.47.1.1.1.1.15 entPhysicalIsFRU 1.3.6.1.2.1.47.1.1.1.1.16 FIGURE 31...
  • Page 137 - entityLogical entLogicalTable 1.3.6.1.2.1.47.1.2.1 entLogicalEntry 1.3.6.1.2.1.47.1.2.1.1 entLogicalIndex 1.3.6.1.2.1.47.1.2.1.1.1 entLogicalDescr 1.3.6.1.2.1.47.1.2.1.1.2 entLogicalType 1.3.6.1.2.1.47.1.2.1.1.3 entLogicalCommunity 1.3.6.1.2.1.47.1.2.1.1.4 entLogicalTAddress 1.3.6.1.2.1.47.1.2.1.1.5 entLogicalTDomain 1.3.6.1.2.1.47.1.2.1.1.6 entLogicalContextEngineID 1.3.6.1.2.1.47.1.2.1.1.7 entLogicalContextName 1.3.6.1.2.1.47.1.2.1.1.8 FIGURE 32 entityLogical hierarchy - entityMapping entLPMappingTable 1.3.6.1.2.1.47.1.3.1 entLPMappingEntry 1.3.6.1.2.1.47.1.3.1.1 entLPPhysicalIndex 1.3.6.1.2.1.47.1.3.1.1.1 entAliasMappingTable 1.3.6.1.2.1.47.1.3.2 entAliasMappingEntry 1.3.6.1.2.1.47.1.3.2.1 entAliasLogicalIndexOrZero 1.3.6.1.2.1.47.1.3.2.1.1 entAliasMappingIdentifier 1.3.6.1.2.1.47.1.3.2.1.2...

  • Page 138: Definitions For Entity Mib

    Textual conventions for Entity MIB Definitions for Entity MIB Table 10 lists the objects or definitions that are imported into the Entity MIB and the modules from which they are imported. TABLE 10 Objects imported into the Entity MIB Object Imported from this module MODULE-IDENTITY SNMPv2-SMI...
  • Page 139 The physical entity class is a power-supplying component. fan (7) The physical entity class is a fan or other heat-reduction component. sensor (8) The physical entity class is a sensor, such as a temperature sensor within a router chassis. module (9) The physical entity class is a self-contained subsystem (such as a plug-in card or daughter-card).

  • Page 140: Entity Mib Objects

    Entity MIB objects • If the WWN cannot be taken, the snmpEngineID takes the IP address + port number along with the private enterprise number and algorithm type used. An example of this type of snmpEngineID would be 00.00.06.34.00.00.00.A1.0A.20.93.CA (hex) Syntax OCTET STRING (SIZE(0..32)) Empty string or SnmpEngineID Entity MIB objects...
  • Page 141 4 PS 2 WWN units in 1 Brocade 48000 10 blades 3 fans 4 PS 2 WWN units in 1 Brocade DCX 8 blades 3 fans 4 PS 2 WWN units Brocade DCX-4S 4 blades 2 fans 2 PS 1 WWN unit...
  • Page 142 entPhysicalIndex 1.3.6.1.2.1.47.1.1.1.1.1 Each entry provides objects (entPhysicalDescr, entPhysicalVendorType, and entPhysicalClass) to help an NMS identify and characterize the entry, and objects (entPhysicalContainedIn and entPhysicalParentRelPos) to help an NMS relate the particular entry to other entries in this table. Index 1: entPhysicalIndex entPhysicalIndex 1.3.6.1.2.1.47.1.1.1.1.1 The index for this entry.
  • Page 143 entPhysicalClass 1.3.6.1.2.1.47.1.1.1.1.5 An agent should set this object to the standard enumeration value that most accurately indicates the general class of the physical entity, or the primary class if there is more than one. If no appropriate standard registration identifier exists for this physical entity, then the value is returned.
  • Page 144 entPhysicalParentRelPos 1.3.6.1.2.1.47.1.1.1.1.6 • Chassis: One entry (one row) • Container: One entry for each FRU slot (one switch blade, two power supplies, three fans) • Module: One entry for switch blade, up to two entries for power supplies, and up to three entries for fans Brocade 7500 and 7600 switches can have the following hierarchy of physical objects: •...
  • Page 145 The description gives the textual description of the type of the entry (for example, power supply, module, and so on) entPhysicalHardwareRev 1.3.6.1.2.1.47.1.1.1.1.8 The vendor-specific hardware revision string for the physical entity. The preferred value is the hardware revision identifier actually printed on the component itself (if present).
  • Page 146 entPhysicalSoftwareRev 1.3.6.1.2.1.47.1.1.1.1.10 If no specific firmware programs are associated with the physical component, or if this information is unknown to the agent, then this object will contain a zero-length string. Set to an empty string. entPhysicalSoftwareRev 1.3.6.1.2.1.47.1.1.1.1.10 The vendor-specific software revision string for the physical entity. Note that if revision information is stored internally in a nonprintable (for example, binary) format, then the agent must convert such information to a printable format, in an implementation-specific manner.
  • Page 147 entPhysicalModelName 1.3.6.1.2.1.47.1.1.1.1.13 Note that comparisons between instances of the entPhysicalModelName, entPhysicalFirmwareRev, entPhysicalSoftwareRev, and the entPhysicalSerialNum objects are meaningful only amongst entPhysicalEntries with the same value of entPhysicalMfgName. If the manufacturer name string associated with the physical component is unknown to the agent, then this object contains a zero-length string.

  • Page 148: Logical Entity Group

    entPhysicalIsFRU 1.3.6.1.2.1.47.1.1.1.1.16 If write access is implemented for an instance of entPhysicalAssetID and a value is written into the instance, the agent must retain the supplied value in the entPhysicalAssetID instance associated with the same physical entity for as long as that entity remains instantiated. This includes instantiations across all re-initializations/reboots of the network management system, including those that result in a change of the physical entity’s entPhysicalIndex value.
  • Page 149 entLogicalType 1.3.6.1.2.1.47.1.2.1.1.3 entLogicalType 1.3.6.1.2.1.47.1.2.1.1.3 An indication of the type of logical entity. This is typically the Object Identifier name of the node in the SMI’s naming hierarchy that represents the major MIB module, or the majority of the MIB modules, supported by the logical entity. •...

  • Page 150: Entity Mapping Group

    If no value has been configured by the agent, a zero-length string is returned, or the agent might choose not to instantiate this object at all. entLogicalContextName 1.3.6.1.2.1.47.1.2.1.1.8 The contextName that can be used to send an SNMP message concerning information held by this logical entity to the address specified by the associated entLogicalTAddress/entLogicalTDomain pair.
  • Page 151 entLPMappingEntry 1.3.6.1.2.1.47.1.3.1.1 Suppose a bridge is realized on a particular module and all ports on that module are ports on this bridge. A mapping between the bridge and the module would be useful, but additional mappings between the bridge and each of the ports on that module would be redundant (since the entPhysicalContainedIn hierarchy can provide the same information).
  • Page 152 entAliasLogicalIndexOrZero 1.3.6.1.2.1.47.1.3.2.1.1 Index entPhysicalIndex entAliasLogicalIndexOrZero Not supported. entAliasLogicalIndexOrZero 1.3.6.1.2.1.47.1.3.2.1.1 The value of this object identifies the logical entity that defines the naming scope for the associated instance of the entAliasMappingIdentifier object. If this object has a nonzero value, then it identifies the logical entity named by the same value of entLogicalIndex.

  • Page 153: General Group

    entPhysicalContainsTable 1.3.6.1.2.1.47.1.3.3 Bridge ports are identified by examining the Bridge MIB and appropriate ifEntries associated with each dot1dBasePort and are thus not represented in this table. Not supported. entPhysicalContainsTable 1.3.6.1.2.1.47.1.3.3 A table that exposes the container/containee relationships between physical entities. This table provides all the information found by constructing the virtual containment tree for a given entPhysicalTable, but in a more direct format.

  • Page 154: Entity Mib Trap

    Entity MIB trap Entity MIB trap Not supported. This section lists the entityMIBTrap objects. entConfigChange 1.3.6.1.2.1.47.2.0.1 An entConfigChange notification is generated when the value of entLastChangeTime changes. It can be utilized by an NMS to trigger logical/physical entity table maintenance polls. An agent should not generate more than one entConfigChange notification event in a given time interval (five seconds is the suggested default).
  • Page 155 entityPhysicalGroup 1.3.6.1.2.1.47.3.2.1 3: entityGeneralGroup 4: entityNotificationsGroup Components 1. Type: Group Group: entityLogical2Group Description: Implementation of this group is not mandatory for agents which model all MIB object instances within a single naming scope. 2. Type: Group Group: entityMappingGroup Description: Implementation of the entPhysicalContainsTable is mandatory for all agents. Implementation of the entLPMappingTable and entAliasMappingTables are not mandatory for agents which model all MIB object instances within a single naming scope.
  • Page 156 The collection of objects used to represent physical system components, for which a single agent provides management information. This group augments the objects contained in the entityPhysicalGroup. Objects 1: entPhysicalHardwareRev 2: entPhysicalFirmwareRev 3: entPhysicalSoftwareRev 4: entPhysicalSerialNum 5: entPhysicalMfgName 6: entPhysicalModelName 7: entPhysicalAlias 8: entPhysicalAssetID 9: entPhysicalIsFRU Fabric OS MIB Reference 53-1001768-01...
  • Page 157 entityLogical2Group 1.3.6.1.2.1.47.3.2.7 entityLogical2Group 1.3.6.1.2.1.47.3.2.7 The collection of objects used to represent the list of logical entities, for which a single SNMP entity provides management information. Objects 1: entLogicalDescr 2: entLogicalType 3: entLogicalTAddress 4: entLogicalTDomain 5: entLogicalContextEngineID 6: entLogicalContextName Fabric OS MIB Reference 53-1001768-01...
  • Page 158 entityLogical2Group 1.3.6.1.2.1.47.3.2.7 Fabric OS MIB Reference 53-1001768-01...

  • Page 159: Chapter 5 Sw-Mib Objects

    Chapter SW-MIB Objects In this chapter • SW-MIB overview ..........141 •...

  • Page 160: Sw-Mib System Organization Of Mib Objects

    - swMibModule FIGURE 38 SW-MIB overall tree structure - swTrapsV2 swFault 1.3.6.1.4.1.1588.2.1.1.1.0.1 swSensorScn 1.3.6.1.4.1.1588.2.1.1.1.0.2 swFCPortScn 1.3.6.1.4.1.1588.2.1.1.1.0.3 swEventTrap 1.3.6.1.4.1.1588.2.1.1.1.0.4 swFabricWatchTrap 1.3.6.1.4.1.1588.2.1.1.1.0.5 swTrackChangesTrap 1.3.6.1.4.1.1588.2.1.1.1.0.6 swIPv6ChangeTrap 1.3.6.1.4.1.1588.2.1.1.1.0.7 swPmgrEventTrap 1.3.6.1.4.1.1588.2.1.1.1.0.8 swFabricReconfigTrap 1.3.6.1.4.1.1588.2.1.1.1.0.9 swFabricSegmentTrap 1.3.6.1.4.1.1588.2.1.1.1.0.10 swExtTrap 1.3.6.1.4.1.1588.2.1.1.1.0.11 FIGURE 39 swTrapsV2 hierarchy Fabric OS MIB Reference 53-1001768-01...
  • Page 161 SW-MIB overview - swSystem swCurrentDate 1.3.6.1.4.1.1588.2.1.1.1.1.1 swBootDate 1.3.6.1.4.1.1588.2.1.1.1.1.2 swFWLastUpdated 1.3.6.1.4.1.1588.2.1.1.1.1.3 swFlashLastUpdated 1.3.6.1.4.1.1588.2.1.1.1.1.4 swBootPromLastUpdated 1.3.6.1.4.1.1588.2.1.1.1.1.5 swFirmwareVersion 1.3.6.1.4.1.1588.2.1.1.1.1.6 swOperStatus 1.3.6.1.4.1.1588.2.1.1.1.1.7 swAdmStatus 1.3.6.1.4.1.1588.2.1.1.1.1.8 swTelnetShellAdmStatus 1.3.6.1.4.1.1588.2.1.1.1.1.9 swSsn 1.3.6.1.4.1.1588.2.1.1.1.1.10 swFlashDLOperStatus 1.3.6.1.4.1.1588.2.1.1.1.1.11 swFlashDLAdmStatus 1.3.6.1.4.1.1588.2.1.1.1.1.12 swFlashDLHost 1.3.6.1.4.1.1588.2.1.1.1.1.13 swFlashDLUser 1.3.6.1.4.1.1588.2.1.1.1.1.14 swFlashDLFile 1.3.6.1.4.1.1588.2.1.1.1.1.15 swFlashDLPassword 1.3.6.1.4.1.1588.2.1.1.1.1.16 swBeaconOperStatus 1.3.6.1.4.1.1588.2.1.1.1.1.18 swBeaconAdmStatus 1.3.6.1.4.1.1588.2.1.1.1.1.19 swDiagResult 1.3.6.1.4.1.1588.2.1.1.1.1.20...
  • Page 162 SW-MIB overview - swFabric swDomainID 1.3.6.1.4.1.1588.2.1.1.1.2.1 swPrincipalSwitch 1.3.6.1.4.1.1588.2.1.1.1.2.2 swNumNbs 1.3.6.1.4.1.1588.2.1.1.1.2.8 swNbTable 1.3.6.1.4.1.1588.2.1.1.1.2.9 swNbEntry 1.3.6.1.4.1.1588.2.1.1.1.2.9.1 swNbIndex 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.1 swNbMyPort 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.2 swNbRemDomain 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.3 swNbRemPort 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.4 swNbBaudRate 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.5 swNbIslState 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.6 swNbIslCost 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.7 swNbRemPortName 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.8 swFabricMemTable 1.3.6.1.4.1.1588.2.1.1.1.2.10 swIDIDMode 1.3.6.1.4.1.1588.2.1.1.1.2.11 swPmgrEventType 1.3.6.1.4.1.1588.2.1.1.1.2.12 swPmgrEventTime 1.3.6.1.4.1.1588.2.1.1.1.2.13 swPmgrEventDescr 1.3.6.1.4.1.1588.2.1.1.1.2.14 swVfId 1.3.6.1.4.1.1588.2.1.1.1.2.15...
  • Page 163 SW-MIB overview - swFCport (1.3.6.1.4.1.1588.2.1.1.1.6) swFCPortCapacity 1.3.6.1.4.1.1588.2.1.1.1.6.1 swFCPortTable 1.3.6.1.4.1.1588.2.1.1.1.6.2 swFCPortEntry 1.3.6.1.4.1.1588.2.1.1.1.6.2.1 swFCPortIndex 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.1 swFCPortType 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.2 swFCPortPhyState 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.3 swFCPortOpStatus 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.4 swFCPortAdmStatus 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.5 swFCPortLinkState 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.6 swFCPortTxType 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.7 swFCPortTxWords 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.11 swFCPortRxWords 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.12 swFCPortTxFrames 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.13 swFCPortRxFrames 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.14 swFCPortRxC2Frames 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.15 swFCPortRxC3Frames 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.16 swFCPortRxLCs 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.17 swFCPortRxMcasts 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.18 swFCPortTooManyRdys 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.19 swFCPortNoTxCredits 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.20 swFCPortRxEncInFrs 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.21...
  • Page 164 1.3.6.1.4.1.1588.2.1.1.1.7.1 swNsLocalTable 1.3.6.1.4.1.1588.2.1.1.1.7.2 swNsLocalEntry 1.3.6.1.4.1.1588.2.1.1.1.7.2.1 swNsEntryIndex 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.1 swNsPortID 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.2 swNsPortType 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.3 swNsPortName 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.4 swNsPortSymb 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.5 swNsNodeName 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.6 swNsNodeSymb 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.7 swNsIPA 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.8 swNsIpAddress 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.9 swNsCos 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.10 swNsFc4 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.11 swNsIpNxPort 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.12 swNsWwn 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.13 swNsHardAddr 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.14 FIGURE 45 swNs hierarchy - swEvent swEventTrapLevel 1.3.6.1.4.1.1588.2.1.1.1.8.1...
  • Page 165 1.3.6.1.4.1.1588.2.1.1.1.10.1 swFwClassAreaTable 1.3.6.1.4.1.1588.2.1.1.1.10.2 swFwClassAreaEntry 1.3.6.1.4.1.1588.2.1.1.1.10.2.1 swFwClassAreaIndex 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.1 swFwWriteThVals 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.2 swFwDefaultUnit 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.3 swFwDefaultTimebase 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.4 swFwDefaultLow 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.5 swFwDefaultHigh 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.6 swFwDefaultBufSize 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.7 swFwCustUnit 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.8 swFwCustTimebase 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.9 swFwCustLow 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.10 swFwCustHigh 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.11 swFwCustBufSize 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.12 swFwThLevel 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.13 swFwWriteActVals 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.14 swFwDefaultChangedActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.15 swFwDefaultExceededActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.16 swFwDefaultBelowActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.17 swFwDefaultAboveActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.18...
  • Page 166 - swEndDevice swEndDeviceRlsTable 1.3.6.1.4.1.1588.2.1.1.1.21.1 swEndDeviceRlsEntry 1.3.6.1.4.1.1588.2.1.1.1.21.1.1 swEndDevicePort 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.1 swEndDeviceAlpa 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.2 swEndDevicePortID 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.3 swEndDeviceLinkFailure 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.4 swEndDeviceSyncLoss 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.5 swEndDeviceSigLoss 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.6 swEndDeviceProtoErr 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.7 swEndDeviceInvalidWord 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.8 swEndDeviceInvalidCRC 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.9 FIGURE 48 swEndDevice hierarchy - swGroup swGroupTable 1.3.6.1.4.1.1588.2.1.1.1.22.1 swGroupEntry 1.3.6.1.4.1.1588.2.1.1.1.22.1.1 swGroupIndex 1.3.6.1.4.1.1588.2.1.1.1.22.1.1.1 swGroupName 1.3.6.1.4.1.1588.2.1.1.1.22.1.1.2 swGroupType 1.3.6.1.4.1.1588.2.1.1.1.22.1.1.3 swGroupMemTable 1.3.6.1.4.1.1588.2.1.1.1.22.2...
  • Page 167 1.3.6.1.4.1.1588.2.1.1.1.25.3.1.7 FIGURE 52 swTopTalker hierarchy - swCpuorMemoryUsage swCpuUsage 1.3.6.1.4.1.1588.2.1.1.1.26.1 swCpuNoOfRetries 1.3.6.1.4.1.1588.2.1.1.1.26.2 swCpuUsageLimit 1.3.6.1.4.1.1588.2.1.1.1.26.3 swCpuPollingInterval 1.3.6.1.4.1.1588.2.1.1.1.26.4 swCpuAction 1.3.6.1.4.1.1588.2.1.1.1.26.5 swMemUsage 1.3.6.1.4.1.1588.2.1.1.1.26.6 swMemNoOfRetries 1.3.6.1.4.1.1588.2.1.1.1.26.7 swMemUsageLimit 1.3.6.1.4.1.1588.2.1.1.1.26.8 swMemPollingInterval 1.3.6.1.4.1.1588.2.1.1.1.26.9 swMemAction 1.3.6.1.4.1.1588.2.1.1.1.26.10 swMemUsageLimit1 1.3.6.1.4.1.1588.2.1.1.1.26.11 swMemUsageLimit3 1.3.6.1.4.1.1588.2.1.1.1.26.12 FIGURE 53 swCpuorMemoryUsage hierarchy Fabric OS MIB Reference 53-1001768-01...

  • Page 168: Textual Conventions For Sw-Mib

    TABLE 13 SW-MIB textual conventions Type definition Value Description FcWwn Octet String of size 8 The World Wide Name (WWN) of Brocade-specific products and ports. SwDomainIndex Integer of size 1 to 239 Fibre Channel domain ID of the switch. SwNbIndex Integer of size 1 to 2048 Index of the neighbor inter-switch link (ISL) entry.
  • Page 169 Valid Fabric Watch actions: 0 swFwNoAction 1 swFwErrlog 2 swFwSnmptrap 3 swFwErrlogSnmptrap 4 swFwPortloglock 5 swFwErrlogPortloglock 6 swFwSnmptrapPortloglock 7 swFwErrlogSnmptrapPortloglock 8 swFwRn 9 swFwElRn 10 swFwStRn 11 swFwElStRn 12 swFwPlRn 13 swFwElPlRn 14 swFwStPlRn 15 swFwElStPlRn 16 swFwMailAlert 17 swFwMailAlertErrlog...
  • Page 170 7 swFwTransceiverCurrent 62 swFwSecWSNMPViolations (not 57 swFwTransceiverVoltage supported) 63 swFwSecSESViolations (not supported) Port class: 64 swFwSecMSViolations (not supported) 8 swFwPortLink 9 swFwPortSync 65 swFwSecSerialViolations (not supported) 10 swFwPortSignal 66 swFwSecFPViolations (not supported) 11 swFwPortPe 67 swFwSecSCCViolations 12 swFwPortWords 68 swFwSecDCCViolations...

  • Page 171: Sw Traps

    sw Traps TABLE 13 SW-MIB textual conventions (Continued) Type definition Value Description EportUtil and EportPktl are the mib defines used for VE ports for Legacy FCIP (FR4-18i router blade/Brocade 7500), while VEPortUtil and VEPortPktlLoss are used for VE ports for Brocade 7800 Extension Switch/FX8-24 DCX Extension Blade. In the index swFwEnvTemp, Env refers to Environment class and Temp refers to the area Temperature.
  • Page 172 Traps • swIPv6ChangeTrap 1.3.6.1.4.1.1588.2.1.1.1.0.7 • swPmgrEventTrap 1.3.6.1.4.1.1588.2.1.1.1.0.8 • swFabricReconfigTrap 1.3.6.1.4.1.1588.2.1.1.1.0.9 • swFabricSegmentTrap 1.3.6.1.4.1.1588.2.1.1.1.0.10 • swExtTrap 1.3.6.1.4.1.1588.2.1.1.1.0.11 Refer to Table 14 for the eleven traps defined in the SW-MIB, when it occurs, and how to configure the trap, if possible.
  • Page 173 swFault 1.3.6.1.4.1.1588.2.1.1.1.0.1 TABLE 14 SW-MIB traps (Continued) Name Specific When Configure “swFabricSegmentTrap The trap to be sent for tracking Refer to the Fabric OS Command Reference 1.3.6.1.4.1.1588.2.1.1.1.0.10” segmentation. and the snmpConfig command for more on page 160 information. “swExtTrap The trap adds the SSN binding to the traps Refer to the Fabric OS Command Reference 1.3.6.1.4.1.1588.2.1.1.1.0.11”...
  • Page 174 swSensorScn 1.3.6.1.4.1.1588.2.1.1.1.0.2 swSensorScn 1.3.6.1.4.1.1588.2.1.1.1.0.2 (Obsoleted by swFabricWatchTrap) Enterprise Variables “swSensorStatus 1.3.6.1.4.1.1588.2.1.1.1.1.22.1.3” “swSensorIndex 1.3.6.1.4.1.1588.2.1.1.1.1.22.1.1” “swSensorType 1.3.6.1.4.1.1588.2.1.1.1.1.22.1.2” “swSensorValue 1.3.6.1.4.1.1588.2.1.1.1.1.22.1.4” “swSensorInfo 1.3.6.1.4.1.1588.2.1.1.1.1.22.1.5” “swSsn 1.3.6.1.4.1.1588.2.1.1.1.1.10” A swSensorScn (2) is generated whenever an environment sensor changes its operational state: for instance, if a fan stop working. The VarBind in the Trap Data Unit contain the corresponding instance of the sensor status, sensor index, sensor type, sensor value (reading), and sensor information.
  • Page 175 #SEVERITY Informational #TIMEINDEX #STATE Operational swEventTrap 1.3.6.1.4.1.1588.2.1.1.1.0.4 Enterprise Variables “swEventIndex 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.1” “swEventTimeInfo 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.2” “swEventLevel 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.3” “swEventRepeatCount 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.4” “swEventDescr 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.5” “swSsn 1.3.6.1.4.1.1588.2.1.1.1.1.10” “swVfId 1.3.6.1.4.1.1588.2.1.1.1.2.15” This trap is generated when an event occurs with a level that is at or below “swEventTrapLevel 1.3.6.1.4.1.1588.2.1.1.1.8.1”.
  • Page 176 Threshold %s in Class/Area %d at index %d has generated event %d with %d on %s. This event is %d.This event label is %d, event severity level is %d and SSN is #%s #ARGUMENTS 2, 0, 1, 6, 4, 5, 7, 3, 8, 9 #SEVERITY Warning #TIMEINDEX #STATE Operational Refer to the Fabric Watch Administrator’s Guide for information on setting thresholds in Fabric...
  • Page 177 “swVfId 1.3.6.1.4.1.1588.2.1.1.1.2.15” “swIPv6Status 1.3.6.1.4.1.1588.2.1.1.1.1.30” This trap is generated when an IPv6 address status change event occurs. It is generated only when IPv6 stateless state to deprecation state and not for just address change notification. swPmgrEventTrap 1.3.6.1.4.1.1588.2.1.1.1.0.8 Enterprise Variables “swSsn 1.3.6.1.4.1.1588.2.1.1.1.1.10”...

  • Page 178: Swsystem Group

    swFabricSegmentTrap 1.3.6.1.4.1.1588.2.1.1.1.0.10 • Two switches with the same domain ID have connected to one another. • Two fabrics have joined. • An E_Port has gone offline. • A principal link has segmented from the fabric. • Zone conflicts. • Domain conflicts. •...
  • Page 179 swBootDate 1.3.6.1.4.1.1588.2.1.1.1.1.2 swBootDate 1.3.6.1.4.1.1588.2.1.1.1.1.2 The date and time when the system last booted. The return string displays using the following format: ddd MMM DD hh:mm:ss yyyy Where: ddd = day MMM = month DD = date hh = hour mm = minute ss = seconds yyyy = year For example:...
  • Page 180 swBootPromLastUpdated 1.3.6.1.4.1.1588.2.1.1.1.1.5 Thu Aug 17 15:16:09 2000 swBootPromLastUpdated 1.3.6.1.4.1.1588.2.1.1.1.1.5 The date and time when the BootPROM was last updated. The return string displays using the following format: ddd MMM DD hh:mm:ss yyyy Where: ddd = day MMM = month DD = date hh = hour mm = minute ss = seconds...
  • Page 181 1.3.6.1.4.1.1588.2.1.1.1.1.8 swAdmStatus 1.3.6.1.4.1.1588.2.1.1.1.1.8 The desired administrative status of the switch. A management station might place the switch in a desired state by setting this object accordingly. Values Possible values are: • online (1) Set the switch to be accessible by an external FC port.

  • Page 182: Flash Administration

    Flash administration Flash administration The next six objects are related to firmware or configuration file management. Due to security restrictions, firmwaredownload and configuration file upload and download are not supported through SNMP. swFlashDLOperStatus 1.3.6.1.4.1.1588.2.1.1.1.1.11 The operational status of the flash. This OID cannot be used for either Firmwaredownload or Configdownload (cannot be set and isread-only).
  • Page 183 swFlashDLPassword 1.3.6.1.4.1.1588.2.1.1.1.1.16 This OID cannot be used for either firmwareDownload or configDownload (cannot be set and is read-only) for Fabric OS v4.4 and above. The value displayed is always NULL (zero-length).This is not supported in v6.0.0 and higher versions. swFlashDLPassword 1.3.6.1.4.1.1588.2.1.1.1.1.16 The password to be used for FTP transfer of files in the download or upload operation.
  • Page 184 swSensorTable 1.3.6.1.4.1.1588.2.1.1.1.1.22 swSensorTable 1.3.6.1.4.1.1588.2.1.1.1.1.22 Table of sensor entries. Table 15 lists the sensors on the Brocade switches. TABLE 15 Sensors on the various Brocade switches Platform Temp Fans Power supply swNumSensors / connUnitNumSensors Brocade 200E 2 sensors 3 fans 1 PS Brocade 300 3 sensors 3 fans...
  • Page 185 FC4-16IP FS8-18 FX8-24 FCOE10-24 FC8-16 FC8-32 FC8-48 FC8-64 Core8 CR4S-8 swSensorEntry 1.3.6.1.4.1.1588.2.1.1.1.1.22.1 An entry of the sensor information. Index swSensorIndex swSensorIndex 1.3.6.1.4.1.1588.2.1.1.1.1.22.1.1 The index of the sensor. The values are 1 through the value in swNumSensors. Fabric OS MIB Reference...
  • Page 186 swSensorType 1.3.6.1.4.1.1588.2.1.1.1.1.22.1.2 swSensorType 1.3.6.1.4.1.1588.2.1.1.1.1.22.1.2 The type of sensor. swSensorStatus 1.3.6.1.4.1.1588.2.1.1.1.1.22.1.3 The current status of the sensor. Values Possible values are: • 1: unknown (1) • 2: faulty (2) • 3: below-min (3) The sensor value is below the minimal threshold. •...
  • Page 187 swID 1.3.6.1.4.1.1588.2.1.1.1.1.24 • Successful log in • Unsuccessful log in • Logout • Configuration file change from task [name of task] • Track-changes on • Track-changes off swID 1.3.6.1.4.1.1588.2.1.1.1.1.24 With VF enabled fabric, the number of switches will be 0 to 128. swEtherIPAddress 1.3.6.1.4.1.1588.2.1.1.1.1.25 Supported in Fabric OS v6.2.0 and later releases.

  • Page 188: Swfabric Group

    Possible values are: • yes (1) • no (2) swNumNbs 1.3.6.1.4.1.1588.2.1.1.1.2.8 The number of inter-switch links (ISLs) in the (immediate) neighborhood. swNbTable 1.3.6.1.4.1.1588.2.1.1.1.2.9 This table contains the ISLs in the immediate neighborhood of the switch. swNbEntry 1.3.6.1.4.1.1588.2.1.1.1.2.9.1 An entry containing each neighbor ISL parameters.
  • Page 189 Possible values are: • other (1) None of the following. • oneEighth (2) 155 Mbaud. • quarter (4) 266 Mbaud. • half (8) 532 Mbaud. • full (16) 1 Gbaud. • double (32) 2 Gbaud. • quadruple (64) 4 Gbaud. •...
  • Page 190 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.8 swNbRemPortName 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.8 The WWN of the remote port. swFabricMemTable 1.3.6.1.4.1.1588.2.1.1.1.2.10 This table contains information on the member switches of a fabric. Supported in Fabric OS v2.6.1 and not v3.2.0. This is not available in v6.2.0 and later releases.

  • Page 191: Sw Agent Configuration Group

    SW Agent Configuration group SW Agent Configuration group swAgtCmtyTable 1.3.6.1.4.1.1588.2.1.1.1.4.11 A table that contains, one entry for each community, the access control and parameters of the community. The table displays all of the community strings (read and write) if it is accessed by the “write” community string.

  • Page 192: Fibre Channel Port Group

    If a new value is set successfully, it takes effect immediately. This object obsoletes swEventTrapLevel 1.3.6.1.4.1.1588.2.1.1.1.8.1. Fibre Channel Port group This group contains information about the physical state, operational status, performance, and error statistics of each Fibre Channel port on the switch. A Fibre Channel port is one which supports the Fibre Channel protocol, such as F_Port, E_Port, U_Port, or FL_Port.
  • Page 193 • rdbloom (5) • wormhole (6) • other (7) (Valid value for Brocade 200E, 4012, 4100, 4900, 7500, 7600, 48000, 300, 5100 and 5300) • unknown (8) swFCPortPhyState 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.3 The physical state of the port. Fabric OS MIB Reference 53-1001768-01...
  • Page 194 (6) The module is receiving light and is in sync. • portFault (7) The port is marked faulty (defective GBIC, cable, or device). • diagFault (8) The port failed diagnostics (defective G_Port or FL_Port card or motherboard). • lockRef (9) Port is locking to the reference signal. •...
  • Page 195 swFCPortLinkState 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.6 swFCPortLinkState 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.6 Indicates the link state of the port. When the port's link state changes, its operational status (swFCPortOpStatus) is affected. Values Possible values are: • enabled (1) The port is allowed to participate in the FC-PH protocol with its attached port (or ports if it is in an FC-AL loop).
  • Page 196 swFCPortRxC2Frames 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.15 swFCPortRxC2Frames 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.15 Counts the number of Class 2 frames that the port has received. swFCPortRxC3Frames 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.16 Counts the number of Class 3 frames that the port has received. swFCPortRxLCs 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.17 Counts the number of link control frames that the port has received. swFCPortRxMcasts 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.18 Counts the number of multicast frames that the port has received.
  • Page 197 The desired baud rate for the port. Values The baud rate can be 1 Gbps, 2 Gbps, autonegotiate, or 4 Gbps or 8 Gbps. 4 Gbps is only applicable to the Brocade 4100, 4900, 7500, 7600, and 48000. 8 Gbps is only applicable to the Brocade DCX director.
  • Page 198 swFCPortName 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.36 swFCPortName 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.36 Supported in Fabric OS v4.1.x and later. A string that indicates the name of the addressed port. NOTE The names should be persistent across switch reboots. Port names do not have to be unique within a switch or within a fabric. swFCPortSpecifier 1.3.6.1.4.1.1588.2.1.1.1.6.2.1.37 This string indicates the physical port number of the addressed port.

  • Page 199: Name Server Database Group

    Name Server Database group Name Server Database group swNsLocalNumEntry 1.3.6.1.4.1.1588.2.1.1.1.7.1 The number of local Name Server entries. swNsLocalTable 1.3.6.1.4.1.1588.2.1.1.1.7.2 The table of local Name Server entries. swNsLocalEntry 1.3.6.1.4.1.1588.2.1.1.1.7.2.1 An entry from the local Name Server database. Index swNsEntryIndex swNsEntryIndex 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.1 The index of the Name Server database entry.
  • Page 200 Class F-1 (3) • Class 2 (4) • Class F-2 (5) • Class 1-2 (6) • Class F-1-2 (7) • Class 3 (8) • Class F-3 (9) • Class 1-3 (10) • Class F-1-3 (11) • Class 2-3 (12) •...

  • Page 201: Event Group

    The object identifies the 24-bit hard address of the node for the entry. Event group swEventTable identifies the error log messages by the switch. It can only have a maximum of 1024 entries. swEventTrapLevel 1.3.6.1.4.1.1588.2.1.1.1.8.1 Deprecated. swAgtTrapSeverityLevel 1.3.6.1.4.1.1588.2.1.1.1.4.11.1.4, in the absence of swEventTrapLevel, specifies the trap severity level of each defined trap recipient host.
  • Page 202 1.3.6.1.4.1.1588.2.1.1.1.8.5.1 Only external RASlog messages are supported. These external messages are documented in the Fabric OS Message Reference. swEventEntry 1.3.6.1.4.1.1588.2.1.1.1.8.5.1 An entry of the event table. Index swEventIndex swEventIndex 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.1 Every RASLOG message is identified with a unique number which is swEventIndex.

  • Page 203: Fabric Watch Group

    1.3.6.1.4.1.1588.2.1.1.1.8.5.1.5 swEventDescr 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.5 A textual description of the event. For Fabric OS v6.2.0 and later releases, the format of error messages has changed. This field now uses the message title and number (for example, WEBD-1006) and the message text. Previously this field used the task ID, and all the message number and message text.
  • Page 204 A default low threshold value. swFwDefaultHigh 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.6 A default high threshold value. swFwDefaultBufSize 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.7 A default buffer size value. swFwCustUnit 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.8 A customizable unit string name, used to identify the unit of measure for a Fabric Watch classArea combination. Fabric OS MIB Reference 53-1001768-01...
  • Page 205 swFwCustTimebase 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.9 C = environment (class), temperature (area). RPM = environment (class), fan (area). swFwCustTimebase 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.9 A customizable polling period for the Fabric Watch classArea combination. swFwTbMin = port (class), link loss (area). swFwTbNone = environment (class), temperature (area). swFwCustLow 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.10 A customizable low-threshold value for a Fabric Watch classArea combination.
  • Page 206 swFwWriteActVals 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.14 swFwWriteActVals 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.14 This applies or cancels the alarm value changes. For a read operation, the return value is always swFwCancelWrite. The following are the custom alarm variables that can be modified: swFwCustChangedActs swFwCustExceededActs swFwCustBelowActs swFwCustAboveActs swFwCustInBetweenActs Changes to these custom alarm variables can be saved by setting this variable to swFwApplyWrite. Changes to these custom alarm variables can be removed by setting this variable to swFwCancelWrite.
  • Page 207 swFwCustExceededActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.21 swFwCustExceededActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.21 Custom action matrix for an exceeded event. swFwCustBelowActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.22 Custom action matrix for below event. swFwCustAboveActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.23 Custom action matrix for above event. swFwCustInBetweenActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.24 Custom action matrix for in-between event. swFwValidActs 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.25 Matrix of valid acts for a classArea. swFwActLevel 1.3.6.1.4.1.1588.2.1.1.1.10.2.1.26 Pointer to the current level for classArea values.
  • Page 208 3 eportLink003: index of 4 eportLink004: index of 5 eportLink005: index of 6 eportLink006: index of 7 eportLink007: index of 8 eportLink008: index of 9 eportLink009: index of 10 eportLink010: index of 11 eportLink011: index of 12...
  • Page 209 swFwStatus 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.2 swFwStatus 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.2 Indicates whether a threshold is enabled or disabled. swFwName 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.3 Name of the threshold. For examples of swFwName objects and object types, refer to Table TABLE 17 swFwName objects and object types swFwName objects (swFwName) Object types (Threshold names) envFan001 Env Fan 1 (Not supported) envPS002...
  • Page 210 swFwName 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.3 TABLE 17 swFwName objects and object types (Continued) swFwName objects (swFwName) Object types (Threshold names) (Continued) fabricSC000 Fabric Segmentation fabricZC000 Fabric Zoning change fcuportCRCs013 FCU Port Invalid CRCs 13 fcuportLink013 FCU Port Link Failures 13 fcuportProtoErr0 FCU Port Protocol Errors 13 fcuportRXPerf013 FCU Port RX Performance 13 fcuportSignal013...
  • Page 211 swFwName 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.3 TABLE 17 swFwName objects and object types (Continued) swFwName objects (swFwName) Object types (Threshold names) (Continued) secHTTP000 Security HTTP Violations 0 secAPI000 Security API Violations 0 secRSNMP000 Security RSNMP Violations 0 secWSNMP000 Security WSNMP Violations 0 secSES000 Security SES Violations 0 secMS000 Security MS Violations 0 secSerial000...
  • Page 212 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.6 Last event type of the threshold. swFwLastEventVal 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.7 Last event value of the threshold. swFwLastEventTime 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.8 Last event time of the threshold. This value is in the same format as in swCurrentDate. swFwLastState 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.9 This is the last state.

  • Page 213: End Device Group

    End Device group End Device group swEndDeviceRlsTable 1.3.6.1.4.1.1588.2.1.1.1.21.1 The table of RLS for individual end devices. swEndDeviceRlsEntry 1.3.6.1.4.1.1588.2.1.1.1.21.1.1 An entry of an individual end devices' RLS. Index swEndDevicePort, swEndDeviceAlpa Since Brocade switches start with port # 0, the SNMP port # should be physical port # plus 1. In turn, that means that SNMP port # 3 translates to port # 2.

  • Page 214: Switch Group

    1.3.6.1.4.1.1588.2.1.1.1.21.1.1.7 swEndDeviceProtoErr 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.7 Protocol error count for the end device. swEndDeviceInvalidWord 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.8 Invalid word count for the end device. swEndDeviceInvalidCRC 1.3.6.1.4.1.1588.2.1.1.1.21.1.1.9 Invalid CRC count for the end device. Switch group Not supported. swGroupTable 1.3.6.1.4.1.1588.2.1.1.1.22.1 The table of groups. This is not available on all versions of Fabric OS.

  • Page 215: Asic Performance Monitoring Group

    swGroupMemEntry 1.3.6.1.4.1.1588.2.1.1.1.22.2.1 swGroupMemEntry 1.3.6.1.4.1.1588.2.1.1.1.22.2.1 An entry for a member of a group. Index swGroupID, swGroupMemWwn swGroupID 1.3.6.1.4.1.1588.2.1.1.1.22.2.1.1 This object identifies the Group ID of the member switch. swGroupMemWwn 1.3.6.1.4.1.1588.2.1.1.1.22.2.1.2 This object identifies the WWN of the member switch. swGroupMemPos 1.3.6.1.4.1.1588.2.1.1.1.22.2.1. This object identifies the position of the member switch in the group, based on the order that the switches were added in the group.
  • Page 216 swBlmPerfAlpa 1.3.6.1.4.1.1588.2.1.1.1.23.1.1.3 swBlmPerfAlpa 1.3.6.1.4.1.1588.2.1.1.1.23.1.1.3 This object identifies the AL_PA values. These values range between x'01' and x'EF' (1 to 239). AL_PA value x'00' is reserved for FL_Port. If Alpha device is invalid, then it will have -1 value. swBlmPerfAlpaCRCCnt 1.3.6.1.4.1.1588.2.1.1.1.23.1.1.4 Get CRC count for given AL_PA and port.
  • Page 217 swBlmPerfEEFCWTx 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.5 swBlmPerfEEFCWTx 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.5 Get end-to-end count of Fibre Channel words (FCW) transmitted by the port that matched the SID-DID pair. swBlmPerfEESid 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.6 Gets DID information by reference number. swBlmPerfEEDid 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.7 Gets SID information by reference number. SID (Source Identifier) is a 3-byte field in the frame header used to indicate the address identifier of the N_Port from which the frame was sent.

  • Page 218: Trunking Group

    Alias name for the filter. Trunking group swSwitchTrunkable 1.3.6.1.4.1.1588.2.1.1.1.24.1 Whether the switch supports the trunking feature or not: no (0) or yes (8). swTrunkTable 1.3.6.1.4.1.1588.2.1.1.1.24.2 Displays trunking information for the switch. For the Brocade 4100, cc ports per trunk are supported.

  • Page 219: Toptalker Group

    swTrunkGrpTable 1.3.6.1.4.1.1588.2.1.1.1.24.3 swTrunkGrpTable 1.3.6.1.4.1.1588.2.1.1.1.24.3 Displays trunking performance information for the switch. swTrunkGrpEntry 1.3.6.1.4.1.1588.2.1.1.1.24.3.1 Entry for the trunking group table. Index swTrunkGrpNumber swTrunkGrpNumber 1.3.6.1.4.1.1588.2.1.1.1.24.3.1.1 This object is a logical entity that specifies the group number to which port belongs. swTrunkGrpMaster 1.3.6.1.4.1.1588.2.1.1.1.24.3.1.2 This object gives the master port ID for the trunk group.
  • Page 220 swTopTalkerMntNumEntries 1.3.6.1.4.1.1588.2.1.1.1.25.2 swTopTalkerMntNumEntries 1.3.6.1.4.1.1588.2.1.1.1.25.2 This object provides the number of toptalking flows that are existing in the switch. swTopTalkerMntTable 1.3.6.1.4.1.1588.2.1.1.1.25.3 Table to display toptalking flows. swTopTalkerMntEntry 1.3.6.1.4.1.1588.2.1.1.1.25.3.1 Entry for the toptalking flows. swTopTalkerMntIndex 1.3.6.1.4.1.1588.2.1.1.1.25.3.1.1 This object identifies the list/object entry. The possible values are one to maximum number of entries.

  • Page 221: Cpu Or Memory Usage Group

    1.3.6.1.4.1.1588.2.1.1.1.26.7 The number of times the system should take a memory usage sample before sending the Fabric Watch trap that indicates the current memory usage. swMemUsageLimit 1.3.6.1.4.1.1588.2.1.1.1.26.8 The memory usage limit. This OID specifies the in-between threshold value. swMemPollingInterval 1.3.6.1.4.1.1588.2.1.1.1.26.9 The time after which the next memory usage sample will be taken.

  • Page 222: Swconnunitportstatextentiontable

    swMemAction 1.3.6.1.4.1.1588.2.1.1.1.26.10 swMemAction 1.3.6.1.4.1.1588.2.1.1.1.26.10 The action to be taken if the memory usage exceed the specified threshold limit. swMemUsageLimit1 1.3.6.1.4.1.1588.2.1.1.1.26.11 This OID specifies the low threshold value. swMemUsageLimit3 1.3.6.1.4.1.1588.2.1.1.1.26.12 This OID specifies the high threshold value. swConnUnitPortStatExtentionTable This table is an extension of connectivity unit port statistics table. This table can be queried only if the FA-MIB is enabled.
  • Page 223 The number of times FC port entered OPENED state. swConnUnitTransferConnection 1.3.6.1.4.1.1588.2.1.1.1.27.1.7 The number of times FC port entered TRANSFER state. swConnUnitOpen 1.3.6.1.4.1.1588.2.1.1.1.27.1.8 The number of times FC port entered OPEN state. swConnUnitInvalidARB 1.3.6.1.4.1.1588.2.1.1.1.27.1.9 The number of times FC port received invalid ARB.
  • Page 224 swConnUnitBadEOF 1.3.6.1.4.1.1588.2.1.1.1.27.1.15 swConnUnitBadEOF 1.3.6.1.4.1.1588.2.1.1.1.27.1.15 The number of frames with bad EOF. swConnUnitLCRX 1.3.6.1.4.1.1588.2.1.1.1.27.1.16 The number of link control frames received. swConnUnitRDYPriority 1.3.6.1.4.1.1588.2.1.1.1.27.1.17 The number of times that sending R_RDY or VC_RDY primitive signals was a higher priority than sending frames, due to diminishing credit reserves in the transmitter at the other end of the fibre. swConnUnitLli 1.3.6.1.4.1.1588.2.1.1.1.27.1.18 The number of low level interrupts generated by the physical and link layer.

  • Page 225: In This Chapter

    Chapter High-Availability MIB Objects In this chapter • HA-MIB overview ..........207 •...
  • Page 226 HA-MIB overview - haMIB (1.3.6.1.4.1.1588.2.1.2) - highAvailability (1.3.6.1.4.1.1588.2.1.2.1) haStatus 1.3.6.1.4.1.1588.2.1.2.1.1 fruTable 1.3.6.1.4.1.1588.2.1.2.1.5 fruEntry 1.3.6.1.4.1.1588.2.1.2.1.5.1 fruClass 1.3.6.1.4.1.1588.2.1.2.1.5.1.1 fruStatus 1.3.6.1.4.1.1588.2.1.2.1.5.1.2 fruObjectNum 1.3.6.1.4.1.1588.2.1.2.1.5.1.3 fruSupplierId 1.3.6.1.4.1.1588.2.1.2.1.5.1.4 fruSupplierPartNum 1.3.6.1.4.1.1588.2.1.2.1.5.1.5 fruSupplierSerialNum 1.3.6.1.4.1.1588.2.1.2.1.5.1.6 fruSupplierRevCode 1.3.6.1.4.1.1588.2.1.2.1.5.1.7 fruHistoryTable 1.3.6.1.4.1.1588.2.1.2.1.6 fruHistoryEntry 1.3.6.1.4.1.1588.2.1.2.1.6.1 fruHistoryIndex 1.3.6.1.4.1.1588.2.1.2.1.6.1.1 fruHistoryClass 1.3.6.1.4.1.1588.2.1.2.1.6.1.2 fruHistoryObjectNum 1.3.6.1.4.1.1588.2.1.2.1.6.1.3 fruHistoryEvent 1.3.6.1.4.1.1588.2.1.2.1.6.1.4 fruHistoryTime 1.3.6.1.4.1.1588.2.1.2.1.6.1.5 fruHistoryFactoryPartNum 1.3.6.1.4.1.1588.2.1.2.1.6.1.6 fruHistoryFactorySerialNum 1.3.6.1.4.1.1588.2.1.2.1.6.1.7...

  • Page 227: High-Availability Group

    High-Availability group TABLE 18 Objects imported into the HA-MIB (Continued) Object Imported from this module DisplayString SNMPv2-TC TimeStamp High-Availability group This section describes the MIB objects in the High-Availability group. haStatus 1.3.6.1.4.1.1588.2.1.2.1.1 Indicates whether the system is redundant. Values Possible values are: •...
  • Page 228 TABLE 19 Valid FRU counts for the various Brocade switches (Continued) Platform Blades Fans Power supply WWN card Brocade 12000 8 port blades 3 fans 4 PS 1 WWN 2 CP blades Brocade 24000 8 port blades 3 fans 4 PS...

  • Page 229: Fru History Table

    fruStatus 1.3.6.1.4.1.1588.2.1.2.1.5.1.2 fruStatus 1.3.6.1.4.1.1588.2.1.2.1.5.1.2 The current status of the FRU object in the slot. Values Possible values are: • other (1) • unknown (2) • on (3) • off (4) • faulty (5) fruObjectNum 1.3.6.1.4.1.1588.2.1.2.1.5.1.3 The slot number of the blade, and the unit number for everything else. fruSupplierId 1.3.6.1.4.1.1588.2.1.2.1.5.1.4 The supplier ID.
  • Page 230 • cp (4) • other-CP (5) • switchblade (6) • wwn (7) • powerSupply (8) • fan (9) • CoreBlade (10) • ApplicationBlade (11) fruHistoryObjectNum 1.3.6.1.4.1.1588.2.1.2.1.6.1.3 The slot number of the blade and the unit number for everything else. fruHistoryEvent 1.3.6.1.4.1.1588.2.1.2.1.6.1.4 The type of the FRU event.

  • Page 231: Cp Table

    fruHistoryFactorySerialNum 1.3.6.1.4.1.1588.2.1.2.1.6.1.7 fruHistoryFactorySerialNum 1.3.6.1.4.1.1588.2.1.2.1.6.1.7 The Brocade serial number of the FRU object. CP Table cpTable 1.3.6.1.4.1.1588.2.1.2.1.7 This table lists all the CPs in the system. cpEntry 1.3.6.1.4.1.1588.2.1.2.1.7.1 An entry represents a single CP in the system. Index entPhysicalIndex cpStatus 1.3.6.1.4.1.1588.2.1.2.1.7.1.1 The current status of the CP.

  • Page 232: Ha-Mib Traps

    • haSync (3) • haOutSync (4) • cpFaulty (5) • cpHealthy (6) • cpActive (7) • configChange (8) • failOverStart (9) • failOverDone (10) • firmwareCommit (11) • firmwareUpgrade (12) HA-MIB traps This section lists the HA-MIB traps. fruStatusChanged 1.3.6.1.4.1.1588.2.1.2.2.0.1...

  • Page 233: Ha-Mib Traps And Sample Triggers

    fruHistoryTrap 1.3.6.1.4.1.1588.2.1.2.2.0.3 • Reboot • firmwareDownload • fastboot • HA failover fruHistoryTrap 1.3.6.1.4.1.1588.2.1.2.2.0.3 Objects 1: fruHistoryClass 2: fruHistoryObjectNum 3: fruHistoryEvent 4: fruHistoryTime 5: fruHistoryFactoryPartNum 6: fruHistoryFactorySerialNum Status Current This trap is generated when a FRU is added, removed, or failed. HA-MIB traps and sample triggers Table 20 lists the HA-MIB traps and sample events that will trigger them.
  • Page 234 fruHistoryTrap 1.3.6.1.4.1.1588.2.1.2.2.0.3 Fabric OS MIB Reference 53-1001768-01...

  • Page 235: Chapter 7 Ficon Mib Objects

    Chapter FICON MIB Objects In this chapter • FICON MIB overview ......... . . 217 •...
  • Page 236 1.3.6.1.4.1.1588.2.1.1.50.2.1 nodeRNIDTable 1.3.6.1.4.1.1588.2.1.1.50.2.2 nodeRNIDEntry 1.3.6.1.4.1.1588.2.1.1.50.2.2.1 nodeRNIDIndex 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.1 nodeRNIDIncidentPortWWN 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.2 nodeRNIDPID 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.3 nodeRNIDFlags 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.4 nodeRNIDType 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.5 nodeRNIDModel 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.6 nodeRNIDManufacturer 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.7 nodeRNIDManufacturerPlant 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.8 nodeRNIDSequenceNumber 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.9 nodeRNIDConnectedPortWWN 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.10 nodeRNIDPortType 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.11 nodeRNIDFormat 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.12 nodeRNIDTag 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.13 nodeRNIDParams 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.14 switchRNIDTableNumEntries 1.3.6.1.4.1.1588.2.1.1.50.2.3 switchRNIDTable 1.3.6.1.4.1.1588.2.1.1.50.2.4 switchRNIDEntry 1.3.6.1.4.1.1588.2.1.1.50.2.4.1 switchRNIDIndex 1.3.6.1.4.1.1588.2.1.1.50.2.4.1.1...

  • Page 237: Textual Conventions

    - ficonRLIR rLIRTableNumEntries 1.3.6.1.4.1.1588.2.1.1.50.4.1 rLIRTable 1.3.6.1.4.1.1588.2.1.1.50.4.2 rLIREntry 1.3.6.1.4.1.1588.2.1.1.50.4.2.1 rLIRIndex 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.1 rLIRIncidentPortWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.2 rLIRIncidentNodeWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.3 rLIRIncidentPortType 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.5 rLIRIncidentPID 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.6 rLIRIncidentPortNumber 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.7 rLIRConnectedPortWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.8 rLIRConnectedNodeWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.9 rLIRFabricWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.10 rLIRLinkFailureType 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.11 rLIRTimeStamp 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.12 rLIRFormat 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.13 FIGURE 58 linkIncidentMIB hierarchy - linkIncidentMIBTraps - linkIncidentMIBTrapPrefix linkRNIDDeviceRegistration 1.3.6.1.4.1.1588.2.1.1.50.21.0.1...
  • Page 238 Represents the value of RNID OCTET STRING (SIZE (2)) Tag, in hexadecimal format. Note: Includes DISPLAY-HINT “x”. LinkWwn Current Represents the link WWN. OCTET STRING (SIZE (8)) RegType Current Represents the RNID INTEGER { Registration Type. conditional (1), unconditional (2)

  • Page 239: Ficonrnid Group

    ficonRNID group ficonRNID group This group contains all Request Node Identification Data (RNID) group objects for FICON. nodeRNIDTableNumEntries 1.3.6.1.4.1.1588.2.1.1.50.2.1 The number of entries in Request Node Identification Data (RNID) table. Refer to the Fabric OS Command Reference and the ficonShow command for additional information on FICON MIB tables.
  • Page 240 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.6 nodeRNIDModel 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.6 Model number of the RNID node. nodeRNIDManufacturer 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.7 Identifies the manufacturer of the node. nodeRNIDManufacturerPlant 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.8 Identifies the manufacturer plant of the node. nodeRNIDSequenceNumber 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.9 Identifies the sequence number of the node. nodeRNIDConnectedPortWWN 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.10 WWN of the connected port.
  • Page 241 Model number of the RNID switch. switchRNIDManufacturer 1.3.6.1.4.1.1588.2.1.1.50.2.4.1.6 Identifies the manufacturer of the switch. switchRNIDManufacturerPlant 1.3.6.1.4.1.1588.2.1.1.50.2.4.1.7 Identifies the manufacturer plant of the switch. switchRNIDSequenceNumber 1.3.6.1.4.1.1588.2.1.1.50.2.4.1.8 Identifies the sequence number of the switch. switchRNIDTag 1.3.6.1.4.1.1588.2.1.1.50.2.4.1.9 Identification tag of the switch. Fabric OS MIB Reference...

  • Page 242: Ficonlirr Group

    switchRNIDParams 1.3.6.1.4.1.1588.2.1.1.50.2.4.1.10 switchRNIDParams 1.3.6.1.4.1.1588.2.1.1.50.2.4.1.10 Identifies the parameters of the switch. nodeVfId 1.3.6.1.4.1.1588.2.1.1.50.2.5 The Virtual Fabric ID of the switch. For VF-unaware switches, this value will be 0. ficonLIRR group This group contains all Link Incident Record Registration (LIRR) group objects for FICON. LIRRTableNumEntries 1.3.6.1.4.1.1588.2.1.1.50.3.1 The number of entries in an LIRR table.

  • Page 243: Ficonrlir Group

    LIRRProtocol 1.3.6.1.4.1.1588.2.1.1.50.3.2.1.5 LIRRProtocol 1.3.6.1.4.1.1588.2.1.1.50.3.2.1.5 Protocol type supported. LIRRPortType 1.3.6.1.4.1.1588.2.1.1.50.3.2.1.6 Attached port type. LIRRFormat 1.3.6.1.4.1.1588.2.1.1.50.3.2.1.7 Registration type: conditional or unconditional. ficonRLIR group This group contains all Registered Link Incident Report (RLIR) group objects for FICON. rLIRTableNumEntries 1.3.6.1.4.1.1588.2.1.1.50.4.1 The number of entries in a switch RLIR table. Refer to the Fabric OS Command Reference and the ficonShow command for additional information on FICON MIB tables.

  • Page 244: Linkincidentmibtraps Group

    1.3.6.1.4.1.1588.2.1.1.50.4.2.1.5 RLIR Incident port type. rLIRIncidentPID 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.6 RLIR Incident PID. rLIRIncidentPortNumber 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.7 RLIR Incident port number. This is a vendor-specific port number. rLIRConnectedPortWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.8 RLIR Connected port WWN. rLIRConnectedNodeWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.9 RLIR Connected node WWN. rLIRFabricWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.10 RLIR Fabric WWN.
  • Page 245 linkRNIDDeviceRegistration 1.3.6.1.4.1.1588.2.1.1.50.21.0.1 linkRNIDDeviceRegistration 1.3.6.1.4.1.1588.2.1.1.50.21.0.1 A device registered with the switch. Objects 1: nodeRNIDIndex 2: nodeRNIDIncidentPortWWN 3: nodeRNIDConnectedPortWWN linkRNIDDeviceDeRegistration 1.3.6.1.4.1.1588.2.1.1.50.21.0.2 A device deregistered with the switch. Objects 1: nodeRNIDIndex 2: nodeRNIDIncidentPortWWN 3: nodeRNIDConnectedPortWWN linkLIRRListenerAdded 1.3.6.1.4.1.1588.2.1.1.50.21.0.3 A listener for link failure incident is added. Objects 1: lIRRListenerPortWWN 2: lIRRListenerPID...
  • Page 246 linkRLIRFailureIncident 1.3.6.1.4.1.1588.2.1.1.50.21.0.5 6: rLIRLinkFailureType 7: lIRRListenerPID Fabric OS MIB Reference 53-1001768-01...

  • Page 247: Chapter 8 Fibrealliance Mib Objects

    Chapter FibreAlliance MIB Objects In this chapter • FibreAlliance MIB overview ........229 •...
  • Page 248 - org - dod - internet - experimental - fcmgmt - connSet uNumber 1.3.6.1.3.94.1.1 systemURL 1.3.6.1.3.94.1.2 connUnitTable 1.3.6.1.3.94.1.6 connUnitRevsTable 1.3.6.1.3.94.1.7 connUnitSensorTable 1.3.6.1.3.94.1.8 connUnitPortTable 1.3.6.1.3.94.1.10 connUnitEventTable 1.3.6.1.3.94.1.11 connUnitLinkTable 1.3.6.1.3.94.1.12 - trapReg trapMaxClients 1.3.6.1.3.94.2.1 trapClientCount 1.3.6.1.3.94.2.2 trapRegTable 1.3.6.1.3.94.2.3 revisionNumber 1.3.6.1.3.94.3 - statSet connUnitPortStatTable 1.3.6.1.3.94.4.5...
  • Page 249 FibreAlliance MIB overview connUnitTable 1.3.6.1.3.94.1.6 connUnitEntry 1.3.6.1.3.94.1.6.1 connUnitId 1.3.6.1.3.94.1.6.1.1 connUnitGlobalId 1.3.6.1.3.94.1.6.1.2 connUnitType 1.3.6.1.3.94.1.6.1.3 connUnitNumports 1.3.6.1.3.94.1.6.1.4 connUnitState 1.3.6.1.3.94.1.6.1.5 connUnitStatus 1.3.6.1.3.94.1.6.1.6 connUnitProduct 1.3.6.1.3.94.1.6.1.7 connUnitSn 1.3.6.1.3.94.1.6.1.8 connUnitUpTime 1.3.6.1.3.94.1.6.1.9 connUnitUrl 1.3.6.1.3.94.1.6.1.10 connUnitDomainId 1.3.6.1.3.94.1.6.1.11 connUnitProxyMaster 1.3.6.1.3.94.1.6.1.12 connUnitPrincipal 1.3.6.1.3.94.1.6.1.13 connUnitNumSensors 1.3.6.1.3.94.1.6.1.14 connUnitStatusChangeTime 1.3.6.1.3.94.1.6.1.15 connUnitConfigurationChangeTime 1.3.6.1.3.94.1.6.1.16 connUnitNumRevs 1.3.6.1.3.94.1.6.1.17 connUnitNumZones 1.3.6.1.3.94.1.6.1.18...
  • Page 250 FibreAlliance MIB overview connUnitPortTable 1.3.6.1.3.94.1.10 connUnitPortEntry 1.3.6.1.3.94.1.10.1 connUnitPortUnitId 1.3.6.1.3.94.1.10.1.1 connUnitPortIndex 1.3.6.1.3.94.1.10.1.2 connUnitPortType 1.3.6.1.3.94.1.10.1.3 connUnitPortFCClassCap 1.3.6.1.3.94.1.10.1.4 connUnitPortFCClassOp 1.3.6.1.3.94.1.10.1.5 connUnitPortState 1.3.6.1.3.94.1.10.1.6 connUnitPortStatus 1.3.6.1.3.94.1.10.1.7 connUnitPortTransmitterType 1.3.6.1.3.94.1.10.1.8 connUnitPortModuleType 1.3.6.1.3.94.1.10.1.9 connUnitPortWwn 1.3.6.1.3.94.1.10.1.10 connUnitPortFCId 1.3.6.1.3.94.1.10.1.11 connUnitPortSn 1.3.6.1.3.94.1.10.1.12 connUnitPortRevision 1.3.6.1.3.94.1.10.1.13 connUnitPortVendor 1.3.6.1.3.94.1.10.1.14 connUnitPortSpeed 1.3.6.1.3.94.1.10.1.15 connUnitPortControl 1.3.6.1.3.94.1.10.1.16 connUnitPortName 1.3.6.1.3.94.1.10.1.17 connUnitPortPhysicalNumber 1.3.6.1.3.94.1.10.1.18...
  • Page 251 FibreAlliance MIB overview connUnitLinkTable 1.3.6.1.3.94.1.12 connUnitLinkEntry 1.3.6.1.3.94.1.12.1 connUnitLinkUnitId 1.3.6.1.3.94.1.12.1.1 connUnitLinkIndex 1.3.6.1.3.94.1.12.1.2 connUnitLinkNodeIdX 1.3.6.1.3.94.1.12.1.3 connUnitLinkPortNumberX 1.3.6.1.3.94.1.12.1.4 connUnitLinkPortWwnX 1.3.6.1.3.94.1.12.1.5 connUnitLinkNodeIdY 1.3.6.1.3.94.1.12.1.6 connUnitLinkPortNumberY 1.3.6.1.3.94.1.12.1.7 connUnitLinkPortWwnY 1.3.6.1.3.94.1.12.1.8 connUnitLinkAgentAddressY 1.3.6.1.3.94.1.12.1.9 connUnitLinkAgentAddressTypeY 1.3.6.1.3.94.1.12.1.10 connUnitLinkAgentPortY 1.3.6.1.3.94.1.12.1.11 connUnitLinkUnitTypeY 1.3.6.1.3.94.1.12.1.12 connUnitLinkConnIdY 1.3.6.1.3.94.1.12.1.13 connUnitLinkCurrIndex 1.3.6.1.3.94.1.12.1.14 FIGURE 66 ConnUnitLinkTable hierarchy trapRegTable 1.3.6.1.3.94.2.3 trapRegEntry 1.3.6.1.3.94.2.3.1...
  • Page 252 FibreAlliance MIB overview connUnitPortStatTable 1.3.6.1.3.94.4.5 connUnitPortStatEntry 1.3.6.1.3.94.4.5.1 connUnitPortStatUnitId 1.3.6.1.3.94.4.5.1.1 connUnitPortStatIndex 1.3.6.1.3.94.4.5.1.2 connUnitPortStatCountError 1.3.6.1.3.94.4.5.1.3 connUnitPortStatCountTxObjects 1.3.6.1.3.94.4.5.1.4 connUnitPortStatCountRxObjects 1.3.6.1.3.94.4.5.1.5 connUnitPortStatCountTxElements 1.3.6.1.3.94.4.5.1.6 connUnitPortStatCountRxElements 1.3.6.1.3.94.4.5.1.7 connUnitPortStatCountBBCreditZero 1.3.6.1.3.94.4.5.1.8 connUnitPortStatCountInputBuffersFull 1.3.6.1.3.94.4.5.1.9 connUnitPortStatCountFBSYFrames 1.3.6.1.3.94.4.5.1.10 connUnitPortStatCountPBSYFrames 1.3.6.1.3.94.4.5.1.11 connUnitPortStatCountFRJTFrames 1.3.6.1.3.94.4.5.1.12 connUnitPortStatCountPRJTFrames 1.3.6.1.3.94.4.5.1.13 connUnitPortStatCountClass1RxFrames 1.3.6.1.3.94.4.5.1.14 connUnitPortStatCountClass1TxFrames 1.3.6.1.3.94.4.5.1.15 connUnitPortStatCountClass1FBSYFrames 1.3.6.1.3.94.4.5.1.16 connUnitPortStatCountClass1PBSYFrames 1.3.6.1.3.94.4.5.1.17 connUnitPortStatCountClass1FRJTFrames 1.3.6.1.3.94.4.5.1.18...

  • Page 253: Definitions For Fcmgmt-Mib

    Type definition Value Description FcNameId Octet String of size 8 The Port Name for this entry in the SNS table. FcGlobalId Octet String of size An optional global-scope identifier for this connectivity unit. It MUST be a WWN for this connectivity unit or 16 octets of value zero.

  • Page 254: Connset Group

    FC <-> ATM. 6 (converter) Unit that converts from one interface to another: for example, FC <-> SCSI. 7 (hba) Host bus adapter. 8 (proxy-agent) Software proxy agent. 9 (storage-device) Disk, CD, tape, and so on. 10 (host) Host computer.
  • Page 255 It should be the same as connUnitGlobalId if connUnitGlobalId is known and stable. The Brocade implementation maps the switch WWN to the top 8 octets of this variable and sets the remaining lower 8 octets to 0.
  • Page 256 (prefixed with the appropriate NAA) as its connUnitId. But if the Ethernet is a replaceable PCCard, the hub should have an independent ID. The Brocade implementation maps the switch WWN to the top 8 octets of this variable and sets the remaining lower 8 octets to 0.
  • Page 257 connUnitState 1.3.6.1.3.94.1.6.1.5 NOTE The ConnUnitNumports will not count the GE ports present on FC4-16IP blade. The maximum number of supported ports are as follows. Brocade 300 24 ports Brocade 4100 32 ports Brocade 4900 64 ports Brocade 5000 32 ports Brocade 5100 40 ports Brocade 5300...
  • Page 258 This is the same as for sysDescr (set for as many as 79 bytes). If the switch is in Access Gateway mode, the default value is Access Gateway. connUnitSn 1.3.6.1.3.94.1.6.1.8 The serial number for this connectivity unit. Set to the SSN (which by default is the WWN).
  • Page 259 connUnitPrincipal 1.3.6.1.3.94.1.6.1.13 Values Possible values are: • unknown (1) • no (2) • yes (3) This could be the only unit with a management card in it for a set of units. A standalone unit should return “yes” for this object. Set to 3 (yes).
  • Page 260 connUnitNumRevs 1.3.6.1.3.94.1.6.1.17 connUnitNumRevs 1.3.6.1.3.94.1.6.1.17 The number of revisions in connUnitRevsTable. Set to 2. connUnitNumZones 1.3.6.1.3.94.1.6.1.18 Number of zones defined in connUnitZoneTable. Not supported. connUnitModuleId 1.3.6.1.3.94.1.6.1.19 This is a unique ID, persistent between boots, that can be used to group a set of connUnits together into a module.
  • Page 261 connUnitContact 1.3.6.1.3.94.1.6.1.23 onlineConnUnit = enable switch default after reboot = unknown The declaration 1 (unknown) maps to the default value upon rebooting, and 2 (invalid) is not applicable. Declarations 3 and 4 perform the same operation—a cold boot of the switch. Values Possible values are: •...
  • Page 262 connUnitMaxEvents 1.3.6.1.3.94.1.6.1.27 For Fabric OS v4.4, and later releases, this value ranges from 0 to 1024. connUnitMaxEvents 1.3.6.1.3.94.1.6.1.27 Maximum number of events that can be defined in connUnitEventTable. Values This value ranges from 0 to 1024. connUnitEventCurrID 1.3.6.1.3.94.1.6.1.28 The last-used event ID (connUnitEventId). Every RASLOG message has RASLOG number and this represents the RASLOG number.
  • Page 263 1.3.6.1.3.94.1.7.1.4 Description of a component to which the revision corresponds. Index 1 returns the hardware version. Index 2 returns the software version. connUnitSensorTable 1.3.6.1.3.94.1.8 Table of the sensors supported by each connectivity unit managed by this agent. Refer to Table 15 on page 166 for specific sensor counts on the various switches.
  • Page 264 1.3.6.1.3.94.1.8.1.5 • Warning (4) The sensor indicates a warning. • failed (5) The sensor indicates failure. • Nominal = 3 (ok). connUnitSensorInfo 1.3.6.1.3.94.1.8.1.5 Miscellaneous static information about the sensor, such as its serial number. Each contains textual information about the sensor.
  • Page 265 (4) • emf (5) • currentValue (6) Current is a keyword. • airflow (7) • frequency (8) • power (9) • door (10) Not supported in Fabric OS v2.6.1. connUnitPortTable 1.3.6.1.3.94.1.10 Generic information on ports for a specific connUnit NOTE Information about the GbE ports on a Brocade 7500 or FR4-18i blade is not supported.
  • Page 266 (5) End port for fabric. • l-port (6) End port for loop. • fl-port (7) Public loop. • f-port (8) Fabric port. • e-port (9) Fabric expansion port. • g-port (10) Generic fabric port. • domain-ctl (11) Domain controller.
  • Page 267 For a Brocade Access Gateway, both the F_Port and N_Port this value is 0x0008. An Access Gateway supports class-three services only, therefore the value is 8 for both port types. connUnitPortFCClassCap attribute is dependent on the state of the port i.e, whether the port is online or offline.
  • Page 268 (6) Loop not participating and does not have a loop address. Do not use. • initializing (7) Protocol is proceeding. Do not use. • bypass (8) Do not use. • ols (9) FCP offline status. (Not supported in Fabric OS v2.6.1.) NOTE In Fabric OS v2.6.x, for an E_Port, F_Port, or FL_Port, the value is 3 (ok).
  • Page 269 (9) • longwaveLED (10) • ssa (11) (Not supported in Fabric OS v2.6.1.) For an external FC port, this value should be 9 (shortwaveNoOFC), 8 (longwaveNoOFC), or 6 (copper). connUnitPortModuleType 1.3.6.1.3.94.1.10.1.9 The module type of the port connector. Values Possible values are: •...
  • Page 270 connUnitPortSn 1.3.6.1.3.94.1.10.1.12 The FC ID is formatted “DD AA PP” (e.g., “02 00 02”). The Brocade Access Gateway port FC ID differs from a Fibre Channel switch. A Fibre Channel switch port FC ID has the same DD with a different AA value for each link.
  • Page 271 connUnitPortControl 1.3.6.1.3.94.1.10.1.16 • bypassConnUnitPort If the addressed connUnit allows this operation to be performed to this port, the addressed port performs a vendor-specific “bypass” operation. Examples of these operations are: • Transitioning from online to offline. • A request (NON-PARTICIPATING) command to the loop port state machine. •...
  • Page 272 connUnitPortName 1.3.6.1.3.94.1.10.1.17 • Return values are: resetConnUnitPort portDisable (F or E_Port, loop for U_Port) bypassConnUnitPort portDisable (FL_Port) unbypassConnUnitPort portEnable (FL_Port) offlineConnUnitPort portDisable (E, F, FL_Port) onlineConnUnitPort portEnable (U) resetConnUnitPortCounters clear the port statistics counter. When rebooted, this defaults to 1 (unknown). connUnitPortName 1.3.6.1.3.94.1.10.1.17 A string describing the addressed port.
  • Page 273 1 = Loop • 2 = Fabric • 4 = SCSI • 8 = TCP/IP • 16 = VI • 32 = FICON connUnitPortProtocolOp 1.3.6.1.3.94.1.10.1.21 This is the bit mask that specifies the driver level protocols that are currently operational.
  • Page 274 (6) Transmitter fault (bad GBIC). • noMedia (7) Media not installed (GBIC removed). • linkDown (8) Waiting for activity—rx sync (light with no sync). connUnitEventTable 1.3.6.1.3.94.1.11 The table of connectivity unit events. Errors, warnings, and information should be reported in this table.
  • Page 275 connUnitEventUnitId 1.3.6.1.3.94.1.11.1.1 Index connUnitEventUnitId connUnitEventIndex connUnitEventUnitId 1.3.6.1.3.94.1.11.1.1 The connUnitId of the connectivity unit that contains this event table. Same as connUnitId. connUnitEventIndex 1.3.6.1.3.94.1.11.1.2 Each connectivity unit has its own event buffer. As it wraps, it might write over previous events. This object is an index into the buffer.
  • Page 276 Critical (1) critical (4) Error (2) error (5) Warning (3) warning (6) Informational (4) info (8) Debug (5) debug (9) Refer to FcEventSeverity in Table 22 on page 235 for more information about severity. connUnitEventType 1.3.6.1.3.94.1.11.1.7 The type of this event.
  • Page 277 connUnitEventDescr 1.3.6.1.3.94.1.11.1.9 connUnitEventDescr 1.3.6.1.3.94.1.11.1.9 The description of the event. Same as the string displayed in the system error log. The system error log can be viewed using the errShow or errDump commands. For Fabric OS v6.2.0 and later releases, the format of error messages has changed. This field now uses the message title and number (for example, WEBD-1006) and the message text.
  • Page 278 connUnitLinkEntry 1.3.6.1.3.94.1.12.1 A Brocade Access Gateway has no ISLs (InterSwitch Links); therefore all F_Port and N_Port connections display in ag --show for online F_Ports. Dedicated ISL DISL An ISL physically connected between two virtual switches belonging to same VF ID. A DISL is dedicated to carry frames only related to VF ID of connected virtual switches.
  • Page 279 ISL- Physical port number of the remote port. Device: -1. connUnitLinkPortWwnY 1.3.6.1.3.94.1.12.1.8 The port WWN on the unit specified by connUnitLinkNodeIdY, if known; otherwise, 16 octets of binary 0. ISL- WWN of the remote port.

  • Page 280: Statistics Group

    connUnitLinkAgentPortY 1.3.6.1.3.94.1.12.1.11 connUnitLinkAgentPortY 1.3.6.1.3.94.1.12.1.11 The IP port number for the agent. This is provided in case the agent is at a non-standard SNMP port. ISL- IP port. Device- 0 (Null). connUnitLinkUnitTypeY 1.3.6.1.3.94.1.12.1.12 Type of the FC connectivity unit, as defined in connUnitType. •...
  • Page 281 connUnitPortStatTable 1.3.6.1.3.94.4.5 The high order bit is reserved to indicate whether the object is supported. All objects start at a value of 0 at hardware initialization and continue incrementing until end of 63 bits and then wrap to 0. This is the case for all Class 1 Frames; Brocade does not support them. connUnitPortStatTable 1.3.6.1.3.94.4.5 A list of statistics for the fabric port types.
  • Page 282 The number of octets or bytes that have been received by this port. There is an one-second periodic polling of the port. This value is saved and compared with the next polled value to compute net throughput. connUnitPortStatCountBBCreditZero 1.3.6.1.3.94.4.5.1.8 The number of transitions in or out of BB credit zero state. connUnitPortStatCountInputBuffersFull 1.3.6.1.3.94.4.5.1.9 Not supported.
  • Page 283 connUnitPortStatCountFRJTFrames 1.3.6.1.3.94.4.5.1.12 connUnitPortStatCountFRJTFrames 1.3.6.1.3.94.4.5.1.12 Not supported. The number of times that FRJT was returned to this port as a result of a frame that was rejected by the fabric. This is the total for all classes and is a Fibre Channel only statistic. connUnitPortStatCountPRJTFrames 1.3.6.1.3.94.4.5.1.13 Not supported.
  • Page 284 connUnitPortStatCountClass1FRJTFrames 1.3.6.1.3.94.4.5.1.18 The number of times that PBSY was returned to this port as a result of a Class 1 Frame that could not be delivered to the other end of the link. This occurs if the destination N_Port is temporarily busy.
  • Page 285 connUnitPortStatCountClass2PBSYFrames 1.3.6.1.3.94.4.5.1.23 The number of times that FBSY was returned to this port because Class 2 Frame that could not be delivered to the other end of the link. This occurs if either the fabric or the destination port is temporarily busy.
  • Page 286 connUnitPortStatCountClass3TxFrames 1.3.6.1.3.94.4.5.1.27 NOTE This is a Fibre Channel only statistic. connUnitPortStatCountClass3TxFrames 1.3.6.1.3.94.4.5.1.27 Not supported. The number of Class 3 Frames transmitted out this port. Return value- 800000000 NOTE This is a Fibre Channel only statistic. connUnitPortStatCountClass3Discards 1.3.6.1.3.94.4.5.1.28 The number of Class 3 Frames that were discarded upon reception at this port. There is no FBSY or FRJT generated for Class 3 Frames.
  • Page 287 connUnitPortStatCountRxLinkResets 1.3.6.1.3.94.4.5.1.33 connUnitPortStatCountRxLinkResets 1.3.6.1.3.94.4.5.1.33 The number of link resets received. NOTE This is a Fibre Channel only statistic. connUnitPortStatCountTxLinkResets 1.3.6.1.3.94.4.5.1.34 The number of link resets transmitted. NOTE This is a Fibre Channel only statistic. connUnitPortStatCountNumberLinkResets 1.3.6.1.3.94.4.5.1.35 Not supported. The number of link resets and LIPs detected at this port. The number times the reset link protocol is initiated.
  • Page 288 1.3.6.1.3.94.4.5.1.39 connUnitPortStatCountLinkFailures 1.3.6.1.3.94.4.5.1.39 The number of link failures. This count is part of the Link Error Status Block (LESB). (FC-PH 29.8) NOTE This is a Fibre Channel only statistic. connUnitPortStatCountInvalidCRC 1.3.6.1.3.94.4.5.1.40 The number of frames received with invalid CRC. This count is part of the Link Error Status Block (LESB).

  • Page 289: Service Group

    1.3.6.1.3.94.4.5.1.45 connUnitPortStatCountInvalidOrderedSets 1.3.6.1.3.94.4.5.1.45 The number of invalid ordered sets received at port. This count is part of the Link Error Status Block (LESB). (FC-PH 29.8). NOTE This is a Fibre Channel only statistic. connUnitPortStatCountFramesTooLong 1.3.6.1.3.94.4.5.1.46 The number of frames received at this port where the frame length was greater than what was agreed to in FLOGI/PLOGI.
  • Page 290 connUnitSnsMaxEntry 1.3.6.1.3.94.5.1.1 Implementation of the Connectivity Unit Service Scalers group is mandatory for all systems. connUnitSnsMaxEntry 1.3.6.1.3.94.5.1.1 The maximum number of entries in the table. connUnitSnsTable 1.3.6.1.3.94.5.2.1 This table contains an entry for each object registered with this port in the switch. Implementation of the Connectivity Unit Service Tables group is mandatory for all systems.
  • Page 291 The Classes of Service offered by this entry in the SNS table. connUnitSnsNodeIPAddress 1.3.6.1.3.94.5.2.1.1.7 The IPv6 formatted address of the Node for this entry in the SNS table. connUnitSnsProcAssoc 1.3.6.1.3.94.5.2.1.1.8 The process associator for this entry in the SNS table. Hard coded to FF.

  • Page 292: Snmp Trap Registration Group

    connUnitSnsSymbolicNodeName 1.3.6.1.3.94.5.2.1.1.15 connUnitSnsSymbolicNodeName 1.3.6.1.3.94.5.2.1.1.15 The symbolic node name of this entry in the SNS table. If the attached device has only the symbolicNodename, the symbolicNodename is shown and the symbolicPortname appears as "null". SNMP Trap Registration group trapMaxClients 1.3.6.1.3.94.2.1 The maximum number of SNMP trap recipients supported by the connectivity unit. Set to 6.

  • Page 293: Revision Number Scalar

    Critical (1) critical (4) Error (2) error (5) Warning (3) warning (6) Info (4) info (8) Debug (5) debug (9) This severity applies to all entries. Refer to Table 22 on page 235. FcEventSeverity in The values 1, 3, 7, and 10 are not valid for SET operations.

  • Page 294: Unsupported Tables

    Unsupported tables 0 = High order major revision number 1 = Low order major revision number 2 = High order minor revision number 3 = Low order minor revision number The value is stored as an ASCII value. The following is the current value of this object. 0 = 0 1 = 3 2 = 0...
  • Page 295 connUnitEventTrap Variables connUnitId A connUnit has been deleted from this agent. Recommended severity level (for filtering)- warning. Not implemented. connUnitEventTrap Enterprise fcmgmt Variables connUnitEventId, connUnitEventType, connUnitEventObject, connUnitEventDescr An event has been generated by the connectivity unit. Recommended severity level (for filtering)- info. Sample trap output for Fabric OS v6.1.0.
  • Page 296 connUnitPortStatusChange Sample trap output for Fabric OS v6.1.0. connUnitPortStatus.16.0.0.96.105.144.109.136.0.0.0.0.0.0.0.0.29 = ready(3) connUnitPortState.16.0.0.96.105.144.109.136.0.0.0.0.0.0.0.0.29 = online(2) connUnitPortName.16.0.0.96.105.144.109.136.0.0.0.0.0.0.0.0.29 = test Refer to the swFCportSCN for more information. Fabric OS MIB Reference 53-1001768-01...

  • Page 297: Chapter 9 Fcip Mib Objects

    Chapter FCIP MIB Objects In this chapter • FCIP MIB overview ..........279 •...
  • Page 298 + fcipTcpConnTable .6 FIGURE 71 High level organization fcipEntityInstanceEntry 1.3.6.1.2.1.224.1.1.4.1 fcipEntityId 1.3.6.1.2.1.224.1.1.4.1.1 fcipEntityAddressType 1.3.6.1.2.1.224.1.1.4.1.3 fcipEntityAddress 1.3.6.1.2.1.224.1.1.4.1.4 fcipEntityTcpConnPort 1.3.6.1.2.1.224.1.1.4.1.5 fcipEntitySeqNumWrap 1.3.6.1.2.1.224.1.1.4.1.6 fcipEntityPHBSupport 1.3.6.1.2.1.224.1.1.4.1.7 fcipEntityStatus 1.3.6.1.2.1.224.1.1.4.1.8 FIGURE 72 fcipEntityInstanceTable hierarchy fcipLinkEntry 1.3.6.1.2.1.224.1.1.5.1 fcipLinkIndex 1.3.6.1.2.1.224.1.1.5.1.1 fcipLinkIfIndex 1.3.6.1.2.1.224.1.1.5.1.2 fcipLinkCost 1.3.6.1.2.1.224.1.1.5.1.3 fcipLinkLocalFcipEntityMode 1.3.6.1.2.1.224.1.1.5.1.4 fcipLinkLocalFcipEntityAddressType 1.3.6.1.2.1.224.1.1.5.1.5 fcipLinkLocalFcipEntityAddress 1.3.6.1.2.1.224.1.1.5.1.6 fcipLinkRemFcipEntityWWN 1.3.6.1.2.1.224.1.1.5.1.7...

  • Page 299: Fcipentityinstancetable

    - fcipExtendedLinkEntry 1.3.6.1.4.1.1588.4.1.1 fcipExtendedLinkIfIndex 1.3.6.1.4.1.1588.4.1.1.1 fcipExtendedLinkTcpRetransmits 1.3.6.1.4.1.1588.4.1.1.2 fcipExtendedLinkTcpDropped Packets 1.3.6.1.4.1.1588.4.1.1.3 fcipExtendedLinkCompressionRatio 1.3.6.1.4.1.1588.4.1.1.4 fcipExtendedLinkTcpSmoothedRTT 1.3.6.1.4.1.1588.4.1.1.5 fcipExtendedLinkRawBytes 1.3.6.1.4.1.1588.4.1.1.6 fcipExtendedLinkCompressedBytes 1.3.6.1.4.1.1588.4.1.1.7 fcipExtendedLinkConnectedCount 1.3.6.1.4.1.1588.4.1.1.8 fcipExtendedLinkRtxRtxTO 1.3.6.1.4.1.1588.4.1.1.9 fcipExtendedLinkRtxDupAck 1.3.6.1.4.1.1588.4.1.1.10 fcipExtendedLinkDupAck 1.3.6.1.4.1.1588.4.1.1.11 fcipExtendedLinkRtt 1.3.6.1.4.1.1588.4.1.1.12 fcipExtendedLinkOoo 1.3.6.1.4.1.1588.4.1.1.13 fcipExtendedLinkSlowStarts 1.3.6.1.4.1.1588.4.1.1.14 FIGURE 75 fcipExtendedLinkTable hierarchy - fcipConnStatsEntry 1.3.6.1.4.1.1588.4.2.1 xfcipEntityId 1.3.6.1.4.1.1588.4.2.1.1...
  • Page 300 1.3.6.1.2.1.224.1.1.4.1.1 • fcipEntityStatus 1.3.6.1.2.1.224.1.1.4.1.8 fcipEntityId 1.3.6.1.2.1.224.1.1.4.1.1 The FCIP entity indentifier. fcipEntityName 1.3.6.1.2.1.224.1.1.4.1.2 An administratively assigned name for the FCIP entity. Example for Brocade 7500 or FR4-18i router blade: • ipif 0 in FCIP GbE port 0/ge0 Example for Brocade 7800 Extension Switch or FX8-24 DCX Extension Blade: •...

  • Page 301: Fciplinktable

    1.3.6.1.2.1.224.1.1.4.1.8 fcipEntityStatus 1.3.6.1.2.1.224.1.1.4.1.8 This object specifies the operational status of the row. This object will support “read-only” access and the status will be “active” for all entries. fcipLinkTable This table contains information about FCIP links that exist on this device. There is an entry for each FCIP tunnel.
  • Page 302 1.3.6.1.2.1.224.1.1.5.1.7 The World Wide Name of the remote FC Fabric Entity fcipLinkRemFcipEntityId 1.3.6.1.2.1.224.1.1.5.1.8 The identifier for the remote FCIP entity. fcipLinkRemFcipEntityAddressType 1.3.6.1.2.1.224.1.1.5.1.9 The type of Internet address contained in the corresponding instance of fcipLinkRemFcipEntityAddress.

  • Page 303: Fciptcpconntable

    1.3.6.1.4.1.1588.4.1.1.2 • fcipExtendedLinkTcpDropped Packets 1.3.6.1.4.1.1588.4.1.1.3 • fcipExtendedLinkCompressionRatio 1.3.6.1.4.1.1588.4.1.1.4 • fcipExtendedLinkTcpSmoothedRTT 1.3.6.1.4.1.1588.4.1.1.5 • fcipExtendedLinkRawBytes 1.3.6.1.4.1.1588.4.1.1.6 • fcipExtendedLinkCompressedBytes 1.3.6.1.4.1.1588.4.1.1.7 • fcipExtendedLinkConnectedCount 1.3.6.1.4.1.1588.4.1.1.8 • fcipExtendedLinkRtxRtxTO 1.3.6.1.4.1.1588.4.1.1.9 • fcipExtendedLinkRtxDupAck 1.3.6.1.4.1.1588.4.1.1.10 • fcipExtendedLinkDupAck 1.3.6.1.4.1.1588.4.1.1.11 • fcipExtendedLinkRtt 1.3.6.1.4.1.1588.4.1.1.12 • fcipExtendedLinkOoo 1.3.6.1.4.1.1588.4.1.1.13 Fabric OS MIB Reference...
  • Page 304 The total number of raw bytes sent or received. fcipExtendedLinkCompressedBytes 1.3.6.1.4.1.1588.4.1.1.7 The total number of compressed bytes received over an FCIP tunnel. fcipExtendedLinkConnectedCount 1.3.6.1.4.1.1588.4.1.1.8 The total number of TCP session connection. fcipExtendedLinkRtxRtxTO 1.3.6.1.4.1.1588.4.1.1.9 A counter containing retransmit packets due to timeout.

  • Page 305: Fcipconnstatstable

    fcipExtendedLinkDupAck 1.3.6.1.4.1.1588.4.1.1.11 fcipExtendedLinkDupAck 1.3.6.1.4.1.1588.4.1.1.11 A counter containing duplicate acknowledgement packets. fcipExtendedLinkRtt 1.3.6.1.4.1.1588.4.1.1.12 The round trip time in milliseconds. fcipExtendedLinkOoo 1.3.6.1.4.1.1588.4.1.1.13 A counter containing TCP out-of-order. fcipExtendedLinkSlowStarts 1.3.6.1.4.1.1588.4.1.1.14 A counter containing slow starts. fcipConnStatsTable The table contains statistical information about FCIP tunnel compression, retransmission, packet loss, and latency details.
  • Page 306 1.3.6.1.4.1.1588.4.2.1.6 The compression ratio. xfcipExtendedLinkTcpSmoothedRTT 1.3.6.1.4.1.1588.4.2.1.7 The round trip time (latency) in milliseconds. xfcipExtendedLinkRawBytes 1.3.6.1.4.1.1588.4.2.1.8 The total number of raw bytes sent or received. xfcipExtendedLinkCompressedBytes 1.3.6.1.4.1.1588.4.2.1.9 The total number of compressed bytes sent or received. Fabric OS MIB Reference...

  • Page 307: Chapter 10 Iscsi Mib Objects

    Chapter iSCSI MIB Objects In this chapter • iSCSI MIB overview ..........289 •...
  • Page 308 FIGURE 77 High level organization iscsiInstanceAttributesEntry iscsiInstIndex 1.3.6.1.2.1.142.1.1.1.1.1 iscsiInstDescr 1.3.6.1.2.1.142.1.1.1.1.2 iscsiInstVersionMin 1.3.6.1.2.1.142.1.1.1.1.3 iscsiInstVersionMax 1.3.6.1.2.1.142.1.1.1.1.4 iscsiInstVendorID 1.3.6.1.2.1.142.1.1.1.1.5 iscsiInstVendorVersion 1.3.6.1.2.1.142.1.1.1.1.6 iscsiInstPortalNumber 1.3.6.1.2.1.142.1.1.1.1.7 iscsiInstNodeNumber 1.3.6.1.2.1.142.1.1.1.1.8 iscsiInstSessionNumber 1.3.6.1.2.1.142.1.1.1.1.9 iscsiInstSsnFailures 1.3.6.1.2.1.142.1.1.1.1.10 iscsiInstLastSsnFailureType 1.3.6.1.2.1.142.1.1.1.1.11 iscsiInstLastSsnRmtNodeName 1.3.6.1.2.1.142.1.1.1.1.12 iscsiInstDiscontinuityTime 1.3.6.1.2.1.142.1.1.1.1.13 FIGURE 78 iscsiInstanceAttributesTable hierarchy Fabric OS MIB Reference 53-1001768-01...
  • Page 309 MIB overview iscsiNodesAttributesEntry iscsiNodeIndex 1.3.6.1.2.1.142.1.1.5.1.1.1 iscsiNodeName 1.3.6.1.2.1.142.1.1.5.1.1.2 iscsiNodeAlias 1.3.6.1.2.1.142.1.1.5.1.1.3 iscsiNodeRoles 1.3.6.1.2.1.142.1.1.5.1.1.4 iscsiNodeTransportType 1.3.6.1.2.1.142.1.1.5.1.1.5 iscsiNodeInitialR2T 1.3.6.1.2.1.142.1.1.5.1.1.6 iscsiNodeImmediateData 1.3.6.1.2.1.142.1.1.5.1.1.7 iscsiNodeMaxOutstandingR2T 1.3.6.1.2.1.142.1.1.5.1.1.8 iscsiNodeFirstBurstLength 1.3.6.1.2.1.142.1.1.5.1.1.9 iscsiNodeMaxBurstLength 1.3.6.1.2.1.142.1.1.5.1.1.10 iscsiNodeMaxConnections 1.3.6.1.2.1.142.1.1.5.1.1.11 iscsiNodeDataSequenceInOrder 1.3.6.1.2.1.142.1.1.5.1.1.12 iscsiNodeDataPDUInOrder 1.3.6.1.2.1.142.1.1.5.1.1.13 iscsiNodeDefaultTime2Wait 1.3.6.1.2.1.142.1.1.5.1.1.14 iscsiNodeDefaultTime2Retain 1.3.6.1.2.1.142.1.1.5.1.1.15 iscsiNodeErrorRecoveryLevel 1.3.6.1.2.1.142.1.1.5.1.1.16 iscsiNodeDiscontinuityTime 1.3.6.1.2.1.142.1.1.5.1.1.17 iscsiNodeStorageType 1.3.6.1.2.1.142.1.1.5.1.1.18...

  • Page 310: Iscsiinstanceattributestable

    1.3.6.1.2.1.142.1.1.11.1.1.1 iscsiCxnCid 1.3.6.1.2.1.142.1.1.11.1.1.2 iscsiCxnState 1.3.6.1.2.1.142.1.1.11.1.1.3 iscsiCxnAddrType 1.3.6.1.2.1.142.1.1.11.1.1.4 iscsiCxnLocalAddr 1.3.6.1.2.1.142.1.1.11.1.1.5 iscsiCxnProtocol 1.3.6.1.2.1.142.1.1.11.1.1.6 iscsiCxnLocalPort 1.3.6.1.2.1.142.1.1.11.1.1.7 iscsiCxnRemoteAddr 1.3.6.1.2.1.142.1.1.11.1.1.8 iscsiCxnRemotePort 1.3.6.1.2.1.142.1.1.11.1.1.9 iscsiCxnMaxRecvDataSegLength 1.3.6.1.2.1.142.1.1.11.1.1.10 iscsiCxnMaxXmitDataSegLength 1.3.6.1.2.1.142.1.1.11.1.1.11 iscsiCxnHeaderIntegrity 1.3.6.1.2.1.142.1.1.11.1.1.12 iscsiCxnDataIntegrity 1.3.6.1.2.1.142.1.1.11.1.1.13 iscsiCxnRecvMarker 1.3.6.1.2.1.142.1.1.11.1.1.14 iscsiCxnSendMarker 1.3.6.1.2.1.142.1.1.11.1.1.15 iscsiCxnVersionActive 1.3.6.1.2.1.142.1.1.11.1.1.16 FIGURE 82 iscsiConnectionAttributesTable hierarchy iscsiInstanceAttributesTable The iscsiInstanceAttributesTable is the primary table of the iSCSI MIB module. Every table entry is owned by exactly one iSCSI instance.
  • Page 311 1.3.6.1.2.1.142.1.1.1.1.2 A UTF-8 string to describe the iSCSI instance. Only a single instance is supported so the value will be 0. When used with multiple iSCSI instances, it may be used in an implementation dependent manner to describe the purpose of the an instance.

  • Page 312: Iscsinodeattributestable

    iscsiInstSessionNumber 1.3.6.1.2.1.142.1.1.1.1.9 iscsiInstSessionNumber 1.3.6.1.2.1.142.1.1.1.1.9 The number of rows in the iscsiSessionAttributesTable that are currently associated with this iSCSI instance. iscsiInstSsnFailures 1.3.6.1.2.1.142.1.1.1.1.10 The number of times a session belonging to this instance has failed. If this counter has suffered a discontinuity, the time of the last discontinuity is indicated in iscsiDiscontinuityTime. Not supported.
  • Page 313 1.3.6.1.2.1.142.1.1.5.1.1.1 • iscsiNodeImmediateData 1.3.6.1.2.1.142.1.1.5.1.1.7 • iscsiNodeMaxOutstandingR2T 1.3.6.1.2.1.142.1.1.5.1.1.8 • iscsiNodeFirstBurstLength 1.3.6.1.2.1.142.1.1.5.1.1.9 • iscsiNodeMaxBurstLength 1.3.6.1.2.1.142.1.1.5.1.1.10 • iscsiNodeMaxConnections 1.3.6.1.2.1.142.1.1.5.1.1.11 • iscsiNodeDataSequenceInOrder 1.3.6.1.2.1.142.1.1.5.1.1.12 • iscsiNodeDataPDUInOrder 1.3.6.1.2.1.142.1.1.5.1.1.13 • iscsiNodeDefaultTime2Wait 1.3.6.1.2.1.142.1.1.5.1.1.14 • iscsiNodeDefaultTime2Retain 1.3.6.1.2.1.142.1.1.5.1.1.15 • iscsiNodeErrorRecoveryLevel 1.3.6.1.2.1.142.1.1.5.1.1.16 • iscsiNodeDiscontinuityTime 1.3.6.1.2.1.142.1.1.5.1.1.17 • iscsiNodeStorageType 1.3.6.1.2.1.142.1.1.5.1.1.18 iscsiNodeIndex 1.3.6.1.2.1.142.1.1.5.1.1.1 An arbitrary integer that uniquely identifies a particular node within an iSCSI instance.
  • Page 314 1.3.6.1.2.1.142.1.1.5.1.1.7 An object that indicates the ImmediateData preference for this node. When implemented, true=YES, but will accept NO, false=NO. Not supported. iscsiNodeMaxOutstandingR2T 1.3.6.1.2.1.142.1.1.5.1.1.8 The maximum number of outstanding requests to transmit (R2Ts) allowed per iSCSI task. Not supported. iscsiNodeFirstBurstLength 1.3.6.1.2.1.142.1.1.5.1.1.9 The maximum length in bytes supported for unsolicited data to or from this node.

  • Page 315: Iscsisessionattributestable

    iscsiNodeDataPDUInOrder 1.3.6.1.2.1.142.1.1.5.1.1.13 iscsiNodeDataPDUInOrder 1.3.6.1.2.1.142.1.1.5.1.1.13 The preference for the order of iSCSI data PDUs within iSCSI data PDU sequences. False (NO) indicates that data PDUs may be transferred in any order within a sequence. True (YES) indicates that data PDUs must be transferred using continuously increasing addresses within a sequence, with no gaps or overlay between PDUs.
  • Page 316 • iscsiSsnIndex 1.3.6.1.2.1.142.1.1.10.1.1.2 • iscsiSsnDirection 1.3.6.1.2.1.142.1.1.10.1.1.3 • iscsiSsnInitiatorName 1.3.6.1.2.1.142.1.1.10.1.1.4 • iscsiSsnTargetName 1.3.6.1.2.1.142.1.1.10.1.1.5 • iscsiSsnTSIH 1.3.6.1.2.1.142.1.1.10.1.1.6 • iscsiSsnISID 1.3.6.1.2.1.142.1.1.10.1.1.7 • iscsiSsnInitiatorAlias 1.3.6.1.2.1.142.1.1.10.1.1.8 • iscsiSsnTargetAlias 1.3.6.1.2.1.142.1.1.10.1.1.9 • iscsiSsnInitialR2T 1.3.6.1.2.1.142.1.1.10.1.1.10 • iscsiSsnImmediateData 1.3.6.1.2.1.142.1.1.10.1.1.11 • iscsiSsnType 1.3.6.1.2.1.142.1.1.10.1.1.12 • iscsiSsnMaxOutstandingR2T 1.3.6.1.2.1.142.1.1.10.1.1.13 • iscsiSsnFirstBurstLength 1.3.6.1.2.1.142.1.1.10.1.1.14 •...
  • Page 317 The initiator-defined portion of the iSCSI session ID. iscsiSsnInitiatorAlias 1.3.6.1.2.1.142.1.1.10.1.1.8 A UTF-8 string that gives the alias communicated by the initiator end of the session during the log in phase. If no alias exists, the value is a zero-length string.
  • Page 318 iscsiSsnInitialR2T 1.3.6.1.2.1.142.1.1.10.1.1.10 iscsiSsnInitialR2T 1.3.6.1.2.1.142.1.1.10.1.1.10 If set to true, indicates that the initiator must wait for an R2T before sending to the target. If set to false, the initiator may send data immediately, within limits set by iscsiSsnFirstBurstLength and the expected data transfer length of the request. iscsiSsnImmediateData 1.3.6.1.2.1.142.1.1.10.1.1.11 Indicates whether the initiator and target have agreed to support immediate data on this session.

  • Page 319: Iscsisessionstatstable

    iscsiSsnDataSequenceInOrder 1.3.6.1.2.1.142.1.1.10.1.1.18 iscsiSsnDataSequenceInOrder 1.3.6.1.2.1.142.1.1.10.1.1.18 False indicates that iSCSI data PDU sequences may be transferred in any order. True indicates that data PDU sequences must be transferred using continuously increasing offsets, except during error recovery.The default value for this is True. iscsiSsnDataPDUInOrder 1.3.6.1.2.1.142.1.1.10.1.1.19 False indicates that iSCSI data PDUs within sequences may be in any order.

  • Page 320: Iscsiconnectionattributestable

    iscsiSsnRspPDUs 1.3.6.1.2.1.142.1.1.10.2.1.2 iscsiSsnRspPDUs 1.3.6.1.2.1.142.1.1.10.2.1.2 The count of response PDUs transferred on this session. If this counter has suffered a discontinuity, the time of the last discontinuity is indicated in iscsiSsnDiscontinuityTime. iscsiTxDataOctets 1.3.6.1.2.1.142.1.1.10.2.1.3 The count of data octets that were transmitted by the local iSCSI node on this session. If this counter has suffered a discontinuity, the time of the last discontinuity is indicated in iscsiSsnDiscontinuityTime.This is accessible only in SNMPv3 context iscsiRxDataOctets 1.3.6.1.2.1.142.1.1.10.2.1.4...
  • Page 321 1.3.6.1.2.1.142.1.1.11.1.1.1 • iscsiCxnProtocol 1.3.6.1.2.1.142.1.1.11.1.1.6 • iscsiCxnLocalPort 1.3.6.1.2.1.142.1.1.11.1.1.7 • iscsiCxnRemoteAddr 1.3.6.1.2.1.142.1.1.11.1.1.8 • iscsiCxnRemotePort 1.3.6.1.2.1.142.1.1.11.1.1.9 • iscsiCxnMaxRecvDataSegLength 1.3.6.1.2.1.142.1.1.11.1.1.10 • iscsiCxnMaxXmitDataSegLength 1.3.6.1.2.1.142.1.1.11.1.1.11 • iscsiCxnHeaderIntegrity 1.3.6.1.2.1.142.1.1.11.1.1.12 • iscsiCxnDataIntegrity 1.3.6.1.2.1.142.1.1.11.1.1.13 • iscsiCxnRecvMarker 1.3.6.1.2.1.142.1.1.11.1.1.14 • iscsiCxnSendMarker 1.3.6.1.2.1.142.1.1.11.1.1.15 • iscsiCxnVersionActive 1.3.6.1.2.1.142.1.1.11.1.1.16 iscsiCxnIndex 1.3.6.1.2.1.142.1.1.11.1.1.1 An arbitrary integer that uniquely identifies a particular node within an iSCSI instance present on the local system.
  • Page 322 The local transport protocol port used by this connection. This object cannot have the value zero, since it represents an established connection. This is hard coded to 3260 iscsiCxnRemoteAddr 1.3.6.1.2.1.142.1.1.11.1.1.8 The remote Internet Network Address, of the type specified by iscsiCxnAddrType, used by this connection.
  • Page 323 iscsiCxnSendMarker 1.3.6.1.2.1.142.1.1.11.1.1.15 iscsiCxnSendMarker 1.3.6.1.2.1.142.1.1.11.1.1.15 This object identifies whether or not this connection is inserting markers in its outgoing data stream. Hard coded to false. iscsiCxnVersionActive 1.3.6.1.2.1.142.1.1.11.1.1.16 Active version number of the SCSI specification negotiated on this connection. Hard coded to 0. Fabric OS MIB Reference 53-1001768-01...
  • Page 324 iscsiCxnVersionActive 1.3.6.1.2.1.142.1.1.11.1.1.16 Fabric OS MIB Reference 53-1001768-01...

  • Page 325: Chapter 11 Usm Mib Objects

    Chapter USM MIB Objects In this chapter • USM MIB objects overview ........307 •...

  • Page 326: Usmmibobjects Group

    1.3.6.1.6.3.15.1.2.2 usmUserEntry 1.3.6.1.6.3.15.1.2.2.1 usmUserEngineID 1.3.6.1.6.3.15.1.2.2.1.1 usmUserName 1.3.6.1.6.3.15.1.2.2.1.2 usmUserSecurityName 1.3.6.1.6.3.15.1.2.2.1.3 usmUserCloneFrom 1.3.6.1.6.3.15.1.2.2.1.4 usmUserAuthProtocol 1.3.6.1.6.3.15.1.2.2.1.5 usmUserAuthKeyChange 1.3.6.1.6.3.15.1.2.2.1.6 usmUserOwnAuthKeyChange 1.3.6.1.6.3.15.1.2.2.1.7 usmUserPrivProtocol 1.3.6.1.6.3.15.1.2.2.1.8 usmUserPrivKeyChange 1.3.6.1.6.3.15.1.2.2.1.9 usmUserOwnPrivKeyChange 1.3.6.1.6.3.15.1.2.2.1.10 usmUserPublic 1.3.6.1.6.3.15.1.2.2.1.11 usmUserStorageType 1.3.6.1.6.3.15.1.2.2.1.12 usmUserStatus 1.3.6.1.6.3.15.1.2.2.1.13 FIGURE 84 usmMIBObjects hierarchy usmMIBObjects group This section describes the MIB objects in the usmMIBObjects group.

  • Page 327: Usmuser

    usmStatsUnknownEngineIDs 1.3.6.1.6.3.15.1.1.4 usmStatsUnknownEngineIDs 1.3.6.1.6.3.15.1.1.4 The total number of packets received by the SNMP engine which were dropped because they referenced an snmpEngineID that was not known to the SNMP engine. usmStatsWrongDigests 1.3.6.1.6.3.15.1.1.5 The total number of packets received by the SNMP engine which were dropped because they did not contain the expected digest value.
  • Page 328 In addition, the USM security model must be used for this operation. usmUserPrivProtocol 1.3.6.1.6.3.15.1.2.2.1.8 An indication of whether messages sent on behalf of this user to or from the SNMP engine identified by usmUserEngineID, can be protected from disclosure, and if so, the type of privacy protocol which is used.
  • Page 329 usmUserOwnPrivKeyChange 1.3.6.1.6.3.15.1.2.2.1.10 usmUserOwnPrivKeyChange 1.3.6.1.6.3.15.1.2.2.1.10 Behaves exactly as usmUserPrivKeyChange, with one notable difference: For the Set operation to succeed, the usmUserName of the operation requester must match the usmUserName that indexes the row which is targeted by this operation. In addition, the USM security model must be used for this operation.
  • Page 330 usmUserStatus 1.3.6.1.6.3.15.1.2.2.1.13 Fabric OS MIB Reference 53-1001768-01...

  • Page 331: Chapter 12 Bd Mib

    Chapter BD MIB In this chapter • BD MIB objects overview........313 •...

  • Page 332: Bd Mib Group

    BD MIB group - bdConfig bdStatus 1.3.6.1.4.1.1588.2.1.1.51.1.1 bdLThreshold 1.3.6.1.4.1.1588.2.1.1.51.1.2 bdCThreshold 1.3.6.1.4.1.1588.2.1.1.51.1.3 bdQTime 1.3.6.1.4.1.1588.2.1.1.51.1.4 bdWinAvgTime 1.3.6.1.4.1.1588.2.1.1.51.1.5 bdThreshold 1.3.6.1.4.1.1588.2.1.1.51.1.6 nBdType 1.3.6.1.4.1.1588.2.1.1.51.1.7 FIGURE 87 bdConfig hierarchy - bdStats bdNumOfEntries 1.3.6.1.4.1.1588.2.1.1.51.2.1 bdStatsTable 1.3.6.1.4.1.1588.2.1.1.51.2.2 bdStatsEntry 1.3.6.1.4.1.1588.2.1.1.51.2.2.1 userPortNumber 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.1 bdSampleTime 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.2 bdType 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.3 bdStatsValue10SecsSample 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.4 bdStatsValue60SecsSample 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.5 bdStatsValue300SecsSample 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.6 bdAggrStats 1.3.6.1.4.1.1588.2.1.1.51.2.3 bdAbsoluteValue 1.3.6.1.4.1.1588.2.1.1.51.2.4...

  • Page 333: Bdconfig

    bdClearTrap 1.3.6.1.4.1.1588.2.1.1.51.0.2 This trap is sent for both latency bottleneck and congestion bottleneck with nBDType accordingly. This trap is triggered when the threshold is exceeded. bdClearTrap 1.3.6.1.4.1.1588.2.1.1.51.0.2 Variables “userPortNumber 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.1” “bdWinAvgTime 1.3.6.1.4.1.1588.2.1.1.51.1.5” “nBdType 1.3.6.1.4.1.1588.2.1.1.51.1.7” “bdThreshold 1.3.6.1.4.1.1588.2.1.1.51.1.6” “bdAggrStats 1.3.6.1.4.1.1588.2.1.1.51.2.3” “bdAbsoluteValue 1.3.6.1.4.1.1588.2.1.1.51.2.4” “swVfId 1.3.6.1.4.1.1588.2.1.1.1.2.15”...

  • Page 334: Bdstats

    bdQTime 1.3.6.1.4.1.1588.2.1.1.51.1.4 bdQTime 1.3.6.1.4.1.1588.2.1.1.51.1.4 The minimum number of seconds between consecutive alerts. The value assigned to this parameter applies to both latency and congestion monitoring. In this duration, there will not be any traps sent. bdWinAvgTime 1.3.6.1.4.1.1588.2.1.1.51.1.5 The time window in seconds over which the percentage of seconds affected by bottleneck conditions is computed and compared with the threshold.
  • Page 335 userPortNumber 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.1 userPortNumber 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.1 This object represents the user port indices of bottleneck monitored ports like F_port, E_port, L_port, and FCOE_port. bdSampleTime 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.2 This object represents the sample time. The value is returned in Epoch[Unix] time. bdType 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.3 This object represents the bottleneck type. •...
  • Page 336 bdAvgFrameSize 1.3.6.1.4.1.1588.2.1.1.51.2.5 bdAvgFrameSize 1.3.6.1.4.1.1588.2.1.1.51.2.5 This object represents the average size in bytes of all frames that were transmitted on the ports during the averaging window. Max Access accessible-for-notify This is accessible only for bdTrap and bdClearTrap. Fabric OS MIB Reference 53-1001768-01...

  • Page 337: Mib Object Groupings

    • connUnitSensorTable 1.3.6.1.3.94.1.8 ......245 •...

  • Page 338: Variables For Statistics And Measurement

    Event variables • fcFxPortTable 1.3.6.1.2.1.75.1.1.5 ....... . 82 • Fx_Port Configuration Table ........104 •...
  • Page 339 iSCSI instance information variables iSCSI instance information variables MIB variables that assist in gathering information about iSCSI instances are in the following tables. • iscsiInstanceAttributesTable ........292 •...
  • Page 340 iSCSI instance information variables Fabric OS MIB Reference 53-1001768-01...

  • Page 341: Mib Oids

    Appendix MIB OIDs and their Matching Object Names This appendix provides a listing of the MIB object names and the corresponding MIB Object ID (OID) associated with each. MIB OIDs Table 26 allows you to identify a MIB object name according to its related OID. TABLE 26 MIB object name/OID matrix MIB object name...
  • Page 342 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. ifPhysAddress 1.3.6.1.2.1.2.2.1.6 page 34 ifAdminStatus 1.3.6.1.2.1.2.2.1.7 page 34 ifOperStatus 1.3.6.1.2.1.2.2.1.8 page 34 ifLastChange 1.3.6.1.2.1.2.2.1.9 page 35 ifInOctets 1.3.6.1.2.1.2.2.1.10 page 35 ifInUcastPkts 1.3.6.1.2.1.2.2.1.11 page 35 ifInNUcastPkts 1.3.6.1.2.1.2.2.1.12...
  • Page 343 1.3.6.1.2.1.4.21.1.3 page 41 ipRouteMetric2 1.3.6.1.2.1.4.21.1.4 page 42 ipRouteMetric3 1.3.6.1.2.1.4.21.1.5 page 42 ipRouteMetric4 1.3.6.1.2.1.4.21.1.6 page 42 ipRouteNextHop 1.3.6.1.2.1.4.21.1.7 page 42 ipRouteType 1.3.6.1.2.1.4.21.1.8 page 42 ipRouteProto 1.3.6.1.2.1.4.21.1.9 page 42 ipRouteAge 1.3.6.1.2.1.4.21.1.10 page 43 ipRouteMask 1.3.6.1.2.1.4.21.1.11 page 43 ipRouteMetric5 1.3.6.1.2.1.4.21.1.12 page 43 ipRouteInfo 1.3.6.1.2.1.4.21.1.13...
  • Page 344 1.3.6.1.2.1.5.3 page 45 icmpInTimeExcds 1.3.6.1.2.1.5.4 page 45 icmpInParmProbs 1.3.6.1.2.1.5.5 page 45 icmpInSrcQuenchs 1.3.6.1.2.1.5.6 page 45 icmpInRedirects 1.3.6.1.2.1.5.7 page 45 icmpInEchos 1.3.6.1.2.1.5.8 page 45 icmpInEchoReps 1.3.6.1.2.1.5.9 page 45 icmpInTimestamps 1.3.6.1.2.1.5.10 page 45 icmpInTimestampReps 1.3.6.1.2.1.5.11 page 46 icmpInAddrMasks 1.3.6.1.2.1.5.12 page 46 icmpInAddrMaskReps 1.3.6.1.2.1.5.13...
  • Page 345 1.3.6.1.2.1.7.4 page 51 udpTable 1.3.6.1.2.1.7.5 page 51 udpEntry 1.3.6.1.2.1.7.5.1 page 51 udpLocalAddress 1.3.6.1.2.1.7.5.1.1 page 51 udpLocalPort 1.3.6.1.2.1.7.5.1.2 page 52 1.3.6.1.2.1.8 page 22 transmision 1.3.6.1.2.1.10 page 22 snmp 1.3.6.1.2.1.11 page 22 snmpInPkts 1.3.6.1.2.1.11.1 page 52 snmpOutPkts 1.3.6.1.2.1.11.2 page 52 snmpInBadVersions 1.3.6.1.2.1.11.3...
  • Page 346 1.3.6.1.2.1.16.1.1.1.3 page 57 etherStatsOctets 1.3.6.1.2.1.16.1.1.1.4 page 57 etherStatsPkts 1.3.6.1.2.1.16.1.1.1.5 page 57 etherStatsBroadcastPkts 1.3.6.1.2.1.16.1.1.1.6 page 57 etherStatsMulticastPkts 1.3.6.1.2.1.16.1.1.1.7 page 57 etherStatsCRCAlignErrors 1.3.6.1.2.1.16.1.1.1.8 page 58 etherStatsUndersizePkts 1.3.6.1.2.1.16.1.1.1.9 page 58 etherStatsOversizePkts 1.3.6.1.2.1.16.1.1.1.10 page 58 etherStatsFragments 1.3.6.1.2.1.16.1.1.1.11 page 58 etherStatsJabbers 1.3.6.1.2.1.16.1.1.1.12 page 58 etherStatsCollisions 1.3.6.1.2.1.16.1.1.1.13...
  • Page 347 1.3.6.1.2.1.16.3.1.1.3 page 60 alarmSampleType 1.3.6.1.2.1.16.3.1.1.4 page 60 alarmValue 1.3.6.1.2.1.16.3.1.1.5 page 60 alarmStartupAlarm 1.3.6.1.2.1.16.3.1.1.6 page 60 alarmRisingThreshold 1.3.6.1.2.1.16.3.1.1.7 page 60 alarmFallingThreshold 1.3.6.1.2.1.16.3.1.1.8 page 61 alarmRisingEventIndex 1.3.6.1.2.1.16.3.1.1.9 page 61 alarmFallingEventIndex 1.3.6.1.2.1.16.3.1.1.10 page 61 alarmOwner 1.3.6.1.2.1.16.3.1.1.11 page 61 alarmStatus 1.3.6.1.2.1.16.3.1.1.12 page 61 event 1.3.6.1.2.1.16.9...
  • Page 348 1.3.6.1.2.1.31.1.1.1.3 page 64 ifOutMulticastPkts 1.3.6.1.2.1.31.1.1.1.4 page 64 ifOutBroadcastPkts 1.3.6.1.2.1.31.1.1.1.5 page 64 ifHCInOctets 1.3.6.1.2.1.31.1.1.1.6 page 64 ifHCInUcastPkts 1.3.6.1.2.1.31.1.1.1.7 page 65 ifHCInMulticastPkts 1.3.6.1.2.1.31.1.1.1.8 page 65 ifHCInBroadcastPkts 1.3.6.1.2.1.31.1.1.1.9 page 65 ifHCOutOctets 1.3.6.1.2.1.31.1.1.1.10 page 65 ifHCOutUcastPkts 1.3.6.1.2.1.31.1.1.1.11 page 65 ifHCOutMulticastPkts 1.3.6.1.2.1.31.1.1.1.12 page 66 ifHCOutBroadcastPkts 1.3.6.1.2.1.31.1.1.1.13...
  • Page 349 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. entPhysicalName 1.3.6.1.2.1.47.1.1.1.1.7 page 127 entPhysicalHardwareRev 1.3.6.1.2.1.47.1.1.1.1.8 page 127 entPhysicalFirmwareRev 1.3.6.1.2.1.47.1.1.1.1.9 page 127 entPhysicalSoftwareRev 1.3.6.1.2.1.47.1.1.1.1.10 page 128 entPhysicalSerialNum 1.3.6.1.2.1.47.1.1.1.1.11 page 128 entPhysicalMfgName 1.3.6.1.2.1.47.1.1.1.1.12 page 128 entPhysicalModelName 1.3.6.1.2.1.47.1.1.1.1.13...
  • Page 350 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. entityMIBTrapPrefix 1.3.6.1.2.1.47.2.0 page 118 entConfigChange 1.3.6.1.2.1.47.2.0.1 page 136 entityConformance 1.3.6.1.2.1.47.3 page 118 entityCompliances 1.3.6.1.2.1.47.3.1 page 118 entityCompliance 1.3.6.1.2.1.47.3.1.1 page 136 entity2Compliance 1.3.6.1.2.1.47.3.1.2 page 136 entityGroups 1.3.6.1.2.1.47.3.2 page 118 entityPhysicalGroup 1.3.6.1.2.1.47.3.2.1...
  • Page 351 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. fcFxPortRxBufSize 1.3.6.1.2.1.75.1.1.5.1.6 page 82 fcFxPortRatov 1.3.6.1.2.1.75.1.1.5.1.7 page 83 fcFxPortEdtov 1.3.6.1.2.1.75.1.1.5.1.8 page 83 fcFxPortCosSupported 1.3.6.1.2.1.75.1.1.5.1.9 page 83 fcFxPortIntermixSupported 1.3.6.1.2.1.75.1.1.5.1.10 page 83 fcFxPortStackedConnMode 1.3.6.1.2.1.75.1.1.5.1.11 page 83 fcFxPortClass2SeqDeliv 1.3.6.1.2.1.75.1.1.5.1.12...
  • Page 352 1.3.6.1.2.1.75.1.3.1.1.3 page 89 fcFxPortPrimSeqProtoErrors 1.3.6.1.2.1.75.1.3.1.1.4 page 89 fcFxPortInvalidTxWords 1.3.6.1.2.1.75.1.3.1.1.5 page 89 fcFxPortInvalidCrcs 1.3.6.1.2.1.75.1.3.1.1.6 page 89 fcFxPortDelimiterErrors 1.3.6.1.2.1.75.1.3.1.1.7 page 89 fcFxPortAddressIdErrors 1.3.6.1.2.1.75.1.3.1.1.8 page 89 fcFxPortLinkResetIns 1.3.6.1.2.1.75.1.3.1.1.9 page 90 fcFxPortLinkResetOuts 1.3.6.1.2.1.75.1.3.1.1.10 page 90 fcFxPortOlsIns 1.3.6.1.2.1.75.1.3.1.1.11 page 90 fcFxPortOlsOuts 1.3.6.1.2.1.75.1.3.1.1.12 page 90 fcFeAccounting 1.3.6.1.2.1.75.1.4...
  • Page 353 1.3.6.1.2.1.75.1.5.1.1.3 page 94 fcFxPortCapBbCreditMin 1.3.6.1.2.1.75.1.5.1.1.4 page 94 fcFxPortCapRxDataFieldSizeMax 1.3.6.1.2.1.75.1.5.1.1.5 page 94 fcFxPortCapRxDataFieldSizeMin 1.3.6.1.2.1.75.1.5.1.1.6 page 94 fcFxPortCapCos 1.3.6.1.2.1.75.1.5.1.1.7 page 94 fcFxPortCapIntermix 1.3.6.1.2.1.75.1.5.1.1.8 page 95 fcFxPortCapStackedConnMode 1.3.6.1.2.1.75.1.5.1.1.9 page 95 fcFxPortCapClass2SeqDeliv 1.3.6.1.2.1.75.1.5.1.1.10 page 95 fcFxPortCapClass3SeqDeliv 1.3.6.1.2.1.75.1.5.1.1.11 page 95 fcFxPortCapHoldTimeMax 1.3.6.1.2.1.75.1.5.1.1.12 page 95 fcFxPortCapHoldTimeMin 1.3.6.1.2.1.75.1.5.1.1.13...
  • Page 354 1.3.6.1.2.1.142.1.1.1.1.3 page 293 iscsiInstVersionMax 1.3.6.1.2.1.142.1.1.1.1.4 page 293 iscsiInstVendorID 1.3.6.1.2.1.142.1.1.1.1.5 page 293 iscsiInstVendorVersion 1.3.6.1.2.1.142.1.1.1.1.6 page 293 iscsiInstPortalNumber 1.3.6.1.2.1.142.1.1.1.1.7 page 293 iscsiInstNodeNumber 1.3.6.1.2.1.142.1.1.1.1.8 page 293 iscsiInstSessionNumber 1.3.6.1.2.1.142.1.1.1.1.9 page 294 iscsiInstSsnFailures 1.3.6.1.2.1.142.1.1.1.1.10 page 294 iscsiInstLastSsnFailureType 1.3.6.1.2.1.142.1.1.1.1.11 page 294 iscsiInstLastSsnRmtNodeName 1.3.6.1.2.1.142.1.1.1.1.12 page 294 iscsiInstDiscontinuityTime 1.3.6.1.2.1.142.1.1.1.1.13...
  • Page 355 1.3.6.1.2.1.142.1.1.10.1.1.3 page 299 iscsiSsnInitiatorName 1.3.6.1.2.1.142.1.1.10.1.1.4 page 299 iscsiSsnTargetName 1.3.6.1.2.1.142.1.1.10.1.1.5 page 299 iscsiSsnTSIH 1.3.6.1.2.1.142.1.1.10.1.1.6 page 299 iscsiSsnISID 1.3.6.1.2.1.142.1.1.10.1.1.7 page 299 iscsiSsnInitiatorAlias 1.3.6.1.2.1.142.1.1.10.1.1.8 page 299 iscsiSsnTargetAlias 1.3.6.1.2.1.142.1.1.10.1.1.9 page 299 iscsiSsnInitialR2T 1.3.6.1.2.1.142.1.1.10.1.1.10 page 300 iscsiSsnImmediateData 1.3.6.1.2.1.142.1.1.10.1.1.11 page 300 iscsiSsnType 1.3.6.1.2.1.142.1.1.10.1.1.12 page 300 iscsiSsnMaxOutstandingR2T 1.3.6.1.2.1.142.1.1.10.1.1.13...
  • Page 356 1.3.6.1.2.1.224.1.1.4.1.3 page 282 fcipEntityAddress 1.3.6.1.2.1.224.1.1.4.1.4 page 282 fcipEntityTcpConnPort 1.3.6.1.2.1.224.1.1.4.1.5 page 282 fcipEntitySeqNumWrap 1.3.6.1.2.1.224.1.1.4.1.6 page 282 fcipEntityPHBSupport 1.3.6.1.2.1.224.1.1.4.1.7 page 282 fcipEntityStatus 1.3.6.1.2.1.224.1.1.4.1.8 page 283 fcipLinkTable 1.3.6.1.2.1.224.1.1.5 page 280 fcipLinkEntry 1.3.6.1.2.1.224.1.1.5.1 page 280 fcipLinkindex 1.3.6.1.2.1.224.1.1.5.1.1 page 283 fcipLinklfindex 1.3.6.1.2.1.224.1.1.5.1.2 page 283 fcipLinkCost 1.3.6.1.2.1.224.1.1.5.1.3...
  • Page 357 1.3.6.1.4.1.1588.4.1.1.3 page 286 fcipExtendedLinkCompressionRatio 1.3.6.1.4.1.1588.4.1.1.4 page 286 fcipExtendedLinkTcpSmoothedRTT 1.3.6.1.4.1.1588.4.1.1.5 page 286 fcipExtendedLinkRawBytes 1.3.6.1.4.1.1588.4.1.1.6 page 286 fcipExtendedLinkCompressedBytes 1.3.6.1.4.1.1588.4.1.1.7 page 286 fcipExtendedLinkConnectedCount 1.3.6.1.4.1.1588.4.1.1.8 page 286 fcipExtendedLinkRtxRtxTO 1.3.6.1.4.1.1588.4.1.1.9 page 286 fcipExtendedLinkRtxDupAck 1.3.6.1.4.1.1588.4.1.1.10 page 286 fcipExtendedLinkDupAck 1.3.6.1.4.1.1588.4.1.1.11 page 287 fcipExtendedLinkRtt 1.3.6.1.4.1.1588.4.1.1.12 page 287 fcipExtendedLinkOoo 1.3.6.1.4.1.1588.4.1.1.13...
  • Page 358 1.3.6.1.3.42.2.1.1.5.1.3 page 104 fcFxPortFcphVersionHigh 1.3.6.1.3.42.2.1.1.5.1.4 page 104 fcFxPortFcphVersionLow 1.3.6.1.3.42.2.1.1.5.1.5 page 104 fcFxPortBbCredit 1.3.6.1.3.42.2.1.1.5.1.6 page 104 fcFxPortRxBufSize 1.3.6.1.3.42.2.1.1.5.1.7 page 105 fcFxPortRatov 1.3.6.1.3.42.2.1.1.5.1.8 page 105 fcFxPortEdtov 1.3.6.1.3.42.2.1.1.5.1.9 page 105 fcFxPortCosSupported 1.3.6.1.3.42.2.1.1.5.1.10 page 105 fcFxPortIntermixSupported 1.3.6.1.3.42.2.1.1.5.1.11 page 105 fcFxPortStackedConnMode 1.3.6.1.3.42.2.1.1.5.1.12 page 105 fcFxPortClass2SeqDeliv 1.3.6.1.3.42.2.1.1.5.1.13...
  • Page 359 1.3.6.1.3.42.2.1.2.1.1.3 page 107 fcFxPortAttachedPortName 1.3.6.1.3.42.2.1.2.1.1.4 page 107 fcFxPortConnectedPort 1.3.6.1.3.42.2.1.2.1.1.5 page 107 fcFxPortBbCreditAvailable 1.3.6.1.3.42.2.1.2.1.1.6 page 108 fcFxPortOperMode 1.3.6.1.3.42.2.1.2.1.1.7 page 108 fcFxPortAdminMode 1.3.6.1.3.42.2.1.2.1.1.8 page 108 fcFxPortPhysTable 1.3.6.1.3.42.2.1.2.3 page 108 fcFxPortPhysEntry 1.3.6.1.3.42.2.1.2.3.1 page 108 fcFxPortPhysModuleIndex 1.3.6.1.3.42.2.1.2.3.1.1 page 108 fcFxPortPhysFxPortIndex 1.3.6.1.3.42.2.1.2.3.1.2 page 108 fcFxPortPhysAdminStatus 1.3.6.1.3.42.2.1.2.3.1.3...
  • Page 360 MIB object name Page no. fcFxPortSyncLosses 1.3.6.1.3.42.2.1.3.1.1.4 page 112 fcFxPortSigLosses 1.3.6.1.3.42.2.1.3.1.1.5 page 112 fcFxPortPrimSeqProtoErrors 1.3.6.1.3.42.2.1.3.1.1.6 page 113 fcFxPortInvalidTxWords 1.3.6.1.3.42.2.1.3.1.1.7 page 113 fcFxPortInvalidCrcs 1.3.6.1.3.42.2.1.3.1.1.8 page 113 fcFxPortDelimiterErrors 1.3.6.1.3.42.2.1.3.1.1.9 page 113 fcFxPortAddressIdErrors 1.3.6.1.3.42.2.1.3.1.1.10 page 113 fcFxPortLinkResetIns 1.3.6.1.3.42.2.1.3.1.1.11 page 113 fcFxPortLinkResetOuts 1.3.6.1.3.42.2.1.3.1.1.12 page 113 fcFxPortOlsIns 1.3.6.1.3.42.2.1.3.1.1.13...
  • Page 361 1.3.6.1.3.94.1.6.1.3 page 238 connUnitNumports 1.3.6.1.3.94.1.6.1.4 page 238 connUnitState 1.3.6.1.3.94.1.6.1.5 page 239 connUnitStatus 1.3.6.1.3.94.1.6.1.6 page 239 connUnitProduct 1.3.6.1.3.94.1.6.1.7 page 240 connUnitSn 1.3.6.1.3.94.1.6.1.8 page 240 connUnitUpTime 1.3.6.1.3.94.1.6.1.9 page 240 connUnitUrl 1.3.6.1.3.94.1.6.1.10 page 240 connUnitDomainId 1.3.6.1.3.94.1.6.1.11 page 240 connUnitProxyMaster 1.3.6.1.3.94.1.6.1.12 page 240 connUnitPrincipal 1.3.6.1.3.94.1.6.1.13...
  • Page 362 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. connUnitSensorTable 1.3.6.1.3.94.1.8 page 245 connUnitSensorEntry 1.3.6.1.3.94.1.8.1 page 245 connUnitSensorUnitId 1.3.6.1.3.94.1.8.1.1 page 245 connUnitSensorIndex 1.3.6.1.3.94.1.8.1.2 page 245 connUnitSensorName 1.3.6.1.3.94.1.8.1.3 page 245 connUnitSensorStatus 1.3.6.1.3.94.1.8.1.4 page 245 connUnitSensorInfo 1.3.6.1.3.94.1.8.1.5...
  • Page 363 1.3.6.1.3.94.1.11.1.3 page 257 connUnitREventTime 1.3.6.1.3.94.1.11.1.4 page 257 connUnitSEventTime 1.3.6.1.3.94.1.11.1.5 page 258 connUnitEventSeverity 1.3.6.1.3.94.1.11.1.6 page 258 connUnitEventType 1.3.6.1.3.94.1.11.1.7 page 258 connUnitEventObject 1.3.6.1.3.94.1.11.1.8 page 258 connUnitEventDescr 1.3.6.1.3.94.1.11.1.9 page 259 connUnitLinkTable 1.3.6.1.3.94.1.12 page 259 connUnitLinkEntry 1.3.6.1.3.94.1.12.1 page 260 connUnitLinkUnitId 1.3.6.1.3.94.1.12.1.1 page 260 connUnitLinkIndex 1.3.6.1.3.94.1.12.1.2...
  • Page 364 1.3.6.1.3.94.4.5.1.3 page 263 connUnitPortStatCountTxObjects 1.3.6.1.3.94.4.5.1.4 page 263 connUnitPortStatCountRxObjects 1.3.6.1.3.94.4.5.1.5 page 263 connUnitPortStatCountTxElements 1.3.6.1.3.94.4.5.1.6 page 264 connUnitPortStatCountRxElements 1.3.6.1.3.94.4.5.1.7 page 264 connUnitPortStatCountBBCreditZero 1.3.6.1.3.94.4.5.1.8 page 264 connUnitPortStatCountInputBuffersFull 1.3.6.1.3.94.4.5.1.9 page 264 connUnitPortStatCountFBSYFrames 1.3.6.1.3.94.4.5.1.10 page 264 connUnitPortStatCountPBSYFrames 1.3.6.1.3.94.4.5.1.11 page 264 connUnitPortStatCountFRJTFrames 1.3.6.1.3.94.4.5.1.12 page 265 connUnitPortStatCountPRJTFrames 1.3.6.1.3.94.4.5.1.13...
  • Page 365 1.3.6.1.3.94.5.2.1.1.2 page 272 connUnitSnsPortIdentifier 1.3.6.1.3.94.5.2.1.1.3 page 272 connUnitSnsPortName 1.3.6.1.3.94.5.2.1.1.4 page 272 connUnitSnsNodeName 1.3.6.1.3.94.5.2.1.1.5 page 273 connUnitSnsClassOfSvc 1.3.6.1.3.94.5.2.1.1.6 page 273 connUnitSnsNodeIPAddress 1.3.6.1.3.94.5.2.1.1.7 page 273 connUnitSnsProcAssoc 1.3.6.1.3.94.5.2.1.1.8 page 273 connUnitSnsFC4Type 1.3.6.1.3.94.5.2.1.1.9 page 273 connUnitSnsPortType 1.3.6.1.3.94.5.2.1.1.10 page 273 Fabric OS MIB Reference 53-1001768-01...
  • Page 366 1.3.6.1.4.1.1588.2.1.1.1.0.3 page 156 swEventTrap 1.3.6.1.4.1.1588.2.1.1.1.0.4 page 157 swFabricWatchTrap 1.3.6.1.4.1.1588.2.1.1.1.0.5 page 157 swTrackChangesTrap 1.3.6.1.4.1.1588.2.1.1.1.0.6 page 158 swIPv6ChangeTrap 1.3.6.1.4.1.1588.2.1.1.1.0.7 page 159 swPmgrEventTrap 1.3.6.1.4.1.1588.2.1.1.1.0.8 page 159 swFabricReconfigTrap 1.3.6.1.4.1.1588.2.1.1.1.0.9 page 159 swFabricSegmentTrap 1.3.6.1.4.1.1588.2.1.1.1.0.10 page 160 swExtTrap 1.3.6.1.4.1.1588.2.1.1.1.0.11 page 160 swSystem 1.3.6.1.4.1.1588.2.1.1.1.1 page 142 swCurrentDate 1.3.6.1.4.1.1588.2.1.1.1.1.1...
  • Page 367 1.3.6.1.4.1.1588.2.1.1.1.1.23 page 168 swTestString 1.3.6.1.4.1.1588.2.1.1.1.1.32 page 170 swFabric 1.3.6.1.4.1.1588.2.1.1.1.2 page 142 swDomainID 1.3.6.1.4.1.1588.2.1.1.1.2.1 page 170 swPrincipalSwitch 1.3.6.1.4.1.1588.2.1.1.1.2.2 page 170 swNumNbs 1.3.6.1.4.1.1588.2.1.1.1.2.8 page 170 swNbTable 1.3.6.1.4.1.1588.2.1.1.1.2.9 page 170 swNbEntry 1.3.6.1.4.1.1588.2.1.1.1.2.9.1 page 170 swNbIndex 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.1 page 170 swNbMyPort 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.2 page 170 swNbRemDomain 1.3.6.1.4.1.1588.2.1.1.1.2.9.1.3...
  • Page 368 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. swPmgrEventDescr 1.3.6.1.4.1.1588.2.1.1.1.2.14 page 172 swVfId 1.3.6.1.4.1.1588.2.1.1.1.2.15 page 172 swModule 1.3.6.1.4.1.1588.2.1.1.1.3 page 142 swAgtCfg 1.3.6.1.4.1.1588.2.1.1.1.4 page 142 swAgtCmtyTable 1.3.6.1.4.1.1588.2.1.1.1.4.11 page 173 swAgtCmtyEntry 1.3.6.1.4.1.1588.2.1.1.1.4.11.1 page 173 swAgtCmtyIdx 1.3.6.1.4.1.1588.2.1.1.1.4.11.1.1 page 173 swAgtCmtyStr 1.3.6.1.4.1.1588.2.1.1.1.4.11.1.2...
  • Page 369 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.3 page 181 swNsPortName 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.4 page 181 swNsPortSymb 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.5 page 181 swNsNodeName 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.6 page 182 swNsNodeSymb 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.7 page 182 swNsIPA 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.8 page 182 swNsIpAddress 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.9 page 182 swNsCos 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.10 page 182 swNsFc4 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.11 page 183 swNsIpNxPort 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.12 page 183 swNsWwn 1.3.6.1.4.1.1588.2.1.1.1.7.2.1.13...
  • Page 370 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. swEventEntry 1.3.6.1.4.1.1588.2.1.1.1.8.5.1 page 184 swEventIndex 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.1 page 184 swEventTimeInfo 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.2 page 184 swEventLevel 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.3 page 184 swEventRepeatCount 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.4 page 184 swEventDescr 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.5 page 185 swEventVfid 1.3.6.1.4.1.1588.2.1.1.1.8.5.1.6...
  • Page 371 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.3 page 191 swFwLabel 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.4 page 193 swFwCurVal 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.5 page 194 swFwLastEvent 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.6 page 194 swFwLastEventVal 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.7 page 194 swFwLastEventTime 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.8 page 194 swFwLastState 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.9 page 194 swFwBehaviorType 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.10 page 194 swFwBehaviorInt 1.3.6.1.4.1.1588.2.1.1.1.10.3.1.11 page 194 swEndDevice 1.3.6.1.4.1.1588.2.1.1.1.21 page 142 swEndDeviceRlsTable 1.3.6.1.4.1.1588.2.1.1.1.21.1...
  • Page 372 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. swBlmPerfEERefKey 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.2 page 198 swBlmPerfEECRC 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.3 page 198 swBlmPerfEEFCWRx 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.4 page 198 swBlmPerfEEFCWTx 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.5 page 199 swBlmPerfEESid 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.6 page 199 swBlmPerfEEDid 1.3.6.1.4.1.1588.2.1.1.1.23.2.1.7 page 199 swBlmPerfFltMntTable 1.3.6.1.4.1.1588.2.1.1.1.23.3 page 199 swBlmPerfFltMntEntry 1.3.6.1.4.1.1588.2.1.1.1.23.3.1...
  • Page 373 1.3.6.1.4.1.1588.2.1.1.1.26.3 page 203 swCpuPollingInterval 1.3.6.1.4.1.1588.2.1.1.1.26.4 page 203 swCpuAction 1.3.6.1.4.1.1588.2.1.1.1.26.5 page 203 swMemUsage 1.3.6.1.4.1.1588.2.1.1.1.26.6 page 203 swMemNoOfRetries 1.3.6.1.4.1.1588.2.1.1.1.26.7 page 203 swMemUsageLimit 1.3.6.1.4.1.1588.2.1.1.1.26.8 page 203 swMemPollingInterval 1.3.6.1.4.1.1588.2.1.1.1.26.9 page 203 swMemAction 1.3.6.1.4.1.1588.2.1.1.1.26.10 page 204 swMemUsageLimit1 1.3.6.1.4.1.1588.2.1.1.1.26.11 page 204 Fabric OS MIB Reference 53-1001768-01...
  • Page 374 1.3.6.1.4.1.1588.2.1.1.1.27.1.3 page 204 swConnUnitNLNumOfTenancy 1.3.6.1.4.1.1588.2.1.1.1.27.1.4 page 204 swConnUnitStopTenancyStarVation 1.3.6.1.4.1.1588.2.1.1.1.27.1.5 page 204 swConnUnitOpend 1.3.6.1.4.1.1588.2.1.1.1.27.1.6 page 205 swConnUnitTransferConnection 1.3.6.1.4.1.1588.2.1.1.1.27.1.7 page 205 swConnUnitOpen 1.3.6.1.4.1.1588.2.1.1.1.27.1.8 page 205 swConnUnitInvalidARB 1.3.6.1.4.1.1588.2.1.1.1.27.1.9 page 205 swConnUnitFTB1Miss 1.3.6.1.4.1.1588.2.1.1.1.27.1.10 page 205 swConnUnitFTB2Miss 1.3.6.1.4.1.1588.2.1.1.1.27.1.11 page 205 swConnUnitFTB6Miss 1.3.6.1.4.1.1588.2.1.1.1.27.1.12 page 205 swConnUnitZoneMiss 1.3.6.1.4.1.1588.2.1.1.1.27.1.13...
  • Page 375 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. nodeRNIDManufacturerPlant 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.8 page 222 nodeRNIDSequenceNumber 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.9 page 222 nodeRNIDConnectedPortWWN 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.10 page 222 nodeRNIDPortType 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.11 page 222 nodeRNIDFormat 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.12 page 222 nodeRNIDTag 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.13 page 222 nodeRNIDParams 1.3.6.1.4.1.1588.2.1.1.50.2.2.1.14...
  • Page 376 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.2 page 225 rLIRIncidentNodeWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.3 page 225 rLIRIncidentPortType 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.5 page 226 rLIRIncidentPID 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.6 page 226 rLIRIncidentPortNumber 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.7 page 226 rLIRConnectedPortWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.8 page 226 rLIRConnectedNodeWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.9 page 226 rLIRFabricWwn 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.10 page 226 rLIRLinkFailureType 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.11 page 226 rLIRTimeStamp 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.12 page 226 rLIRFormat 1.3.6.1.4.1.1588.2.1.1.50.4.2.1.13...
  • Page 377 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. bdSampleTime 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.2 page 317 bdType 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.3 page 317 bdStatsValue10SecsSample 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.4 page 317 bdStatsValue60SecsSample 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.5 page 317 bdStatsValue300SecsSample 1.3.6.1.4.1.1588.2.1.1.51.2.2.1.6 page 317 bdAggrStats 1.3.6.1.4.1.1588.2.1.1.51.2.3 page 317 bdAbsoluteValue 1.3.6.1.4.1.1588.2.1.1.51.2.4 page 317 bdAvgFrameSize 1.3.6.1.4.1.1588.2.1.1.51.2.5...
  • Page 378 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. haMIBTraps 1.3.6.1.4.1.1588.2.1.2.2 page 207 haMIBTrapPrefix 1.3.6.1.4.1.1588.2.1.2.2.0 page 208 fruStatusChanged 1.3.6.1.4.1.1588.2.1.2.2.0.1 page 214 cpStatusChanged 1.3.6.1.4.1.1588.2.1.2.2.0.2 page 214 fruHistoryTrap 1.3.6.1.4.1.1588.2.1.2.2.0.3 page 215 bsciReg 1.3.6.1.4.1.1588.3 page 142 bsciModules 1.3.6.1.4.1.1588.3.1 page 142 bcsiModculeTC 1.3.6.1.4.1.1588.3.1.2...
  • Page 379 MIB OIDs TABLE 26 MIB object name/OID matrix (Continued) MIB object name Page no. usmUserPrivProtocol 1.3.6.1.6.3.15.1.2.2.1.8 page 310 usmUserPrivKeyChange 1.3.6.1.6.3.15.1.2.2.1.9 page 310 usmUserOwnPrivKeyChange 1.3.6.1.6.3.15.1.2.2.1.10 page 311 usmUserPublic 1.3.6.1.6.3.15.1.2.2.1.11 page 311 usmUserStorageType 1.3.6.1.6.3.15.1.2.2.1.12 page 311 usmUserStatus 1.3.6.1.6.3.15.1.2.2.1.13 page 311 Fabric OS MIB Reference...
  • Page 380 MIB OIDs Fabric OS MIB Reference 53-1001768-01...
  • Page 381 Index Entity MIB conformance information Entity MIB objects Entity MIB overview accounting group Entity MIB system organization of MIB objects address translation group Entity MIB trap ASIC performance monitoring group error group errShow command event group event variables BD MIB Group before loading MIBs Brocade MIB files fabric group...
  • Page 382 ICMP group sensor variables interfaces group Series 3000 Variables interfaces table service group IP group SNMP configuration variables iSCSI SNMP group iSCSI MIB Organization SNMP trap registration group iSCSI MIB Overview SNMP traps for ficon ISL and end device variables snmpConfig command snmpMibCapSet command snmpMibCapShow command...
