Setup
Gain Settings Level Table (for all speakers)
Possible Gain
Default
Settings
0.0dB -6.0dB to +6.0dB
Note:
• When Variable is selected, output levels can be calibrated for the
analog audio output connectors. Variable output levels do not affect
the digital audio output connector.
• In some cases, variable output levels can sound quieter than fixed
output levels.
3-14
Default Test Possible Test
Tone Setting Tone Settings
Auto Off, Manual, Auto

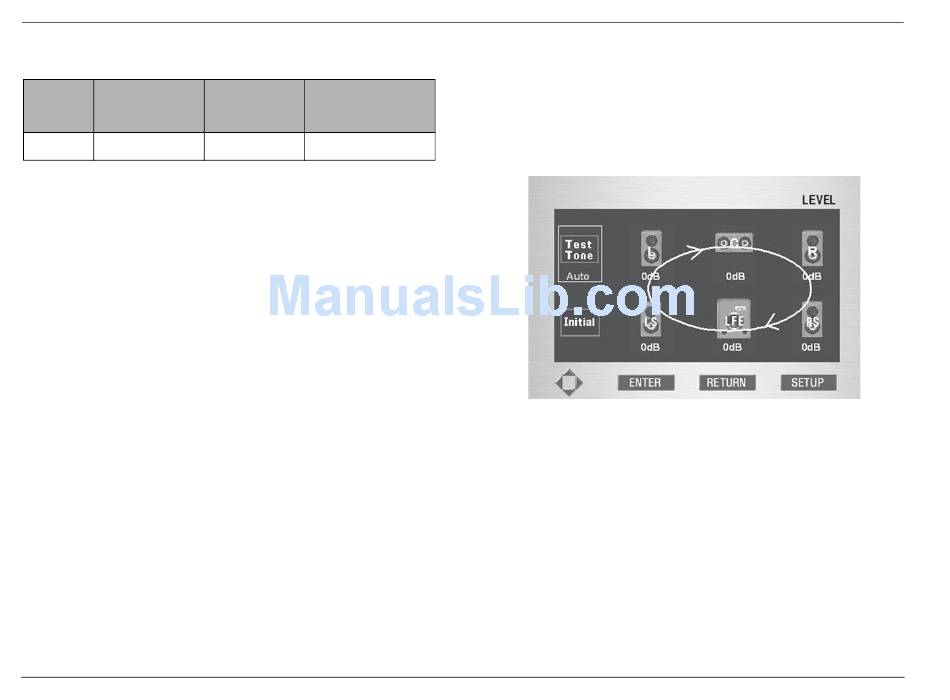

SETTING VARIABLE OUTPUT LEVELS
Use the Gain Setting Levels and Test Tone feature to calibrate vari-
able output levels for the front, center, surround and subwoofer
speakers.
Note:
RT-20 variable output levels should be configured when the RT-20 is
connected to an associated component such as the MC-8 or MC-4 Dig-
ital Controllers, which do not allow output levels to be calibrated for
multi-channel analog audio sources.
Before output level calibration begins:
• You will need a Sound Pressure Level (SPL) meter to calibrate
variable output levels. An SPL meter is a device that measures
the relative loudness of each speaker to ensure accurate output
level calibration. SPL meters are available at Radio Shack.
