Installing Your Dlt-Vs80 Internal Drive; Figure 2-7: Scsi Ribbon Cable With Terminator Built-In - Freecom DLT VS-80 Installation And Operation Manual

Note: If the SCSI cable that came with your SCSI host adapter already has a terminator built
into it, do not use another terminator. An example of such a cable is shown in Figure 2-7.
SCSI Ribbon Cable
Supplied with SCSI
Host Adapter
2.4.4

Installing your DLT-VS80 Internal Drive

This is the final installation stage, which requires that you install your DLT-VS80 Internal
Drive in the host server or workstation and attach the SCSI and power cables.
To install your DLT-VS80 Internal Drive, follow these steps:
1. Shut down the operating system and turn off the selected server or workstation. Turn off
all attached accessory devices, such as printers and other SCSI devices. Remove the
power cables from the host server or workstation and all attached accessories. Failure to
follow these instructions may result in damage to your DLT-VS80 Internal Drive or other
devices.
Do not move on to step 2 until you have shut down the operating system and turned
off the server or workstation that is to be the host for your DLT-VS80 Internal Drive.
Turn off all attached accessory devices, such as printers and other SCSI devices.
Remove the power cables from the host server or workstation and all attached
accessories.
2-12

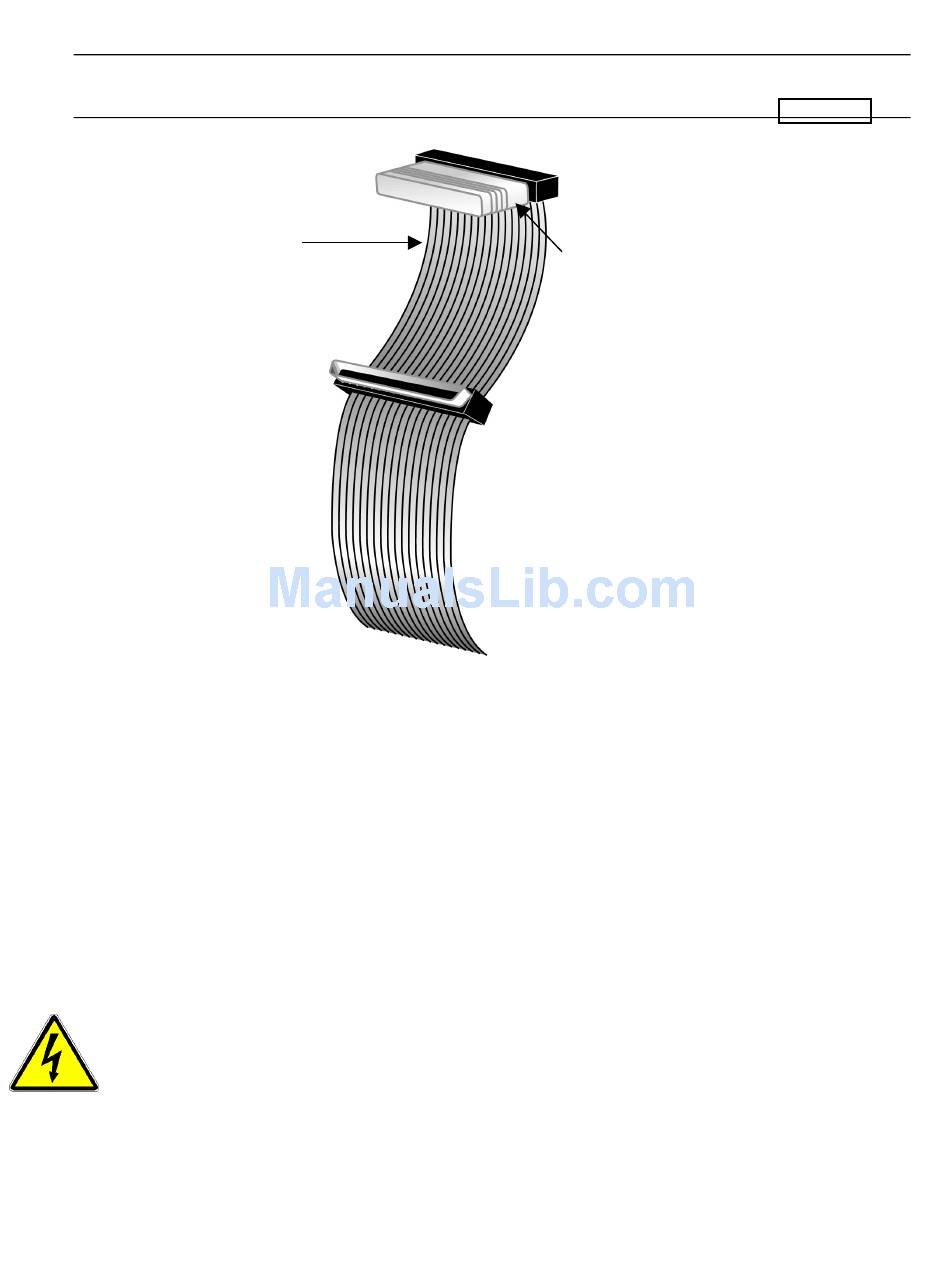

Figure 2-7: SCSI Ribbon Cable with Terminator Built-in

Terminator
