Eclipse CD5000 - - Radio Installation Manual page 12

4

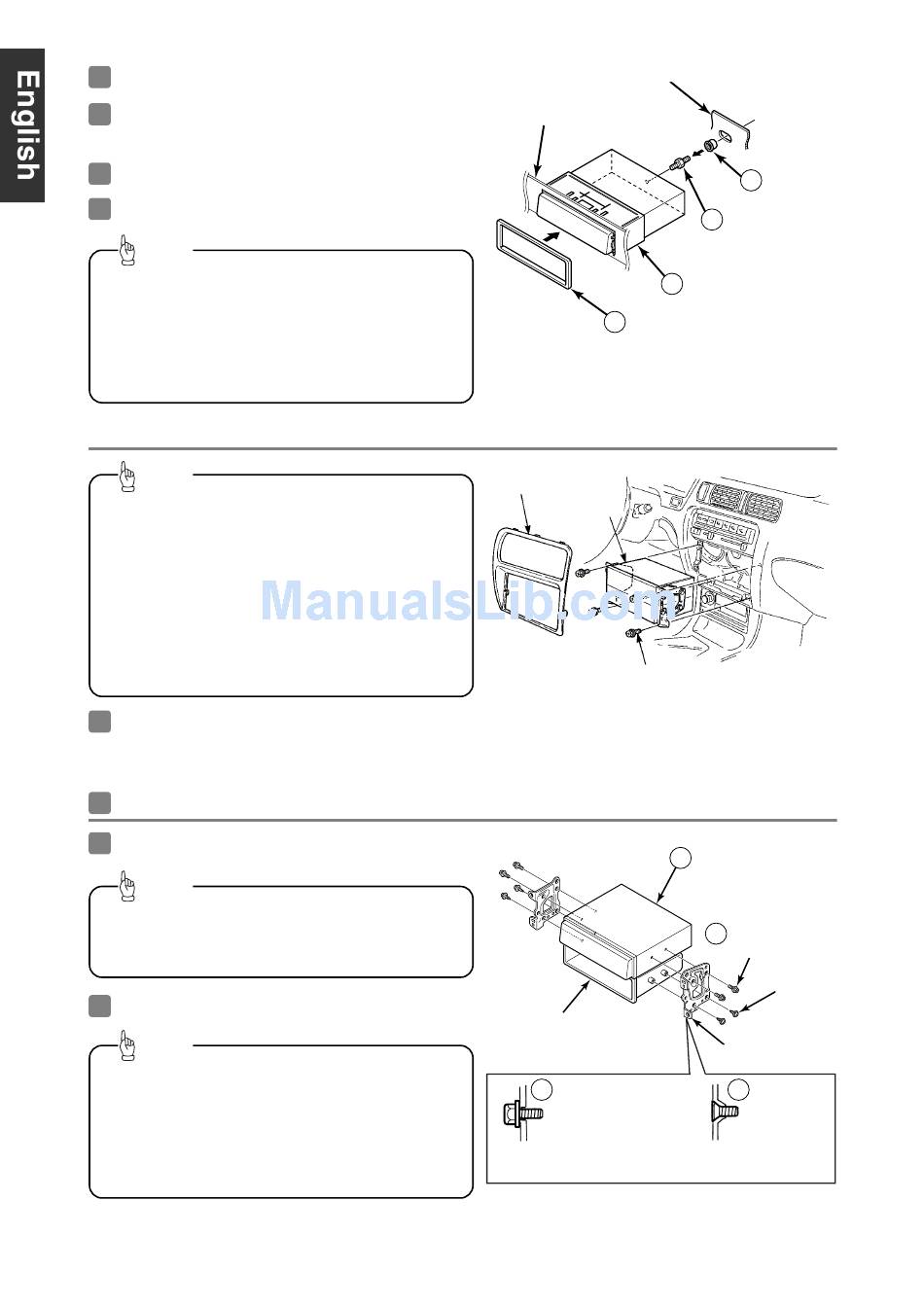

Mount the stud bolt and bushing to the main unit.
5 Insert the main unit into the mounting sleeve until
it locks in place.
6 Fasten the rear of the main unit.
7
Install the bezel on the main unit.
Tip
• • Be careful not to forcefully push on the main unit's
display or buttons during installation. This may
result in damage to the main unit.
• • This installation method is only one example.
When installing the main unit to the vehicle, be
sure to ask the place of purchase for information
on the installation method used.
- Mounting the main unit (If installing the main unit using the side brackets of the vehicle) -
Tip
• • Carefully bind any excess length of wire that
is connected to the main unit and secure it
to an area of empty space in the vehicle so
that it does not dislodge or interfere with the
main unit or vehicle-side equipment . If the
wires are not handled correctly, operating
problems or short-circuits may occur, and
this may result in the danger of fire or other
accidents.
• • Connect all wires before installing the main
unit.
1
Remove the pocket and any other accessories
from the center cluster to make room for the main
unit.
Remove the mounting brackets for the pocket.
2
3
Attach the brackets to the main unit.
Tip
Be sure to use the supplied accessory mounting
screws (Red:M5 x 8) as the mounting screws. If
any other screws are used, they may damage the
inside of the main unit.
4 Install the main unit in the vehicle.
Tip
• • Be careful not to forcefully push on the main unit's
display or buttons during installation. This may
result in damage to the main unit.
• • This installation method is only one example.
When installing the main unit to the vehicle, be
sure to ask the place of purchase for information
on the installation method used.
Metal of vehicle
Dashboard or console box
5
Center cluster panel
Pocket, etc
Mounting bolts
Pocket
Hex-head bolt
6
(Red:M5 x 8) x 4
Select the screws in accordance with the shapes
of the screw holes in the mounting bracket.
- 12 -
9 Bushing
8 Stud bolt
3 Mounting sleeve
Bezel
Main unit
1
Hex-head bolt
6
(Red:M5 x 8) x 4
Screw
x 4
Mounting bracket
Flat head
7
screw
(Red:M5x8) x 4
