Chapter 2

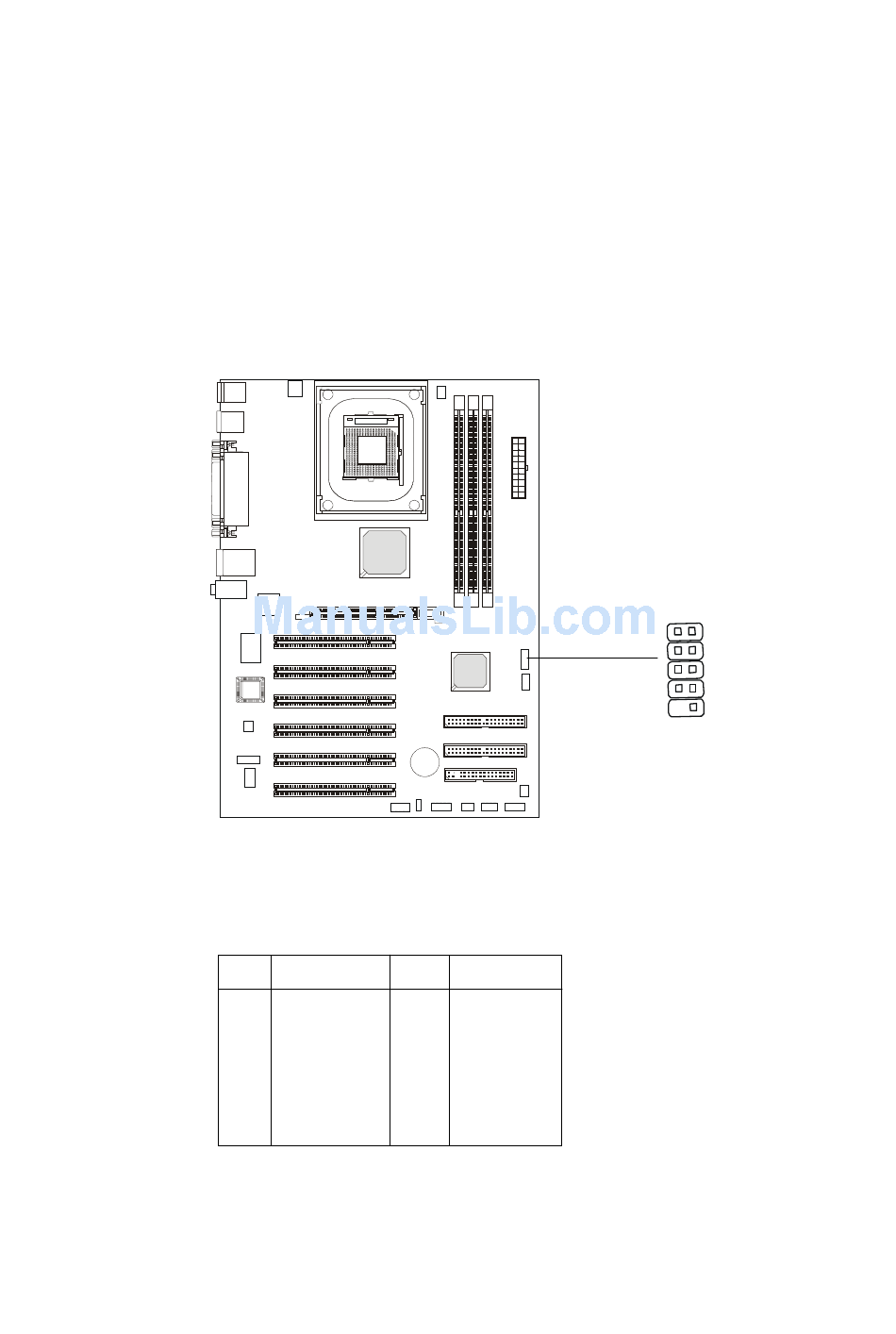

Front USB 2.0 Connector: JUSB2

The mainboard provides one USB 2.0 pin headers USB2. USB 2.0
technology increases data transfer rate up to a maximum throughput of
480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting
high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like. JUSB2 is compliant with Intel
Front Panel I/O Connectivity Design Guide.
JUSB2 Pin Definition
Pin Description
1 VCC
3 USB0-
5 USB0+
7 GND
9 Key
Pin Description
2 VCC
4 USB1-
6 USB1+
8 GND
10 USBOC
2-24
JUSB2
(USB 2.0 / Intel spec)
1 2
10
9
®
