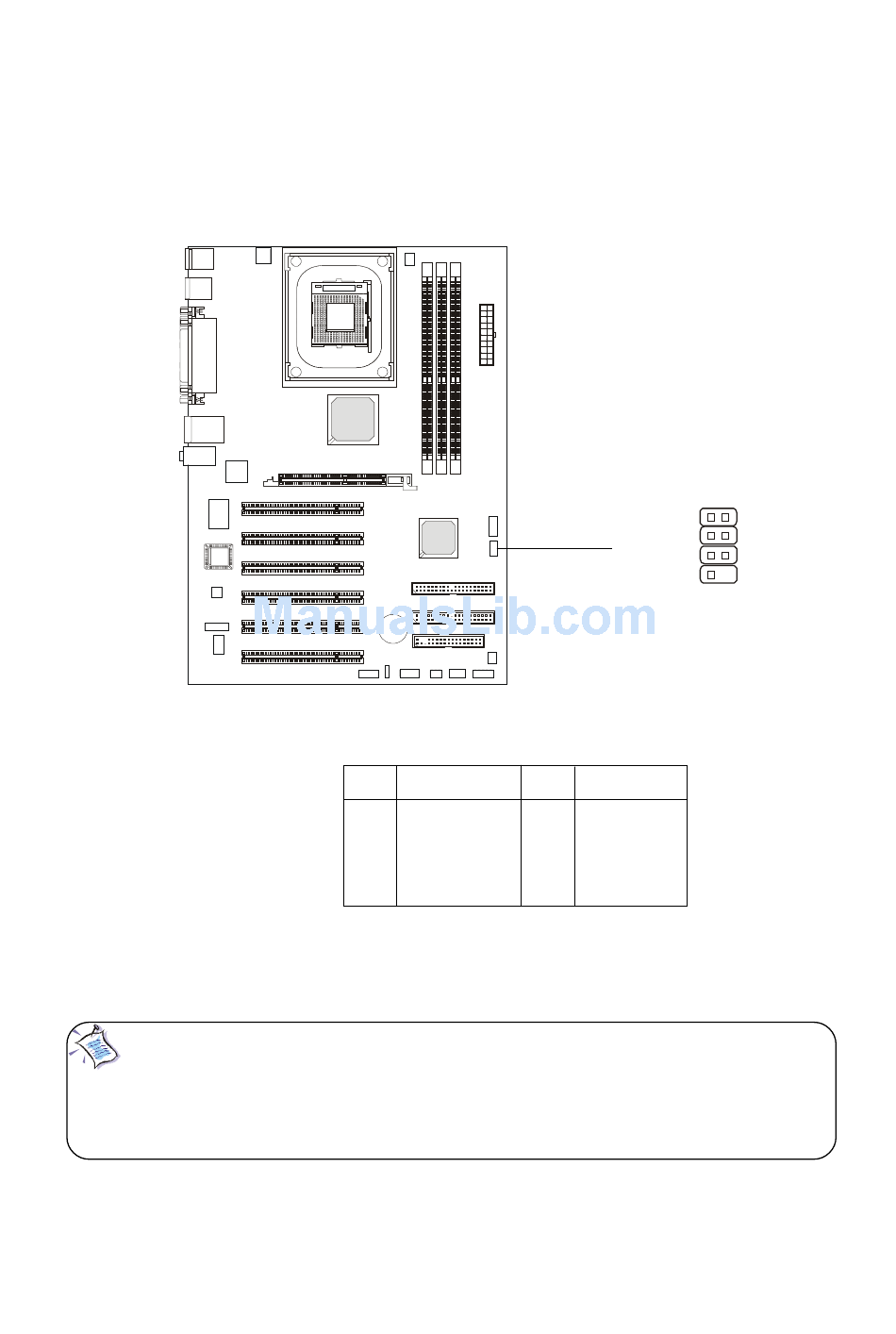

Bluetooth Connector: JBT1

This connector is used to connect a bluetooth module for wireless
connection.
Note:
Because the bluetooth connector shares the USB interface with blue-
colored USB2.0 connector, the bottommost USB2.0 port will not
function when you attach a bluetooth module to this connector.
JBT1 Pin Definition
PIN SIGNAL
1 5VDUAL
3 D+ (USB signal)
5 D- (USB signal)
7 GND
2-21
Hardware Setup
1
JBT1
7
PIN SIGNAL
2 3VDUAL
4 GND
6 GND
8 NC
2
8
