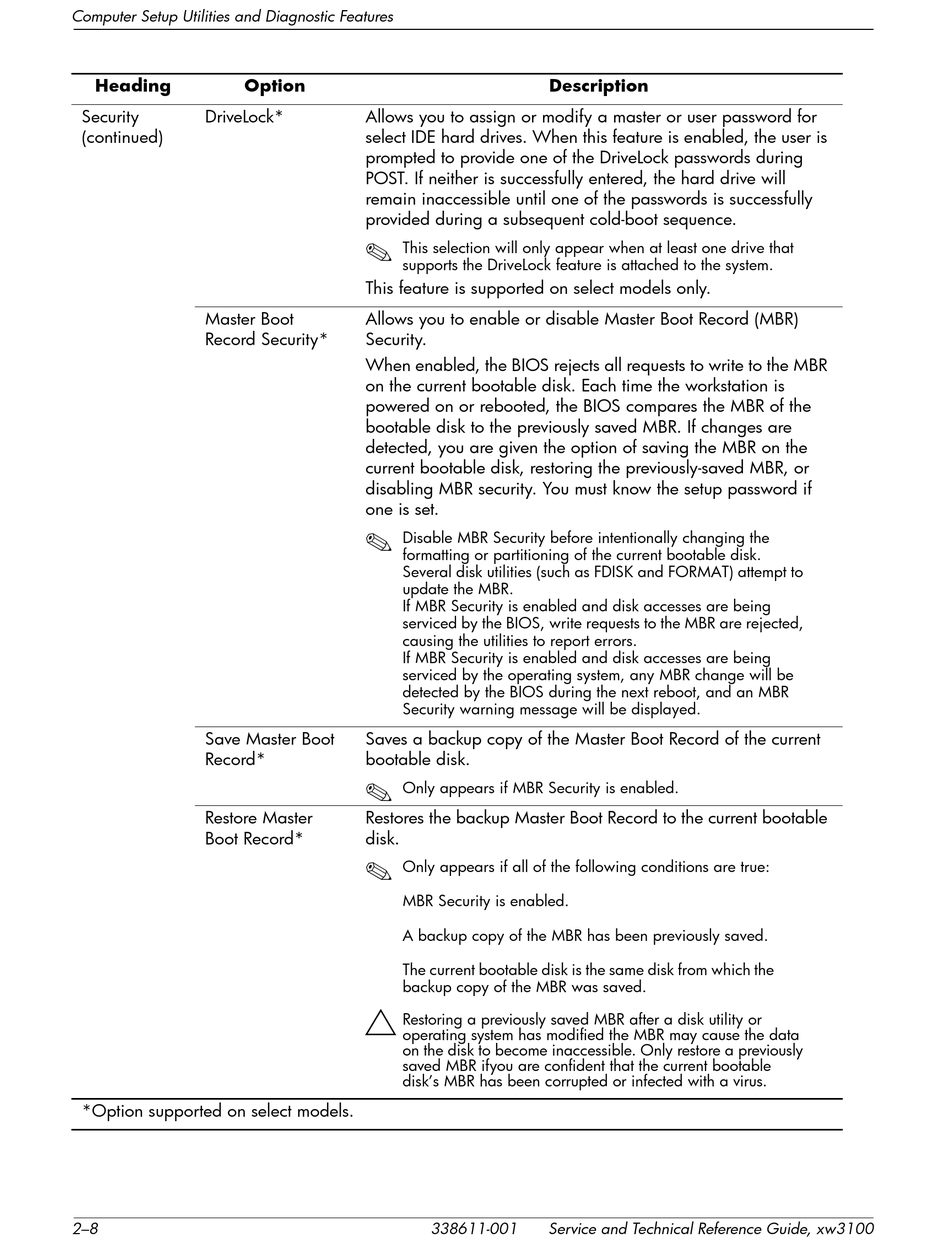

HP xw3100 Service And Technical Reference Manual page 18

Computer Setup Utilities and Diagnostic Features
Heading Option
Security DriveLock*
(continued)
Master Boot
Record Security*
Save Master Boot
Record*
Restore Master
Boot Record*
*Option supported on select models.
2–8
Allows you to assign or modify a master or user password for
select IDE hard drives. When this feature is enabled, the user is
prompted to provide one of the DriveLock passwords during
POST. If neither is successfully entered, the hard drive will
remain inaccessible until one of the passwords is successfully
provided during a subsequent cold-boot sequence.
This selection will only appear when at least one drive that
supports the DriveLock feature is attached to the system.
This feature is supported on select models only.
Allows you to enable or disable Master Boot Record (MBR)
Security.
When enabled, the BIOS rejects all requests to write to the MBR
on the current bootable disk. Each time the workstation is
powered on or rebooted, the BIOS compares the MBR of the
bootable disk to the previously saved MBR. If changes are
detected, you are given the option of saving the MBR on the
current bootable disk, restoring the previously-saved MBR, or
disabling MBR security. You must know the setup password if
one is set.
Disable MBR Security before intentionally changing the
formatting or partitioning of the current bootable disk.
Several disk utilities (such as FDISK and FORMAT) attempt to
update the MBR.
If MBR Security is enabled and disk accesses are being
serviced by the BIOS, write requests to the MBR are rejected,
causing the utilities to report errors.
If MBR Security is enabled and disk accesses are being
serviced by the operating system, any MBR change will be
detected by the BIOS during the next reboot, and an MBR
Security warning message will be displayed.
Saves a backup copy of the Master Boot Record of the current
bootable disk.
Only appears if MBR Security is enabled.
Restores the backup Master Boot Record to the current bootable
disk.
Only appears if all of the following conditions are true:
MBR Security is enabled.
A backup copy of the MBR has been previously saved.
The current bootable disk is the same disk from which the
backup copy of the MBR was saved.
Ä
Restoring a previously saved MBR after a disk utility or
operating system has modified the MBR may cause the data
on the disk to become inaccessible. Only restore a previously
saved MBR ifyou are confident that the current bootable
disk's MBR has been corrupted or infected with a virus.
338611-001
Description
Service and Technical Reference Guide, xw3100
