26 ¥ Wall Mount Touchpanels: TPS-12L/15L/17L
Diagnostics Menu
The Diagnostics button from the MAIN MENU contains controls for diagnostic
tools. The diagnostic tools should only be used under supervision from a Crestron
customer service representative during telephone support. The options available from
the DIAGNOSTICS MENU are numeric in nature and their interpretation is beyond
the scope of this manual.

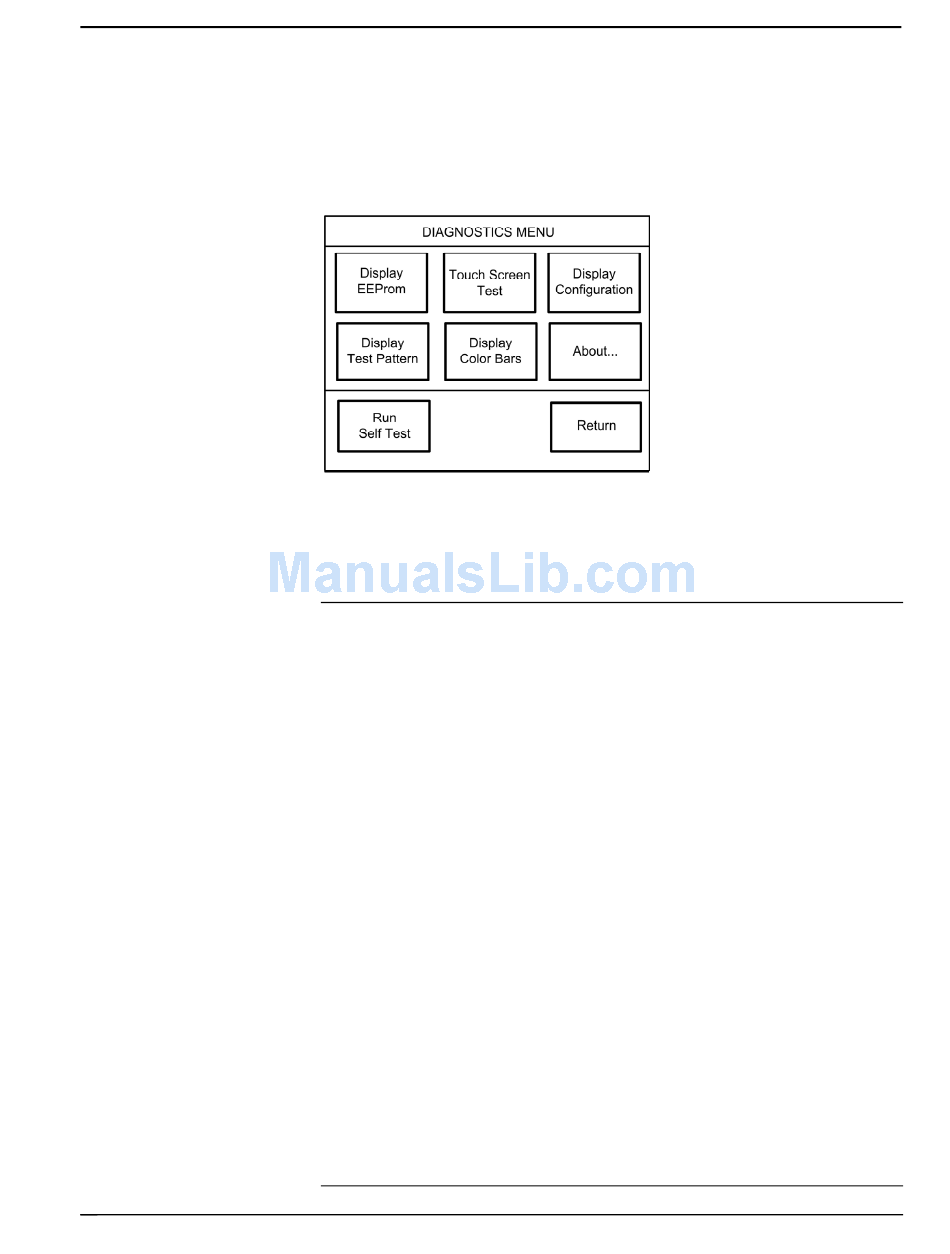

DIAGNOSTICS MENU

Hardware Hookup

Refer to the following diagram and complete the video and communications
connections as needed in any order. Connect the power last.
CAUTION: Do not apply excessive pressure to the touchscreen display during
handling. Doing so can crack the screen and damage the touchpanel.
NOTE: To prevent overheating, do not operate this product in an area that exceeds
the environmental temperature range listed in the table of specifications.
Consideration must be given if installed in a closed or multi-unit rack assembly since
the operating ambient temperature of the rack environment may be greater than the
room ambient. Contact with thermal insulating materials should be avoided on all
sides of the unit. Do not block fan vents.
NOTE: The maximum continuous current from equipment under any external load
conditions shall not exceed a current limit that is suitable for the minimum wire
gauge used in interconnecting cables. The ratings on the connecting unit's supply
input should be considered to prevent overloading the wiring.
NOTE: The headphone output is for WAV and Line audio only. It does not carry the
microphone signal. Use the AUDIO OUT on the TPMC-CH-IMC for the
microphone signal.
NOTE: TPS-12L/15L/17L touchpanels include a TPMC-CH-IMC Interface Module
for system connection. The TPMC-CH-IMC serves as an interface between the
touchpanel, external A/V system, microphone output, and the Cresnet system. Refer
to the TPMC-CH-IMC Operations Guide (Doc. 6345) for hardware hookup using
this interface.
NOTE: Audio, video and QuickMedia connections must use Crestron Certified Wire
(CresCAT, CresCAT-D, CresCAT-Q, etc.) to ensure optimum performance.
®
Crestron Isys TPS-12L/15L/17L
Operations Guide – DOC. 6355
