2-9 Simulated Operation Test

2-9 Simulated Operation Test

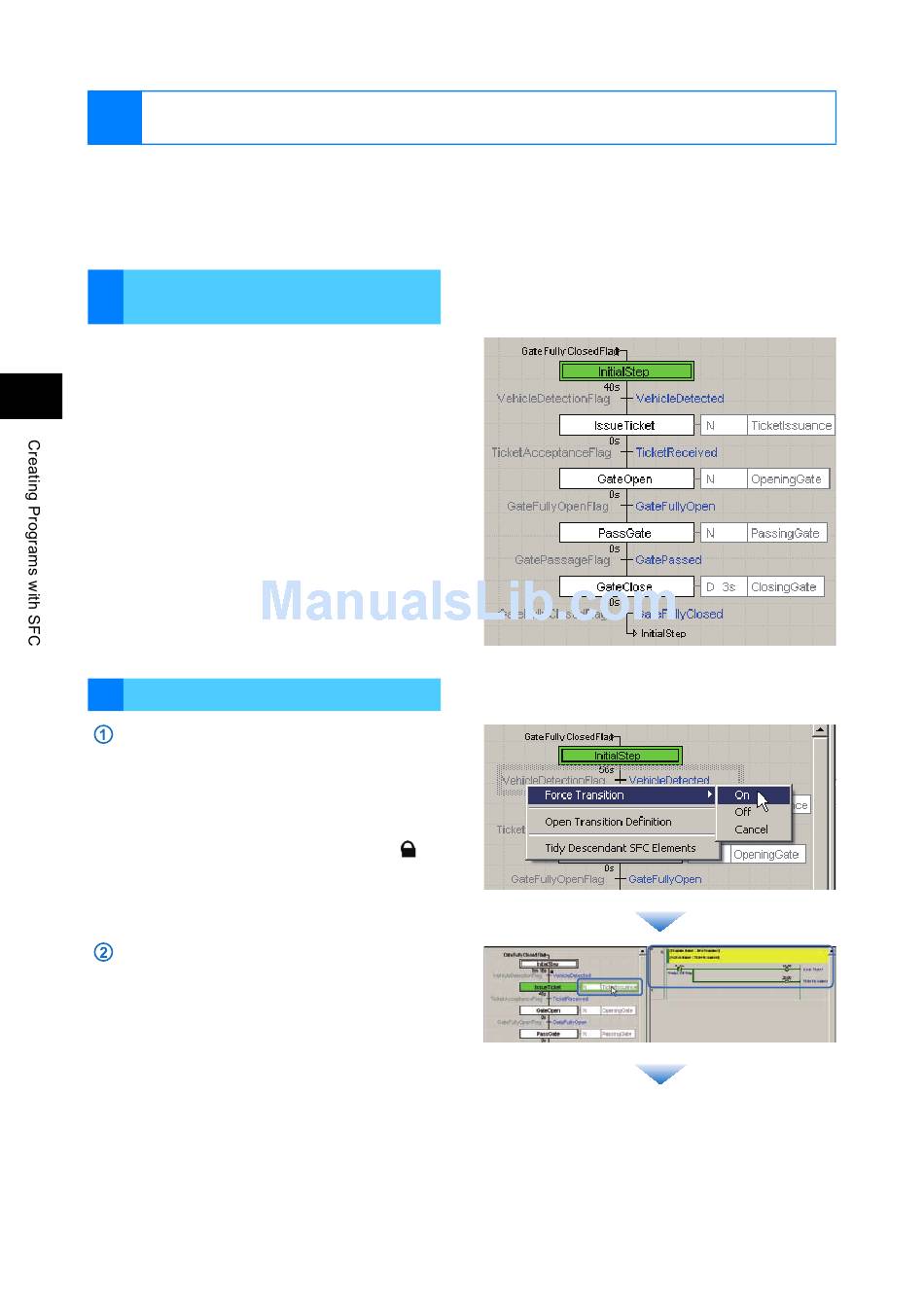

Once again, transfer the program to the simulator, and check the operation of the program as a
whole, including the actions.
In 2-7 Simulated Transition Test, the transition conditions were tested. In this example, the
operation of the actions will be tested.
1 Establish an online connection.
Switch to Monitor mode.
The SFC editor will become greyed out.
Refer to 2-7 Simulated Transition Test.
2
2 Turn the transitions ON.
Right-click the Vehicle Detection Flag
transition, and select Force Transition - On
from the pop-up menu.
The active status will be transferred from the
Initial Step to the Issue Ticket step.
When a transition is force-set, the icon (
will be displayed on the transition.
Double-click the Ticket Issuance action.
Check the execution status of the action
program in the program view.
