Display window for new sensor settings New settings of E3NT-L
8-2-2-1-1 Function
8-2-2-1-2 Switching inversion

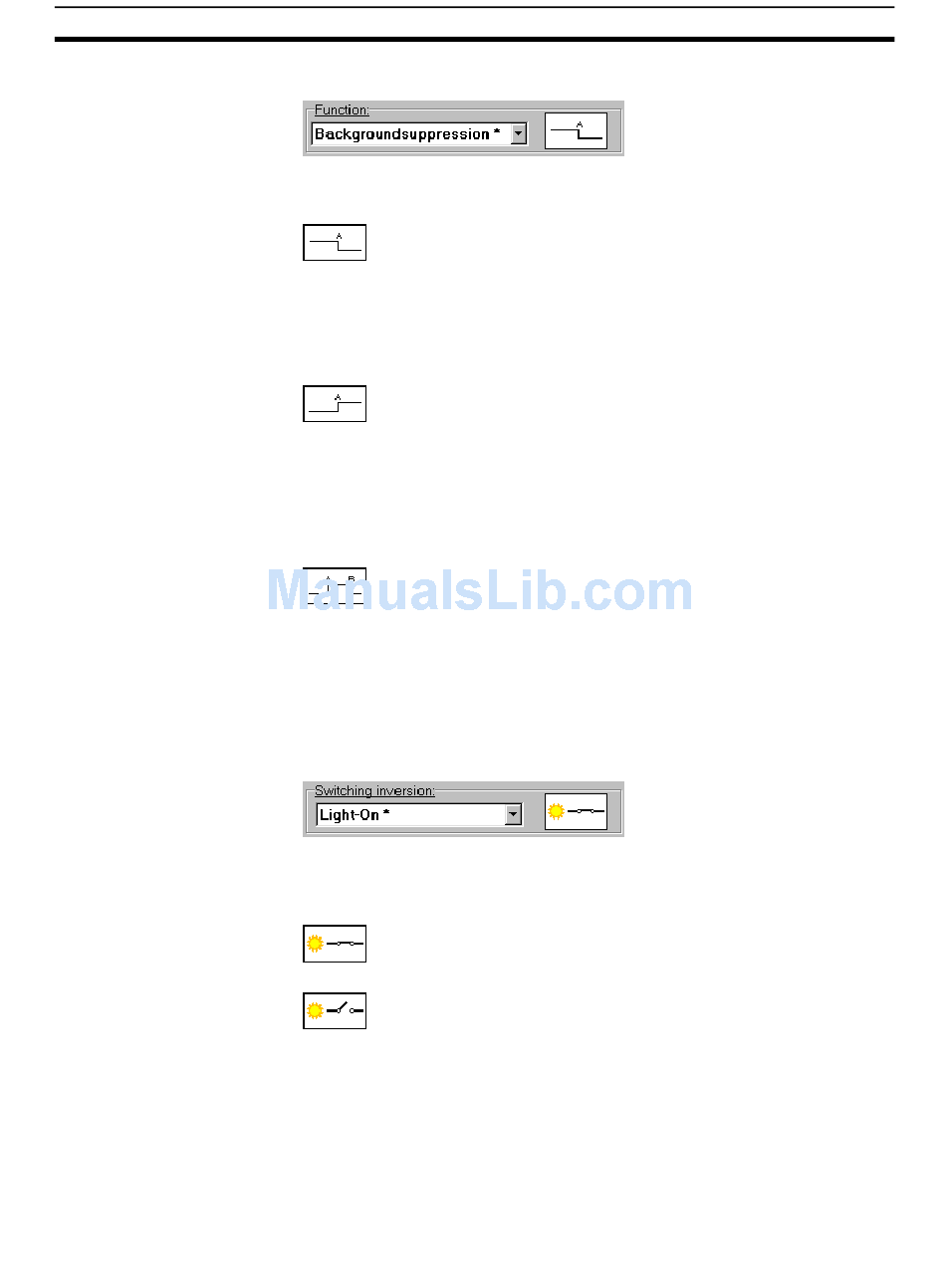

The mode of the output is set in the Function box:
Background suppression BGS (factory default)
The background suppression mode can be set separately for both
outputs.
Measured objects are detected as from the blind zone up to the set-
ted or teached switching point S
the setted or teached switching point S
Foreground suppression FGS
The foreground suppression mode can be set separately for both
outputs.
Measured objects are detected as from the setted or teached
switching point S
the foreground, between the sensor and the setted or teached
switching point S
Window evaluation
The window evaluation mode can be set separately for both out-
puts.
Measured objects are only detected in the measurement window
between the two setted or teached switching points (switching
zone). Objects outside of this measurement window in the fore-
ground and in the background are ignored.
Switching inversion of the output is set in the Switching inversion box. This
parameter can be set separately for both outputs.
Light-On (factory default)
The output is active when one measured object is detected.
Dark-On
The output is active when no measured object is detected.
Objects in the background, behind
A
, are ignored.
A
up to the maximum sensing distance. Objects in
A
, are ignored.
A
