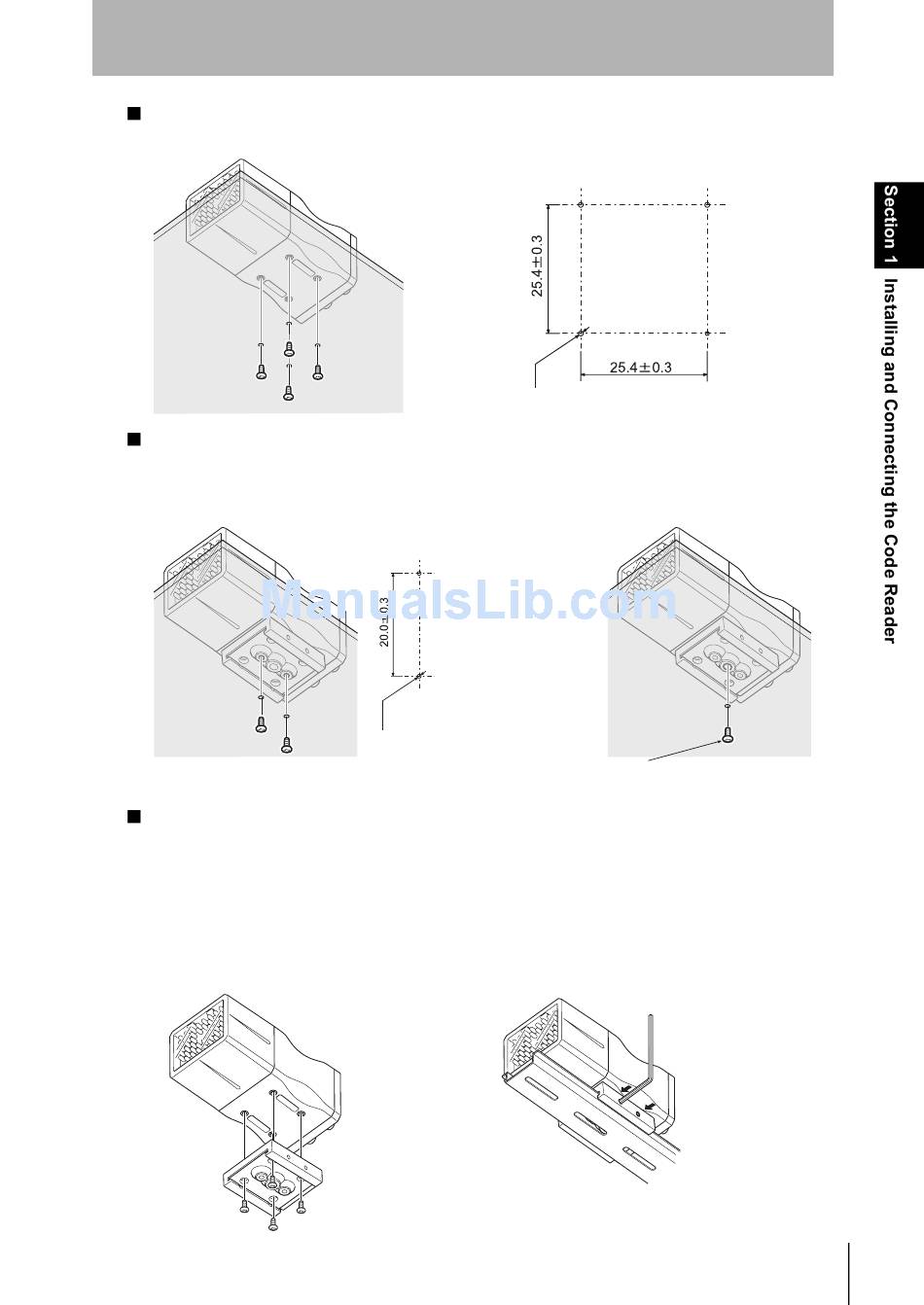

Base Mounting
Mount the reader with four M3 screws.
Mounting the Mount Seat
First mount the mount seat, then mount the reader to the seat with two M4 screws. The
reader can also be mounted with one 1/4-20UNC screw.
DIN Track Mounting
1.
Mount the mount seat to the
undersurface of the base of the
reader with M3 screws (supplied
with the reader).
Mounting dimensions
2-M3
(Screw fitting length: 5 mm or less)
Mounting dimensions
(Unit: mm)
2-M4
(Screw fitting length: 8 mm or less)
2.
Slide the seat into the DIN rail, and
then tighten the two screws at one
edge of the rail using the hexagonal
wrench (supplied with the reader).
Section 1
Studying the V400-F
(Unit: mm)
1/4-20 UNC
(Screw fitting length: 8 mm or less)
V400-F050/250/350
User's Manual
