Audio - Datavideo iCAST MINI Instruction Manual

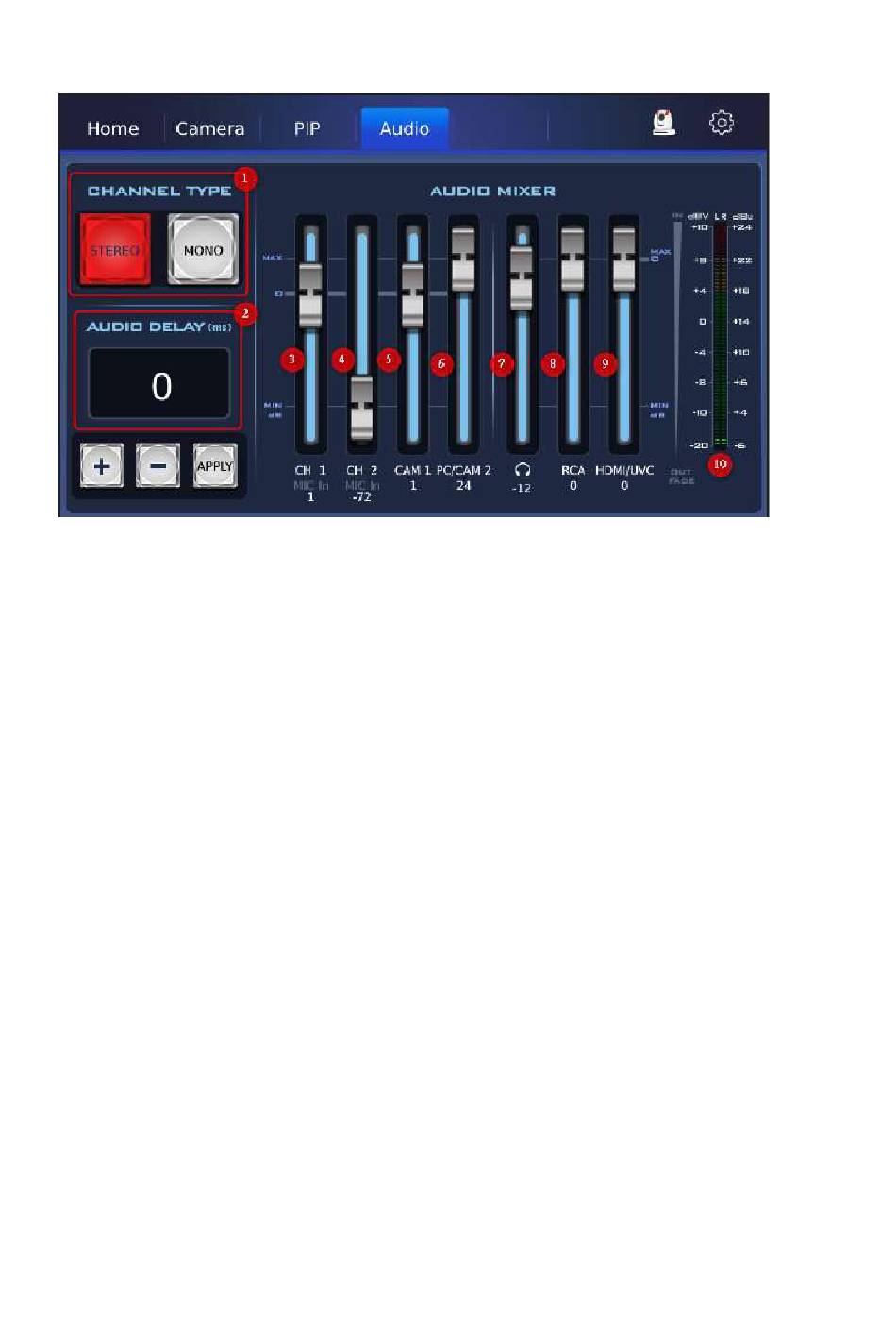

5.4 Audio

1. Channel Type: Please press the "Mono" button to set the audio channel
type as "Mono". And then please press the "STEREO" button to set the audio
channel as "STEREO".
2. Audio Delay(ms): You can press the "+"& "-" buttons to increase or
decrease the audio delay. After the setting is done, please press the "Apply"
button to apply it.
3. CH1: You can use this slider to adjust the input audio volume of the CH1 XLR.
4. CH2: You can use this slider to adjust the input audio volume of the CH2 XLR.
5. CAM1: You can use this slider to adjust the input audio volume of the CAM1.
6. PC/CAM2: You can use this slider to adjust the input audio volume of the
PC/CAM2.
7. Slider for adjusting the monitoring volume: You can use this slider to adjust
the monitoring volume.
8. RCA: You can use this slider to adjust the output volume of the RCA.
9. HDMI/UVC: You can use this slider to adjust the master output volume.
37
