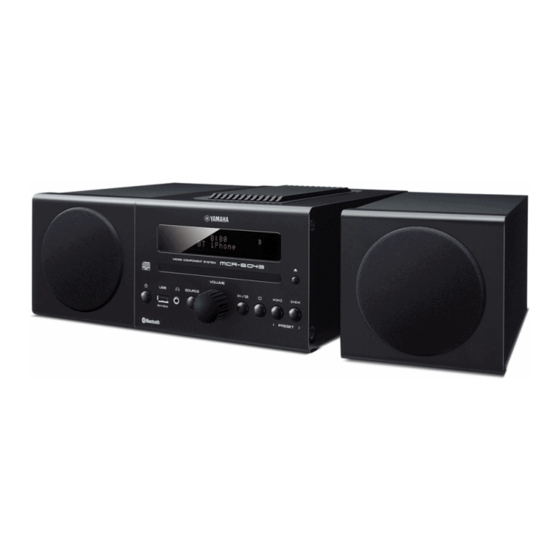

Yamaha MCR-B043 Service Manual
Hide thumbs Also See for MCR-B043:

Advertisement

Quick Links

MCR-B043/MCR-B043D/
Note: When the BT-CARD P.C.B. is replaced, Factory Preset in Self-diagnostic function menu 15-2. must be preformed in order to have
the BT-CARD P.C.B. to operate properly.
If Factory Preset is not preformed, proper model name will not appear during pairing process.
(For details, refer to "15. FACTORY PRESET" menu of the self-diagnostic function)
注意:   BT-CARD P.C.B. を交換すると、BT-CARD P.C.B. を正常に動作させるためにダイアグメニュー 15-2. の初期化を実行しなければなり
ません。
初期化を実行しない場合、Bluetooth 機器とペアリングを行うときに正しいモデル名が表示されません。
(詳細はダイアグの "15. FACTORY PRESET" メニューを参照してください)
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifi cally Yamaha Products, are already known
and understood by the users, and have therefore not been restated.
WARNING:
IMPORTANT:
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service
departments of Yamaha are continually striving to improve Yamaha products. Modifi cations are, therefore, inevitable and specifi cations
are subject to change without notice or obligation to retrofi t. Should any discrepancy appear to exist, please contact the distributor's
Service Division.
WARNING:
IMPORTANT:
■ CONTENTS
TO SERVICE PERSONNEL ............................................2
FRONT PANELS .............................................................6
REAR PANELS ...............................................................7
REMOTE CONTROL PANEL ..........................................9
SPECIFICATIONS / 参考仕様 ....................................... 10
INTERNAL VIEW .......................................................... 13
ファームウェアのアップデート .................................. 18
1 0 1 3 4 9
MICRO COMPONENT SYSTEM
Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,
destruction of expensive components, and failure of the product to perform as specifi ed. For these reasons, we advise
all Yamaha product owners that any service required should be performed by an authorized Yamaha Retailer or the
appointed service representative.
The presentation or sale of this manual to any individual or fi rm does not constitute authorization, certifi cation or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
Copyright (c) Yamaha Corporation All rights reserved.
This manual is copyrighted by Yamaha and may not be copied or
redistributed either in print or electronically without permission.
SERVICE MANUAL
IMPORTANT NOTICE
ダイアグ(自己診断機能) ...........................................25
DISPLAY DATA .............................................................41
IC DATA .........................................................................43
PIN CONNECTION DIAGRAMS ...................................47
BLOCK DIAGRAM ........................................................49
WIRING DIAGRAMS .....................................................50
PRINTED CIRCUIT BOARDS .......................................52
SCHEMATIC DIAGRAMS .............................................57
REPLACEMENT PARTS LIST ......................................63
REMOTE CONTROL .....................................................85
NS-BP83
P.O.Box 1, Hamamatsu, Japan
'15.12

Advertisement

Table of Contents
loading

Summary of Contents for Yamaha MCR-B043

  • Page 1: Table Of Contents

    This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifi cally Yamaha Products, are already known and understood by the users, and have therefore not been restated.
  • Page 2: To Service Personnel

    MCR-B043/MCR-B043D/NS-BP83 ■ TO SERVICE PERSONNEL AC LEAKAGE 1. Critical Components Information WALL EQUIPMENT TESTER OR OUTLET UNDER TEST EQUIVALENT Components having special characteristics are marked ⚠ and must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only)
  • Page 3 MCR-B043/MCR-B043D/NS-BP83 Laser Emitting conditions: 1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the “ON” position, the laser component will emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens of the laser pick-up unit.
  • Page 4: Prevention Of Electrostatic Discharge

    MCR-B043/MCR-B043D/NS-BP83 ■ PREVENTION OF ELECTROSTATIC DISCHARGE Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD).
  • Page 5: System Composition / システム構成

    MCR-B043/MCR-B043D/NS-BP83 ■ SYSTEM COMPOSITION / システム構成 The MCR-B043 consists of the main unit and NS-BP83. MCR-B043 は、メインユニットおよび NS-BP83 で構成さ れています。 The MCR-B043D consists of the main unit and NS-BP83. MCR-B043 ▼ NS-BP83 ▼ MAIN UNIT ▼ NS-BP83 MCR-B043D ▼ NS-BP83 ▼...
  • Page 6: Front Panels

    MCR-B043/MCR-B043D/NS-BP83 ■ FRONT PANELS MCR-B043 MCR-B043D NS-BP83...
  • Page 7: Rear Panels

    MCR-B043/MCR-B043D/NS-BP83 ■ REAR PANELS MCR-B043 U model G model T model L, H models K model V model...
  • Page 8 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D S model A model J model B, G models NS-BP83...
  • Page 9: Remote Control Panel

    MCR-B043/MCR-B043D/NS-BP83 ■ REMOTE CONTROL PANEL ● Color Variations / カラーバリエーション BL: Black color ブラック WH: White color ホワイト BU: Blue color ブルー RE: Red color レッド OR: Orange color オレンジ DG: Dark Gray color ダークグレー LB: Light Blue color ライトブルー...
  • Page 10: Specifications / 参考仕様

    MCR-B043/MCR-B043D/NS-BP83 ■ SPECIFICATIONS / 参考仕様 MCR-B043 MCR-B043D ■ Player Section / プレーヤー部 ■ Bluetooth Section / Bluetooth 部 AUX IN Bluetooth Version / Bluetooth バージョン ....................Ver. 3.0 Input terminal / 入力端子 ............ 3.5 mm (1/8") STEREO mini jack Supported Profile / 対応プロファイル...
  • Page 11 Bluetooth is a registered trademark of the Bluetooth SIG and is used by U ..U.S.A. and Canadian model L ...... Singapore model Yamaha in accordance with a license agreement. T ......Chinese model V ......Taiwan model Bluetooth は、 Bluetooth SIG の登録商標でありヤマハはライセンスに基づ...
  • Page 12 MCR-B043/MCR-B043D/NS-BP83 • DIMENSIONS / 寸法図 MCR-B043 MCR-B043D 10 (3/8") (MCR-B043) 15 (5/8") (MCR-B043D) Top view Top view 97 (3-7/8") (5/8") (5/8") 132 (5-1/4") (7/8") (7/8") NS-BP83 Front view Front view 180 (7-1/8") 129 (5-1/8") Unit: mm (inch) 単位 : mm(インチ)...
  • Page 13: Internal View

    Side view OPERATION P.C.B. BLUETOOTH MODULE POWER SUPPLY UNIT AM/FM TUNER (MCR-B043: U, J models) FM TUNER (MCR-B043: T, K, G, L, V, S, H models) DAB MODULE/DAB P.C.B. (MCR-B043D) LOADER MECHANISM UNIT MAIN (2) P.C.B. MAIN (1) P.C.B. ■ SERVICE PRECAUTIONS / サービス時の注意事項...
  • Page 14: Disassembly Procedures / 分解手順

    MCR-B043/MCR-B043D/NS-BP83 ■ DISASSEMBLY PROCEDURES / 分解手順 (Remove parts in the order as numbered.) (番号順に部品を外してください。 ) Disconnect the power cable from the AC outlet. AC 電源コンセントから、電源コードを抜いてください。 1. Removal of Front Panel Unit (Fig. 1) 1.  フロントパネルユニットの外し方(Fig. 1) Remove 2 screws ( ① ), 4 screws ( ② ) and remove the a. ...
  • Page 15 MCR-B043/MCR-B043D/NS-BP83 3. Removal of Loader Mechanism Unit (Fig. 2) 3.  ローダーメカユニットの外し方(Fig. 2) Using the anti-static soldering iron, short between a.  ローダーメカユニット内にあるオプティカルピック terminals on the optical pick-up unit P.C.B. included アップユニットの P.C.B. 上の端子間を静電気対策はん in the loader mechanism unit. だこてを使用してショートします。 Note: After you have finished repairing, remove 注意:...
  • Page 16 MCR-B043/MCR-B043D/NS-BP83 5-1. Removal of AM/FM tuner (U model) / 5.  AM/FM チューナーの外し方(Fig. 3) FM tuner (T, K, G, L, V, S, H models) (Fig. 3) a.  ⑨ のネジ 2 本を外します。 Remove 2 screws ( ⑨ ). b.  CB160 を外します。 b. Remove CB160.
  • Page 17 MCR-B043/MCR-B043D/NS-BP83 When checking the P.C.B.s: P.C.B. をチェックする場合には: • Spread the rubber sheet and the cloth. Then place ・   ゴムシートと布を敷き、 その上に本機を置いてチェッ this unit on the cloth and check it. (Fig. 4) クします。 (Fig. 4) • Reconnect all cables (connectors) that have been ・...
  • Page 18: Updating Firmware

    MCR-B043/MCR-B043D/NS-BP83 ■ UPDATING FIRMWARE / ファームウェアのアップデート When the following parts are replaced, the firmware must 下記の部品を交換した場合、ファームウェアを最新バー be updated to the latest version. ジョンにアップデートする必要があります。 Firmware to be updated / アップデートするファームウェア Replaced parts Microprocessor firmware CD/USB/DSP controller firmware 交換部品 マイコンファームウェア CD/USB/DSP コントローラーファームウェア...
  • Page 19 MCR-B043/MCR-B043D/NS-BP83 ● Preparation and precautions ●  準備と注意 • Download the firmware downloader program and ・   指定のダウンロード先から、ファームウェア書き the latest firmware from the specified download 込み用プログラムと最新のファームウェアを、   PC  source to the same folder of the PC. の同じフォルダにダウンロードしてください。 • Prepare the above specified RS-232C cross cable.
  • Page 20 MCR-B043/MCR-B043D/NS-BP83 ● Operation procedures ●  操作方法 1. Connect the power cable of this unit to the AC 1.  本機の電源コードを AC コンセントに接続します。 outlet. 本機に電源が入り、マイコンが書き込みモードに The power to this unit is supplied and the なります。 microprocessor is in the writing mode. 2.  FlashSta.exe を起動します。...
  • Page 21 MCR-B043/MCR-B043D/NS-BP83 5. Click [Refer...] and select the firmware name. 5. [Refer...]をクリックし、書き込むファームウェア (Fig. 4) を選択します。 (Fig. 4) The ID and MCU Type are loaded automatically ※  ID、および MCU  Type は書き込みファイル選 when the file is selected. (Fig. 4) 択後、自動的に取り込まれます。 (Fig. 4) Click [OK]. (Fig. 4) [OK]をクリックします。...
  • Page 22 MCR-B043/MCR-B043D/NS-BP83 7. Click [E.P.R.], then the “Erase” screen appears. 7. [E.P.R]をクリックすると、 「Erase」が表示されま (Fig. 6) す。 (Fig. 6) 8. Click [OK] to start writing. (Fig. 6) 8. [OK]をクリックして書き込みを開始します。 (Fig. 6) Writing being executed. 書き込み中 Fig. 6 9. When writing of the firmware is completed, the 9. ...
  • Page 23 MCR-B043/MCR-B043D/NS-BP83 CD/USB/DSP コントローラーファームウエアの Updating CD/USB/DSP controller firmware アップデート ● Required Tools ●  必要なツール • USB storage device ・   USB フラッシュメモリー • Firmware ...........cbtxxxxx.bin ・   ファームウェア   ..........cbtxxxxx.bin ● Preparation ●  準備 1. Download the latest firmware from the specified 1. ...
  • Page 24 MCR-B043/MCR-B043D/NS-BP83 3. Insert the USB storage device to the USB port 3.  USB ポートに USB フラッシュメモリーを差し込 and press the “ ” (Play/Pause) key. (Fig. 2) み、“ ”(再生/一時停止)キーを押します。 (Fig. 2) The USB UPDATE mode is activated and “9-2 CUBIT FW UP Reading ...” is displayed. Writing of USB ...
  • Page 25: Self-Diagnostic Function / ダイアグ(自己診断機能

    MCR-B043/MCR-B043D/NS-BP83 ■ SELF-DIAGNOSTIC FUNCTION / ダイアグ(自己診断機能) This unit has self-diagnostic functions that are intended 本機には、検査、測定、不良個所の発見を目的にしたダ for inspection, measurement and location of faulty point. イアグ(自己診断機能)があります。 There are 15 main menu items, each of which has sub- ダイアグには 15 個のメインメニューがあり、そのそれぞ menu items.
  • Page 26 MCR-B043/MCR-B043D/NS-BP83 MAIN MENU SUB-MENU 7 CD CHECK 1 LASER DIODE CHECK (Not for service / サービスでは使用しません ) 2 SPINDLE MOTOR CHECK 3 FOCUS CHECK 4 TRACKING CHECK 8 CD INFORMATION 1 FG / FEXP (Not for service / サービスでは使用しません )
  • Page 27 MCR-B043/MCR-B043D/NS-BP83 ● Starting Self-Diagnostic Function ●  ダイアグの起動 While pressing the “SOURCE” and “ ” (Play/Pause) “SOURCE” と “ ”(再生/一時停止)キーを押しながら keys, press the “ ” (Power) key to turn on the power. “ ”(電源)キーを押して電源を入れます。 The self-diagnostic function mode is activated. ダイアグが起動します。...
  • Page 28 MCR-B043/MCR-B043D/NS-BP83 ● Canceling Self-Diagnostic Function ●  ダイアグの解除 Before canceling self-diagnostic function, execute 1.  ダイアグを解除する前に、“15.  FACTORY  PRESET” メ setting for “15. FACTORY PRESET” menu (Memory ニュー(メモリーの初期化禁止/またはメモリーの initialization inhibited or Memory initialized). 初期化)の設定をします。 In order to keep the user memory preserved, be ※ ...
  • Page 29 MCR-B043/MCR-B043D/NS-BP83 ● Operation procedure of Main menu and ●  メインメニューとサブメニューの操作 Sub-menu There are 15 main menu items, each of which has sub- ダイアグには 15 個のメインメニューがあり、そのそれぞ menu items. れにサブメニューがあります。 Main menu selection メインメニューの選択 Select the main menu using “ ” (forward) and “...
  • Page 30 MCR-B043/MCR-B043D/NS-BP83 ● Details of Self-Diagnostic Function menu ●  ダイアグメニュー詳細 1. FIRMWARE VERSION 1.  FIRMWARE VERSION This menu is used to display the firmware version and ファームウェアバージョン、チェックサムが表示さ checksum. れます。 The checksum is obtained by adding the data at チェックサムは、データを 8 ビットごとに加算して every 8-bit and expressing the result as a 4-digit いき、4 桁の...
  • Page 31 MCR-B043/MCR-B043D/NS-BP83 2. AUDIO TEST 2.  AUDIO TEST This menu is used to select the input source. 入力ソースを選択します。 CAUTION: 注意: Since the volume level is raised automatically in this このメニューではボリュームレベルが自動的に上が menu, take care to sudden volume level change. るため、急なボリュームレベル変化に注意してくだ さい。 2-1. AUX 2 - 1  ...
  • Page 32 MCR-B043/MCR-B043D/NS-BP83 3. FL CHECK 3.  FL CHECK This menu is used to check the FL display. FL 表示の動作をチェックします。 Using the sub-menu, the display varies as shown below. サブメニュー操作により、表示が以下のように変わ ります。 3-1. Initial display / 初期表示 3 - 1   F L   C H E C K  ...
  • Page 33 MCR-B043/MCR-B043D/NS-BP83 4. NOT AVAILABLE 4.  NOT AVAILABLE Not for service. サービスでは使用しません。 4 - 1   N / A 5. MAIN P.C.B. CHECK 5.  MAIN P.C.B. CHECK This menu is used to check communication and bus MAIN  P.C.B. の各デバイス間の通信とバスラインの接 line connection between devices on MAIN P.C.B.
  • Page 34 MCR-B043/MCR-B043D/NS-BP83 6. SYSTEM MONITOR 6.  SYSTEM MONITOR This menu is used to display A/D conversion value パネルキー、プロテクションなどを検出しているマ of the microprocessor which detects panel keys and イコンの A/D 変換値が、サブメニューで表示されま protection functions by using the sub-menu. す。 Numeric values in the figure are given as reference ※ ...
  • Page 35 MCR-B043/MCR-B043D/NS-BP83 6-5. PS2 PROTECTION 6-5.  PS2 PROTECTION Power supply voltage detection (+3.3D, +5D): 電源電圧の検出(+3.3D、+5D) : The voltage at 92 pin (PS2_PRT) of microprocessor マイコンの 92 ピン(PS2̲PRT)の電圧値が 16 is displayed in hexadecimal notation. 進数で表示されます。 Normal value: 65 to 89 正常値:   65 〜 89 (Reference voltage: 3.3 V=FF)
  • Page 36 MCR-B043/MCR-B043D/NS-BP83 6-8. PANEL KEY 6-8.  PANEL KEY The panel keys detection: パネルキーの検出: When any key on the front panel is pressed, the フロントパネルのいずれかのキーを押すと、対 corresponding key name is displayed. 応するキー名称が表示されます。 Press the “ ” (Power) key to turn off the power. ※  “ ”(電源)キーを押すと電源が切れます。...
  • Page 37 MCR-B043/MCR-B043D/NS-BP83 CD CHECK 7.  CD CHECK Not for service. サービスでは使用しません。 7 - 1   C D   L D : O F F 7 - 2   C D   S P M : O F F 7 - 3   C D   F O C U S : O F 7 - 4  ...
  • Page 38 1 0 - 2   B T   N A M E The Bluetooth device name is displayed. M C R - B 0 4 3   Y a m a h a * “MCR-B043 Yamaha” or “MCR-B043D Yamaha” is displayed. Bluetooth デバイス名が表示されます。 10-3. NOT AVAILABLE 1 0 - 3  ...
  • Page 39 MCR-B043/MCR-B043D/NS-BP83 11. DAB (MCR-B043D) 11. DAB(MCR-B043D) Not for service. サービスでは使用しません。 1 1 - 1 12. SET INFORMATION 12. SET INFORMATION This menu is used to display the model name and モデル名、仕向け先が表示されます。 destination. 12-1. MODEL 1 2 - 1   M O D E L : O K The model name is displayed.
  • Page 40 MCR-B043/MCR-B043D/NS-BP83 14. PROTECTION HISTORY 14. PROTECTION HISTORY The history of protection function is displayed. プロテクション履歴が表示されます。 All history of protection function will be erased by “ ”(再生/一時停止)キーを押すとすべての履 pressing the “ ” (Play/pause) key. 歴は消去されます。 Numeric values in the figure are given as reference ※ ...
  • Page 41: Display Data

    MCR-B043/MCR-B043D/NS-BP83 ■ DISPLAY DATA ● V501 : 16-ST-104GINK (OPERATION P.C.B.) PATTERN AREA ● PIN CONNECTION Pin No. 22 21 20 19 18 17 Connection NP NP NP NP NP NP NP NP NP NP NP NP NP Pin No. 34 33...
  • Page 42 MCR-B043/MCR-B043D/NS-BP83 ● ANODE CONNECTION 2G–16G 2G–5G 7G–10G 11G–16G 1-1B 1-1A 1-1A 1-1A 1-1A 2-1B 2-1A 2-1A 2-1A 2-1A 3-1B 3-1A 3-1A 3-1A 3-1A 4-1B 4-1A 4-1A 4-1A 4-1A 5-1B 5-1A 5-1A 5-1A 5-1A 1-2B 1-2A 1-2A 1-2A 1-2A 2-2B 2-2A...
  • Page 43: Ic Data

    MCR-B043/MCR-B043D/NS-BP83 ■ IC DATA IC102: R5F364AMNFA (MAIN (1) P.C.B.) Microprocessor * No replacement part available. / サービス部品供給なし Port P0 Port P1 Port P1 Port P3 Port P4 Port P5 VCC2 ports Internal peripheral functions System clock generator UART or clock synchronous serial I/O...
  • Page 44 MCR-B043/MCR-B043D/NS-BP83 Function Name Port Name Detail of Function (P.C.B.) P96/SOUT4/ANEX1 FL_MOSI [SPI] SPI communication for FL driver P95/CLK4/ANEX0 FL_SCK [SPI] SPI communication for FL driver P94/TB4in/PWM1/DA1 FL_N_RST RESET signal for FL driver / Reset when Low P93/TB3in/PWM0/DA0 P92/TB2in/PMC0/SOUT3 VOL_RA P91/TB1in/PMC1/SIN3 VOL_RB...
  • Page 45 MCR-B043/MCR-B043D/NS-BP83 Function Name Port Name Detail of Function (P.C.B.) P55/HOLD /EPM P54/HLDA 5D_PON +5D control signal / High when ON / Standby: 0, P-ON: 1 When USB is detected, turn to HIGH (including standby mode) P53/BCLK 3D_PON +3.3D control signal / High when ON...
  • Page 46 MCR-B043/MCR-B043D/NS-BP83 Function Name Port Name Detail of Function (P.C.B.) P06/AN06/D6 CD_SW2 CD discharge detection P05/AN05/D5 P04/AN04/D4 P03/AN03/D3 UART_TX_IND Bluetooth module use to inform microprocessor P02/AN02/D2 AMP_EN Audio amp enable P01/AN01/D1 BT_MFB Bluetooth module's operation signal P00/AN00/D0 LUMI P107/KI3/AN7 PS3_PRT PS protection 3 / +7.2V, +5A monitoring...
  • Page 47: Pin Connection Diagrams

    MCR-B043/MCR-B043D/NS-BP83 ■ PIN CONNECTION DIAGRAMS • ICs BD88400GUL-E2 BD9329AEFJ-E2 EN29LV160CB-70TIP IDT1337AGCSRGI8 LA6565-TE-L-E MN103SH40QUB PQ200WNA1ZPH R5F364AMNFA R1EX24002ATAS0I R1154H001C-T1-F R3116N271A-TR-F TPS2546 RP102N121D-TR-FE YDA164C-QZE2 • Diodes 1SS352 TE 1SS355VMTE-17 1SS380 DAN222 DAP222 Anode Anode Anode Cathode Anode Anode Cathode Anode Cathode Cathode Cathode...
  • Page 48 MCR-B043/MCR-B043D/NS-BP83 • Transistors 2SA1162-Y (TE85R, F) 2SA1362-Y (TE85L, F) 2SC2412K 2SC5866TL Q,R TA 2SC5938A DTA014EUBTL DTC044EUBTL DTA043EUBTL 1: IN 2: GND 3: OUT FDS49435A KTC3875S MCH6336-TL-E 1. Source 2. Source 1. Drain 3. Source 2. Drain 4. Gate 3. Gate 5.
  • Page 49: Block Diagram

    MCR-B043/MCR-B043D/NS-BP83 ■ BLOCK DIAGRAM AUDIO Section Block Diagram • See page 60 → • See page 57–59 → OPERATION MAIN SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SW503–508 +3.3S +34V KEY0 FL_SCK Power supply module W2001 FL_MOST V501 FL_N_CS FLUORESCENT LAMP +13D (POWER)
  • Page 50: Wiring Diagrams

    MCR-B043/MCR-B043D/NS-BP83 ■ WIRING DIAGRAMS • OVERALL ASSEMBLY Rear view 5 x 180 5 x 180 Do not stick double sided Do not stick double sided tape over than this edge tape over than this edge G: gap between side cover...
  • Page 51 MCR-B043/MCR-B043D/NS-BP83 • MAIN UNIT Before attaching loader mechanism unit, Attaching loader mechanism unit, DAB module power supply module and support power power supply module and support power TSX-B235D Flexible flat cable 30 mm (1-1/8") Letter side to MAIN (1) (CB106)
  • Page 52: Printed Circuit Boards

    MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D ■ PRINTED CIRCUIT BOARDS Safety measures 安全対策 • Some internal parts in this product contain high voltages and are dangerous. Be sure to take safety measures during servicing, such ・   この製品の内部には高電圧部分があり危険です。修理の際は、絶縁性の手袋を使用するなどの安全対策を行ってください。 as wearing insulating gloves. ・   下記のコンデンサには電源を OFF にした後も電荷が残り、高電圧が維持されており危険です。修理作業前に放電用抵抗...
  • Page 53 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D MAIN (1) MAIN (2) (Side B) (Side B) MCR-B043 • Semiconductor Location Ref no. Location D104 D105 D2005 D303 D304 D305 D307 D308 D310 D313 Q2009 Q2010...
  • Page 54 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D OPERATION (Side A) Remote control FLGND sensor FL_MOSI FL_SCK FL_N_CS FL_N_RST +3.3S REMOTE +3.3M DGND P_SW VOL_RA VOL_RB +34D_PRT KEY0 LED_CTRL HP_DET HP_R MAIN (1) HPGND (W103) HP_L UGND UGND UGND MAIN (1) (W102) (Headphone jack) CB502...
  • Page 55 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D OPERATION (Side B) • Semiconductor Location Ref no. Location D501 D502 D503 D504 D505 D510 D511 D512 D513 D514 D515 D517 D518 D519 Q501 Q502 Q503...
  • Page 56 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D (Side A) (Side B) LOUT/SPDIF DAB MODULE ROUT TUNE_GND TUNE/NC SCLK SDIO /RST IC501 MAIN (1) • Semiconductor Location (CB160) Ref no. Location D501 IC501...
  • Page 57: Schematic Diagrams

    MCR-B043/MCR-B043D/NS-BP83 SCHEMATIC DIAGRAMS MCR-B043 MCR-B043D MAIN 1/3 D A B M O D U L E to Bluetooth module T U N E R T o B T c a r d M O D U L E P N 1 0 1...
  • Page 58 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D Notes) 注意 )  MAIN 2/3 Safety measures 安全対策   • Some internal parts in this product contain high voltages and are dangerous. Be sure to take safety measures during servicing, such as wearing insulating gloves. ・   この製品の内部には高電圧部分があり危険です。 修理の際は、 絶縁性の手袋を使用するなどの安全対策を行ってください。...
  • Page 59 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D MAIN 3/3 IC301: LA6565-TE-L-E Unit CD driver MAIN (1) Resistance: ohm Thermal Shutdown Signal System GND SGND n o _ u s e n o _ u s e n o _ u s e R 4 2 9...
  • Page 60 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D OPERATION W Y 6 9 2 7 0 L O C A T I O N : * * 5 0 1 V 5 0 1 1 6 - S T - 1 0 4 G I N K...
  • Page 61 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D A, B, G models C A P A C I T O R R E M A R K S P A R T S N A M E M A R K E L E C T R O L Y T I C...
  • Page 62: Replacement Parts List

    MCR-B043/MCR-B043D/NS-BP83 ■ REPLACEMENT PARTS LIST • ELECTRICAL COMPONENT PARTS WARNING ● Components having special characteristics are marked ⚠ and must be replaced with parts having specifications equal to those originally installed. ●  ⚠印のある部分は、安全確保部品を示しています。部品の交換が必要な場合、パーツリストに記載されている部品を使用し てください。 ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS: C.A.EL.CHP...
  • Page 63 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MAIN Ref No. Part No. Description Remarks Markets 部 品 名 ZR436100 P.C.B. MAIN MCR-B043 PCB MAIN ZR436200 P.C.B. MAIN MCR-B043 PCB MAIN ZR436300 P.C.B. MAIN MCR-B043 PCB MAIN ZR436400 P.C.B. MAIN MCR-B043 PCB MAIN ZR436500 P.C.B. MAIN MCR-B043 PCB MAIN ZR436600 P.C.B. MAIN MCR-B043 PCB MAIN...
  • Page 64 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MAIN Ref No. Part No. Description Remarks Markets 部 品 名 C328 US035100 C.CE.CHP 0.1uF 16V B MCR-B043 チップセラコン C329 US163100 C.CE.CHP 1000pF MCR-B043 チップセラコン * C330 US034821 C.CE.CHP 0.082uF 16V K MCR-B043 チップセラコン C331 US163100 C.CE.CHP 1000pF MCR-B043 チップセラコン...
  • Page 65 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MAIN Ref No. Part No. Description Remarks Markets 部 品 名 C414 US035100 C.CE.CHP 0.1uF 16V B MCR-B043 チップセラコン C415 WV169100 C.CE.CHP 2.2uF MCR-B043 チップセラコン C416 US035100 C.CE.CHP 0.1uF 16V B MCR-B043 チップセラコン C417 US064100 C.CE.CHP 0.01uF 50V B MCR-B043 チップセラコン...
  • Page 66 V6267600 DIODE RB051L-40 MCR-B043 ダイオード D2007 WR897300 DIODE RR264M-400TR MCR-B043 ダイオード F2001 V2997600 SW.POLY SMDC050-02 MCR-B043 ポリスイッチ IC102 YC579A00 IC.CPU R5F364AMNFA MCR-B043 unwritten CPU IC IC103 YC109A00 IC R3116N271A-TR-F MCR-B043 電源IC IC104 YC781B00 IC R1EX24002ATAS0I MCR-B043 メモリIC * New Parts / 新規部品...
  • Page 67 MCR-B043 電源IC IC301 YA727A00 IC LA6565 MCR-B043 ドライバーIC IC302 YD318A00 IC MNZSH40QUB-1 MCR-B043 IC * IC304 YH237A00 IC.MEMORY EN29LV160CB-70TIP MCR-B043 written 書込済メモリIC J104 RD350000 R.CHP 0Ω 1/16W J MCR-B043 チップ抵抗 J312 RD350000 R.CHP 0Ω 1/16W J MCR-B043 チップ抵抗 J324 RD350000 R.CHP 0Ω...
  • Page 68 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MAIN Ref No. Part No. Description Remarks Markets 部 品 名 R166 RD357470 R.CHP 47KΩ 1/16W J MCR-B043 チップ抵抗 R167 RD355220 R.CHP 220Ω 1/16W J MCR-B043 チップ抵抗 * R168-169 RD354221 R.CHP 22Ω 1/16W J MCR-B043 チップ抵抗 R170 RD355220 R.CHP 220Ω...
  • Page 69 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MAIN Ref No. Part No. Description Remarks Markets 部 品 名 R369-370 RD358100 R.CHP 100KΩ 1/16W J MCR-B043 チップ抵抗 R371-372 RD354470 R.CHP 47Ω 1/16W J MCR-B043 チップ抵抗 R373 RD354330 R.CHP 33Ω 1/16W J MCR-B043 チップ抵抗 R374-375 RD354470 R.CHP 47Ω 1/16W J MCR-B043 チップ抵抗...
  • Page 70 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D MAIN Ref No. Part No. Description Remarks Markets 部 品 名 R2054 RD357470 R.CHP 47KΩ 1/16W J MCR-B043 チップ抵抗 R2056 RD356750 R.CHP 7.5KΩ 1/16W J MCR-B043 チップ抵抗 R2057 RD357160 R.CHP 16KΩ 1/16W J MCR-B043 チップ抵抗 R2058 RD356100 R.CHP 1KΩ...
  • Page 71 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D MAIN Ref No. Part No. Description Remarks Markets 部 品 名 C146 US063221 C.CE.CHP 2200pF 50V B MCR-B043D チップセラコン C147 US126100 C.CE.CHP MCR-B043D チップセラコン C148 US035100 C.CE.CHP 0.1uF 16V B MCR-B043D チップセラコン C160 US062100 C.CE.CHP 100pF 50V B MCR-B043D チップセラコン...
  • Page 72 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D MAIN Ref No. Part No. Description Remarks Markets 部 品 名 C370 US061120 C.CE.CHP 12pF 50V B MCR-B043D チップセラコン C371 US035100 C.CE.CHP 0.1uF 16V B MCR-B043D チップセラコン C372-373 US162820 C.CE.CHP 820pF 50V J MCR-B043D チップセラコン C374 US035100 C.CE.CHP 0.1uF 16V B MCR-B043D チップセラコン...
  • Page 73 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D MAIN Ref No. Part No. Description Remarks Markets 部 品 名 C477 US062100 C.CE.CHP 100pF 50V B MCR-B043D チップセラコン C2001 US035100 C.CE.CHP 0.1uF 16V B MCR-B043D チップセラコン C2003-2004 US035100 C.CE.CHP 0.1uF 16V B MCR-B043D チップセラコン C2005 US126100 C.CE.CHP MCR-B043D チップセラコン...
  • Page 74 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D MAIN Ref No. Part No. Description Remarks Markets 部 品 名 C2132-2135 US061560 C.CE.CHP 56pF 50V B MCR-B043D チップセラコン C2138 US061560 C.CE.CHP 56pF 50V B MCR-B043D チップセラコン C2140 US035100 C.CE.CHP 0.1uF 16V B MCR-B043D チップセラコン D101 WW783900 DIODE 1SS355VM MCR-B043D ダイオード...
  • Page 75 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D MAIN Ref No. Part No. Description Remarks Markets 部 品 名 R124 RD357100 R.CHP 10KΩ 1/16W J MCR-B043D チップ抵抗 R125 RD357220 R.CHP 22KΩ 1/16W J MCR-B043D チップ抵抗 R125 RD357470 R.CHP 47KΩ 1/16W J MCR-B043D チップ抵抗 R125 RD357120 R.CHP 12KΩ 1/16W J MCR-B043D チップ抵抗...
  • Page 76 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D MAIN Ref No. Part No. Description Remarks Markets 部 品 名 R334 RD357120 R.CHP 12KΩ 1/16W J MCR-B043D チップ抵抗 R335 RD357680 R.CHP 68KΩ 1/16W J MCR-B043D チップ抵抗 R336 RD355820 R.CHP 820Ω 1/16W J MCR-B043D チップ抵抗 R337 RD356330 R.CHP 3.3KΩ 1/16W J MCR-B043D チップ抵抗...
  • Page 77 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D MAIN and OPERATION Ref No. Part No. Description Remarks Markets 部 品 名 R2021 RD357470 R.CHP 47KΩ 1/16W J MCR-B043D チップ抵抗 R2022 RD356100 R.CHP 1KΩ 1/16W J MCR-B043D チップ抵抗 R2023-2024 RD356220 R.CHP 2.2KΩ 1/16W J MCR-B043D チップ抵抗 R2026-2027 RD358100 R.CHP 100KΩ...
  • Page 78 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D OPERATION Ref No. Part No. Description Remarks Markets 部 品 名 C511 US135100 C.CE.CHP 0.1uF チップセラコン C513-514 US063100 C.CE.CHP 1000pF 50V B チップセラコン C515 US065100 C.CE.CHP 0.1uF 50V B チップセラコン C516-517 UM417330 C.EL 33uF ケミコン C518 US135100 C.CE.CHP 0.1uF チップセラコン...
  • Page 79 MCR-B043/MCR-B043D/NS-BP83 MCR-B043D Ref No. Part No. Description Remarks Markets 部 品 名 ZD574600 P.C.B. MCR-B043D PCB DAB CB501 VQ624501 CN 16P TE HIF3H MCR-B043D コネクター CB502 VQ044400 CN.BS.PIN MCR-B043D コネクター C501 US064100 C.CE.CHP 0.01uF 50V B MCR-B043D チップセラコン C502 WP882000 C.CE.CHP 10uF 6.3V MCR-B043D チップセラコン...
  • Page 80 MCR-B043/MCR-B043D/NS-BP83 Carbon Resistors Value 1/4W Type Part No. 1/6W Type Part No. Value 1/4W Type Part No. 1/6W Type Part No. 1.0 Ω HJ35 3100 HF85 3100 11 kΩ HF45 7110 HF45 7110 ✻ 1.8 Ω 3180 12 kΩ 7120...
  • Page 81 MCR-B043/MCR-B043D/NS-BP83 MCR-B043 MCR-B043D 2-102 MCR-B043D 2-16 • OVERALL ASSEMBLY 2-102 2-100 2-22 1-13 2-102 2-56 2-52 MCR-B043D U, J models 2-61 2-51 2-100 200-1 2-156 1-31 2-21 2-101 2-52 T model T model 2-101 2-20 2-100 2-100 2-100 2-104 2-100...
  • Page 82 * 1-3 ZR439600 P.C.B. ASSEMBLY BTCARD PCB BTCARD 2-16 ZF256700 POWER SUPPLY MODULE AY062P-1HF02 13.5V 電源モジュール * 1-11 ZR174200 FRONT PANEL MCR-B043 BL フロントパネル * 2-20 ZQ549800 LOADER MECHANISM UNIT DL-10HJ without LABEL ローダーメカユニット * 1-11 ZR389500 FRONT PANEL MCR-B043 WH フロントパネル...
  • Page 83 MCR-B043/MCR-B043D/NS-BP83 NS-BP83 • OVERALL ASSEMBLY Ref No. Part No. Description Remarks Markets 部 品 名 SPEAKERS NS-BP83 ZH110000 CABINET ASSEMBLY キャビネットAss’y ZD652800 FRONT GRILLE ASSEMBLY フロントグリルAss’y * 303 ZR170200 SPEAKER PANEL スピーカーパネル * 303 ZR388600 SPEAKER PANEL スピーカーパネル * 303 ZR388700 SPEAKER PANEL スピーカーパネル...
  • Page 84: Remote Control

    MCR-B043/MCR-B043D/NS-BP83 ■ REMOTE CONTROL SCHEMATIC DIAGRAM PANEL KEY NO. LAYOUT KEY CODE Key No. Key Name Code SNOOZE/SLEEP 78-4F (Power) 78-2F U1 GPM6P1001A ALARM 78-A0 78-4A (Bluetooth) 78-DE 78-BC RADIO 78-4B 78-DF VSS_TX OPTION 78-2B FOLDER 78-8E 78-D2 (Skip –/Search –)
  • Page 85 MCR-B043/MCR-B043D/NS-BP83 MEMO MEMO...
  • Page 86 MCR-B043/MCR-B043D/NS-BP83 MEMO...
  • Page 87 MCR-B043/MCR-B043D/ NS-BP83...
