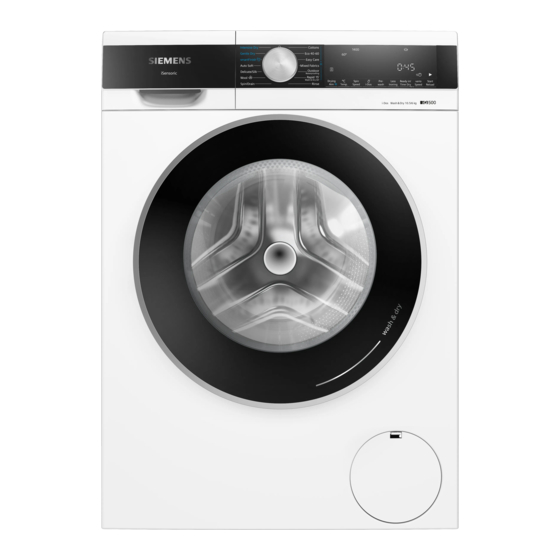

- Page 1 WN54G1A1GB Washer dryer EN User manual and installation instructions Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Buttons ........ 24 1.1 General information.... 4 9 Dryness level...... 26 1.2 Intended use...... 4 9.1 Changing the dryness level.. 26 1.3 Restriction on user group.. 4 1.4 Safe installation ...... 5 10 Programmes ...... 27 1.5 Safe use ........ - Page 3 15 Childproof lock...... 34 15.1 Activating the childproof lock ........ 34 15.2 Deactivating the childproof lock ........ 34 16 Intelligent dosing system .. 35 16.1 Pouring liquid detergent and fabric softener into the dispensers ...... 35 16.2 Using the manual dosing compartment ...... 36 16.3 Setting the basic dosage amount ........
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Connect the appliance to a power supply with alternating cur- ▶ rent only via a properly installed socket with earthing. The protective conductor system of the domestic electrical in- ▶... -
Page 6: Safe Use
en Safety If the power cord is too short and a longer one is not available, ▶ please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. Do not lift the appliance on your own. - Page 7 Safety en If the appliance or the power cord is damaged, immediately un- ▶ plug the power cord or switch off the fuse in the fuse box and turn off the water tap. Call customer services. → Page 55 ▶ An ingress of moisture can cause an electric shock. Only use the appliance in enclosed spaces.
- Page 8 en Safety Keep detergents and care products out of the reach of children. ▶ WARNING ‒ Risk of explosion! Highly flammable objects such as lighters or matches may ignite during the drying process. Remove all highly flammable objects from any pockets in your ▶...
-
Page 9: Safe Cleaning And Maintenance
Safety en Reaching into the drum while it is still turning may cause hand in- juries. Wait for the drum to come to a complete stop before reaching ▶ inside. CAUTION ‒ Risk of scalding! When you wash at high temperatures, the detergent solution gets hot. - Page 10 en Safety WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. Only use the manufacturer's original spare parts and original ac- ▶ cessories. WARNING ‒ Risk of poisoning! Poisonous fumes may be given off if you use cleaning agents that contain solvents.
-
Page 11: Preventing Material Damage
Preventing material damage en Make sure that the length of the ▶ Preventing material damage 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be Preventing material damage ATTENTION! able to operate properly. -
Page 12: Environmental Protection And Saving Energy
en Environmental protection and saving energy Remove all detergent residue, Set the maximum spin speed if you ▶ spray residue or other residues im- want to dry the laundry in the appli- mediately if they come into contact ance afterwards. with the appliance. a The drier the laundry, the shorter the programme duration when dry- ing which, in turn, reduces energy... -
Page 13: Installation And Connection
Installation and connection en Replace the accessories in ques- ▶ Installation and connection 4 Installation and con- tion before operating the appli- ance. nection → "Accessories", Page 31 Installation and connection Note: The appliance has undergone 4.1 Unpacking the appliance a function test at the factory. This may cause water stains in the appli- ATTENTION! ance, which the first wash cycle re-... - Page 14 en Installation and connection If the appliance is tilted at an angle 4.4 Removing the transit greater than 40°, residual water may bolts leak out of the appliance and cause material damage. The appliance is secured for trans- Tilt the appliance carefully. portation using transit bolts on the ▶...
-
Page 15: Connecting The Appliance
Installation and connection en Remove the power cable from the Push the 4 cover caps downwards. holder. Note: To install the transit bolts to Remove the 4 sleeves. transport the appliance, perform these steps again in the reverse or- der. 4.5 Connecting the appliance Connecting the water inlet hose Connect the water inlet hose. -
Page 16: Aligning The Appliance
en Installation and connection Open the water tap carefully and Connecting the appliance to the check that the connection points electricity supply are tight. Note: Your electrical domestic install- ation for this appliance must comply Water outlet connection types with the local legal provisions and This information is intended to help safety regulations, and should in- you to connect this appliance to the... - Page 17 Installation and connection en To align the appliance, turn the ap- pliance feet. Check that the appli- ance is level using a spirit level. All appliance feet must stand firmly on the ground. Use a WAF 17 wrench to tighten the lock nuts against the housing until they are hand-tight.
-
Page 18: Detergent Drawer
en Familiarising yourself with your appliance Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. -
Page 19: Control Panel
Familiarising yourself with your appliance en Manual dosing compartment → "Using the manual dosing compartment", Page 36 : Dispenser for fabric softener → "Intelligent dosing system", Page 35 : Dispenser for liquid deter- gent → "Intelligent dosing system", Page 35 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. -
Page 20: Before Using For The First Time
en Before using for the first time Start the first wash cycle or set the Before using for the first time 6 Before using for the programme selector to to switch off the appliance. first time → "Basic operation", Page 32 Prepare the appliance for use. Before using for the first time 6.1 Starting an empty wash- ing cycle... -
Page 21: Display
Display en Display 7 Display The display shows the current settings, options or relevant information. Display Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. Program end time → "Buttons", Page 24 Recommendation for the maximum load capacity for the selected program in kg. - Page 22 en Display Display Description Programme status: Drying Programme status: Crease-reduction function Lights up: The childproof lock is activated. ¡ Flashes: The childproof lock is activated and the appli- ¡ ance has been operated. → "Deactivating the childproof lock", Page 34 The crease-reduction function is activated. → "Buttons", Page 25 Prewash is activated.
- Page 23 Display en Display Description Lights up: The door is locked and cannot be opened. ¡ Flashes: The door is not closed properly. ¡ Off: The door is unlocked and can be opened. ¡ No water pressure. ¡ → "E:30 / -10 and/or ", Page 44 The water pressure from the tap is too low.
-
Page 24: Buttons
en Buttons Buttons 8 Buttons The selection of programme settings depends on the programme that is set. Buttons Button Selection Description ℃ Temp. - 90 Adjust the temperature. Set temperature in °C. Spin Speed - 1400 Adjust the spin speed or deactivate the spin cycle. - Page 25 Buttons en Button Selection Description Less Ironing Activate Activate or deactivate the reduced ¡ creasing programme. Deactivate ¡ In order to reduce creasing in the laundry, the spin cycle and the spin speed are adapted. Note: The laundry has a higher resid- ual moisture after washing.
-
Page 26: Dryness Level
en Dryness level Dryness level 9 Dryness level In some programmes, a dryness level is predefined. The dryness level defines Dryness level how dry or damp your laundry is after the programme ends. Dryness level Laundry Drying result Multi-layered, thick laundry The laundry is dry. that does not dry readily. - Page 27 Programmes en Programmes 10 Programmes Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. Max. load load (kg) (kg) Dry- Wash Cottons Wash hard-wearing items made of cotton, 10.0 linen or blended fabrics. Also suitable as a short programme for nor- mally soiled laundry when you activate vario Speed.
- Page 28 en Programmes Programme Description Max. Max. load load (kg) (kg) Dry- Wash Max. 1400 rpm ¡ Mixed Fabrics Wash items made from cotton, linen, or syn- thetic or blended fabrics. Suitable for lightly soiled laundry. Programme setting: Max. 60 °C ¡ Max.
- Page 29 Programmes en Programme Description Max. Max. load load (kg) (kg) Dry- Wash Outdoor Wa- Wash all-weather and outdoor clothing with terproofing membrane technology and water-resistant equipment. Suitable for washing and then waterproofing. Use a detergent for outdoor fabrics. Use a waterproofing agent that is suitable for machine-washing.
- Page 30 en Programmes Programme Description Max. Max. load load (kg) (kg) Dry- Wash smartFinish Reduce creases and airborne odours in suits – and fabrics made of cotton and down. Tip: To prevent creasing, remove the laundry immediately after the programme has ended. Notes The laundry is not dried or washed.
-
Page 31: Preparing The Laundry
Accessories en Accessories 11 Accessories Use original accessories. These have Accessories been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 55. Order num- Water inlet hose ex- Extend the water inlet hose for cold water WZ10131 tension or AquaStop (approx. -
Page 32: Detergents And Care
en Detergents and care products 14.2 Setting a programme Detergents and care products 13 Detergents and care products Turn the programme selector and set the required programme. The manufacturer's instructions for Detergents and care products → "Programmes", Page 27 use and dosage can be found on the If required, adjust the programme packaging. -
Page 33: Starting The Programme
Basic operation en Requirements 14.5 Starting the programme The laundry is placed in the appli- ¡ Note: If the intelligent dosing system ance. is activated, make sure that the dis- → "Loading laundry", Page 32 pensers have been filled → Page 35 A programme has started. ¡ and the basic dosage has been set → "Starting the programme", → Page 36. -
Page 34: Cancelling The Drying Programme
en Childproof lock – If the water level is high, start Wipe the rubber gasket dry and re- the Spin programme or select a move any foreign objects. suitable programme for draining. → "Programmes", Page 27 Remove the laundry. → "Unloading the laundry", Page 34 14.9 Cancelling the drying programme Turn the programme selector to... -
Page 35: Intelligent Dosing System
Intelligent dosing system en So that the programme currently If you are using the intelligent dos- ¡ running is not cancelled, the pro- ing system, do not add additional gramme selector must be set to detergent or fabric softener into the initial programme. the compartment for manual dos- ing. -
Page 36: Using The Manual Dosing Compartment
en Basic settings 16.2 Using the manual dosing Basic settings 17 Basic settings compartment You can configure the basic settings Basic settings If you are not using the intelligent for your appliance to meet your dosing system, if intelligent dosing is needs. not possible for a programme, or if you want to add additional care 17.1 Overview of the basic product, e.g. -
Page 37: Cleaning And Servicing
Cleaning and servicing en Press Spin Speed and, at the 18.2 Cleaning the detergent same time, turn the programme drawer selector to position 2. If you want to replace the liquid de- The display shows the current tergent or fabric softener in the dis- value. - Page 38 en Cleaning and servicing Remove the pump unit. Clean the pump unit with a damp cloth. Unclip the detergent drawer cover and remove it. Clean the detergent drawer and the cover with a soft, damp cloth or hand shower. Empty the detergent drawer. Dry the detergent drawer, cover and pump unit and reinsert them.
-
Page 39: Cleaning The Drain Pump
Cleaning and servicing en Open and remove the mainten- ance flap. Clean the housing of the detergent drawer in the appliance. Slide a sufficiently large container under the opening. Push in the detergent drawer. 18.3 Cleaning the drain pump Take the drain hose out of the holder. - Page 40 en Cleaning and servicing Cleaning the drain pump CAUTION - Risk of scalding! When you wash at high temperat- Requirement: The drain pump is ures, the detergent solution gets empty. → Page 39 hot. Since water may remain in the Do not touch the hot detergent ▶...
-
Page 41: Cleaning The Intake Opening In The Rubber Gasket
Cleaning and servicing en Ensure that both impellers can Insert and close the maintenance turn. flap. Insert the pump cap. 18.4 Cleaning the intake Ensure that the parts of the ‒ opening in the rubber pump cap are correctly as- sembled. gasket Regularly check the intake opening in the rubber gasket for any block- ages and clean the intake opening. -
Page 42: Troubleshooting
en Troubleshooting Troubleshooting 19 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 43 Troubleshooting en Fault Cause and troubleshooting "E:30 / -80" Ensure that the drain pipe and water drain hose are ▶ not kinked or trapped. The water outlet hose is connected too high. Install the water outlet hose at a maximum height of ▶...
- Page 44 en Troubleshooting Fault Cause and troubleshooting "E:30 / -10" and/or First wait approx. 5 minutes until the drain process ends. To reset the error message, switch the appliance off. Switch the appliance back on. If the error message is displayed again, call cus- tomer service.
- Page 45 Troubleshooting en Fault Cause and troubleshooting All other error codes. Malfunction Switch the appliance off and then on again. If the message appears again, disconnect the appli- ance from the power supply for at least 30 seconds by pulling out the plug or by switching off the relev- ant circuit breaker in the fuse box.
- Page 46 en Troubleshooting Fault Cause and troubleshooting The programme does Childproof lock is activated. not start. Deactivate childproof lock. ▶ → "Deactivating the childproof lock", Page 34 Ready in/ Time Dry is activated. Check whether Ready in/ Time Dry is activated. ▶ → "Buttons", Page 24 Laundry is caught in the door.
- Page 47 Troubleshooting en Fault Cause and troubleshooting The water is not drain- Install the water outlet hose at a maximum height of ▶ ing. 1 metre. Pump cover is not correctly assembled. Correctly assemble the pump cover. ▶ Detergent dosage is too high. Immediate measure: Mix one tablespoon of fabric ▶...
- Page 48 en Troubleshooting Fault Cause and troubleshooting No water is visible in Water is below the visible area. the drum. Not a fault – no action required. ▶ Do not add any extra water to the appliance while it ▶ is operating. Vibrations and move- Appliance is not correctly aligned.
- Page 49 Troubleshooting en Fault Cause and troubleshooting High spin speed not Note: Where possible, mix large and small items in reached. the drum. Different sized items of laundry distribute themselves better during the spin cycle. Start the Spin programme. ▶ The spin programme Drain pipe or water outlet hose is blocked. does not start.
- Page 50 en Troubleshooting Fault Cause and troubleshooting Insufficient cleaning. Unsuitable detergent added to the dispenser of the in- telligent dosing system. Check whether the detergent used is suitable. → "Detergents and care products", Page 32 Drain the dispenser. → "Cleaning the detergent drawer", Page 37 Clean the dispenser. Refill the dispenser.
- Page 51 Troubleshooting en Fault Cause and troubleshooting Detergent residue on Unsuitable detergent added to the dispenser of the in- the damp washing. telligent dosing system. Check whether the detergent used is suitable. → "Detergents and care products", Page 32 Drain the dispenser. → "Cleaning the detergent drawer", Page 37 Clean the dispenser.
- Page 52 en Troubleshooting Fault Cause and troubleshooting The programme dura- Note: When loading, where possible, place large and tion changes during small items of laundry together in the drum. Different the wash cycle. sized items of laundry distribute themselves better during the spin cycle. Foam detection system switches on a rinse cycle if foam build-up is too high.
- Page 53 Troubleshooting en Fault Cause and troubleshooting The laundry is too Set a timed programme for the subsequent drying. ▶ damp. → "Programmes", Page 27 Loud noises during Appliance is not correctly aligned. the spin cycle. → "Aligning the appliance", Page 16 ▶ The appliance feet are not fixed. Secure the appliance feet.
-
Page 54: Emergency Release
en Transportation, storage and disposal 19.1 Emergency release 20.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 39 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 55: Disposing Of Old Appliance
Customer Service en 20.4 Disposing of old appli- Customer Service 21 Customer Service ance Function-relevant genuine spare parts Customer Service Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health! - Page 56 en Consumption values Consumption values 22 Consumption values The following information is provided in accordance with the EU Ecodesign Consumption values Regulation. The values specified for programmes other than Eco 40-60 are only given as a guide and were determined in accordance with the applicable stand- ards EN60456 and EN62512.
-
Page 57: Technical Data
Technical data en Programme Load Pro- Energy Water Max- Spin Resid- (kg) gramm con- con- imum speed e dura- sump- sump- temper- (rpm) mois- tion tion tion (l/ ature ture (hr:min (kWh/ cycle) (°C) 5 cycle) mins Wool 0:41 0.180 45.0 30.00 30 °C Due to the influence of water pressure, hardness and inlet temperature, am-... - Page 58 en Technical data ternatively, you can also find the model identifier in the first line of the EU energy label.
- Page 60 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom BSH Hausgeräte GmbH Carl-Wery-Straße 34...
