Model
Fuel Type
Minimum Supply Pressure
Manifold Pressure - High
Manifold Pressure - Low
Orifice Size -Altitude 0-4500 ft.
Minimum Input
Altitude 0-4500 ft. (0-1372m)
Maximum Input
Altitude 0-4500 ft. (0-1372m)
3"x3" Co-linear
Vent Sizing
2"x3" Co-linear
CSA P4.1
Approved Venting Systems
Flex Vent Systems:
Approved for sale in Canada only. This appliance has a 7 day timer
which is required for any appliance sold in Canada.
2-1/2"
62mm
Shown with Low Profile Faceplate
L234 Gas Insert
L234-NG11
L234-LP11
Natural Gas
Propane
5" W.C. (1.25 kPa)
11" W.C. (2.73 kPa)
3.5" W.C. (0.87 kPa)
10" W.C. (2.49 kPa)
1.6" W.C. (0.40 kPa)
6.4" W.C. (1.60 kPa)
#42 DMS
#54 DMS
16,500 BTU/h
17,000 BTU/h
(4.84 kW)
(4.98 kW)
23,500 BTU/h
21,500 BTU/h
(6.89 kW)
(6.30 kW)
3"x3" Co-linear
(Standard)
2"x3" Co-linear
(Optional)
63.77%
65.02%
FPI AstroCap™ Flex Vent
32-7/8"
833mm
24-3/4"
628mm
14-3/4"
373mm
14-11/16"
371mm
(Standard)
(Optional)

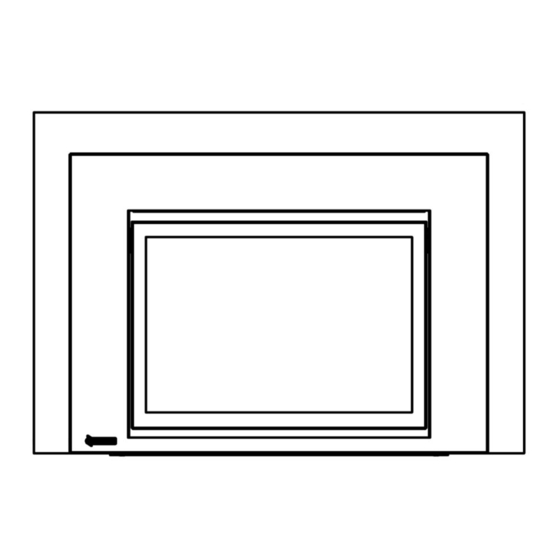

Minimum Fireplace Opening Dimensions
The minimum fireplace dimensions for the L234 gas fireplace insert are
shown in the following diagrams:
L234-11 Gas Insert |
