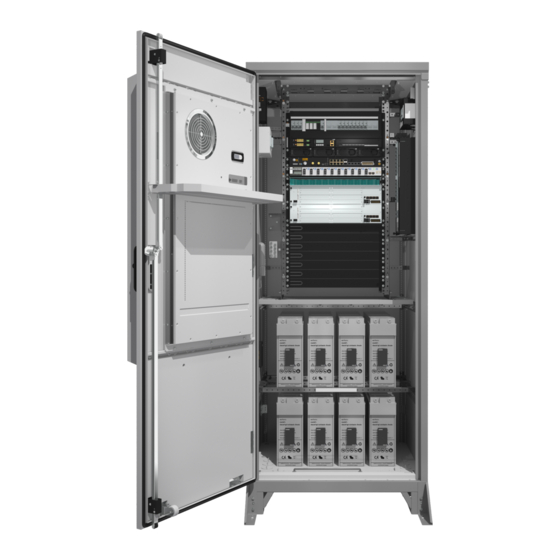

- Page 1 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide Issue Date 2021-05-30 HUAWEI TECHNOLOGIES CO., LTD.
- Page 2 Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...
-
Page 3: About This Document
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide About This Document About This Document Overview This document describes how to install and commission an MTS9300A V100R002C00 cabinet. Figures provided in this document are for reference only. Intended Audience This document is intended for: ●... - Page 4 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide About This Document Symbol Description Supplements the important information in the main text. NOTE is used to address information not related to personal injury, equipment damage, and environment deterioration. Change History Changes between document issues are cumulative. The latest document issue contains all updates made in previous issues.
-
Page 5: Table Of Contents
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide Contents Contents About This Document........................ ii 1 Safety Precautions........................1 1.1 General Safety..................................1 1.2 Personnel Requirements............................... 5 1.3 Electrical Safety..................................6 1.4 Installation Environment Requirements.......................... 7 1.5 Mechanical Safety................................... 9 1.6 Battery Safety..................................11 2 Installation Preparations..................... - Page 6 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide Contents 5.2.3 NetEco Management............................... 32 5.2.4 Third-Party NMS Management (over SNMP)......................33 5.3 Installing DC Output Power Cables..........................34 5.4 Installing Cables for an Intelligent Power Distribution Unit..................36 5.5 Installing an AC Input Power Cable..........................39 5.5.1 Installing Three-Phase Four-Wire Input Power Cable...................
-
Page 7: Safety Precautions
The "NOTICE", "CAUTION", "WARNING", and "DANGER" statements in this document do not cover all the safety instructions. They are only supplements to the safety instructions. Huawei will not be liable for any consequence caused by the violation of general safety requirements or design, production, and usage safety standards. - Page 8 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions General Requirements ● Before installing, operating, or maintaining the equipment, remove any conductive objects such as watches or metal jewelry like bracelets, bangles, and rings to avoid electric shock.
- Page 9 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions ● Before installing, operating, or maintaining a cabinet, clean up any water, ice, snow, or other sundries on the top of the cabinet to prevent sundries from falling into the cabinet when you open the cabinet door.
- Page 10 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions Personal Safety ● If there is a probability of personal injury or equipment damage during operations on the equipment, immediately stop the operations, report the case to the supervisor, and take feasible protective measures.
-
Page 11: Personnel Requirements
1.2 Personnel Requirements ● Personnel who plan to install or maintain Huawei equipment must receive thorough training, understand all necessary safety precautions, and be able to correctly perform all operations. ●... -
Page 12: Electrical Safety
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions 1.3 Electrical Safety Grounding ● The protective ground of the equipment should be reliably connected to the ground screw on the metal enclosure (grounding resistance ≤ 0.1 ohm). ●... -
Page 13: Installation Environment Requirements
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions Cabling ● When routing cables, ensure that a distance of at least 30 mm exists between the cables and heat-generating components or areas. This prevents damage to the insulation layer of the cables. - Page 14 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions Installation at Heights Working at heights refers to operations that are performed at least 2 meters above the ground. Do not at heights in any of the following situations: ●...
-
Page 15: Mechanical Safety
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions ● Any violations must be promptly pointed out by the site manager or safety supervisor and the involved personnel should be prompted for correction. Personnel who fail to stop violations will be forbidden from working. - Page 16 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions ● When a step ladder is used, ensure that the pull ropes are secured and the ladder is held firm. ● Before using a ladder, check that it is intact and confirm its load bearing capacity.
-
Page 17: Battery Safety
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions NO TICE Do not drill holes into the equipment. Doing so may affect the electromagnetic shielding of the equipment and damage components or cables inside. Metal shavings from drilling may short-circuit boards inside the equipment. - Page 18 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions D ANGER ● Do not expose batteries at high temperatures or around heat-generating devices, such as sunlight, fire sources, transformers, and heaters. Excessive heat exposure may cause the batteries to explode.
- Page 19 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions ● Install batteries in a dry and cool environment with good ventilation, which is away from high temperature and flammable materials, and take precautions against fire. ● Place and secure batteries horizontally.
- Page 20 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 1 Safety Precautions If the battery temperature exceeds 60°C, check for and promptly handle any leakage. Electrolyte overflow may damage the equipment. It will corrode metal parts and boards, and ultimately damage the boards.
-
Page 21: Installation Preparations
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 2 Installation Preparations Installation Preparations 2.1 Preparing Cables The cross-sectional area of a power cable depends on the current that will flow through the cable and the voltage drop allowed for the cable. -
Page 22: Tools
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 2 Installation Preparations Cable Type Maximum Minimum Cross- Maximum Cross- Current (A) Sectional Area (mm Sectional Area (mm Battery cable 25 x 2 35 x 2 NOTE ● The size data in the table is applicable when the ambient temperature is 30°C (in air) and only cables in a single loop are involved. -
Page 23: Product Specifications
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 2 Installation Preparations 2.3 Product Specifications Table 2-3 Product specifications Cabinet Model Dimensions (H x W x D) Weight MTS9304A-AM10A1 1000 mm x 650 mm x 650 mm < 80 kg (excluding rectifiers and... -
Page 24: Installing A Cabinet
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 3 Installing a Cabinet Installing a Cabinet 3.1 Installation Dimensions Figure 3-1 Cabinet installation dimensions 3.2 Marking Mounting Holes Prerequisites ● The installation environment is clean and dry. ● The concrete floor on which a cabinet is to be installed is level. -
Page 25: Drilling Holes And Installing Expansion Sleeves
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 3 Installing a Cabinet Procedure Step 1 Turn over the packing box, the marking-off template is shown. Step 2 Drill holes in the four dots on the position of mounting holes on the marking-off template. - Page 26 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 3 Installing a Cabinet Step 2 Take out the flat washer and replace the flat washer on the original expansion sleeves. Figure 3-4 Replacing the flat washer Step 3 Drill holes to a depth of 50 mm to 55 mm using a hammer drill.
-
Page 27: Hoisting A Cabinet
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 3 Installing a Cabinet 3.4 Hoisting a Cabinet Procedure Step 1 Bind lifting ropes to the cabinet and hoist the cabinet to the target position. NO TICE For safety, the lifting ropes for carrying a cabinet should be able to bear a weight that is more than three times the maximum weight of the cabinet. -
Page 28: Securing A Cabinet
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 3 Installing a Cabinet 3.5 Securing a Cabinet Procedure Step 1 Place flat washers, spring washers, and expansion bolts into the cabinet mounting holes. Step 2 Tighten the expansion bolts to secure the cabinet. - Page 29 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 3 Installing a Cabinet Figure 3-8 Installing cabinet protection ground cable (1) Site ground bar ----End Issue 01 (2021-05-30) Copyright © Huawei Technologies Co., Ltd.
-
Page 30: Installing Components
Prerequisites The rectifier is intact after being unpacked. NO TICE ● If the rectifier is damaged, contact your local Huawei office. ● The rectifier slot presents a risk of electric shock. Do not touch the slot with your hands. ● High temperature is generated around the air exhaust vent when the rectifier is running. -
Page 31: Optional) Installing A Intelligent Power Distribution Unit
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 4 Installing Components 4.2 (Optional) Installing a Intelligent Power Distribution Unit Procedure Step 1 Install the DCDB48-200-16B intelligent power distribution unit in the 19-inch rack. Figure 4-2 Installing the DCDB48-200-16B intelligent power distribution unit Step 2 Installing a ground cable for the DCDB48-200-16B intelligent power distribution unit. -
Page 32: Optional) Installing A Digital Temperature And Humidity Sensor
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 4 Installing Components 4.3.1 (Optional) Installing a Digital Temperature and Humidity Sensor Procedure Step 1 Attach the digital temperature and humidity sensor to the side panel of the cabinet. NO TE There is a magnet at the bottom of the digital temperature and humidity sensor, which can be directly attached to the cabinet. -
Page 33: Optional) Installing A Smoke Sensor
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 4 Installing Components Table 4-1 DIP switch settings Toggle Toggle Toggle Toggle Toggle Toggle Address of Digital Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Temperature and Humidity Sensor ----End 4.3.2 (Optional) Installing a Smoke Sensor... -
Page 34: Optional) Installing A Water Sensor
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 4 Installing Components Figure 4-7 Installing a communications cable for a smoke sensor ----End 4.3.3 (Optional) Installing a Water Sensor Prerequisites If a water sensor is required, perform the following steps to install it. - Page 35 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 4 Installing Components Figure 4-8 Securing a water sensor Step 2 Connect the communications cable of the water sensor to the WATER port on the UIM. Figure 4-9 Installing a communications cable for a water sensor...
-
Page 36: Installing Cables
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Installing Cables D ANGER ● Ensure that the upstream AC input circuit breaker is OFF, and attach labels such as "No operations allowed." ● Switch off all circuit breakers before installing cables. -
Page 37: Optional) Installing Communications Cables
Procedure Step 1 Connect one end of a network cable to the RS485/RS232 port on the SMU. Step 2 Connect the other end of the cable to the MON0 or MON1 port on Huawei BBU. Issue 01 (2021-05-30) Copyright © Huawei Technologies Co., Ltd. -
Page 38: Neteco Management
Networking Mode 2: RS485 Port Step 1 Connect one end of a network cable to the RS485/RS232 port on the SMU. Step 2 Connect the other end of the cable to the MON0 or MON1 port on Huawei BBU. Issue 01 (2021-05-30) -
Page 39: Third-Party Nms Management (Over Snmp)
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-5 Connecting a communications cable (over the RS485 port) (1) RS485/RS232 port on the SMU (2) MON1 port on BBU ----End 5.2.4 Third-Party NMS Management (over SNMP) Procedure Step 1 Connect the FE port on the SMU by using a network cable. -
Page 40: Installing Dc Output Power Cables
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables 5.3 Installing DC Output Power Cables Connecting DC Output Power Cables to 125 A Circuit Breakers Step 1 Use cables (cross-sectional area: 10–35 mm ) and cord end terminals to prepare DC output power cables. - Page 41 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-8 Installing DC output power cables (1) DC load ----End Connecting DC Output Power Cables to 63 A Circuit Breakers Step 1 Use cables (cross-sectional area: 1.5–16 mm ) and cord end terminals to prepare DC output power cables.
-
Page 42: Installing Cables For An Intelligent Power Distribution Unit
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-9 Preparing a cord end terminal (1) Cable (2) Cord end terminal (3) Crimping tool Step 2 Install DC output power cables. Insert a flat-head screwdriver (2 mm wide) into the holes for DC output circuit breakers. - Page 43 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-11 Installing power cables for the DCDB48-200-16B intelligent power distribution unit Step 2 Install DC output power cables for the intelligent power distribution unit. Figure 5-12 Installing DC output power cables for the intelligent power...
- Page 44 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-13 Removing the DMU02C1 Set the DIP address. Figure 5-14 DIP switch Table 5-3 DIP switch description Address of Intelligent Power Pin 1 Pin 2 Distribution Unit NOTE –...
-
Page 45: Installing An Ac Input Power Cable
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Step 4 Install communications cables for the intelligent power distribution unit. Figure 5-15 Installing a communications cable for one intelligent power distribution unit ----End 5.5 Installing an AC Input Power Cable Prerequisites Step 1 Use cables, cord end terminals to prepare an AC input power cable. -
Page 46: Installing Three-Live Wire Input Power Cables
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-17 Installing a 220/380 V AC three-phase four-wire input power cable (1) ACDB ----End 5.5.2 Installing Three-Live Wire Input Power Cables Procedure NO TICE When changing the input system of the AC power distribution box (PDB), move the short-circuit copper bar, as shown in the following figures. - Page 47 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-18 Adjusting the positions of short-circuiting copper bars Step 3 Reinstall the insulation cap on the short-circuit copper bar. Step 4 Connect the cables between the ACDB and the AC power distribution box.
-
Page 48: Installing Dual-Live Wire Input Power Cables
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables 5.5.3 Installing Dual–Live Wire Input Power Cables Procedure Step 1 When the ACDB380-125-2B three-phase four-wire convert to dual-live-wire power input is configured, move the short-circuit copper bar, as shown in the following figures. -
Page 49: Installing Single-Phase Input Power Cables
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-21 Connect the cables between the ACDB (ACDB380-125-2B) and the AC power distribution box (1) ACDB ----End 5.5.4 Installing Single-Phase Input Power Cables Procedure Step 1 Install the short-circuit copper bar in the corresponding position. - Page 50 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-22 Changing from three-phase four-wire to single-phase input in the ACDB380-125-2B Step 2 Connect the cables between the ACDB and the AC power distribution box. Issue 01 (2021-05-30)
- Page 51 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 5 Installing Cables Figure 5-23 Connect the cables between the ACDB and the AC power distribution (1) ACDB ----End Issue 01 (2021-05-30) Copyright © Huawei Technologies Co., Ltd.
-
Page 52: Installing Batteries And Cables
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 6 Installing Batteries and Cables Installing Batteries and Cables D ANGER ● Smoking and sparks are prohibited near batteries. ● Switch off battery circuit breakers before installing batteries. ● Comply with regulations and warnings of the battery manufacturer. -
Page 53: Installing Lithium Batteries
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 6 Installing Batteries and Cables 6.1.1 Installing Lithium Batteries Prerequisites NO TICE ● Before installing lithium batteries, ensure that the cabinet anchor bolts are tightened. ● Install lithium batteries on the lower layer and then the upper layer. -
Page 54: Installing Lithium Battery Cables
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 6 Installing Batteries and Cables Figure 6-2 Securing the lithium battery ----End 6.1.2 Installing Lithium Battery Cables Procedure Step 1 Install a ground cable for each lithium battery. Figure 6-3 Installing a ground cable for a lithium battery (1) Ground bar Step 2 Install communications cables and a build-out resistor for lithium batteries. - Page 55 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 6 Installing Batteries and Cables Figure 6-4 Installing communications cables for lithium batteries Step 3 Install lithium battery power cables. NO TICE When installing battery cables, connect the negative cable before connecting the positive cable.
- Page 56 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 6 Installing Batteries and Cables Figure 6-5 Installing lithium battery power cables ----End Issue 01 (2021-05-30) Copyright © Huawei Technologies Co., Ltd.
-
Page 57: Verifying The Installation
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 7 Verifying the Installation Verifying the Installation 7.1 Checking Hardware Installation ● Check that all screws, especially those used for electrical connections, are secured. Check that flat washers and spring washers are installed properly. -
Page 58: Commissioning
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Commissioning NO TICE ● Performing commissioning procedure provided in this chapter may result in power failure or alarms. Inform the alarm center before commencing the procedure and after completing the procedure. -
Page 59: Setting The Display Language
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Procedure Step 1 Switch on the lithium battery circuit breaker. Step 2 Press the Manual ON/OFF button on the lithium battery to activate the lithium battery. Step 3 Press the switch for 2–5 seconds. The system is powered on when you hear a sound from the contactor. -
Page 60: Setting The Date And Time
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Item Setting Value NOTE Battery model If the battery model is set to ESM-A, you do not need to set battery parameters after the SMU restarts. The SMU may restart. -
Page 61: Setting The Ac Input System
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Main Menu Second-Level Third-Level Default Value Settings Menu Menu NTP Enable Yes/No NOTE Set the parameter to Yes if you need to synchronize the SMU time and the site network server time. -
Page 62: Setting Ac Peak Clipping Parameters
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Main Menu Second-Level Third-Level Fourth-Level Menu Value Menu Menu LLVD n Mode Voltage Mode/ Time Mode LLVD n Voltage 36.0-56.0 V LLVD n Recon Volt 37.0-58.0 V LLVD n Time 0–6000 min... -
Page 63: Setting Sensor Parameters
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Main Second- Third-Level Fourth-Level Setting Description Menu Level Menu Menu Menu Peak Shaving Rated Phase Volt Set the parameter based on the Para rated voltage of the power grid. Default value: 220 V. -
Page 64: Setting Communications Parameters
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning 8.10 Setting Communications Parameters 8.10.1 (Optional) Setting Parameters for WebUI Management Operating Environment Operating system: Windows XP or later Browser: Internet Explorer 8.0 or later, Firefox 13 or later, or Chrome 20... - Page 65 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Figure 8-1 Canceling proxy server settings 1 Figure 8-2 Canceling proxy server settings 2 Step 5 Click OK. ----End Configuring Internet Explorer Security Settings NO TICE Configure Internet Explorer security setting before you perform the following operations.
- Page 66 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning To modify Internet Explorer security settings, perform the following steps: Step 1 Open Internet Explorer. Step 2 Choose Tools > Internet Options. Step 3 Click the Security tab. Step 4 Click Internet and then Custom level. After you specify Internet security settings, click Local intranet and then Custom level.
- Page 67 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Figure 8-4 Internet Explorer security setting 1 Figure 8-5 Internet Explorer security setting 2 Issue 01 (2021-05-30) Copyright © Huawei Technologies Co., Ltd.
- Page 68 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Figure 8-6 Internet Explorer security setting 3 Figure 8-7 Internet Explorer security setting 4 Step 6 Click OK. Step 7 Click the Advanced tab and select Use TLS 1.0, Use TLS 1.1, and Use TLS 1.2.
- Page 69 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Figure 8-8 Internet Explorer security setting 5 Step 8 Click OK. ----End Setting SMU Parameters Step 1 Apply for a fixed IP address to the site or equipment room network administrator.
-
Page 70: Optional) Setting Parameters Before Using U2000-Spm
Change the preset password upon your first login to ensure the system security. ----End 8.10.2 (Optional) Setting Parameters Before Using U2000- Context NO TICE If a Huawei BBU is deployed, set the Northbound and M/S Protocol parameters. Issue 01 (2021-05-30) Copyright © Huawei Technologies Co., Ltd. -
Page 71: Optional) Setting Parameters Before Using Neteco
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Procedure Step 1 Set the port mode, communications protocol type, baud rate, and communications address on the SMU's LCD. Table 8-9 Communications parameters Main Menu Second- Third- Fourth-Level Fifth-Level Default... - Page 72 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning Main Second-Level Third-Level Default Value Settings Menu Menu Menu Default 192.168.0.1 Set this parameter Gateway according to the gateway address provided by the network administrator. Step 3 Set the IP Addresses and Ports for the active servers of the NetEco on the SMU's LCD.
-
Page 73: Optional) Setting Parameters Before Using Snmp Management
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning ----End 8.10.4 (Optional) Setting Parameters Before Using SNMP Management Prerequisites NO TE You can set SNMP parameters remotely or locally on the WebUI. Before setting SNMP parameters, obtain the information listed in... -
Page 74: Connecting The Ac Power Supply
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide 8 Commissioning NO TE The preset user name is admin, and the preset password is Changeme. Step 2 Access the System Settings page and set SNMP. ● There are two NMSs and the SNMP versions are SNMPv1 or SNMPv2c and... -
Page 75: A Subsequent Operations
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide A Subsequent Operations Subsequent Operations Procedure Step 1 Reinstall the removed panel if any. Step 2 Seal used cable holes with fireproof putty and seal unused cable holes with lids delivered with the cabinet. -
Page 76: B Preparing Terminals
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide B Preparing Terminals Preparing Terminals Cut a cable of a proper length and install terminals. Preparing a cord end terminal Figure B-1 Preparing a cord end terminal (1) Cable (2) Cord end terminal... -
Page 77: C Associations Between Alarms And Dry Contacts On The Uim
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) C Associations Between Alarms and Dry Contacts on Installation Guide the UIM Associations Between Alarms and Dry Contacts on the UIM Table C-1 Associations between dry contacts and alarms Dry Contact Silkscreen Associated Alarm... - Page 78 MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) C Associations Between Alarms and Dry Contacts on Installation Guide the UIM Dry Contact Silkscreen Associated Alarm Type DIN6/ALM6 High battery temperature Very high battery temperature Low battery temperature Very low battery temperature High ambient temperature...
-
Page 79: D Acronyms And Abbreviations
MTS9300A Telecom Power (Claro, Colombia, MTS9304A-AM10A1) Installation Guide D Acronyms and Abbreviations Acronyms and Abbreviations baseband unit DCDB direct current distribution box DCDU direct current distribution unit HTTPS Hypertext Transfer Protocol Secure Liquid crystal display LLVD Load low voltage disconnection...
