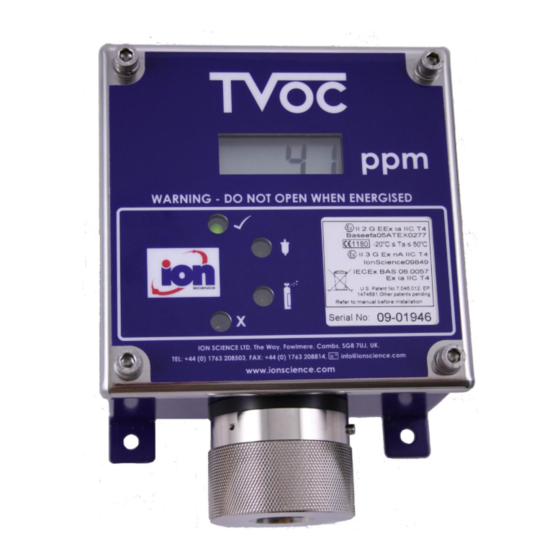

- Page 1 TVOC Instrument User Manual V3.0 Register your instrument online to receive your Extended 2 Year Warranty. See page 23 for details. TVOC Instrument User Manual Part Number: 849215...
- Page 2 TVOC MANUAL Ion Science Ltd Page 2 of 28...
- Page 3 Potentially Explosive Atmospheres – Application of Quality Systems On behalf of Ion Science Ltd, I declare that, on the date this product accompanied by this declaration is placed on the market, the product conforms to all technical and regulatory requirements of the above listed directives.
-
Page 4: Table Of Contents
TVOC MANUAL Ion Science Ltd Contents Page 1 – Statements 2 – Introduction to TVOC 3 – Packing List 4 – TVOC Set up 9-10 Selector pins Cycle times 5 – Installation 11-14 Location Mounting Cable requirements Power requirements Non Intrinsically Safe (IS) applications Intrinsically Safe (IS) applications. -
Page 5: Statements
Statements Responsibility for use TVOC detects a large range of gases, which are potentially dangerous from both a poisoning and/or an explosive perspective. TVOC has a number of selectable features allowing the detector to be used in a variety of applications. Ion Science Ltd can accept no responsibility for the incorrect adjustment of features that cause harm or damage to persons or property. -
Page 6: Introduction To Tvoc
Duty cycle 5 seconds ON / 55 seconds OFF TVOC gives a continuous 4 – 20 mA output which can be integrated into a DCS control system to give an indication of VOC levels in the operating environment. In addition to the 4 – 20 mA output TVOC has an LCD display showing gas concentration and 4 colour LED’s. - Page 7 TVOC ATEX or IECEx certificate for further details. The TVOC safety rating permits its deployment in all hazardous areas of the quoted (or less demanding) rating. For detail please refer to the marking on your instrument (found on the front main label). As of 1 October units will be manufactured with two protection concepts applied by separate certifications.
-
Page 8: Packing List
Contents should be carefully removed and checked against the packing list. Any discrepancies between the contents and the packing list must be reported to Ion Science Ltd within 10 days of receipt of shipment. Ion Science cannot be held responsible for shortages not reported with in the period. -
Page 9: Tvoc Setup
TVOC Setup 4.1 Selector Pins TVOC has a number of settings that can be selected by the user via a row of 4 selector pins mounted on the reverse side of the main PCB. Diagram 4.1 shows the location of the functional selector pins labelled - A, B, C &... -
Page 10: Cycle Times
0 to 5 minutes in 1 second increments. The 4 – 20 mA output is updated at the end of each cycle. As standard the TVOC duty cycle is 1 minute – the lamp is ON for 5 seconds and OFF for 55 seconds. -
Page 11: Installation
Mount TVOC in an area that has good air circulation. Restricting natural air current may result in delayed detection. Never mount TVOC in direct sunlight or over a heat source such as a radiator. This may cause TVOC to exceed its certified working range. ... -
Page 12: Cable Requirements
IP20 rated. This may seem extraordinary however where the power is safely limited to the TVOC it is intrinsically safe so does not rely on the prevention of dirt or moisture into the enclosure. -
Page 13: Intrinsically Safe (Is) Applications
TVOC fuses may not be replaced in the field. If a fuse is blown TVOC will require inspection by Ion Science Ltd or and Ion Science Approved Service Centre before it is used in an IS application Page 13 of 28... -
Page 14: Initial Calibration
TVOC is calibrated at Ion Science before dispatch using 100ppm Isobutylene. However if you wish to calibrate your TVOC once it is installed Ion Science recommends that the TVOC is left to run on its chosen settings (see page 9TVOC Set up) for 24 hours before an initial calibration is carried out, to allow the instrument to settle into the working environment. -
Page 15: Operation
Operation 6.1 Start Up After electrical power is connected, TVOC runs through a ‘Start up’ routine, which lasts for approximately 1 minute. During this ‘Start up’ routine TVOC demonstrates the following characteristics: * The LCD screen displays the software version number * The GREEN LED flashes * The 4 –... -
Page 16: Led's
Please see Section 7 Calibration for YELLOW LED status. 6.4 Selector pins TVOC has a range of options that are selected via the selector pins on the back of the main PCB (please see page 9TVOC Set up). The options are shown below with the defaults highlighted in bold: 1-1000ppm 0.01 - 10 ppm or 0.1 - 100 ppm... -
Page 17: Calibration
Calibration 7.1 Calibration routine Ion Science recommends calibrating TVOC after any maintenance or lamp cleaning is carried out and on a 3 monthly basis to ensure TVOC is working to specification. NOTE: Please read this entire calibration procedure before attempting a calibration. -
Page 18: Setting The Gas Tolerance
Luer fitting; only a ¼ turn is required. Switch on the gas supply and then place the magnet over the logo. The SPAN LED will flash and TVOC will display the direct millivolt (mV) output from the PID sensor. Now remove the magnet. Calibration adaptor... - Page 19 Now place the magnet over the logo corner to return to normal monitoring routine. The GREEN LED will start flashing as TVOC starts its cycle with a lamp ON cycle. If either the ZERO and/or SPAN levels where outside acceptable levels the RED LED will flash until an acceptable calibration has been carried out.
-
Page 20: Maintenance
TVOC MANUAL Ion Science Ltd Maintenance Cleaning / replacing the lamp TVOC has been designed to ensure servicing is quick and easy: TVOC 1. Before servicing disconnect the electrical power supply. Locking Screw 2.Remove the Metal Sensor Cap from the... - Page 21 TVOC MANUAL Ion Science Ltd Maintenance 5. The PID Cell’s Metal Spring Cover can be pulled off using moderate force. The Electrode Stack Lamp can then be removed Electrode PID Cell by holding the Stack upside down. WARNING: Electrode Stack...
-
Page 22: Fuse Rupture And Replacement
NOTE: Always calibrate TVOC after servicing is carried out. Fuse rupture and replacement TVOC has a 125 mA BASEEFA certified fuse to provide instrinsically safe protection when the unit is installed in hazardous areas. This fuse may ruptures for example due to over voltage or a current surge, if this is the case replacement is different depending upon the application being Intrinsically Safe or not. -
Page 23: Instrument Warranty And Service
Service Ion Science is pleased to offer a number of service options on our TVOC product range that allow you to choose the instrument cover that best suits your needs. At Ion Science we recommend that all of our gas detection instruments be returned for service and factory calibration once every 12 months. -
Page 24: Diagnostics
TVOC MANUAL Ion Science Ltd Diagnostics Below are two conditions your TVOC can be in when it is working correctly: The two conditions shown below are of the instrument in an error state with potential checks/cures for these faults: If an F1 error occurs when the instrument is first switched on there may not be an issue. The instrument needs to be left on for a few cycles to see if the lamp strikes on its own. - Page 25 If you do not have any spare pellets, lamps or PID cells then you will need to contact Ion Science for some assistance if the problem remains after the instrument has completed a few minutes of run cycles and the cable has been checked.
-
Page 26: Spare Parts
TVOC MANUAL Ion Science Ltd Spare parts Part Description Part number Calibration tool kit Calibration magnet, Calibration adaptor, Calibration connector, Zero gas aspirator, Carbon filter, 2 x Allen keys. A-849214 Flow adaptor Replaces the standard Sensor Cap (Allows an external pump to be fitted) -
Page 27: Technical Specifications
Ci = 0F Li = 0mH For information only please see ATEX certificate before installation Zener Barriers: Ion Science Ltd suggest using the following Zener Barriers for ATEX / IS approved applications. Ask your installation engineers for installation and application advice. Manufacturer... -
Page 28: Update Log
09/01/09 V3.09 TVOC 2.5 Diagnostics added and P&F 20/02/09 V3.09 barrier changed TVOC 2.6 TVOC firmware modified to 22/07/09 V3.10 allow customers to calibrate using an alternative concentration. Aldo improved the description of the F2 fault condition. (P6, P17, P24) TVOC 2.7...
