- Page 1 Instrument User Manual V2.1R Unrivalled Gas Detection. ionscience.com...
- Page 2 Thank you for purchasing your Ion Science instrument. The standard warranty of your instrument can be extended to up to five years on PhoCheck Tiger and two years on other Ion Science instruments. To receive your extended warranty, you must register your instrument online within one month of purchase ( terms and conditions apply.)
-
Page 3: Declaration Of Conformity
Ion Science Ltd EU Declaration of conformity Manufacturer: Ion Science Ltd (original manufacturer was Shawcity Limited, Pioneer Road, Faringdon, Oxon., SN7 7BU who are a wholly owned subsidiary of Ion Science Ltd) Product: MVI Mercury Vapour Indicator Product Description: Hand held detector comprising dual beam UV absorption module for the detection of... -
Page 4: Table Of Contents
Disposal .................................... 5 Calibration and Repair Facility ............................5 Training ..................................... 5 Legal Notice ..................................5 Warranty ..................................6 Contact Ion Science Limited ............................. 6 Introduction ................................. 7 Principle of Operation ..............................7 Specification................................. 8 Packing list ................................9 Description ................................10 Operating controls ...............................11... -
Page 5: Statements
"as is" and without any representation, term, condition or warranty of any kind, either express or implied. To the extent permitted by law, Ion Science shall not be liable to any person or entity for any loss or damage which may arise from the use of this manual. -
Page 6: Warranty
Conditions apply). You will then receive a confirmation email that your Extended Warranty Period has been activated and processed. Full details, along with a copy of our Warranty Statement can be found by visiting: ionscience.com/instrument-registration Contact Ion Science Limited German Office UK Head Office USA Corporate HQ... -
Page 7: Introduction
Ion Science Ltd Introduction The Mercury Vapour Indicator (MVI) is primarily used to monitor environments where Mercury or any of the Mercury compounds are produced, processed or stored and applications where Mercury vapours may pose a health hazard to personnel. -
Page 8: Specification
MVI MANUAL Ion Science Ltd Specification Function Surveying atmospheres for Mercury (Hg) concentrations below and above the accepted exposure limit Detector Dual beam Ultra-Violet absorption module Measuring Ranges 0.1-199.9 and 1.0-1999 µg/m (user controlled) Sensitivity 0.1 µg/m and 1.0 µg/m Accuracy ±... -
Page 9: Packing List
Contents should be carefully removed and checked against the packing list. Any discrepancies between the contents and packing list must be reported to Ion Science Limited within 10 days of receipt of shipment. Ion Science cannot be held responsible for shortages not reported within that period. -
Page 10: Description

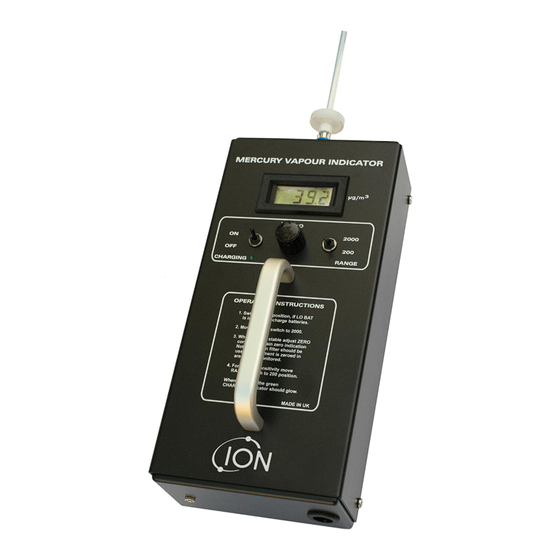

Ion Science Ltd Description The Mercury Vapour Indicator (MVI) is a compact, self contained and completely portable instrument which indicates the amounts of Mercury in micrograms/cubic metre. The indicating digital display and carrying handle are mounted on the top cover. A female luer connector is provided at the end of the instrument to accommodate a dust and water trap filter with PTFE extension probe. -
Page 11: Operating Controls
MVI MANUAL Ion Science Ltd Operating controls The MVI indicating display and all operating controls are mounted on the front panel where they are readily accessible when the unit is held in the operating position. The ON/OFF switch is located immediately below the display and to the left. In the ON position the MVI will operate and display. - Page 12 MVI MANUAL Ion Science Ltd Operating controls Indicating Display This shows the Mercury concentration in the monitored environment. Range: 0-2000 µg/m Range: 0-200 µg/m Unrivalled Gas Detection. ionscience.com Page 12 of 23...
- Page 13 MVI MANUAL Ion Science Ltd Operating controls Important Note The display will indicate LO BAT when batteries require charging. Please note the instrument does not operate reliably when LO BAT is indicated. Unrivalled Gas Detection. ionscience.com Page 13 of 23...
-
Page 14: Battery Charging
MVI MANUAL Ion Science Ltd Battery charging Universal Battery Charger (A-26220) Unrivalled Gas Detection. ionscience.com Page 14 of 23... -
Page 15: Recharging
Only use the Ion Science universal battery charger (Part Number: A-26220) provided with your instrument. When received as new or after Service by Ion Science or an approved Ion Science Service Centre, your Instrument will arrive fully charged. Do NOT recharge until the “LO BAT” symbol appears. Do not leave connected to the AC power supply unless charging and certainly no more than 16 hours from a low battery message. -
Page 16: Preparing The Mvi For Use
MVI MANUAL Ion Science Ltd Preparing the MVI for use It is recommended that you zero your instrument in a known ‘clean environment’ using fresh air. Turn the instrument ON and ensure the LO BAT indication does not appear. • If LO BAT does appear then charge the unit for 16 hours before proceeding to next step (refer to Battery Charging Section of this manual for further information). - Page 17 MVI MANUAL Ion Science Ltd Due to the nature of the carbon filter case and the materials used, it can give odours which will show as a small negative reading on the MVI when removed. Preparing the MVI for use The MVI is now ready for use.
-
Page 18: Interferences
MVI MANUAL Ion Science Ltd Interferences The MVI detector operates on the principle of UV light absorption. There are substances other than Mercury which also cause light absorption and these substances are known as interference vapours. Some of the interference vapours encountered are various hydrocarbons, water vapour, Sulphur compounds and particles such as smoke. -
Page 19: User Maintenance
MVI MANUAL Ion Science Ltd User maintenance Filter Replacement Charcoal (Zero) Filter It is advised that you replace the carbon filter after exposure to contaminants as it will become saturated with use. To check the condition of the filter, use the following procedure: Turn the instrument ON and ensure that the LO BAT indicator does not appear. -
Page 20: Alarm Level
MVI MANUAL Ion Science Ltd User maintenance Alarm Level The Mercury alarm level is factory set at 20 µg/m . These values are limited by unit accuracy. The alarm level cannot be set beyond 35 µg per metre cube. MVI Health Check Over time the internal filter and tubing can become contaminated. -
Page 21: Consumable Items
MVI MANUAL Ion Science Ltd Consumable items Description Part Number Zero Filter A-31057 PTFE Probe and pack of 10 filters A-26007 Manual 26002 Universal Battery Charger A-26220 Unrivalled Gas Detection. ionscience.com Page 21 of 23... -
Page 22: Calibration And Repair
Primary Standard and issue a certificate of calibration. If any calibration or repair work is required please return the instrument to the Service Department at Ion Science Ltd. A written estimate will be provided for all work. -
Page 23: Manual Log
The audible alarm (factory set) info has been updated – page 6 & page MVI Manual V1.9 22/6/2012 Manual format and layout updated MVI Manual V2.0 07/01/2013 Over charging information added (page 13) Interferences text (Page 18) updated. Address for Ion Science America MVI Manual V2.1 02/05/2013 updated. MVI Manual Logo only 01/08/2017 V2.1R...
