Vulcan-Hart VG30 Specifications

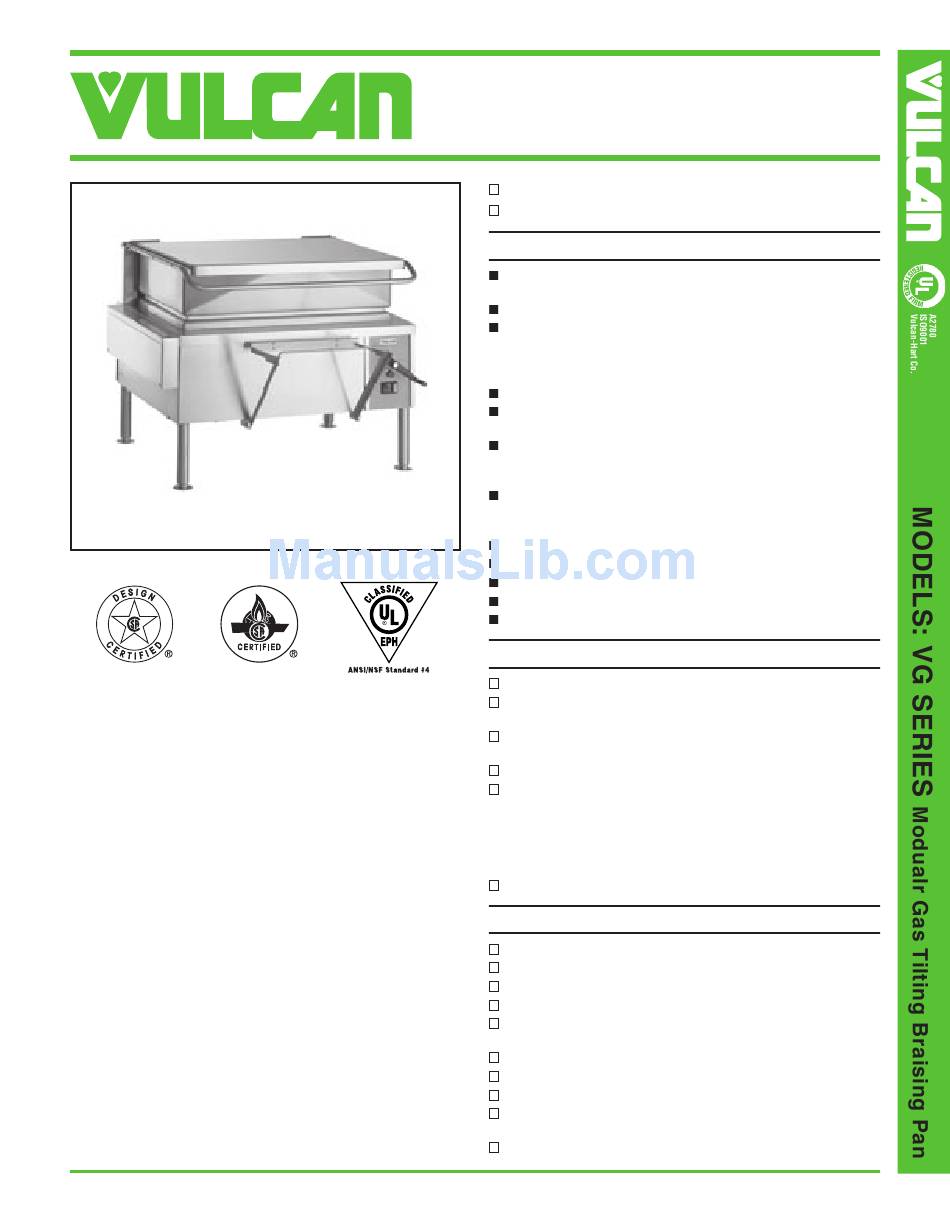

Shown with faucet bracket
SPECIFICATIONS:
Modular gas tilting braising pan, Vulcan-Hart Model No. (VG30)
(VG40). ___" wide open base. Stainless steel front, sides and
12" legs with adjustable flanged feet. Stainless steel back. Front
hinged polished stainless steel pan body with coved interior
corners and embossed gallon markings. Stainless steel cooking
surface bonded to steel plate. Full width 4" return flange with
formed pouring lip and removable strainer. Stainless steel spring
assist cover with full width handle. Drop away food pan receiving
support mounts under pouring lip. Manually operated pan tilting
mechanism with folding swing away handle. Pan can be fully
tilted to empty completely with approximately 30 crank revolu-
tions. One 30,000 BTU/hr. burner for each 12" pan width. Burners
shut off when pan is tilted 5°. Electronic ignition system for
automatic burner light. Solid state temperature controls. Water
tight controls and enclosures. Requires a 120/60/1 electrical
power supply, 3.0 amps total draw.
gas pressure regulator.
Exterior dimensions: ___"w x 35
CSA design certified. Classified by U L to NSF Std. #4.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32577 (9-05)
3 / " rear gas connection and
4
1 / "d x 40 1 / "h on 12" legs.
2 2
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
VG SERIES
MODULAR GAS TILTING BRAISING PAN
VG30 36" wide open base.
VG40 46" wide open base.
STANDARD FEATURES
Stainless steel front, sides and 12" legs with adjustable flanged
feet.
Stainless steel back.
Front hinged polished stainless steel pan body with coved
interior corners and embossed gallon markings. Stainless
steel cooking surface bonded to steel plate. Full width 4"
return flange with formed pouring lip and removable strainer.
Stainless steel spring assist cover with full width handle.
Drop away food receiving pan support mounts under pouring
lip. (Not available with optional draw-off valve on VG30.)
Manually operated pan tilting mechanism with folding swing
away handle. Pan can be fully tilted to empty completely
with approximately 30 crank revolutions.
One 30,000 BTU/hr. burner for each 12" pan width. Burners
shut off when pan is tilted 5°. Electronic ignition system for
automatic burner lighting.
Solid state temperature controls.
Water tight controls and enclosures.
Requires a 120/60/1 electrical power supply, 3.0 amps.
3
/ " rear gas connection with gas pressure regulator.
4
One year limited parts and labor warranty.
OPTIONS
Motor driven pan lift.
2" 90° draw-off valve with strainer on front left hand side.
(Pan support will be removed on VG30.)
2" straight draw-off valve with strainer on left hand side. (Pan
support will be removed on VG30.)
Closed base.
Standard prison package includes:
• Security screws and tackwelds.
- Includes securing crank handle, pan strainer and non-
door type panels.
• Controls protected by lockable cover.
• Perforated flue cover.
Second year extended limited parts and labor warranty.
ACCESSORIES
Set of four casters, (two locking).
Faucet bracket assembly (adds 3" to width).
(12") (18") double jointed single pantry faucet.
(12") (18") double jointed double pantry faucet.
Double pantry washdown hose with 16" add-on faucet with
backflow preventer.
Double pantry washdown hose with backflow preventer.
Double pantry pot filler and backflow preventer.
Steaming pan insert rack to hold 12" x 20" pan. (Qty. ___)
12" x 20" x 4" stainless steel drain waste pan with clear plastic
hose.
Stainless steel spreader (6")(12").
C.S.I. Section 11420
