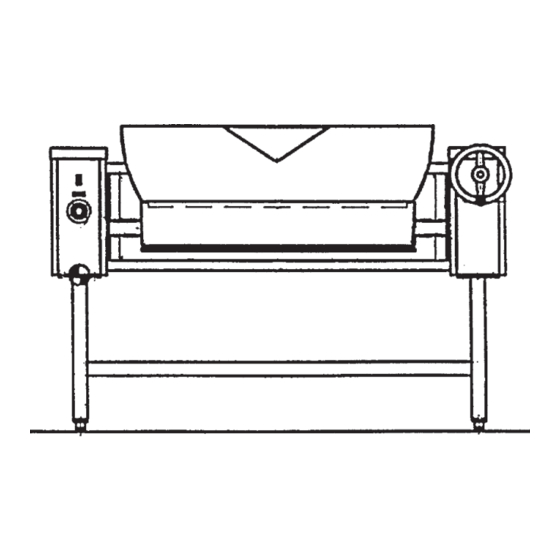

- Page 1 INSTALLATION & OPERATION MANUAL ROUND ELECTRIC TILTING SKILLET MODEL VETRS35 MODEL VETRS35 ML-114826 V U L C A N - H A R T C O M P A N Y , P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. (502) 778-2791 FORM 31036 (4-98)
-
Page 2: Table Of Contents
TROUBLESHOOTING ............. 8 — 2 — © VULCAN-HART COMPANY, 1998... -
Page 3: General
PLEASE KEEP THIS MANUAL FOR FUTURE USE GENERAL Your Vulcan-Hart Round Tilting Skillet is a versatile piece of equipment. It allows you to stew, simmer, pan fry, braise, grill, or saute, and all with a very uniform heat pattern. Capacity of Model VETRS35 is 35 gallons. -
Page 4: Installation Codes And Standards
INSTALLATION CODES AND STANDARDS The tilting skillet must be installed in accordance with: In the United States of America: 1. State and local codes. 2. National Electrical Code, ANSI/NFPA-70 (latest edition). Copies may be obtained from The National Fire Protection Association, Batterymarch Park, Quincy, MA 02269. In Canada: 1. -
Page 5: Service Connections
1. Remove the control box cover plate. Mount suitable 1 ⁄ " (43.6mm) conduit fitting in knockout opening. 2. Connect field wire to the terminal block as indicated on the wiring diagram. The wiring diagram is located inside the wiring compartment at the rear of the tilting skillet. Wire must be of the type suitable for 90°C service. -
Page 6: Operation
OPERATION WARNING: THE TILTING SKILLET AND ITS PARTS ARE HOT. USE CARE WHEN OPERATING, CLEANING OR SERVICING THE TILTING SKILLET. CONTROLS (Fig. 1) POWER SWITCH INDICATOR LIGHT THERMOSTAT PL-41025-1 Fig. 1 Thermostat — Maintains set temperature by controlling power supply. Power Switch —... -
Page 7: Cleaning
To prevent discoloration of stainless steel cooking surface, do not turn the heat on unless the skillet is covered with a fluid, a thin layer of cooking oil, or food to be cooked. 1. Tilt skillet to ensure that it moves easily. Turn handle as far as it will go and then return to upright position. -
Page 8: Maintenance
To obtain service and parts information concerning this tilting skillet, contact the Vulcan-Hart Service Agency in your area (refer to listing supplied with the skillet), or Vulcan-Hart Company Service Department at the address or phone number shown on the front cover of this manual.
