Summary of Contents for Rinnai Electric Fire Series

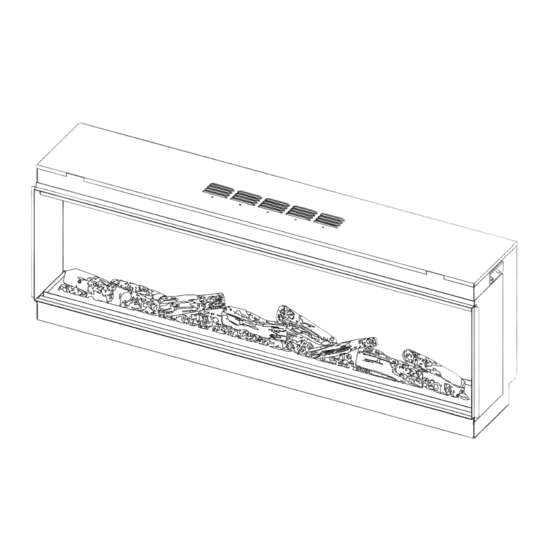

- Page 1 Models ES750 ES1500 ES1000 ES1800 ES1300 ES2200 Electric Fire Series Operation and Installation Guide...
- Page 2 For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland PO Box 53177, Auckland Airport, Auckland 2150...
-
Page 3: Table Of Contents
Contents Warnings and important information .....4 Operation ..............5 Remote control .............6 Cleaning and troubleshooting .......8 Installation Before starting ............9 Specification summary .........10 Appliance location ..........12 Cavity..............13 Installation ............14 Installation configurations ........15 Installation fixing options ........16 Finishing ...............17 Limited Warranty ..........18... -
Page 4: Warnings And Important Information
The cord and plug must not be modified. If the cord or plug are damaged, it must be replaced by genuine Rinnai replacement parts. The unit MUST NOT be located below an electric socket outlet. -
Page 5: Operation
Button pushed in indicates power is on, button pushed out indicates power is off. The electric fire app is called the TUYA SMART APP. This is a third party App not developed by Rinnai. For this APP to run, the home’s internet router must be running on 2.4 GHz. -
Page 6: Remote Control
Remote control The remote control must be left in the same room as the appliance as it houses the thermostat that regulates heat output Preset mode Plus button Standby Minus button Heater mode Flame speed Flame colour Sound effect Fuel bed colour Ambient lighting not available for NZ Timer mode Eco mode... - Page 7 Standby Fuel bed downlight • Turns on the appliance to the last used Repeatedly press to cycle through the fuel bed settings without any heat. downlight colour menu. While in the fuel bed downlight menu, press the + or - buttons to •...
-
Page 8: Cleaning And Troubleshooting
Use the information below to help determine if a service call is required. If you are unsure about the way your unit is operating, or if you have any other faults or problems, please refer to your installer or contact Rinnai (0800 746 624). Problem... -
Page 9: Installation
Installation Installation, servicing, repair, and removal shall be carried out only by authorised personnel. Before starting Unpack the appliance and components, and remove all transit packaging. Check for damage. DO NOT install any damaged items. If the mains power supply lead is damaged in any way, it MUST be replaced by a suitable equivalent approved by the manufacturer. -
Page 10: Specification Summary
Specification summary Electric flame effect fires with realistic flame pattern, operated by remote control. Six models to choose from. Suitable for indoor domestic applications only. Features • Realistic glowing fuel bed with burning embers • Easy to install • Three independently controlled lighting effects •... - Page 11 Dimensions Model Firebox width back - A Firebox total height - B Glass width - C ES750 780 mm 848 mm 750 mm ES1000 1030 mm 548 mm 1000 mm ES1300 1330 mm 548 mm 1300 mm ES1500 1530 mm 548 mm 1500 mm ES1800...
-
Page 12: Appliance Location
Appliance location The main considerations when positioning the unit are: • Ensuring all minimum clearance requirements as shown below are met • Allowing sufficient access for ease of operation, servicing, and removal of the appliance. Electrical Ensure the 3-pin plug is accessible and connected to a dedicated 230 V, 50 Hz, 10 A earthed power point supplied from mains electricity. -
Page 13: Cavity
Cavity Cavity dimensions (mm) Width Model Height Depth 1-sided 2-sided 3-sided ES750 ES1000 1036 1018 1000 ES1300 1336 1318 1300 ES1500 1536 1518 1500 ES1800 1836 1818 1800 ES2200 2236 2218 2200 ALWAYS measure the appliance on site before cutting the cavity To avoid heat loss and draft, block off space above the unit, ensuring 40 mm vertical clearance (A). -
Page 14: Installation
Installation Glass removal - accessing the parts To gain access to the various components required for installation follow the below steps to remove the glass panel on the front of the appliance. Suction Cup x 2 Removing the wall mounting bracket The wall mounting bracket is secured to the rear panel of the appliance. -
Page 15: Installation Configurations
Installation configurations The appliance can be installed in three configurations: • Front facing only - one glass panel • Corner - two glass panels • Three-sided - three glass panels Front facing The appliance will arrive in a singled-side (front only) aspect with the metal side panels already fitted. -
Page 16: Installation Fixing Options
Installation fixing options Rinnai does not accept any liability for any injuries or damages that may occur due to improper handling or installation. Ensure that the wall where the appliance is to be installed and any wall fixings used are sufficiently strong enough to hold the weight of the IMPORTANT appliance. -
Page 17: Finishing
Finishing Magnetic side decorative panels The appliance is supplied with two magnetic panels that can be fitted when installing in a two- sided, three-sided, or corner configuration. These panels are positioned against the side of the appliance, behind the side glass edge trim. Log and ember arrangement The logs can be arranged freely on the fire. -
Page 18: Limited Warranty
All terms of the warranty, subject to the conditions below, are effective from the date of first purchase from an authorised Rinnai dealer. Proof of purchase will be required at the time of any warranty claim. This warranty is only valid within the country of purchase. Any warranty claim must be made within a reasonable time of discovery of the potential fault or defect. - Page 19 7. Rinnai reserves the right to have installed product returned to the factory for inspection. 8. Where the fire is installed outside the metropolitan area or further than 40 km from a Rinnai authorised service centre, travel costs shall be the owner’s responsibility.
- Page 20 Rinnai.co.nz Tel: 0800 746 624 http://www.youtube.com/rinnainz http://facebook.com.rinnainz Rinnai Electric Fires operation & installation guide 17904-B...
