SS850 - Gas Fireplace
Operation Manual

Advertisement

Table of Contents
loading

Summary of Contents for Rinnai SS850ICLN

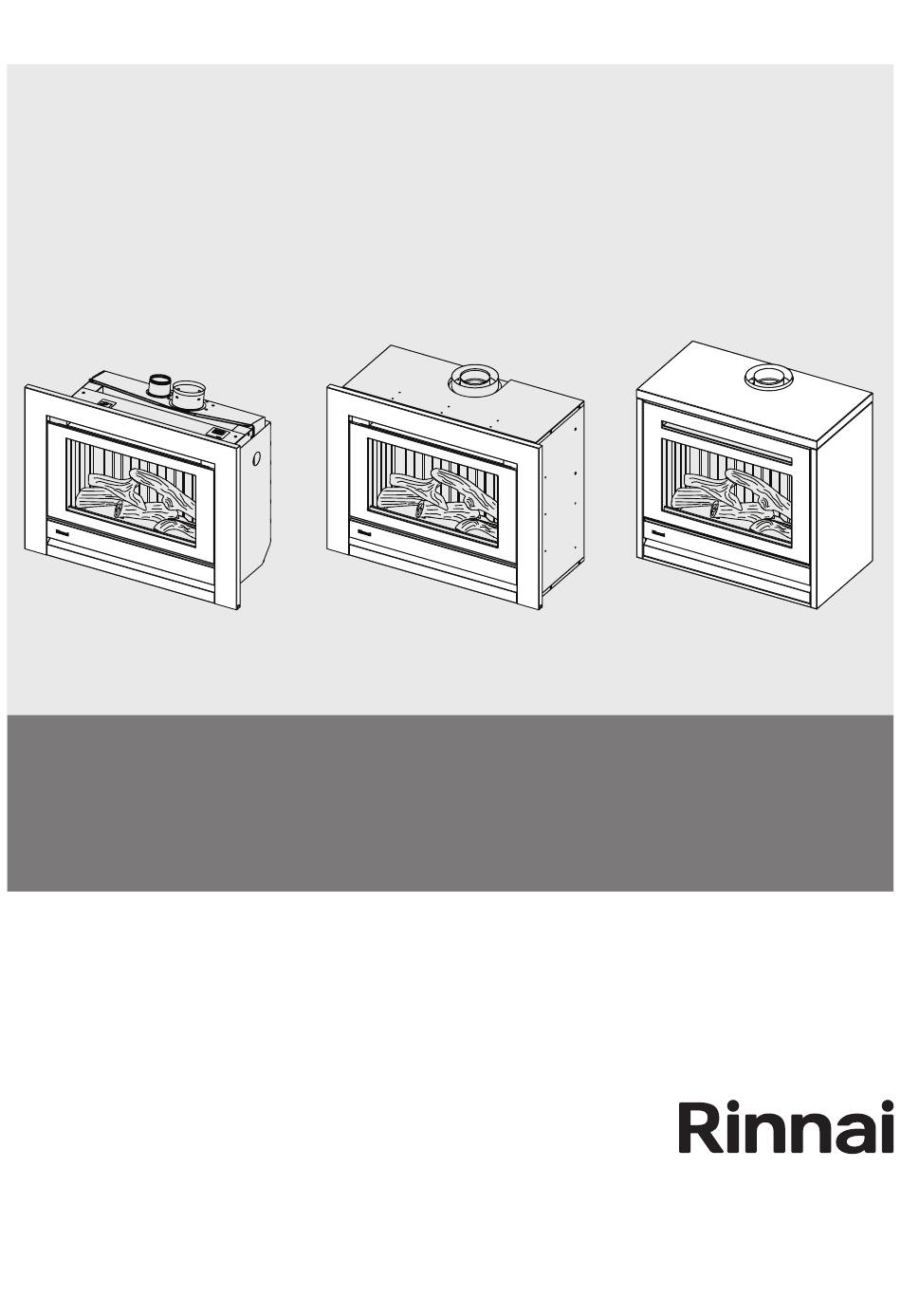

  • Page 1 MODELS: SS850 (SS850ICLN), (SS850ICLL) SS850 (SS850ICAN), (SS850ICAL) SS850 (SS850FCAN), (SS850FCAL) SS850 - Gas Fireplace Operation Manual...
  • Page 2 Congratulations on the purchase of your Rinnai SS850 Room-Sealed Gas Fire. We trust you will have many years of comfort and enjoyment from your appliance. BEFORE USING THIS APPLIANCE Before proceeding with the operation of this fire, read this manual thoroughly and gain a full IMPORTANT understanding of the appliance to ensure safe and correct use.
  • Page 3: Table Of Contents

    Operational Safety Warnings ���������������������������������������������������������������������������������������������������������������������������������������������� 6 Safety Devices ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 About Your Heater General Overview: Inbuilt Model SS850ICLN, SS850ICLL, SS850ICAN & SS850ICAL ������������������������������������������������� 8 General Overview: Freestanding Model SS850FCAN & SS850FCAL ����������������������������������������������������������������������������� 9 Control Panel Operation To Turn ON Your Heater ���������������������������������������������������������������������������������������������������������������������������������������������������� 10 To Turn OFF Your Heater ���������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Warnings & Important Information

    For safety and warranty purposes, appliances that may be damaged or incorrect must not be installed or operated under any circumstances. Installation of damaged or incorrect appliances may contravene local government regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the installation or operation of damaged or incorrect appliances.
  • Page 5: Modifications

    Flue terminal MUST always vent directly to outdoors. DO NOT extend the flue vertically or horizontally in ways other than prescribed in this appliance manufacturer’s installation instructions. ONLY the flue components specified by Rinnai MUST be used. When considering installation ensure minimum clearances are adhered to.
  • Page 6: Operational Safety Warnings

    When the heater is operated for the first time or after long periods of non use a slight odour may be emitted, this is normal. However if odours persist switch ‘OFF’ the appliance and contact Rinnai. Young children should be supervised at all times. Hand or body contact with the warm air discharge louvres and glass must be avoided.
  • Page 7: Safety Devices

    These devices within the appliance automatically cut of the gas supply to the burners in the event of a flame failure. Refer to the “CARE AND MAINTENANCE” pages; 12 through 15 for further information. Pressure Relief The glass panel is secured to the burner box via spring loaded pressure relief fasteners. Rinnai SS850 OM...
  • Page 8: About Your Heater

    ABOUT YOUR HEATER GENERAL OVERVIEW: INBUILT MODEL SS850ICLN, SS850ICLL, SS850ICAN & SS850ICAL Push button control panel Controls appliance operation between Standby and ON modes.  ON / OFF button Controls appliance operation between ON and OFF. Standby / ON button: See "Remote Control Operation"...
  • Page 9: General Overview: Freestanding Model Ss850Fcan & Ss850Fcal

    See "Remote Control Operation" on page 11. Flame Up / Down buttons: See "Remote Control Operation" on page 11. Room temperature display Displays the current temperature of the room in which the control is located. See "Remote Control Operation" on page 11. Rinnai SS850 OM...
  • Page 10: Control Panel Operation

    'Push Button Control Panel' as decribed above. The heater will automatically modulate between flame settings to maintain the default set temperature of 22°C. No additional control of the flame or heat output is possible via the appliance ON/OFF button. Rinnai SS850 OM...
  • Page 11: Remote Control Operation

    NOTE Refer to "Control Panel Operation" on page 10 for details on how to use the appliance in this mode and the limitations of this form of operation. Rinnai SS850 OM...
  • Page 12: Battery Safety

    Noting that 0X (OK) will briefly be shown on the digital display to confirm that the batteries have been successfully replaced. Remember to dispose of used button batteries immediately and safely. IMPORTANT Rinnai SS850 OM...
  • Page 13: Care & Maintenance

    Cloud function not available or the Wi-Fi module has gone offline. The appliance is fitted with an overheat safety shut-off switch. If the appliance shuts off repeatedly, servicing or inspection of the flue may be required. Contact Rinnai for advice. IMPORTANT Rinnai...
  • Page 14: Cleaning

    If ignition does not occur the unit will switch off automatically. Try operating the heater again. If this condition persists however, contact Rinnai for advice. The heater may make noises after ignition or switching off. This is due to thermal expansion and contraction of the internal components and is normal.
  • Page 15: Trouble Shooting Checklist

    If the power supply cord or any other component of the heater are damaged, they MUST BE replaced by Rinnai or a suitably qualified person. Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance.
  • Page 16: Abnormal Flame Pattern

    ABNORMAL FLAME PATTERN Each Rinnai Gas Fire has a distinct flame pattern. The flame should look the same every time you operate your heater, after an initial warm up period of approximately 15 minutes. Abnormal flame performance and/or pattern can indicate a problem with your heater, such as blocked gas injectors, incorrectly installed / inadequate flue system or the Ceramic logs / stones and/or burner media may have shifted from when the heater was first installed.
  • Page 17: Installation Record

    * This information will need to be copied from the data plate, located on the inside of the appliance. Ensure this Operation Manual is kept for future reference. IMPORTANT Ensure installer has instructed you on the correct use of this appliance and completes the Installation Checklist found on page 33 of the Installation Manual. IMPORTANT Rinnai SS850 OM...
  • Page 18 NOTES Rinnai SS850 OM...
  • Page 19 NOTES Rinnai SS850 OM...
  • Page 20: Contacts

    Tel: 1300 555 545* Fax: 1300 555 655 Monday to Friday, 8.00 am to 5.00 pm EST. *Cost of a local call may be higher from mobile phones. For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au innai has a Service and Spare Parts network with...
