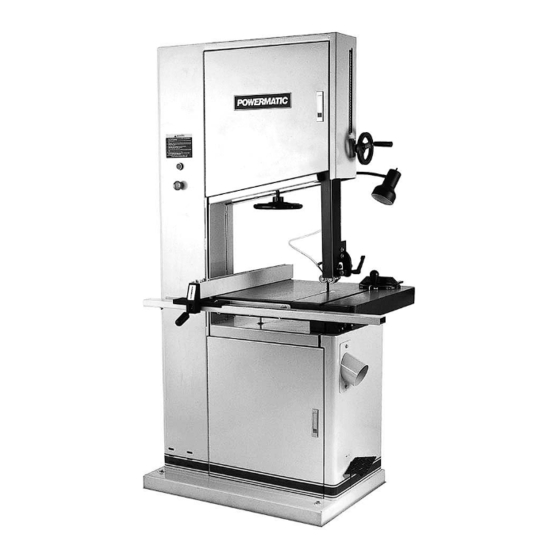

20”and 24” band saws
Hide thumbs Also See for 2415:
Table of Contents

Advertisement

Quick Links

Download this manual
This .pdf document is bookmarked
Operating Instructions and Parts Manual
20"and 24" Band Saws
Models 2013 and 2415
WALTER MEIER (Manufacturing), Inc.
427 New Sanford Rd.
LaVergne, TN 37086
Part No. M-1791257
Ph.: 800-274-6848
Revision D1 10/2011
www.powermatic.com
Copyright © 2011 Walter Meier (Manufacturing), Inc.

Advertisement

Table of Contents
loading

Related Manuals for Powermatic 2415

Summary of Contents for Powermatic 2415

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 20”and 24” Band Saws Models 2013 and 2415 WALTER MEIER (Manufacturing), Inc. 427 New Sanford Rd. LaVergne, TN 37086 Part No. M-1791257 Ph.: 800-274-6848 Revision D1 10/2011 www.powermatic.com Copyright © 2011 Walter Meier (Manufacturing), Inc.

  • Page 2: Warranty And Service

    This warranty covers only the initial purchaser of the product. WHAT IS THE PERIOD OF COVERAGE? The general POWERMATIC warranty lasts for the ti m e period specified in the product literature of each product. WHAT IS NOT COVERED? The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty.

  • Page 3: Table Of Contents

    Replacement Parts ..............................32 Parts List: Saw Body Assembly (2013 Band Saw) ....................33 Parts List: Saw Body Assembly (2415 Band Saw) ....................34 Saw Body Assembly (2013 and 2415) ........................35 Parts List: Table Assembly (2013 Band Saw) ...................... 36 Parts List: Table Assembly (2415 Band Saw) ......................
  • Page 4 Electrical Connections: 230 Volt, Single Phase – Model 2013 Band Saw ONLY ..........54 Electrical Connections: 230 Volt, Single Phase – Model 2415 Band Saw ONLY ..........55 Electrical Connections: 230 Volt, 3 Phase – Models 2013 and 2415 ..............56...

  • Page 5: Warning

    Warning 1. Read and understand the entire owner’s manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3.
  • Page 6 21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury. 22. Maintain a balanced stance at all times so that you do not fall or lean against the blade or other moving parts.

  • Page 7: Introduction

    Shipping Weight (lbs.) ............970............ 1190 * pre-wired 230 volt NOTE: For 460V operation, magnetic switch (part no. 2013-102B for model 2013; and part no. 2415-102B for model 2415) must be purchased separately and installed. A qualified electrician is recommended.

  • Page 8: Features And Terminology

    Features and Terminology (Model 2415 shown) Floor Diagrams...

  • Page 9: Unpacking

    Contents of the Shipping Container Unpacking Band Saw Open shipping container and check for shipping Miter Gauge damage. Report any damage immediately to Front Rail your distributor and shipping agent. Do not Rear Rail discard any shipping material until the Band Saw Guide Rail is set up and running properly.

  • Page 10: Assembly

    Assembly Tools required for assembly: Forklift or hoist with straps 10-12mm wrench (provided) 14mm wrench (NOTE: A socket wrench set may speed assembly time) Remove all crating and plastic from around the band saw. Remove any lag screws or holding straps which secure the band saw to the wood pallet.
  • Page 11 6. Attach the fence (D, Figure 2) to the fence body (E, Figure 2) with four 5/16 x 3/4 hex cap screws, four 5/16 lock washers, and four 5/16 flat washers. Hand tighten the screws only. 7. Place the fence assembly onto the guide rail and against the edge of the miter slot, as shown in Figure 2.

  • Page 12: Dust Collection

    14. Check the clearance between the table and the fence. The fence should not rub against the table surface but be slightly above it. This gap should be the same at the front of the table as it is at the rear. See Figure 4. 15.

  • Page 13: Extension Cords

    Extension cords Table 1 extension cord recommended for the 2013 or 2415 Band Saw. But if one is necessary, make sure the cord Recommended Gauges (AWG) of Extension Cords rating is suitable for the amperage listed on the Extension Cord Length * machine’s motor plate.

  • Page 14: Converting From 230 Volt To 460 Volt (Three Phase Only)

    2. Replace the current contactor with the 460V magnetic contactor (part no. 2013-102B for model 2013; part no. 2415-102B for model 2415; purchased separately). 3. Re-connect the motor leads according to the diagrams inside the motor junction box.

  • Page 15: Adjustments

    Adjustments Table Tilt 1. Loosen the lever (Figure 10). 2. Rotate the handwheel (Figure 10) clockwise to tilt table up to 45 degrees to the right, or counterclockwise to tilt the table up to 10 degrees to the left (as viewed from the operator’s position).

  • Page 16: Installing/Changing Blades

    Installing/Changing Blades Always wear gloves when handling blades. New blades are usually packaged in a coiled position; to prevent injury uncoil them slowly and carefully, while wearing gloves and safety glasses. 1. Disconnect machine from power source. 2. Decrease blade tension by rotating blade tension handwheel (A, Figure 14) according to the arrow direction in Figure 14, until the handwheel stops.

  • Page 17: Blade Tracking

    Changes in blade width and the type of material being cut will have an effect on blade tension. Keep in mind that too little or too much blade tension can cause blade breakage and/or poor cutting performance. TIP: When the band saw is not being used, slightly release the tension on the blade –...

  • Page 18: Upper Blade Guide Assembly

    Upper Blade Guide Assembly 1. Disconnect machine from power source. 2. Loosen lock knob (see B, Figure 14) and raise or lower upper blade guide assembly by turning the handwheel (C, Figure 14). 3. Position the blade guide assembly about 3/16”...

  • Page 19: Lower Blade Guides And Lower Support Bearing

    12. Adjust the support bearing until it lightly contacts the dollar bill. 13. When support bearing adjustment complete, remove dollar bill and tighten nut (E, Figure 19). Lower Blade Guides and Lower Support Bearing 1. Disconnect machine from power source. 2.

  • Page 20: Miter Gauge

    Miter Gauge A miter gauge is provided for crosscutting operations. Install the miter gauge by sliding the end of the miter gauge bar into the T-slot in the table, as shown in Figure 22. To adjust the angle of the miter gauge: 1.

  • Page 21: Belt Alignment

    Belt Alignment If the drive belt is not aligned properly, it can be aligned with one or more of the four set screws located behind the steel plate. Figure 25 shows two of the set screws. 1. Loosen the four hex nuts (A, Figure 23) 2.

  • Page 22: Brake Pedal

    Brake Pedal An alternate method of stopping the machine is to press the brake pedal, shown in Figure 29. The band saw will shut off when the brake pedal is pressed. The brake pedal is also useful for stopping the blade quickly, instead of waiting for the blade to coast slowly to a stop after the machine has been shut off.

  • Page 23: Ripping

    Ripping Ripping cutting lengthwise down workpiece, and with the grain (of wood stock). See Figure 31. Crosscutting Crosscutting is cutting across the grain of the workpiece, while using the miter gauge to feed the workpiece into the blade. Slide the bar of the miter gauge into the end of the slot on the table.

  • Page 24: Blade Selection

    If replacement of the blade is not currently an option, the blade lead can be compensated for by skewing the fence. Proceed as follows: 1. Cut a scrap piece of wood about the same length as the band saw table, and joint one edge along its length, or rip it on a table saw to give it a straight edge.

  • Page 25: Width

    Width Band saw blades come in different standard widths, measured from the back of the blade to the tip of the tooth. Generally, wider blades are used for ripping or making straight cuts, such as resawing. Narrower blades are often used when the part being cut has curves with small radii.

  • Page 26: Set

    The term “set” refers to the way in which the saw teeth are bent or positioned. Bending the teeth creates a kerf that is wider than the back of the blade. Set patterns are usually selected depending upon the type of material that needs to be cut. Three common set patterns are shown in Figure Generally, the Raker set is used for cutting metal workpieces;...

  • Page 27: Maintenance

    Unlike rubber tires for many older model blackboard eraser rubbed in vigorously once a band saws, the tires for the 2013 and 2415 week; this will fill casting pores and form a will not require trimming, equalizing, etc., nor moisture barrier.

  • Page 28: Blade Selection Guide

    Blade Selection Guide Identify the material and thickness of your workpiece. The chart will show the recommended PITCH, blade TYPE, and FEED RATE. Key: H – Hook L – Low S – Skip M – Medium R – Regular H – High Example: 10/H/M means 10 teeth per inch / Hook Type Blade / Medium Feed For Radius Cutting Study the part drawing or prototype, or actually...

  • Page 29: Troubleshooting - Operational Problems

    Troubleshooting – Operational Problems Trouble Probable Cause Remedy Table tilt does not Locking lever is not tight. Tighten locking lever (see page 15). hold position under Trunnion locking mechanism is load. Replace trunnion locking mechanism. broken or worn. Table will not tilt. Trunnion is not lubricated.
  • Page 30 Trouble Probable Cause Remedy Blade forms cracks at Blade sharpened incorrectly, Sharpen blade properly or replace. base of teeth. becomes overheated. (continued) Band wheels have become Contact service representative. misaligned. Cracks on back edge Reduce feed speed to lessen strain Workpiece being fed too quickly.

  • Page 31: Troubleshooting - Mechanical And Electrical Problems

    Troubleshooting – Mechanical and Electrical Problems Trouble Probable Cause Remedy Machine will not Verify machine is connected to power start/restart or source. Make sure START button is No incoming power. repeatedly trips pushed in completely, and the STOP circuit breaker or button is disengaged.

  • Page 32: Replacement Parts

    Replacement parts are listed on the following pages. To order parts or reach our service department, call 1-800-274-6848, Monday through Friday (see our website for business hours, www.powermatic.com). Having the Model Number and Serial Number of your machine available when you call will allow us to...

  • Page 33: Parts List: Saw Body Assembly (2013 Band Saw)

    Parts List: Saw Body Assembly (2013 Band Saw) Index No. Part No. Description Size 1 ....2013-101....Body ....................1 2 ....2013-102N ....Magnetic Switch ..........1Ph, 230V ....1 ....2013-102CSN..Contactor Switch for 1 Phase (not shown) ..........1 ....2013-102ORN ..Overload Relay for 1 Phase (not shown) ..........1 ....

  • Page 34: Parts List: Saw Body Assembly (2415 Band Saw)

    ....2415-102ORN ..Overload Relay for 1 Phase (not shown) ..........1 ....2415-102AN ....Magnetic Switch ..........3Ph, 230V ....1 ....2415-102ACSN ..Contactor Switch for 230V 3 Phase (not shown) ........1 ....2415-102AORN ..Overload Relay for 230V 3 Phase (not shown)........1 ....

  • Page 35: Saw Body Assembly (2013 And 2415)

    Saw Body Assembly (2013 and 2415)

  • Page 36: Parts List: Table Assembly (2013 Band Saw)

    Parts List: Table Assembly (2013 Band Saw) Index No. Part No. Description Size 1 ....2013-201....Carriage Bolt ............1/2”-12x9” ....1 2 ....6295149 ....Trunnion (Left Side) ................1 3 ....2013-203....Table Bracket ..................1 4 ....TS-0680041 ....Flat Washer............3/8” ......8 5 ....
  • Page 37 Index No. Part No. Description Size 53 .... 2013-253....Bushing....................1 54 .... TS-0051061 ....Hex Cap Screw ..........5/16”-18x1-1/4” ... 2 56 .... TS-0270051 ....Socket Set Screw ..........5/16”-18x1/2” ....1 57 .... TS-0270061 ....Socket Set Screw ..........5/16”-18x5/8” ....4 58 .... 6294841 ....Front Rail ................... 1 59 ....

  • Page 38: Parts List: Table Assembly (2415 Band Saw)

    Parts List: Table Assembly (2415 Band Saw) Index No. Part No. Description Size 1 ....2013-201....Carriage Bolt ............1/2-12x9”....1 2 ....6295149 ....Trunnion (Left Side) ................1 3 ....2013-203....Table Bracket ..................1 4 ....TS-0680041 ....Flat Washer............3/8” ......8 5 ....
  • Page 39 Index No. Part No. Description Size 53 .... 2013-253....Bushing....................1 54 .... TS-0051061 ....Hex Cap Screw ..........5/16”-18x1-1/4” ... 2 56 .... TS-0270051 ....Socket Set Screw ..........5/16”-18x1/2” ....1 57 .... TS-0270061 ....Socket Set Screw ..........5/16”-18x5/8” ....4 58 .... 6294841 ....Front Rail ................... 1 59 ....
  • Page 40 Table Assembly (2013 and 2415)

  • Page 41: Parts List: Upper Wheel Base Assembly (2013 Band Saw)

    Parts List: Upper Wheel Base Assembly (2013 Band Saw) Index No. Part No. Description Size 1 ....2013-301....Upper Wheel Shaft ....1 (for 2013, serial #05032013437 and higher) ....6295889 ....Upper Wheel Shaft (for 2013-1, serial #01062013080 to 05032013437) ...1 (for 2013-3, serial #01062013090 to 05032013437) 2 ....

  • Page 42: Parts List: Upper Wheel Base Assembly (2415 Band Saw)

    Parts List: Upper Wheel Base Assembly (2415 Band Saw) Index No. Part No. Description Size 1 ....2013-301....Upper Wheel Shaft ....1 (for 2415, serial #05022415369 and higher) ....6295889 ....Upper Wheel Shaft (for 2415-1, serial #01062415017 to 05022415368) ...1 (for 2415-3, serial #01062415011 to 05022415368) 2 ....

  • Page 43: Upper Wheel Base Assembly (2013 And 2415)

    Upper Wheel Base Assembly (2013 and 2415)

  • Page 44: Parts List: Lower Wheel Base Assembly (2013 Band Saw)

    Parts List: Lower Wheel Base Assembly (2013 Band Saw) Index No. Part No. Description Size 1 ....TS-0207061 ....Socket Head Cap Screw ........1/4”-20x1” ....1 2 ....TS-0680021 ....Flat Washer............1/4” ......5 3 ....6295238 ....Brake Pedal ..................1 4 ....6295239 ....Brake Bracket..................2 5 ....
  • Page 45 Index No. Part No. Description Size 52 .... TS-0561031 ....Hex Nut............3/8”-16 ....... 4 53 .... TS-0720071 ....Lock Washer ............1/4” ......4 54 .... TS-081C032 ....Screw ..............#10-24x1/2” ....4 55 .... TS-0720051 ....Lock Washer ............#10 ......4 56 .... TS-069204 ....Flat Washer............#10 ......4 57 ....

  • Page 46: Parts List: Lower Wheel Base Assembly (2415 Band Saw)

    Parts List: Lower Wheel Base Assembly (2415 Band Saw) Index No. Part No. Description Size 1 ....TS-0207061 ....Socket Head Cap Screw ........1/4”-20x1” ....1 2 ....TS-0680021 ....Flat Washer............1/4” ......5 3 ....6294819 ....Brake Pedal ..................1 4 ....6295239 ....Brake Bracket..................2 5 ....
  • Page 47 Index No. Part No. Description Size 52 .... TS-0561031 ....Hex Nut............3/8”-16 ....... 4 53 .... TS-0720071 ....Lock Washer ............1/4” ......4 54 .... TS-081C032 ....Screw ..............#10-24x1/2” ....4 55 .... TS-0720051 ....Lock Washer ............#10 ......4 56 .... TS-069204 ....Flat Washer............#10 ......4 57 ....

  • Page 48: Lower Wheel Base Assembly (2013 And 2415)

    Lower Wheel Base Assembly (2013 and 2415)

  • Page 49: Parts List: Guide Bracket Assembly (2013 Band Saw)

    Parts List: Guide Bracket Assembly (2013 Band Saw) Index No. Part No. Description Size 1 ....6295275 ....Guide Bar Case Bracket..............1 2 ....6295276 ....Cover ....................1 3 ....TS-0081031 ....Hex Cap Screw ..........5/16”-18x3/4” ....4 4 ....TS-0050011 ....Hex Cap Screw ..........1/4”-20x1/2”....1 5 ....
  • Page 50 Index No. Part No. Description Size 55 .... 6295322 ....C-Ring .............E-5 ......1 56 .... 6295323 ....Air Nozzle ..................1 57 .... 6295324 ....Hose Clamp ..................1 58 .... TS-081C022 ....Screw ..............#10-24x3/8” ....1 59 .... 6295325 ....Bracket ....................1 60 ....

  • Page 51: Parts List: Guide Bracket Assembly (2415 Band Saw)

    Parts List: Guide Bracket Assembly (2415 Band Saw) Index No. Part No. Description Size 1 ....6295275 ....Guide Bar Case Bracket..............1 2 ....6295276 ....Cover ....................1 3 ....TS-0081031 ....Hex Cap Screw ..........5/16”-18x3/4” ....4 4 ....TS-0050011 ....Hex Cap Screw ..........1/4”-20x1/2”....1 5 ....
  • Page 52 Index No. Part No. Description Size 55 .... 6295322 ....C-Ring .............E-5 ......1 56 .... 6295323 ....Air Nozzle ..................1 57 .... 6295324 ....Hose Clamp ..................1 58 .... TS-081C022 ....Screw ..............#10-24x3/8” ....1 59 .... 6295325 ....Bracket ....................1 60 ....

  • Page 53: Guide Bracket Assembly (2013 And 2415)

    Guide Bracket Assembly (2013 and 2415)

  • Page 54: Electrical Connections: 230 Volt, Single Phase - Model 2013 Band Saw Only

    Electrical Connections: 230 Volt, Single Phase – Model 2013 Band Saw ONLY Magnetic Switch 500MFD 125VAC 30uF 300VAC Motor 2013 Band Saw ONLY...

  • Page 55: Electrical Connections: 230 Volt, Single Phase - Model 2415 Band Saw Only

    Electrical Connections: 230 Volt, Single Phase – Model 2415 Band Saw ONLY Magnetic Switch 500MFD 125VAC 40uF 250VAC Motor 2415 Band Saw ONLY...

  • Page 56: Electrical Connections: 230 Volt, 3 Phase - Models 2013 And 2415

    Electrical Connections: 230 Volt, 3 Phase – Models 2013 and 2415 Magnetic Switch Motor...

  • Page 57: Electrical Connections: 460 Volt, 3 Phase - Models 2013 And 2415

    Electrical Connections: 460 Volt, 3 Phase – Models 2013 and 2415 Magnetic Switch Motor...
  • Page 58 NOTES...
  • Page 59 NOTES...
  • Page 60 Walter Meier (Manufacturing), Inc. 427 New Sanford Rd. LaVergne, TN 37086 Phone: 800-274-6848 www.powermatic.com www.waltermeier.com...

This manual is also suitable for:

2013Pm2013bt1791257bt
