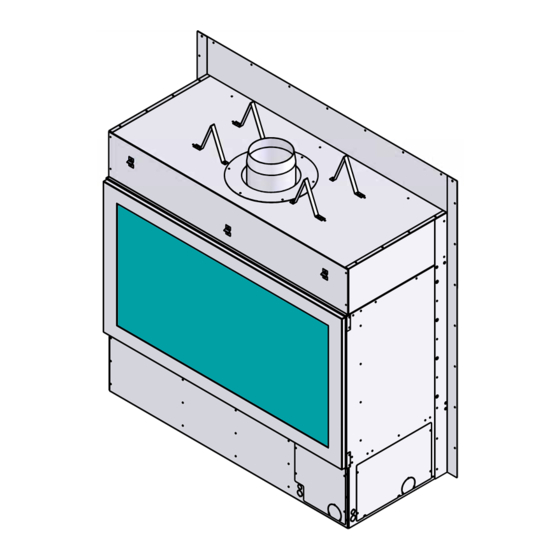

Heat & Glo STELLAR 3-IDOD-24-G Manual

Custom fireplace program
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
stellar.heatnglo.com
Custom Fireplace Program
Co-linear Powervented
Direct Vent Gas Fireplaces
THE TRANSCEND COLLECTION
Indoor/Outdoor See Through
Installation and Operating Manual
NG & Propane
WARNING: If the information in these instructions are not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
—
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas supplier.
DANGER
NEVER ALLOW CHILDREN
Stellar by Heat&Glo, a division of Hearth & Home Technologies
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
TO TOUCH GLASS.
INTERIOR
INTERIOR
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
®
- 22160 Cedar Avenue, Suite 200 - Lakeville, MN 55044
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Heat & Glo STELLAR 3-IDOD-24-G

Summary of Contents for Heat & Glo STELLAR 3-IDOD-24-G

  • Page 1 stellar.heatnglo.com Custom Fireplace Program Co-linear Powervented Direct Vent Gas Fireplaces THE TRANSCEND COLLECTION Indoor/Outdoor See Through Installation and Operating Manual NG & Propane INTERIOR INTERIOR Installer: Leave this manual with the appliance. Consumer: Retain this manual for future reference. WARNING: If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
  • Page 2 Read this manual before installing or operating this appliance. Please retain this owner’s manual for future reference. Congratulations on selecting a As the owner of a new fireplace, you’ll want to read Stellar by Heat & Glo gas fireplace. and carefully follow all of the instructions contained in this owner’s manual. You've selected a model within the Transcend Collection that is crafted to elevate even the most unique spaces.
  • Page 3 UL RATING PLATE LOCATION & MODEL NUMBER IDENTIFICATION The rating plate is used for multiple sizes, and custom fireplaces. The generic nomenclature listed on the rating plate will not identically match the model of Transcent fireplace you have. The rating plate must stay with the fireplace is and located below the burner in an area that will only be reachable while servicing. MODEL NUMBER IDENTIFICATION Viewing Width Of The Fireplace (Feet) Viewing Height Of Fireplace (Inches)

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section Description Page Section Description Page Introduction & Homeowners Reference Venting Continued 29-44 H. Wall Pass Through Table Of Contents I. Pitot Tube Information J. Vertical Terminations Guidelines Safety Information K. Horizontal Terminations Guidelines A. Safety Icon Designations L.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Section Description Page Finalizing The Installation A. Installing The Glass Media B. Flame Appearance Maintenance A. Vent System B. Glass Cleaning & Replacement Replacement Parts 64-67 A. Replacement Parts B. Glass Size & Specifications C. Horizontal & Vertical Glass Trim Pieces 66-67 Service &...

  • Page 6: Safety Information

    1 - SAFETY INFORMATION This fireplace complies with ANSI Z21.50-2019/CSA 2.22-2019 “VENTED GAS FIREPLACE” and with ANSI Z21.97-2017/CSA 2.41-2017 “Outdoor Decorative Gas Appliances”. This vented gas fireplace is not for use with air filters. Installation must conform with local build- ing codes or in the absence of local building codes, with the National Fuel Gas Code, ANSIZ223.1/NFPA 54 - Current Edition, or the Natural or Propane installation Code, CSAB149.1" A. SAFETY ICON DESIGNATIONS Various safety icons appear throughout this installation manual. Please familiarize yourself with the icons making sure you understand the serious consequences that may occur if ignored or of handling the products inappropriately. IMPORTANT NOTE HOT GLASS WARNING This indicates additional instructions that you should consider...

  • Page 7: Commonwealth Of Massachusetts Requirements

    2 - COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS NOTE: THE FOLLOWING REQUIREMENTS REFERENCE VARIOUS MASSACHUSETTS AND NATIONAL CODES NOT CONTAINED IN THIS MANUAL. For all sidewall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purpos- es, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied: INSTALLATION OF CARBON MONOXIDE DETECTORS...

  • Page 8: Specifications

    3 - SPECIFICATIONS A.1 IDOD SEE THROUGH DIMENSIONS - INTERIOR INTERIOR FRONT VIEW 24" 12 11/16" INTERIOR EXTERIOR [381] [305] TOP VIEW Finishing Overall Edge To Center Depth Overall B-VENT Model # Finishing Width Finishing Height Firebox Top Height FLUE Height Height Flue Fireplace Width...
  • Page 9 3 - SPECIFICATIONS A.2 IDOD SEE THROUGH DIMENSIONS - EXTERIOR OVERALL DEPTH WITH DECORATIVE EXTERIOR FRONT VIEW FRAMES 25 19/32 [650] [25] 3 [76] 7 13/32 [188] 4’ Model Show In Example Viewing Glass Frame Viewing Glass Frame Glass Frame Outer Flange Model # Area Height With OD...
  • Page 10 3 - SPECIFICATIONS A.3 IDOD SEE THROUGH DIMENSIONS 22 15/16" BACK OF FLASHING 24" 12 11/16" DETAIL A DETAIL B SCALE 1 : 2 80.0° 1 11/16" DETAIL C SCALE 1 : 4 EXTERIOR Outside Air Vents Page 10 INS_CUST...
  • Page 11 3 - SPECIFICATIONS B. GAS & ELECTRIC ACCESS LOCATIONS - All Sizes 24" 12 11/16" INTERIOR EXTERIOR INTERIOR 7/8" PILOT ELECTRICAL KNOCK OUTS 1 3/32" ELECTRICAL KNOCK OUTS PILOT SIDE 3" GAS KNOCK OUT 1 11/16" 1 1/2" 1 1/2" 1 19/32" 1 11/16"...

  • Page 12: Installation Overview

    3 - SPECIFICATIONS C. SPECIFICATIONS Propane Model # DESCRIPTION B-VENT REG PV IN-LINE PV BTU’S ORIFICE ORIFICE ANY HEIGHT 8" RS12 RSIF160 40,000 (2X) #43 (2X) #55 ANY HEIGHT 8” RS12 RSIF160 60,000 (3X) #43 (3X) #55 ANY HEIGHT 8” RS12 RSIF160 80,000 (4X) #43 (4X) #55...
  • Page 13 3 - SPECIFICATIONS F. CLEARANCES 1” [25] Required; Figure 3F CLEARANCES SHOWN ARE MINIMUM TO COMBUSTIBLES 24” [609] recommended for ease of glass installation and any future service NON-COMBUSTIBLE FRAMING AND FINISHING MATERIALS 1” ALLOWED RIGHT UP TO THE FIREPLACE. 1” [25] [25] 6”...

  • Page 14: Prepare The Fireplace

    4 - PREPARE THE FIREPLACE CAUTION: FIREPLACE IS NOT LOAD-BEARING. NOTE: OTHER CLEARANCES APPLY. ALL CLEARANCES MUST BE MAINTAINED. A. STANDOFF INSTALLATION LOOSEN SCREW LOOSEN SCREW AND FOLD EACH AND FOLD EACH STANDOFF STANDOFF LOOSENED SCREW REMOVE REMOVE SECOND SCREW SECOND SCREW PIVOT FOLDED STANDOFF AND SECURE Figure 4A.2 Figure 4A.1...

  • Page 15: Important Framing Notes

    5 - FRAMING & MANTEL REQUIREMENTS NOTE: Framing dimensions should allow for wall covering thickness and fireplace facing materials. When using a hearth, adjust rough opening size as necessary to maintain at least minimum clearance requirements. CAUTION: Install fireplace on metal, concrete or hard wood surface extending the full width and depth of fireplace. CAUTION: Vent cap location must be in compliance with guidelines in Section 8 (Venting) of this manual. If masonry is to be used (optional), prepare the necessary foundation for the masonry load. When masonry construction is being used, a lintel must be used over top of fireplace to support the added weight. Build hearth to desired size and height. If a hearth extension is desired, combustible material may be used.
  • Page 16 5 - FRAMING & MANTEL REQUIREMENTS Interior Exterior Refer to Section 5 (Non-combustible Zone) for more Firebox Overall Framing INCHES [MM] information on the 1/2" [13] clearance standoffs. Framing Framing Height Height Top Height Width Width X - WALL SHEATHING THICKNESS Y = WALL FRAMING THICKNESS 42-1/2 44-17/32 44-17/32 Z = INTERIOR SHEATHING PLUS FINISH THICKNESS 3-IDOD-24-G [1,068] [1,295]...
  • Page 17 5 - FRAMING & MANTEL REQUIREMENTS IMPORTANT FRAMING NOTE: INTERIOR FRAMING IS RECOMMENDED TO BE DONE AFTER THE FIREPLACE IS INSTALLED FOR GREATER ACCURACY. The black steel 3” [76] surface all around the fireplace opening can not be covered with any type of material. Glass and decorative framing will be placed on top. 1 [25] *** 1 [25] *** INTERIOR...
  • Page 18 5 - FRAMING & MANTEL REQUIREMENTS 5.1 EXTENDED FRAMING EXAMPLE - 2X6 CONSTRUCTION WITH OSB SHEATHING SHEET ROCK INTERIOR HOUSE WRAP FOLDED ON TOP OF ITSELF. HOUSE WRAP COMBUSTIBLE FRAMING EXTERIOR 6" 8" FLASHING TAPE FLASHING TAPE: Make a waterproof pan out of sill tape flashing much like a patio door installation. Page 18 INS_CUST...
  • Page 19 5 - FRAMING & MANTEL REQUIREMENTS 5.2 EXENDED FINISHING EXAMPLE SHEETROCK Minneral wool only Minneral wool 6" 1" 1" INTERIOR EXTERIOR INTERIOR SECTION A-A HOUSE WRAP FOLD DOWN OVER FLASHING Water tight Nail unit with 1" nails to OSB EXTERIOR 6" to 8" Flashing tape After taping the top of the flashing to the OSB, unfold the housewrap over the flashing. Trim the house wrap so only 1-2"...
  • Page 20 5 - FRAMING & MANTEL REQUIREMENTS 5.3 NON-COMBUSTIBLE ZONE - USING THE PROVIDED 1/2" STANDOFFS The fireplace has standoffs installed on the front of the fireplace standard from the factory. They are located on the upper left, center and right front of the fireplace and are to ensure that the 1/2" [12.7mm] required clearance to combustibles on the surface of the fireplace is maintained.
  • Page 21 5 - FRAMING & MANTEL REQUIREMENTS 5.3 NON-COMBUSTIBLE ZONE - USING THE PROVIDED 1/2" STANDOFFS THIS EXAMPLE OF FRAMING AND FINISHING IS FOR REFERENCE. PLEASE MAKE SURE TO MAKE CONSIDERATIONS FOR THE FRAMING AND FINISHING MATERIALS THAT YOU ARE USING FOR YOUR PARTICULAR INSTALLATION. Interior shown, mantel and framing example applies to both interior and exterior sides for an IDOD fireplace Notes About TV Placement: A mantel is not required if you are COMBUSTIBLE OR NON-COMBUSTIBLE...
  • Page 22 5 - FRAMING & MANTEL REQUIREMENTS 5.4 NON-COMBUSTIBLE ZONE - NOT USING THE PROVIDED 1/2" STANDOFFS The fireplace has standoffs installed on the front of the fireplace standard from the factory. They are located on the left, center and right front hood of the fireplace and are to ensure that the 1/2" [12.7mm] required clearance to combustibles on the surface of the fireplace is maintained.
  • Page 23 5 - FRAMING & MANTEL REQUIREMENTS 5.4 NON-COMBUSTIBLE ZONE - NOT USING THE PROVIDED 1/2" STANDOFFS THIS EXAMPLE OF FRAMING AND FINISHING IS FOR REFERENCE. PLEASE MAKE SURE TO MAKE CONSIDERATIONS FOR THE FRAMING AND FINISHING MATERIALS THAT YOU ARE USING FOR YOUR PARTICULAR INSTALLATION. Interior shown, mantel and framing example applies to both interior and exterior sides for an IDOD fireplace Notes About TV Placement: A mantel is not required if you are COMBUSTIBLE FRAMING...

  • Page 24: Glass Frame Assembly

    6 - GLASS FRAME ASSEMBLY A. INNER GLASS FRAME ASSEMBLY IDENTIFICATION & INSTALLATION Inner Glass Installation Unwrap the panes of glass carefully making sure to protect the edges. Apply the suction cups to the inner glass assembly, following instructions included with the suction cups. Lift the glass into place.
  • Page 25 6 - GLASS FRAME ASSEMBLY B. GLASS TRIM PIECES - BOTH INTERIOR AND EXTERIOR Horizontal Trim Right Vertical Trim Left Figure 6B.3 Vertical Trim Align Holes Figure 6B.1 Figure 6B.2 After setting the inner glass pieces in place (Figure 6A), put the left and right vertical trim filler pieces into place: the left and right vertical trim will sit on the lower support and the front side with the pre-drilled holes will go outside the fireplace lip, and the holes will align with the holes on the fireplace face.
  • Page 26 6 - GLASS ASSEMBLY & DECORATIVE FRAME ASSEMBLY D. INTERIOR DECORATIVE GLASS FRAME Figure 6D.1 The interior side glass trim now simply sits in front of the interior outer glass assembly and is held on by the round magnets. Figure 6D.2 The interior side fully installed.
  • Page 27 6 - GLASS ASSEMBLY & DECORATIVE FRAME ASSEMBLY E. EXTERIOR OUTER GLASS ASSEMBLY - NO MAGNETS If you haven't already done so, install the exterior inner glass, and the exterior left, right and horizontal trim pieces. Refer to Pages 20-21. Figure 6E.1 The exterior outer glass frame assembly will have bolt holes around the perimeter.

  • Page 28: Gas Line Specifications & Connection

    7 - GAS LINE SPECIFICATIONS This fireplace is manufactured for use with Natural Gas or Propane. CAUTION: Installation of the gas line must only be done by a qualified person in accordance with local building codes, if any. If not, follow ANSI 223.1. NOTE: The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at pressures in excess of ½ psi. NOTE: The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas line at test pressures equal to or less than ½ psi (3.5 kPa). NOTE: For high altitude installations, consult Stellar Hearth Products directly for proper rating methods. GAS LINE CONNECTION Propane 11.0 inches W.C. 7.0 inches W.C. MINIMUM INLET GAS PRESSURE (recommended) (recommended) MAXIMUM INLET GAS PRESSURE 14.0 inches W.C. 10.0 inches W.C. MANIFOLD PRESSURE (HI) 10.0 inches W.C. 3.5 inches W.C.

  • Page 29: Venting

    8 - VENTING CAUTION: Consult the local and national installation codes to assure adequate combustion and ventilation air is available. NOTE: Flame height and appearance will vary depending upon venting configuration and type of fuel used. Venting requirements apply to both Natural and Propane gas. STOP: MAINTAIN ALL CLEARANCES AS STATED IN THIS INSTALLATION MANUAL. Figure 7 A. APPROVED VENTING B.1 SYSTEM SUPPLY VOLTAGE OUTSIDE B-VENT AMPS STANDARD POWERVENT MODEL NUMBER IN-LINE Model # DESCRIPTION Ø POWERVENT POWERVENT Ø RS12 (3', 4', & 5' Models) ANY HEIGHT 8"...

  • Page 30: Rs Series Powervent Specifications

    8 - VENTING C. RS SERIES POWERVENT SPECIFICATIONS Available Power Venting A power vent (RS12 & RS14) is approved for use with this appliance. It is crucial that all B-Vent pipe and elbow joints, and the longitudinal seam are sealed using a high temperature RTV Silicone and/or foil tape. MODEL RS12 RS14...

  • Page 31: Rsif Series Powervent Specifications

    8 - VENTING E. RSIF SERIES POWERVENT SPECIFICATIONS Available In-Line Power Venting An in-line power vent (RSIF series from Enervex) is approved for use with Stellar fireplaces. Vent runs after the in-line powervent may use a pressure approved pipe, but it is not required. If you use B-Vent after an in-line powervent it is crucial that all pipe and elbow joints, and the longitudinal seam are sealed using an high heat approved mastic or foil tape.
  • Page 32 Page 32 INS_CUST...

  • Page 33: In-Line Powervent Preparations- Rsif 180

    8 - VENTING F. IN-LINE POWERVENT PREPARATIONS- RSIF 180 Perform the following steps when installing the RSIF180 on 6', 7' & 8' models. Attach the provided 10 inch B-Vent collar to the intake side of the powervent. The intake side is located opposite the fan motor as shown in Figure 8F.1.

  • Page 34: Horizontal Vent System Clearance

    8 - VENTING G. HORIZONTAL VENT SYSTEM CLEARANCES ALL APPROVED VENTING BOTTOM SIDES HORIZONTAL 1 [25] 1 [25] 1 [25] inches [mm] H. WALL PASS-THROUGH - Follow all local codes for requirement of firestops. 8 - VENTING I. PITOT TUBE INFORMATION Figure 8I There is a 1/4" pitot tube mounted in the center of the flue collar and is connected to the pressure switch.

  • Page 35: Vertical Terminations Guidelines

    8 - VENTING J.VERTICAL TERMINATION GUIDELINES • The fireplace must terminate with the included approved powered termination cap. NO SUBSTITUTION IS ACCEPTABLE. • • Carefully follow the instructions included with the approved powered termination cap. • DO NOT use an additional speed control on this powervent. • You must use the included Capacitor. K. HORIZONTAL TERMINATION VENT CAP LOCATION & CLEARANCE This gas appliance must not be connected to a chimney serving any other appliance. • DO NOT RECESS TERMINATION KIT INTO OUTSIDE BUILDING MATERIALS - i.e.: brick, stone, siding, etc. If necessary, extend framing so that termination kit will be exposed once building materials are installed.
  • Page 36 8 - VENTING L. HORIZONTAL TERMINATION VENT CAP LOCATION & CLEARANCES Inside Corner Outside Corner Recessed Location A = Combustible 24” (609.6mm) F = Combustible 6” (152mm) = Non-combustible 12” (304.8mm) = Non-combustible 6” (152mm) Balcony Balcony with perpendicular side wall with no side wall C = Clearance from corner in recessed location = Combustible 24”...
  • Page 37 8 - VENTING M. HORIZONTAL POWERVENT AND AIR-INTAKE PLACEMENT CLEARANCES Not Applicable For The IDOD See Through Model Page 37 16400-7820 REV D...
  • Page 38 8 - VENTING N. VERTICAL VENT CAP LOCATION AND CLEARANCES ROOF PITCH H (Min.) Ft. H (Min.) M. FLAT TO 6/12 1.0* 0.30 OVER 6/12 TO 7/12 1.25* 0.38 OVER 7/12 TO 8/12 1.5* 0.46 OVER 8/12 TO 9/12 2.0* 0.61 OVER 9/12 TO 10/12 2.5* 0.76 OVER 10/12 TO 11/12 3.25* 0.99 OVER 11/12 TO 12/12 1.22...
  • Page 39 8 - VENTING P. VERTICAL -CLEARANCES -RSIF160-180 O. VERTICAL -CLEARANCES - RS12/14/16 Figure 8O Figure 8P Page 39 16400-7820 REV D...
  • Page 40 8 - VENTING Q. WALL TERMINATION - WITH AND WITHOUT DAMPER Wall Termination Without Optional Mechanical Damper FRAMING: 8" = 11-3/4 [298] W X 11-3/4 [298] H 10" = 13-1/4 [337] W X 13-1/4 [337] H Drill 1/4” holes to match powervent base Insulation Pad Must be cut in center to accommodate vent size...
  • Page 41 8 - VENTING R. ROOF TERMINATION CAP INSTALLATION - WITH AND WITHOUT DAMPER Roof Termination Without Optional Mechanical Damper Powervent Mounting Brackets or drill mounting holes to match base Insulation Pad Must be cut in center to accommodate vent size Steel chimney adapter Figure 8R.1 Roof Termination With...
  • Page 42 8 - VENTING S. CHASE TOP CAP INSTALLATION - WITH AND WITHOUT DAMPER Roof Termination Without Optional Mechanical Damper Powervent Insulation Pad Must be cut in center to accommodate vent size Steel Chimney Adapter Bend inner flanges up to slide inside the chimney collar plate.

  • Page 43: Chimney Shroud Types & Specifications

    8 - VENTING T. CHIMNEY SHROUD TYPES AND SPECIFICATIONS NON-COMBUSTIBLE CONSTRUCTION ONLY ALLOWED TOP CLOSED 50% OPEN IN TOP 3 [76] OF SHROUD TOP MUST BE OPEN MUST BE REMOVABLE FOR SERVICE 6 [152] 6 [152] 6 [152] 6 [152] Figure 8T.1 Figure 8T.2 &...

  • Page 44: Outside Air-Intake

    8- OUTSIDE AIR U. OUTSIDE AIR Figure 8T Air intake vents are located on the exterior face of the fireplace. Must not be obstructed by finishing materials. If a hearth is used, it has to be placed below the air intake vents. You must properly flash and slope the hearth so water drains away from the wall. The vents must be kept clean from obstruction.
  • Page 45 9- VENTING OPTIONS OPTIONAL UNIVERSAL EXHAUST IN AIR-INTAKE LOUVER MODEL UNITS LOUVER-8 3', 4' & 5' Exhaust Only LOUVER-10 6', 7' & 8' Exhaust Only • This kit is an optional method of terminating the exhaust for the appliance. • Exhaust terminations must be installed with an inline powervent. •...
  • Page 46 10 - ELECTRIC For Tethered Control Panel Refer To Section 10 (D, E.1 & E.2) A. ELECTRICAL INSTALLATION OVERVIEW POWERVENT ENERVEX RS09- RS16 WHIP INCLUDED POWERVENT CAP INSULATION PAD CUT HOLE IN PAD EQUAL TO OR GREATER THAN THE FLUE DIAMETER ADAPTER PLATE FLUE PIPE WHIP...
  • Page 47 10 - ELECTRIC B.1. ELECTRICAL WIRING SCHEMATIC - TROUBLESHOOTING NOTE: The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, Part 1, CSA C22.1. Figure 10 B.1 Page 47 16400-7820 REV D...
  • Page 48 10 - ELECTRIC B.2 ELECTRICAL WIRING SCHEMATIC - FIELD WIRE THE FIREPLACE TO A 15 AMP MIN DEDICATED CIRCUT. SEE TERMINALS #5 & #6. Powervent Voltage Chart Supply Voltage Chart (N/L1) To light the replace: Activate the switch. The replace has a pre and post timer, set at the factory for 30 seconds. The powervent will start after the switch is activated.

  • Page 49: Junction Box & Capacitor

    10 - ELECTRIC B.3 JUNCTION BOX & CAPACITOR C.1 TERMINALS 1 & 2 - LED LIGHTING DO NOT DISCARD TERMINAL 1 & 2: LED LIGHTING JUNCTION BOX - CAPACITOR INSIDE HAS 120VAC POWER TO SUPPLY A SWITCH, RELAY, TIMER, TERMINAL #2 REMOTE, ETC. TERMINAL #1 RETURNS 120VAC POWER TO ACTIVATE THE LED DRIVER.
  • Page 50 10 - ELECTRIC C.2 TERMINALS 3 & 4 - MAIN FLAME TERMINAL 3 & 4 : MAIN FLAME TERMINAL #4 TERMINAL #4 HAS 120VAC POWER TO SUPPLY A SWITCH, RELAY, TIMER, REMOTE, ETC. TERMINAL #3 RETURNS 120VAC POWER TO ACTIVATE TO MAIN FLAMES. TERMINAL #3 IF USING STANDARD ROMEX, CONNECT BLACK TO TERMINAL #4 AND WHITE TO TERMINAL #3. SINCE 120 VOLTS WILL TRAVEL ON WHITE, MARK THE WHITE WIRE ACCORDING TO CODE.
  • Page 51 10 - ELECTRIC C.2 - TERMINALS 5 & 6 C. 4 - TERMINALS 7 & 8 FIREPLACE POWER POWERVENT MOTOR TERMINAL 5 & 6: FIREPLACE POWER TERMINAL 7 & 8: POWERVENT CONNECTION POWERVENT POWER MUST COME FROM THE TERMINAL BLOCK AND GROUND - LOCATE THE GREEN WIRE CLUSTER NOT ANY OTHER POWER SOURCE. CONNECT THE GREEN WIRE TAIL TO BUILDING GROUND IS THE HOT CONNECTION FOR THE POWERVENT MOTOR FROM TERMINAL #8...

  • Page 52: Terminals 9 & 10: Flue Damper Connection

    10 - ELECTRIC C.5 - TERMINALS 9 & 10 C. 6 - TERMINALS 11 & 12 FLUE DAMPER CONNECTION FLUE DAMPER PROVE TERMINALS 11 & 12: FLUE DAMPER PROVE TERMINALS 9 & 10: FLUE DAMPER CONNECTION THIS IS LOW VOLTAGE AND EXTERNAL POWER MUST NOT BE APPLIED THIS IS LOW VOLTAGE AND EXTERNAL POWER MUST NOT BE APPLIED S THE NEUTRAL CONNECTION FOR THE DAMPER MOTOR.

  • Page 53: Tethered Control Panel Installation Overview

    10 - ELECTRIC For Standard Electric Installation Refer To Seciton 10 (A - C.6) D. TETHERED CONTROL PANEL INSTALLATION OVERVIEW POWERVENT ENERVEX RS09- RS16 WHIP INCLUDED POWERVENT CAP INSULATION PAD CUT HOLE IN PAD EQUAL TO OR GREATER THAN THE FLUE DIAMETER ADAPTER PLATE FLUE PIPE WHIP...
  • Page 54 10 - ELECTRIC E.1 ELECTRICAL WIRING SCHEMATIC - FIELD WIRING WIRE THE FIREPLACE TO A 15 AMP MIN DEDICATED CIRCUT. SEE TERMINALS #5 & #6. Powervent Supply Shown With Enervex RS Series Powervent Voltage Chart Voltage Chart (N/L1) and Optional Flue Damper RS12 RS12 RS14...
  • Page 55 10 - ELECTRIC E.2 ELECTRICAL WIRING SCHEMATIC - TROUBLESHOOTING SYSTEM: TB1B111SYS FIREPLACE FLUE PRESSURE SWITCH CONTROLLER INTAKE DAMPER PURPLE PURPLE BLACK ORANGE BLUE YELLOW PURPLE YELLOW GAS VALVE BLUE 12VDC BLACK SPEED CONTROL TIMER RELAY WHITE PURPLE OPTIONAL FLUE DAMPER PROVE BLUE ORANGE OPTIONAL FLUE DAMPER PROVE...

  • Page 56: Finishing

    11 - FINISHING A.1 FINISHING THE WALL - USING THE PROVIDED 1/2" STANDOFFS NOTE: REFER TO DIMENSIONS SECTION FOR ALLOWABLE FINISHING DIMENSIONS REQUIRED TO FIT THE GLASS PANELS INTO THE FIREPLACE. FINISHING MATERIALS MUST NOT OVERLAP THE DIMENSIONS HIGHLIGHTED IN GREEN FOUND ON THE DIMENSIONS SCHEMATICS IN SECTION 3 - SPECIFICATIONS. NEVER COVER THE GLASS WITH FINISHING MATERIALS.
  • Page 57 11 - FINISHING C - COMBUSTIBLE OR NON-COMBUSTIBLE FINISHING MATERIAL 1" [25] E - COMBUSTIBLE MANTEL 1/2" STAND OFF I - DECORATIVE FRAME DO NOT OVERLAP WITH INTERIOR F - COMBUSTIBLE HEARTH FINISHING MATERIALS H - COMBUSTIBLE FRAMING AND FINSIHING MATERIAL G (IN) - ACCESS PANEL D - NON-COMBUSTIBLE BOARD OR COMBUSTIBLE C - COMBUSTIBLE OR NON-COMBUSTIBLE...
  • Page 58 11 - FINISHING B.1 FINISHING THE WALL - NOT USING THE PROVIDED 1/2" STANDOFFS NOTE: REFER TO DIMENSIONS SECTION FOR ALLOWABLE FINISHING DIMENSIONS REQUIRED TO FIT THE GLASS PANELS INTO THE FIREPLACE. FINISHING MATERIALS MUST NOT OVERLAP THE DIMENSIONS HIGHLIGHTED IN GREEN FOUND ON THE DIMENSIONS SCHEMATICS IN SECTION 3 - SPECIFICATIONS. NEVER COVER THE GLASS WITH FINISHING MATERIALS.
  • Page 59 11 - FINISHING C - COMBUSTIBLE OR NON-COMBUSTIBLE B - NON-COMBUSTIBLE BOARD FINISHING MATERIAL 1" [25] 1" [25] 1" [25] 1" [25] 1" [25] E - COMBUSTIBLE MANTEL I - DECORATIVE FRAME INTERIOR DO NOT OVERLAP WITH F - COMBUSTIBLE HEARTH FINISHING MATERIALS H - COMBUSTIBLE FRAMING AND FINSIHING MATERIAL...

  • Page 60: Lighting & Shutdown

    12 - LIGHTING & SHUTDOWN FOR YOUR SAFETY - READ BEFORE LIGHTING STOP: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. UE TO HIGH SURFACE TEMPERATURES, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air. It is important to make sure the termination cap remains unobstructed at all times from snow, ice, leaves or other debris. •...

  • Page 61: If The Fireplace Does Not Light

    12 - LIGHTING & SHUTDOWN STOP! Read safety information on previous page and front cover of this manual before continuing. NOTE: This fireplace is equipped with an ignition device which automatically lights the pilot. DO NOT try to light the pilot by hand. B. IF THE FIREPLACE DOES NOT LIGHT Turn off the fireplace at switch. Turn off all electrical power to fireplace. Wait five (5) minutes to allow any gas that may have accumulated inside firebox to escape.

  • Page 62: Inlet Pressure Testing

    13 - PRESSURE TESTING NOTE: The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at pressures in excess of ½ psi. NOTE: The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas line at test pressures equal to or less than ½ psi (3.5 kPa). INLET PRESSURE TEST The valve has an Allen-plug on the inlet and outlet. Install a barb fitting on the tap you want to measure. Light the fireplace, check the pressure. Turn off fireplace; reinstall plug. Check for leaks.

  • Page 63: Maintenance

    15 - MAINTENANCE The appliance is required to be inspected at least once a year by a professional service person. The compartment below firebox (behind lower access panel) must be cleaned at least once a year, more frequent cleaning may be required due to excessive lint from carpeting, bedding materials, or other fibrous materials. It is imperative that the burner be cleaned once a year. VALVE AND ELECTRICAL ACCESS There is an access panel under the floor of the firebox should more extensive service be needed. Remove the inner and outer glass panels. Remove the glass media on the end with the pilot. The end floor lifts out; remove the screws and lift it out. If the LED’s are mounted on a “U” shaped steel bracket, loosen the bracket and flip the LED’s over the burner. There is a panel covering the valve area. Remove the screws and lift the panel up and out to expose the valve area. NOTE: INSTALLATION AND REPAIR SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND ANNUALLY BY A QUALIFIED SERVICE PERSON.

  • Page 64: Replacement Parts

    16 - REPLACEMENT PARTS LIST A. REPLACEMENT PARTS LIST PART PART NUMBER PART PART NUMBER Gas Valve - 3’ - 7’ Units SV9501 Natural Gas to Propane Gas Conversion Kit - NG2LP All Sizes Gas Valve - 8’ Units SV9601 Propane Gas to Natural Gas Conversion Kit - Pilot Assembly 112-5000...
  • Page 65 16- REPLACEMENT PARTS B. INNER GLASS SIZE AND SPECIFICATIONS NOTE: IN CASE OF CHIPPED OR BROKEN GLASS INNER GLASS: Due to the size and sensitivity of shipping the glass separately, it is best to have the replacement glass cut locally if needed using the specifications listed here or have your local dealer assist you with contacting Stellar by Heat&Glo directly for more information. OUTER GLASS: Due to outer glass being placed into frames, have your local dealer assist you with contacting Stellar by Heat&Glo directly for more information. 1/4 [6.35] SPECIFICATIONS: 1/4" Tempered Glass • • Polished Edges A. Inner Glass Height The outer glass has the glass protectors. If need replaced, • contact Stellar for the needed replacement parts. Model A - HEIGHT Height 24"...
  • Page 66 16- REPLACEMENT PARTS C. GLASS TRIM PIECES IDENTIFICATION EXTERIOR PILOT INTERIOR PILOT Page 66 INS_CUST...
  • Page 67 16 - REPLACEMENT PARTS LIST C. REPLACEMENT PARTS LIST D = Vertical Trim Pieces A = Horizontal Trim Pieces Between Glass Between Glass MODEL = Refer to Figure 15C Part # Part # 3IDOD-24GL SRV20200-1935 SRV20199-1845 3IDOD-36GL SRV20200-1955 SRV20199-1845 4IDOD-24GL SRV20200-1935 SRV20200-1845 4IDOD-36GL SRV20200-1955 SRV20200-1845 5IDOD-24GL SRV20200-1935 SRV20201-1845...
  • Page 68 Page 68 INS_CUST...
  • Page 69 17 - SERVICE & MAINTENANCE HISTORY Service & Maintenance History Provided By Date: Description of Service Name Page 69 16400-7820 REV D...
  • Page 70 Page 70 INS_CUST...
  • Page 71 Page 71 16400-7820 REV D...
  • Page 72 Subordinate New Brand 3 in 1 LED Controller ( 2.4G ) Instruc�on Manual Contents Product features ..................2 Set up output mode ................3 Compa�ble with remote ................ 3 2.4G RF remote control instruc�on ............ 4-7 ..............4 Link / Unlink Instruc�ons ...........

  • Page 73: Product Features

    Product features Made by new 2.4GHz wireless transmi�ng technology with low power consump�on, strong ability to build network automa�cally and an�-interference. with MiBoxer 2.4GHz gateway to get wireless dimming color, remote control, �ming control, group control, music rhythm func�on. Support 2.4G RF remote control. 16 Millions of colors to choose Color temperature adjustable Dim brightness / Satura�on...

  • Page 74: Set Up Output Mode

    Set up output mode Set up correct output mode based on the feature of lights Se�ng method: Press "SET" bu�on con�nuously to switch output mode (a�en�on: it will log out without opera�on within 3 seconds) Output mode sheet ( confirm output mode based on color of indicator) Indicator color Red Light Green Light...

  • Page 75: G Rf Remote Control Instruc�On

    2.4G RF Remote control instruc�on 1). Linking Code Instruc�ons Power Light Power Light Link / Unlink bu�on Power off 10 seconds and Short press " I " bu�on Lights blink 3 �mes power on again or short 3 �mes within 3 seconds. slowly means linking press "SET"...

  • Page 76: Auto Transmi�Ng & Synchroniza�On

    3). Auto transmi�ng & Synchroniza�on (only for remote control) Remote signal auto transmi�ng One light can transmit the signals from the remote control to another light within 30m, as long as there is a light within 30m, the remote control distance can be limitless.
  • Page 77 Dynamic mode table 2 (need to switch manually) Number Dynamic Mode Brightness / Satura�on / Speed Seven colors gradual change White light Gradual change RGB gradual change Seven colors jump to change Jump to change randomly Adjustable Red light gradual change +Flash 3 �mes Green light gradual change +Flash 3 �mes...

  • Page 78: Do Not Disturb" Mode Is Ac�Vated And Shut Down

    6). “Do Not Disturb” mode is ac�vated and shut down (default ac�vated) Turn on “Do Not Disturb” mode (wide using in the area which have power failure frequently to save energy) 2.4G RF Remote turn on and turn off instruc�on Turn on “Do Not Disturb”...

  • Page 79: Dmx512 Led Transmi�Er Control Instruc�On

    DMX512 LED Transmi�er Control (Purchased separately) Only for RGB+CCT output mode Limitless Zone DMX512 Transmi�er Zone Limitless Connect DMX512 LED Transmi�er Link/Unlink Follow instruc�on of DMX512 transmi�er (FUTD01), Choose the zone for the light by pressing “ + ” or “ - ” (e.g. “CH12” means zone 12) Link/Unlink bu�on Power Power...

  • Page 80: A�En�On

    A�en�on 1. Please turn off power supply before installa�on. 2. Please ensure input voltage to be same as requirements from device. 3. Don’t disassemble device if you are not expert, otherwise it will damage it. 4. Please do not use the light in the place with widely range metal area or strong electromagne�c wave nearby, otherwise, the remote distance will be seriously affected.
  • Page 81 Hearth & Home Technologies LLC LIMITED LIFETIME WARRANTY Hearth & Home Technologies LLC (“HHT”) extends the following warranty for HHT gas, wood, pellet and electric hearth appliances (each a “Product” and collectively, the “Product(s)”) and certain component parts set forth in the table below (“Component Part(s)”) that are purchased from a HHT authorized dealer or distributor.
  • Page 82 WARRANTY CONDITIONS: • Because HHT cannot control the quality of any Products sold by unauthorized sellers, this Warranty only covers Products that are purchased through an HHT authorized dealer or distributor unless otherwise prohibited by law; a list of HHT authorized dealers is available on the HHT branded websites.
