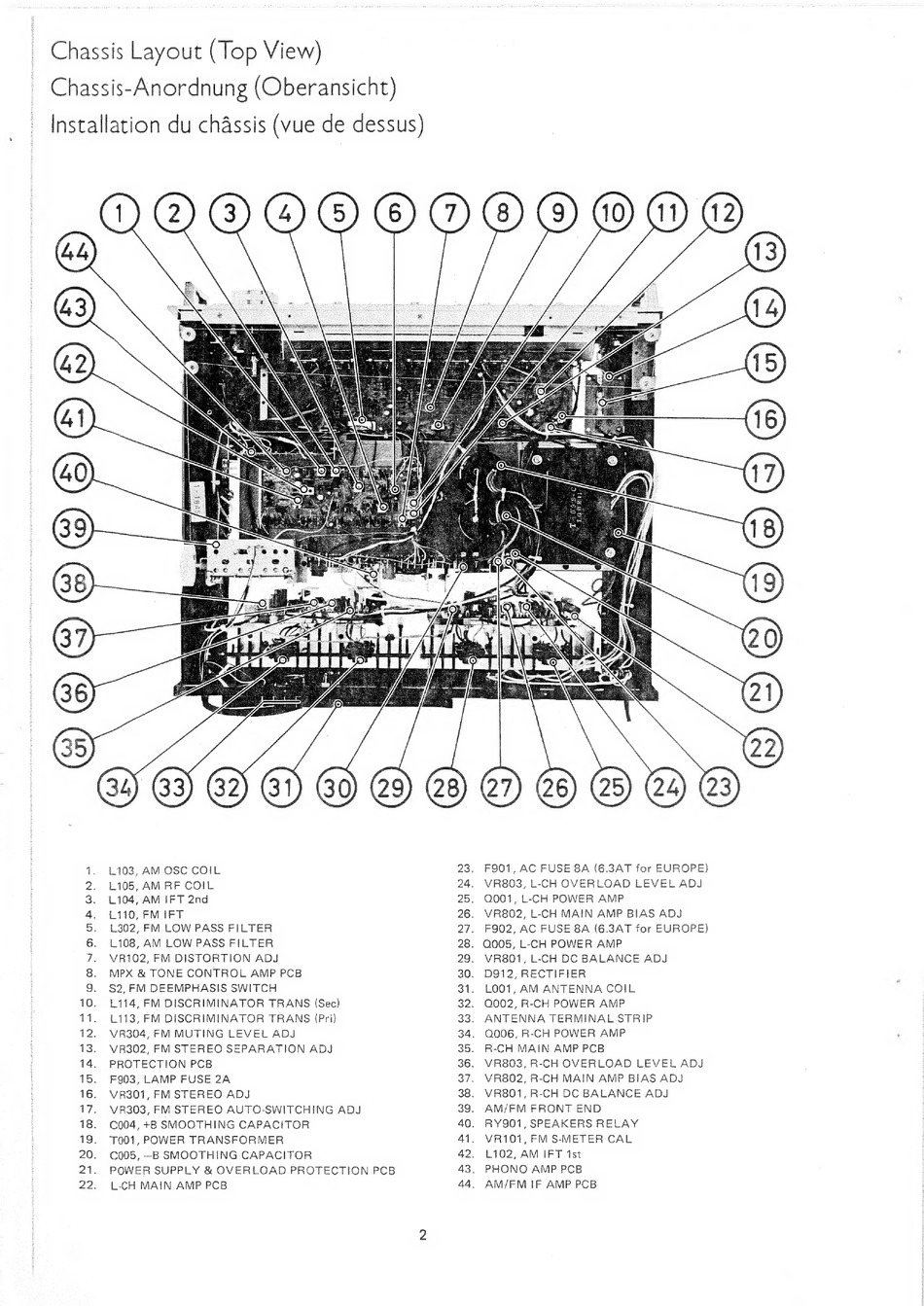

Chassis Layout (Top View)
Chassis-Anordnung (Oberansicht)
Installation du chassis (vue de dessus)
1.
1103, AM OSC COIL
23. F901, AC FUSE 8A (6.3AT for EUROPE)
2.
1105, AMRF COIL
24. VR803, L-CH OVERLOAD LEVEL ADJ
3.
1104, AM IFT 2nd
25, Q001, L-CH POWER AMP
4.
L110, FM IFT
26. VR802, L-CH MAIN AMP BIAS ADJ
5.
1302, FM LOW PASS FILTER
27. F902, AC FUSE 8A (6.3AT for EUROPE)
6.
£108, AM LOW PASS FILTER
28. Q005, L-CH POWER AMP
7.
R102, FM DISTORTION ADJ
29. VR801, L-CH DC BALANCE ADJ
8.
MPX & TONE CONTROL AMP PCB
30. D912, RECTIFIER
9. S2, FM DEEMPHASIS SWITCH
31. LOO1, AM ANTENNA COIL
10.
L114, FM DISCRIMINATOR TRANS (Sec)
32. Q002, R-CH POWER AMP
11.
L113, FM DISCRIMINATOR TRANS (Pri)
33. ANTENNA TERMINAL STRIP
12.
VR304, FM MUTING LEVEL ADJ
34. Q006, R-CH POWER AMP
13.
VR302, FM STEREO SEPARATION ADJ
35. R-CH MAIN AMP PCB
14.
PROTECTION PCB
36. VR803, R-CH OVERLOAD LEVEL ADJ
15.
F903, LAMP FUSE 2A
37. VR802, R-CH
MAIN AMP BIAS ADJ
16.
VR301, FM STEREO ADJ
38. VR801,R-CH DC BALANCE ADJ
17.
VR303, FM STEREO AUTO-SWITCHING ADJ
39. AM/EM FRONT END
18.
C004, +B SMOOTHING CAPACITOR
40.
RY901, SPEAKERS RELAY
19.
1001, POWER TRANSFORMER
41. VR101, FM S-METER CAL
20.
C005, -B SMOOTHING CAPACITOR
42.
L102, AM IFT 1st
21.
POWER SUPPLY & OVERLOAD PROTECTION PCB
43. PHONO AMP PCB
22.
L-CH MAIN AMP PCB
44. AM/EM IF AMP PCB
