1 Introduction

The DEV-RF002 is a combination Wi-Fi / BLE SMART communication module.
Below is a summary of the DEV-RF002 feature set:

Texas instruments CC2650 SimpleLink™ Multi-standard wireless MCU (configured for BLE Smart).
- Dedicated CJTAG programming header.
- Dedicated Taiyo Yuden AH316M245001 chip antenna.

Texas instruments CC3100 SimpleLink™ Wi-Fi® and Internet-of-Things solution for MCU applications.
- Dedicated 8Mbit SPI configuration flash.
- Dedicated Taiyo Yuden AH316M245001 chip antenna.

Two 46 pin, 2.56mm pin headers (Beagle Bone Black compatible).

RF switch footprint (future use).

Beagle Bone Black configuration switch and serial flash footprint.
The RF002 is compatible with Arrow's MAX10 DECA board and the Beagle Bone Black via two 46 pin headers. The
diagrams below provide the pin definitions for the P1 & P2 headers.

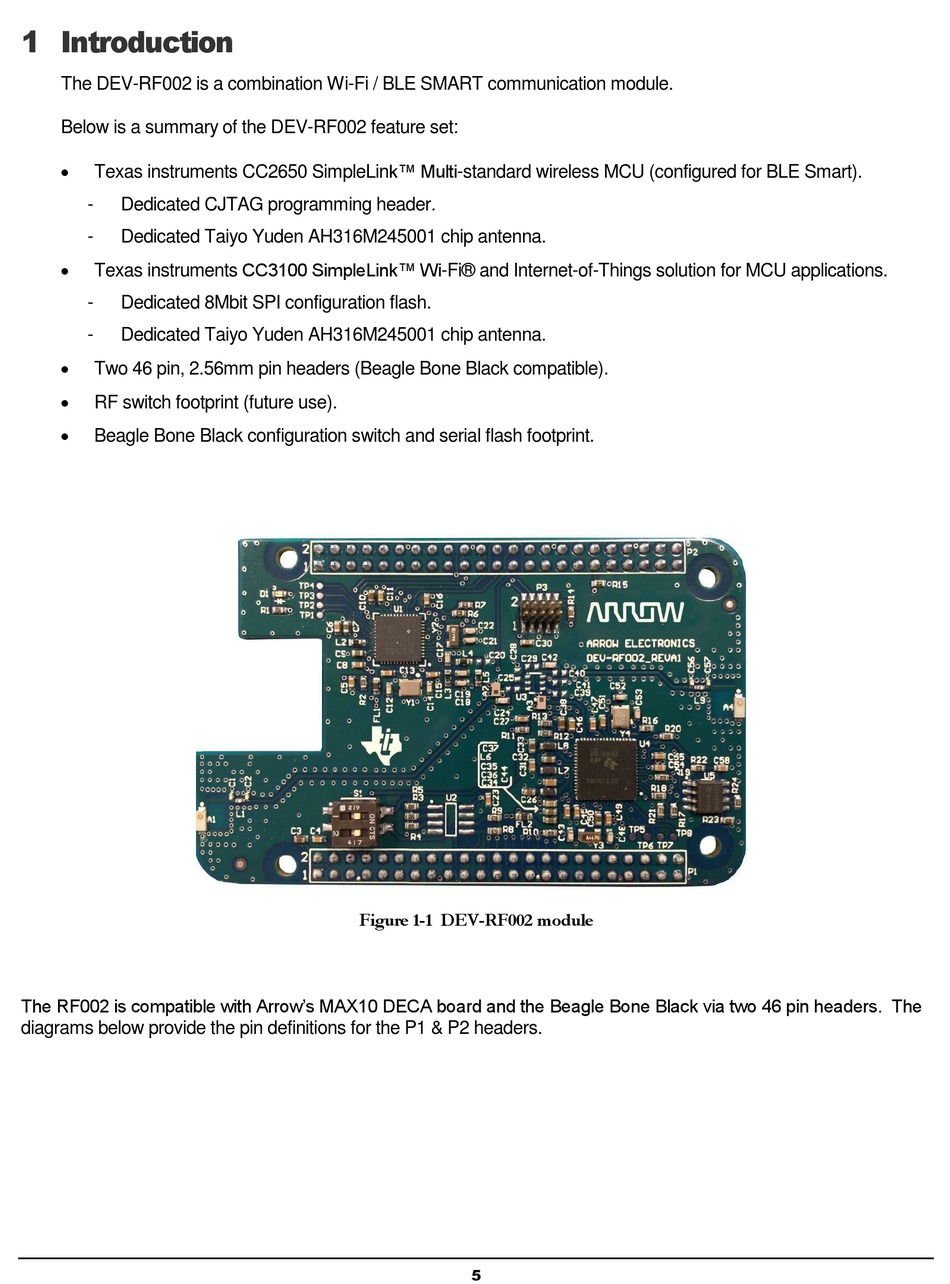

Figure 1-1 DEV-RF002 module
